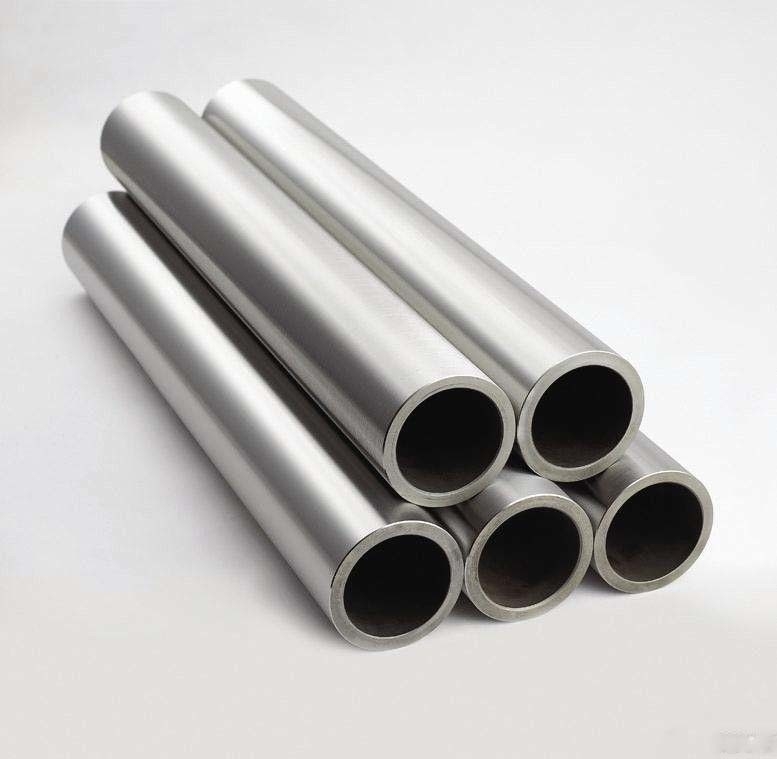

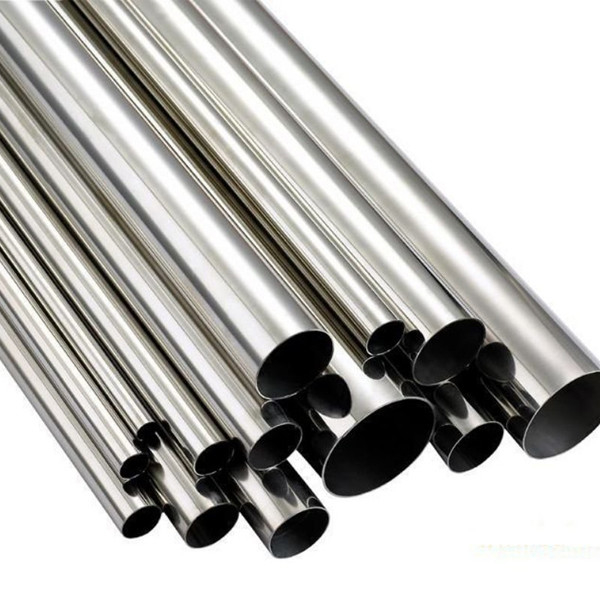

Cheap Price Inconel 601 Tube/Pipe With Standard B163

Place of Origin	China/Japan/Germany
Brand Name	TOBO/TPCO/TISCO/VALIN/METAL
Certification	ISO/PED/TUV/SGS/LR/BV
Model Number	1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity	0.5-1 tons
Price	negotiable
Packaging Details	in plastic bags then in bundles
Delivery Time	15days->
Payment Terms	T/T, L/C, Western Union,
Supply Ability	7500 tons per year

Product Details

Standard	DIN, ANSI, ISO, GB, JIS	Sample	Provided,Free,Available Free Within 7days
Application	Fluid Pipe,Structure Pipe	Outer Diameter	6-813mm
Surface	Annealed & Pickled, Bright Annealing, Polished	Thickness	0.5-100mm
Material	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Types	Seamless
Highlight	Pickled Inconel 601 Bar , B163 Seamless Stainless Steel Tubing , Alloy Steel Inconel 601 Bar

Leave a Message

Product Description

Cheap price inconel 601 tube/pipe with standard B163

Overview

Quick Details

Place of Origin:: China

Type:: Nickel Bar

Application:: Spring

Grade:: Nickel

Ni (Min):: 55

Resistance (μΩ.m):: stable

Powder Or Not:: Not Powder

Ultimate Strength (≥ MPa):: 650

Elongation (≥ %):: 30

Model Number:: Inconel 601

Surface treatment:: Bright

Melting Point:: 1320-1370℃

Is powder or not:: Not Power

Certificate:: ISO9001,SGS

Shape:: Wrie,sheet, pipe,bar

Technique:: Cold Treatment

Standard:: ASTM

Manufacturing process:: Solution Treatment

Product name:: Cheap price inconel 601 tube/pipe with standard B163

Packaging & Delivery

Selling Units:: Single item

Single package size:: 12X12X12 cm

Single gross weight:: 2.000 kg

Package Type:

inconel pipe/tube packed with waterproof paper or weave bag, into pallets or wooden case.
Special packaging requirements can also be accommodated.
OEM is also acceptable.

Product Description

Cheap price inconel 601 tube/pipe with standard B163

Fetures:Inconel alloy has good resistance to corrosion and high temperature, and has high strength and good fabricability. It resist chloride-ion-incurred stress corrosion cracking, sulfur compounds and oxidizing conditions at high temperatures.

SPECIFICATIONS
Form	ASTM
Rod,bar and wire	B 166
Plate,sheet and strip	B 168, B 906
Seamless pipe and tube	B 167, B 829
Welded pipe	B 517, B775
Fitting	B 366
Billet and bar for reforging	B 472
Forging	B 564

Item	600	601	617	625	690	718	X750	825
C	≤0.15	≤0.1	0.05-0.15	≤0.08	≤0.05	≤0.08	≤0.08	≤0.05
Mn	≤1	≤1.5	≤0.5	≤0.35	≤0.5	≤0.35	≤1	≤1
Fe	6-10	rest	≤3	rest	7-11	rest	5-9	≥22
P	≤0.015	≤0.02	≤0.015	--	--	--	--	--
S	≤0.015	≤0.015	≤0.015	≤0.015	≤0.015	≤0.01	≤0.01	≤0.03
Si	≤0.5	≤0.5	≤0.5	≤0.35	≤0.5	≤0.35	≤0.5	≤0.5
Cu	≤0.5	≤1	--	≤0.3	≤0.5	≤0.3	≤0.5	1.5-3
Ni	≥72	58-63	≥44.5	50-55	≥58	50-55	≥70	38-46
Co	--	--	10-15	≤10	--	≤1	≤1	--
Al	--	1-1.7	0.8-1.5	≤0.8	--	0.2-0.8	0.4-1	≤0.2
Ti	--	--	≤0.6	≤1.15	--	--	2.25-2.75	0.6-1.2
Cr	14-17	21-25	20-24	17-21	27-31	17-21	14-17	19.5-23.5
Nb+Ta	--	--	--	4.75-5.5	--	4.75-5.5	0.7-1.2	--
Mo	--	--	8-10	2.8-3.3	--	2.8-3.3	--	2.5-3.5
B	--	--	≤0.006	--	--	--	--	--

Application filed

1.The tray,basket and tool clamp in the heat treatment factory.
2.Steel shares at annealing and radiation control, high-speed gas burners, Industrial furnace silk screen.
3.Separate tank of ammonia reforming and catalytic support grid of nitric acid producing.
4.Exhaust system parts
5.Solid waste incinerator's combustion chamber
6.Channel support and soot dealing parts.
7.Detoxification exhaust system components
8.Oxygen re-heater

Hot Sale Products

FeCrAl Series

High Temperature alloy series

Hastelloy Bar

Nickel Silver/Nickel Brass

Solder Wire

.

NiCr Series

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
