Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600

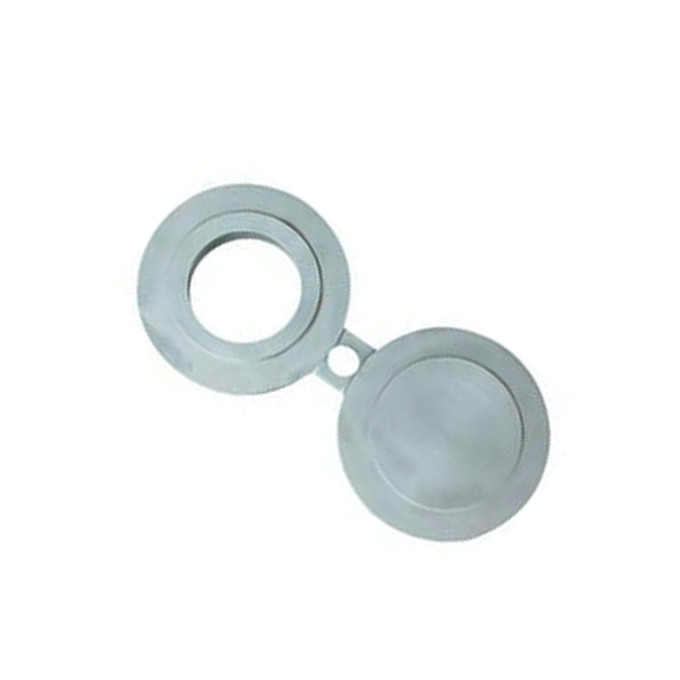

  • Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600

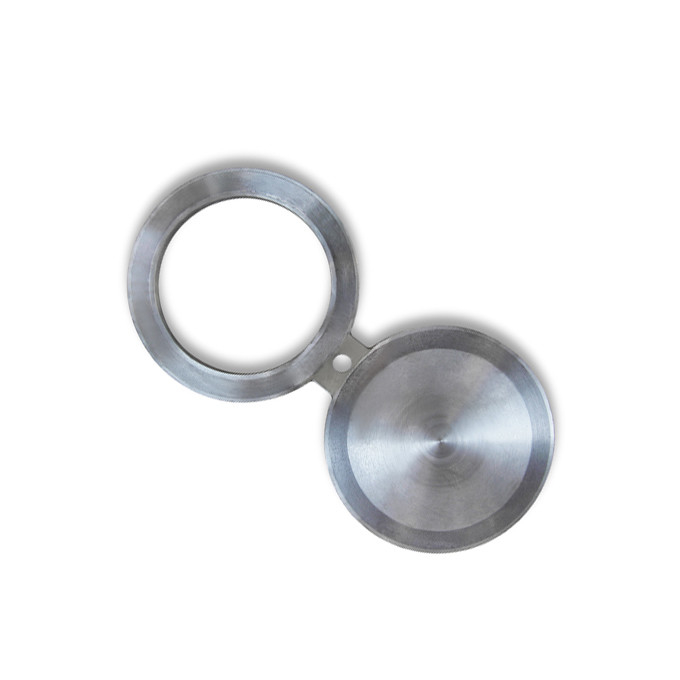

  • Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600

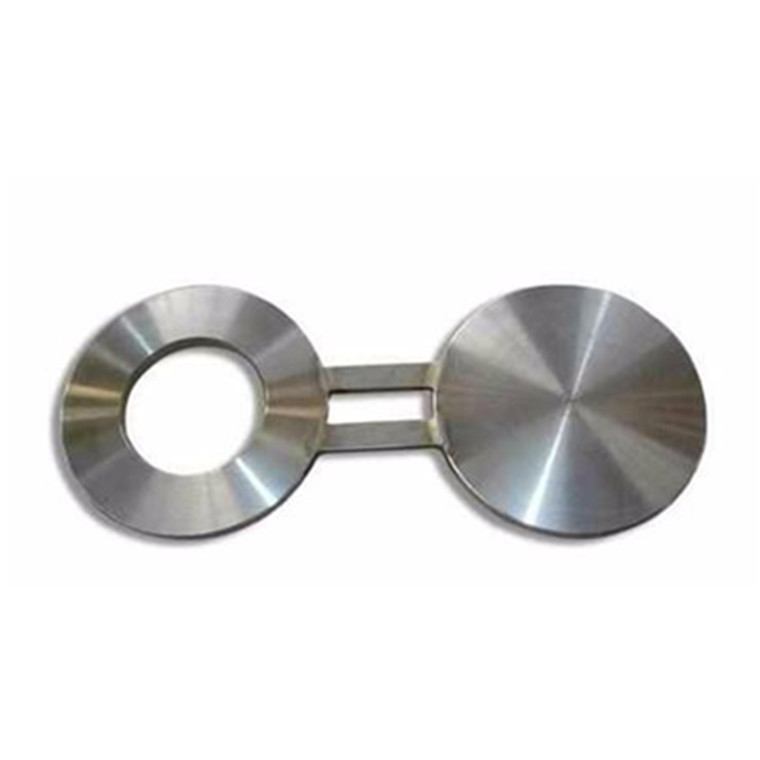

  • Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASME B171 C70600
Minimum Order Quantity 300 Kilogram/Kilograms
Price US $ 10 - 100 / Kilogram
Packaging Details Plywood cases or customized
Delivery Time 7-30days
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Metric Ton/Metric Tons per Month
Product Details
Product Name Spectacle Blind Flange Product Type Spectacle Blind
Elongation (≥ %) 40% Ultimate Strength (≥ MPa) 205MPA
Application Heat Exchanger; Condenser; Air Cooler; Evaporator,etc. Outside Diameter 6-40mm
Wall Thickness 0.5-3.0mm Place Of Origin China
Cu (Min) 70%
Highlight

Copper Nickel Blind Flange

,

ASTM B171 Blind Flange

,

Heat Exchanger Copper Nickel Flange
Leave a Message
Product Description

Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS:10 CL150 FF ASTM B171 UNS C70600


Specification Copper Nickel Pipe Fittings
Copper Nickel Alloy Pipe Fittings Dimensions ASME/ANSI B16.9/ EN/ JIS/ ASME/ANSI B16.11/ DIN/ ASME B16.28/ MSS-SP-43/
Type Of Connection Clamp End
End Bell
Threaded
Forging/
Manufacturer Type Of Cu Ni Fitting Reducer/ Stub End/ Pipe Bend/ End Cap/ Elbow/ Tee
Grade Of Copper Nickel Fittings Copper Nickel 90/10 Pipe Fittings And Copper Nickel 70/30 Pipe Fittings
Copper Nickel Fittings Manufacturers Schedule SCH 10/ SCH 40/ SCH 80/ SCH 120/ SCH 160/ SCH 180
Threaded Pressure Class Class 3000 and Class 600
Chemical Composition Of Copper Nickel Fittings Mn (1.0 max.), Pb (0.05 max.) Cu (88.6 min.) Etc.
Forging Type (1) Seamless
(2) ButtWeld
(3) Welded
Bending Radius R=1D/ 2D/ 3D/ 5D/ 6D/ 8D/ 10D or Custom
Surface Treatment Sand blasting/ Sand Rolling/ Sand Blasting
Application Power/ gas/ petroleum/ chemical/ metallurgy/ shipbuilding etc.
Supporting Material Gasket/ Ring Joint/ Flange Bolts
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Production Technique Forged/ Heat treated and machined
Manufacturer Size Buttweld ½" NB to 120" NB
Seamless ½” to 24”
Welded ½” to 120”
Two Joint / Two Halve Fittings 6” to 48”
Our service Nace Mr 01 75
Sour Service
Impact Test As Per Ug 84
Macro Structure Analysis
Hydrogen Induce Cracking Test (Hic)
Sulphide Stress Cracking Test (Sscc)
Cryogenic Services (Cryo),hydrogen Services (H2)
Helieum Leak Test
Dye Peniterant Test (Dp)
Magnetic Partius Test (Mp)
Post Weld Heat Treatment (Pwht)
Ultrasonic Test (Ut)
Hydro Test, Etc.

Material: Copper Alloys - Copper Nickel Alloys


Property Minimum Value (S.I.) Maximum Value (S.I.) Units (S.I.) Minimum Value (Imp.) Maximum Value (Imp.) Units (Imp.)
Atomic Volume (average) 0.0071 0.0073 m3/kmol 433.268 445.473 in3/kmol
Density 8.5 8.95 Mg/m3 530.638 558.731 lb/ft3
Energy Content 140 180 MJ/kg 15167.4 19501 kcal/lb
Bulk Modulus 130 170 GPa 18.8549 24.6564 106 psi
Compressive Strength 85 550 MPa 12.3282 79.7708 ksi
Ductility 0.03 0.44   0.03 0.44
Elastic Limit 85 550 MPa 12.3282 79.7708 ksi
Endurance Limit 138 240 MPa 20.0152 34.809 ksi
Fracture Toughness 26 79 MPa.m1/2 23.6612 71.8937 ksi.in1/2
Hardness 580 1650 MPa 84.1219 239.312 ksi
Loss Coefficient 1.5e-005 0.00056   1.5e-005 0.00056
Modulus of Rupture 85 550 MPa 12.3282 79.7708 ksi
Poisson's Ratio 0.34 0.35   0.34 0.35
Shear Modulus 45 58 GPa 6.5267 8.41219 106 psi
Tensile Strength 267 624 MPa 38.7251 90.5036 ksi
Young's Modulus 120 156 GPa 17.4045 22.6259 106 psi
Glass Temperature     K     °F
Latent Heat of Fusion 220 240 kJ/kg 94.5825 103.181 BTU/lb
Maximum Service Temperature 425 480 K 305.33 404.33 °F
Melting Point 1384 1508 K 2031.53 2254.73 °F
Minimum Service Temperature 0 0 K -459.67 -459.67 °F
Specific Heat 384 386 J/kg.K 0.297162 0.298709 BTU/lb.F
Thermal Conductivity 19 66 W/m.K 35.5686 123.554 BTU.ft/h.ft2.F
Thermal Expansion 16 17 10-6/K 28.8 30.6 10-6/°F
Breakdown Potential     MV/m     V/mil
Dielectric Constant
Resistivity 11.7 36.3 10-8 ohm.m 11.7 36.3 10-8 ohm.m


Specifications

Features:
1) Clean and smooth
2) Bright
3) High quality
4) Can meet our clients' different requirement to make U-type tube


Alloy No.:C70600,C44300,C71500,C68700



Standard: GB, ASTM, EN, etc.

1.Excellent mechanical and physical properties

2.Smooth, clean, bright on both outer and inner surfaces

3.Chemical composition strictly conform to relevant standards

4.Can meet our clients' different requirement to make U-type tube

5.Free from defects such as blowholes, cracks, pin hole leaks, etc.



Application: Heat exchanger; Condenser; Air Cooler; Evaporator,etc.

Copper Nickel CuNi 9010 Special Spectacle Blind Flange NPS 10 CL150 FF ASTM B171 UNS C70600
