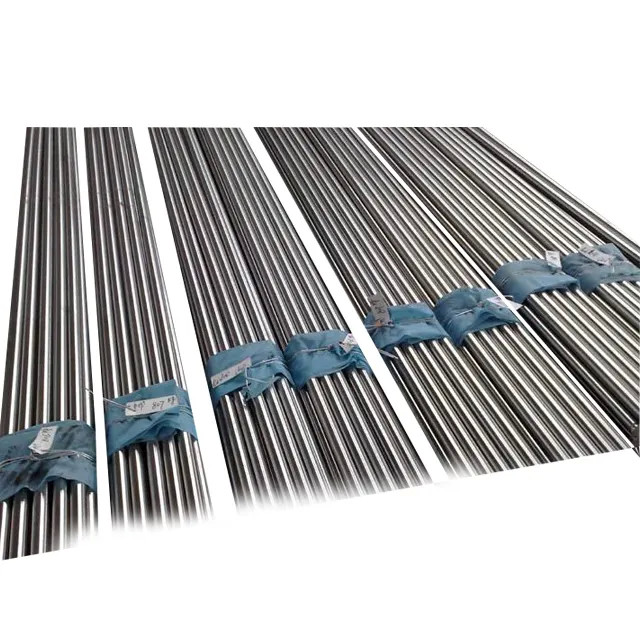

DKV Food Grade Polish ISO Standard Stainless Steel Tube 304 316 Seamless Ss Pipe For Water Sanitary Fitting
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | TP304/TP304L/TP316L/TP304H/TP347H/ |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | According to the qty |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | 7500 tons per year |
Product Details
| Standard | ASTM A213, A269, A312, A270, A249 | Color | White Silver Gold |
|---|---|---|---|
| Types | Stainless Steel Seamless Pipe / Tube | Material Grade | TP304,TP304L,TP316,TP316L, TP321H, TP321, TP347 |
| Outer Diameter | 6mm-830mm | ||
| Highlight | DKV Stainless Steel Tube,Food Grade 314 Stainless Steel Tube,Water Sanitary Seamless Ss Tube |
||
Product Description
DKV food grade polish ISO standard stainless steel tube manufacturer 304 316 seamless ss pipe for water sanitary fitting
Product Description
|
STEEL TYPES |
SIZE RANGE |
|
Stainless steel seamless pipe&tube |
OD: 6-830mm WT: 0.6-60mm |
|
U-Tube |
OD: 12-38mm WT: 0.6-4mm |
MAIN STEEL TYPE AND GRADE :
|
PRODUCTS |
TYPICAL STEEL GRADE |
|
Austenitic |
TP304,TP304L,TP304H,TP316,TP316L,TP316H,TP316Ti |
|
Duplex / Super Duplex |
S31803, S32205, S32750 |
MAIN PRODUCTION STANDARDS:
|
STANDARD TYPE |
STANDARD |
|
EN |
EN10216-5 , EN10216-2 |
|
DIN |
DIN 17456 , DIN 17458 |
|
ASTM |
ASTM A312, A213, A269, A511, A789, A790 ETC |
|
GOST |
GOST 9941 , GOST 5632 |
|
JIS |
JIS G3459 , JIS G3463 |
|
GB |
GB/T14975,GB/T14975, GB13296, GB5310, GB9948 |
Packaging ,Delivery and payment
| Packaging Detail: | 1.seaworthy package 2,Packed in bundles with several steel strips and covered by waterproof paper or kraftpaper 2.According to the requirements of customers |
| Delivery Detail: | 7-30 days after receipt the deposit |
| Payment terms |
if your payment is T/T ,first you should pay 30% for down payment and the 70%balance against the copy of B/L. or irrevocable L/C. |
Stainless Steel Seamless Pipe:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

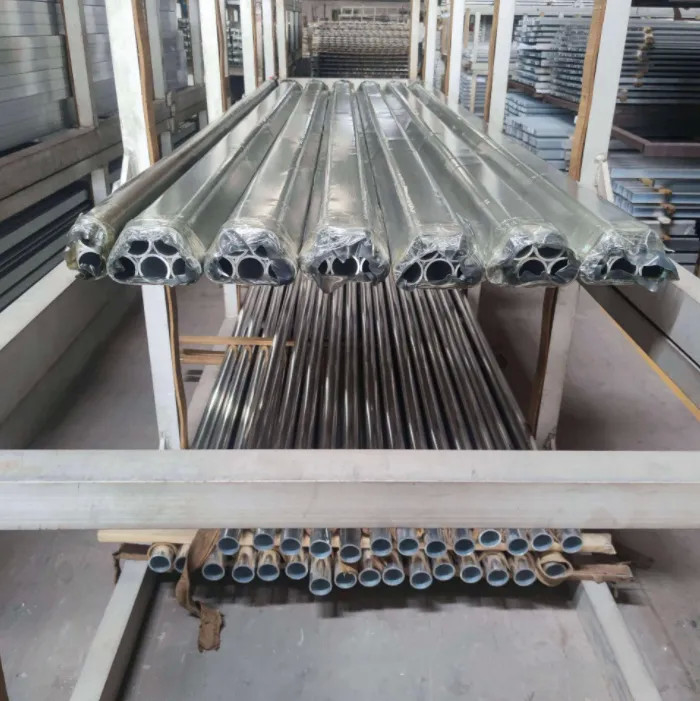

6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
