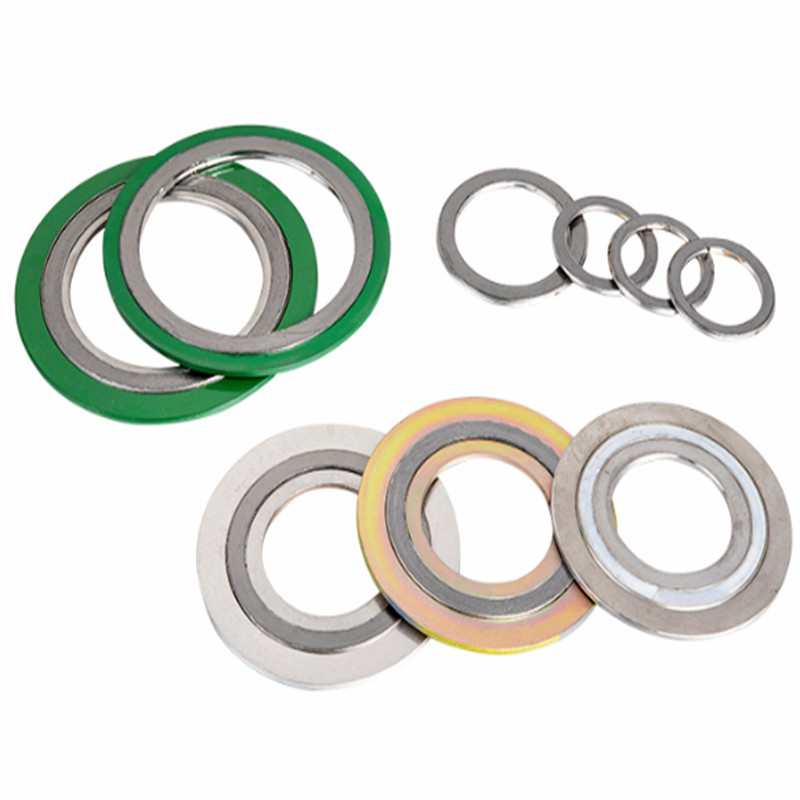

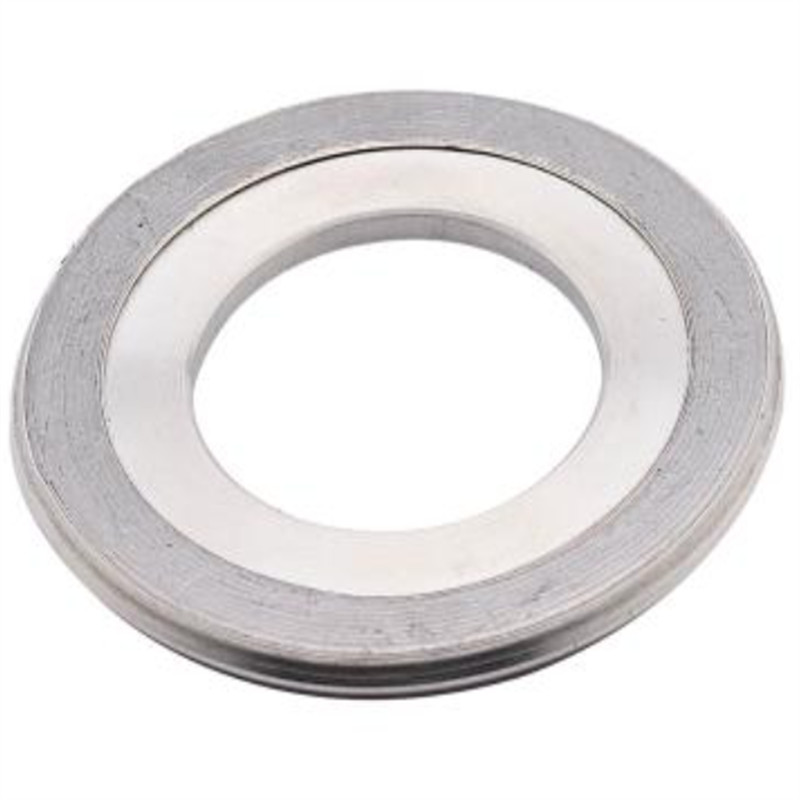

ASME B16.20/16.5 2" OD 4.5MM THICK CLASS 600# SS316 SPIRAL WOUND GASKET

Advantages

• Outstanding sealing characteristics at a wide range of seating stress levels. Helps compensate for wide swings in temperature and pressure.
• Very forgiving of inconsistent bolt torqueing or installation error. Applicable to almost all types of flanges regardless of bolt load available.
• The working thickness of sealing layers is extremely small reducing fugitive emissions.
• Low seating stresses required reduce flange damage and gasket removal problems.
• The gasket cores are reusable reducing cost and eliminating gasket disposal problems.
• Offers extreme temperature and chemical resistance because of the variety of materials available.
• Extremely high pressure are easily sealed with confidence.

Seating stress at 70°F:

• Flexible Graphite PTFE
• Minimum: 2,900 lb/sq in. 2,900 lb/sq in.
• Recommended: 13,000 lb/sq in. 13,000 lb/sq in.
• Maximum: 58,000 lb/sq in. 58,000 lb/sq in.

Metals Available:

• 304 Nickel 200
• 304L Monel 400
• 316 Inconel 600
• 316L Hasteloy C
• 316TI Hastelloy B2
• 321 Titanium
• 347 Copper
• Aluminum
• (other on request)

Note: Metal selection is usually consistent with piping system.

Sealing Elements Available:

• Flexible Graphite
• PTFE
