Brazil---AimeeIn the latest vendor rating, TOBO won the excellent rating, it is good, will continue to cooperate. -
Thailand ---Dave MulroyASTM A213 T9 Alloy steel pipe ,Stable quality , good price, excellent serive, TOBO GROUP is our trustworthy partner .
-
USA ---AlfaroASTM A182 F55 Super Duplex Flange ,Good quality , we like that ! And delivery time in time also ,very professional.
ASTM A789 / ASTM A790 Seamless Tube 2507 / 2205 / 31803 / 32750 Duplex Steel Pipe / Tube
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | 1.4835 Stainless Steel Seamless Pipe |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | 15days-> |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 7500 tons per year |
Product Details
| Standard | DIN, ANSI, ISO, GB, JIS | Application | Fluid Pipe,Structure Pipe |
|---|---|---|---|
| Surface | Annealed & Pickled, Bright Annealing, Polished | Types | Seamless |
| Thickness | 0.5-100mm | Outer Diameter | 6-813mm |
| Material | Carbon Steel,Stainless Steel,alloy Steel,Brass,copper | Sample | Provided,Free,Available Free Within 7days |
| Highlight | ASTM A789 duplex steel pipe,seamless duplex steel tube 2507,ASTM A790 stainless steel pipe |
||
Product Description

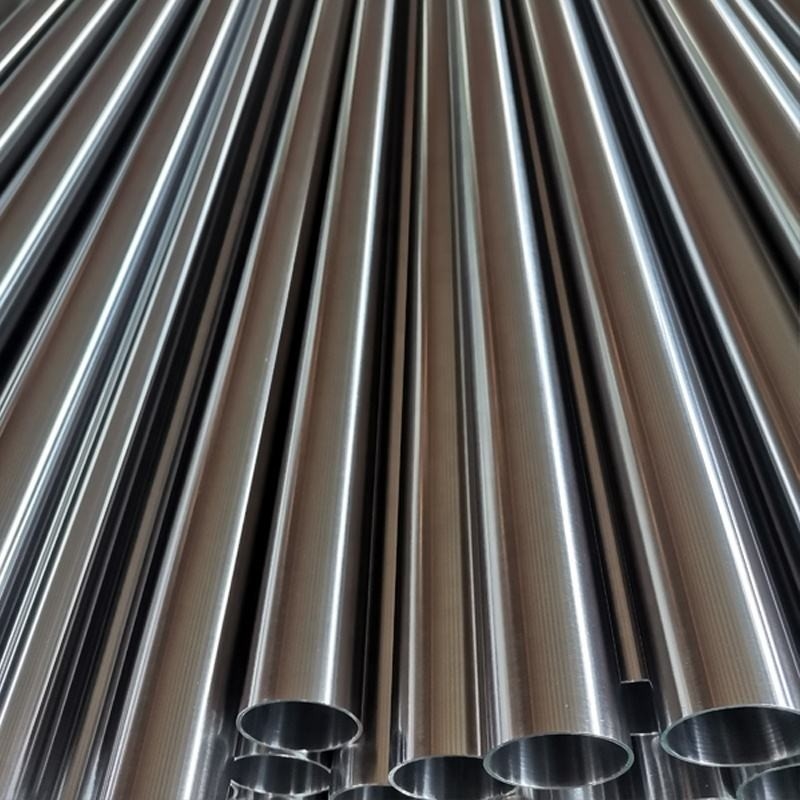

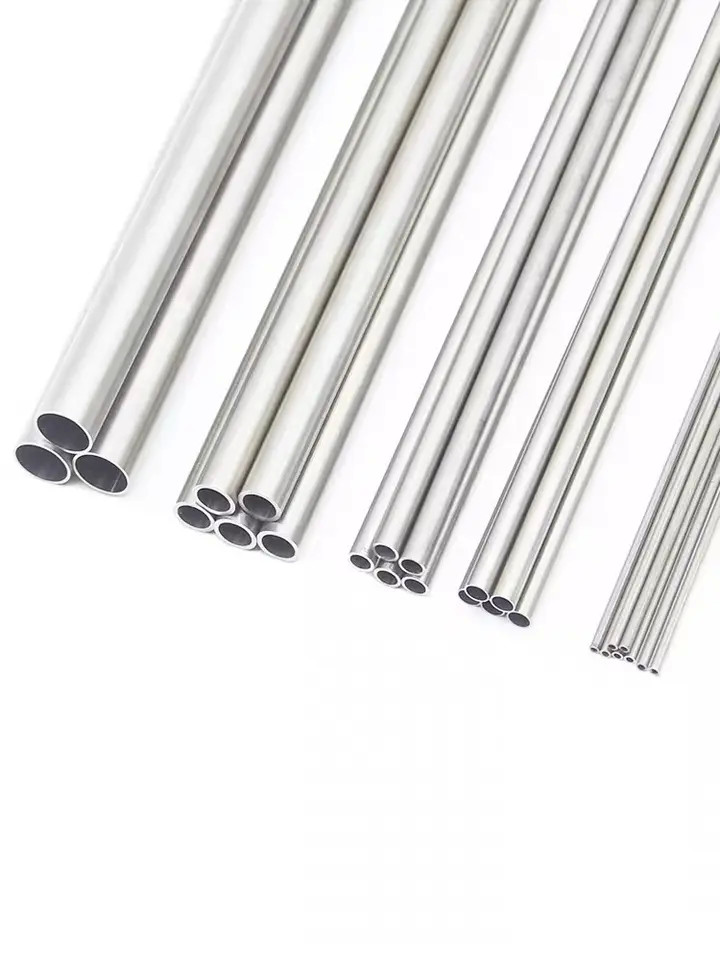

ASTM A789 / ASTM A790 Seamless Tube 2507 / 2205 / 31803 / 32750 Duplex Steel Pipe / Tube
Product description
2507 / 2205 / 31803 / 32750 Duplex Steel Pipe / Tube , ASTM A789 / ASTM A790 Seamless Tube
Detailed Product Description
| Material: | 2507 / 2205 / 31803 / 32750 | Type: | Seamless |
|---|---|---|---|
| Technology: | Cold Drawn | Condition: | Soft / Hard |
| Length: | 6000mm | Test: | 100% EDT |
Duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels . “ Duplex ” describes a family of stainless steels that are neither fully austenitic , like 304 stainless , nor purely ferritic , like 430 stainless . The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy ( stress corrosion cracking resistance and high strength ) with those of an austenitic alloy ( ease of fabrication and corrosion resistance ) .
Use UNS32750 super duplex stainless steel pipes can improve corrosion resistance compared to other materials . And super duplex steel pipes have greater tensile and yield strength , good ductility and yield strength , good stress corrosion cracking resistance . Also can help clients reduce their purchase costs , but can gurantee the quality etc .
| Material Grade | S32205 , S31803 , S32304 , S32750, F51 , F53 , 2205 , 2507 etc |
| Outer Diameter | 10.3mm - 1219mm |
| Wall Thickness | 1.24mm - 59.54mm |
| Length | as per customer’s requirement |
| Standard | ASTM A789 ; ASTM A790 ; EN 10216-5ect . |
Application :
1 . Petroleum
2 . Chemical industry
3 . Instrument
4 . Industrial transportation
5 . Mechanical structure industry
6 . Need high corrision ability pipe's industry , such as offshore industry etc
| Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N |
| max | max | max | max | max | |||||
| UNS S32750 | 0.03 | 0.8 | 1.2 | 0.03 | 0.015 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 |
| UNS S31803 | 0.03 | 1 | 2 | 0.02 | 0.02 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
| UNS S31500 | 0.03 | 1 | 1.2-2.0 | 0.03 | 0.03 | 18.0-19.0 | 4.5-5.5 | 2.5-3.5 | 0.05-0.10 |
| Physical Properties | ||||
| Grade | Y.S.MPa min | T.S.Mpa min | Elongation % | Hardness HRC |
| UNS S32750 | 550 | 800 | 15 | 20 |
| UNS S31803 | 450 | 620 | 25 | 20 |
| UNS S31500 | 440 | 630 | 30 | 20 |
Product shipment
FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
