| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | P265GH,P355GH,16Mo3,15Mo3,A204 Grade A,A285 Grade C,SA299 Grade A,SA387,A516 Grade 70,A537 Class 1,SPV355,Q345R |
| Minimum Order Quantity: | 1 ton |
| Price: | Depending on quantity |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 10-100 days depending on quantity |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Tons per month |
| Product Name: | Boiler Steel Plate | Product Type: | Steel Plate |
|---|---|---|---|
| Rolling Range: | Thickness*Width*Length 6-450mm*1500-4200mm*5000-18000mm | Test: | Ultrasonic Examination,Normalized,Quenched And Tempered,NACE,HIC,SSCC And Third Party Inspections By End User. |
| Main Steel Grades: | P265GH,P355GH,16Mo3,15Mo3,A204 Grade A,A285 Grade C,SA299 Grade A,SA387,A516 Grade 70,A537 Class 1,SPV355,Q345R. | Steel Standard: | EN 10028,DIN 17155,ASME,ASTM,JIS,GB713,GB3531 |
| Additional Service: | Shot Blasting And Painting,Cutting And Welding As Per User's Request | Surface Treatment: | Hot Rolled And Coated |
| Application: | Boiler Steel Plates Are Used To Build Boilers And Pressure Vessels Such As Petroleum, Chemical Industry, Power Plants | ||
| Highlight: | Stainless Steel Coils,Stainless Steel Flat Sheets |
||

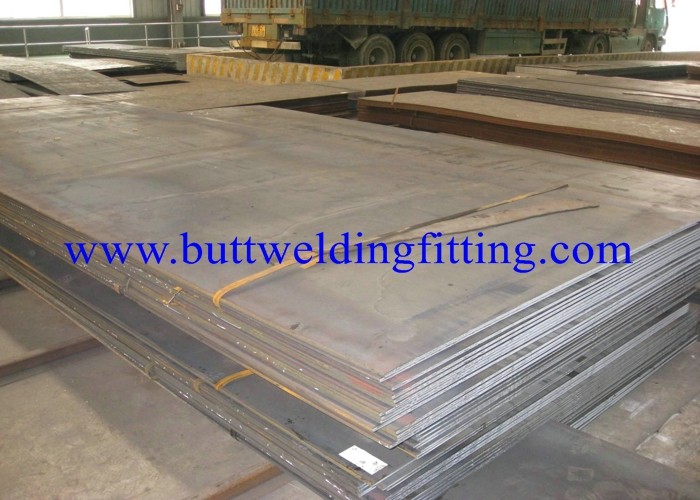

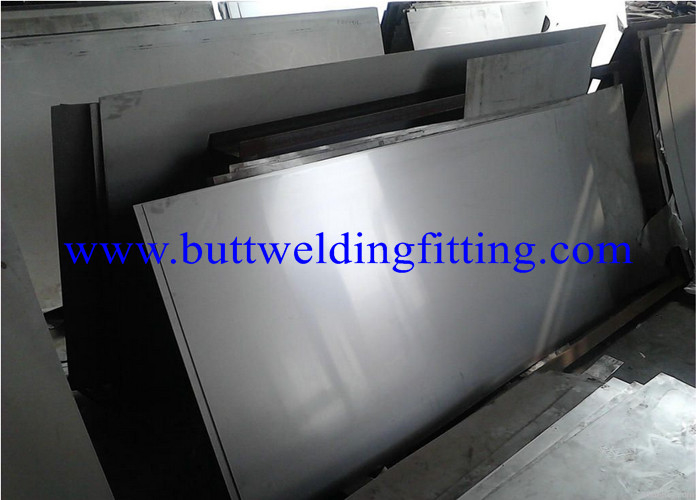

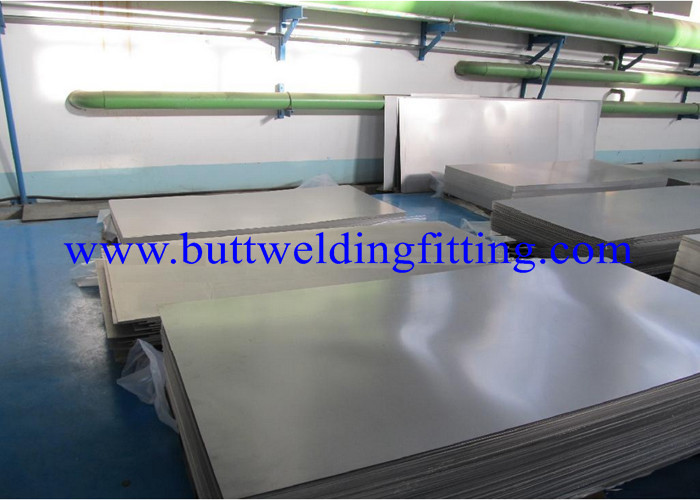

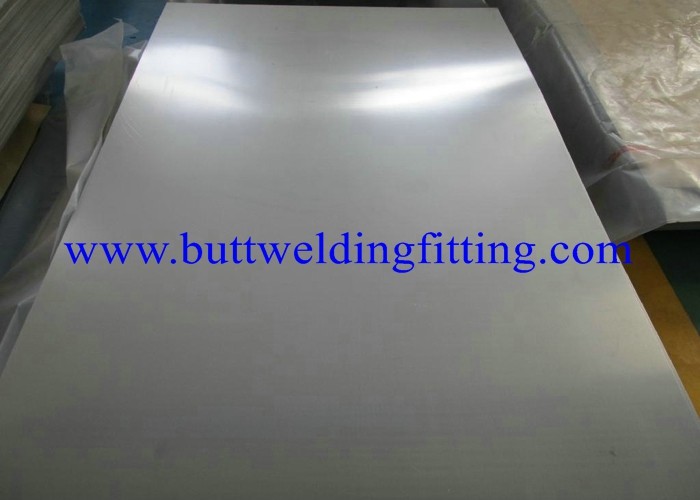

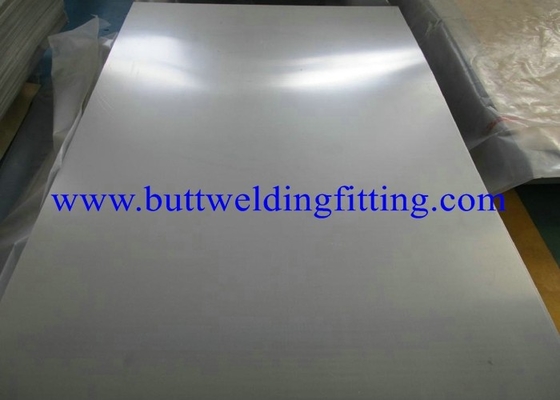

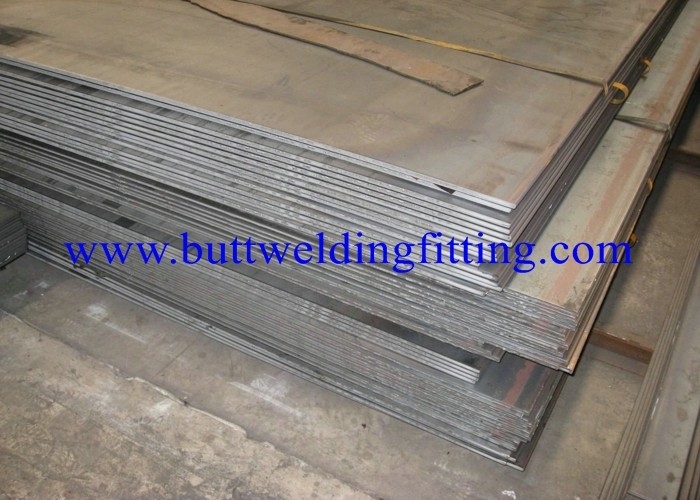

Boiler Steel Plate, Pressure Vessel Steel Plate P265GH, P355GH,16Mo3, Grade A, A285 Grade C, SA299 Grade A, SA387
Steel Name: Boiler steel plate,pressure vessel steel plate
Main steel grades: P265GH,P355GH,16Mo3,15Mo3,A204 Grade A,A285 Grade C,SA299 Grade A,SA387,A516 Grade 70,A537 Class 1,SPV355,Q345R.
Steel standard: EN 10028,DIN 17155,ASME,ASTM,JIS,GB713,GB3531
Main application:Boiler steel plates are used to build boilers and pressure vessels such as petroleum, chemical industry, power plants.
Rolling range: Thickness*Width*Length 6-450mm*1500-4200mm*5000-18000mm
Surface Treatment: Hot rolled and Coated
Test: Ultrasonic examination,Normalized,Quenched and Tempered,NACE,HIC,SSCC and Third party inspections by end user.
Supply Ability: 10000 Tons per month
Additional service:Shot blasting and painting,Cutting and welding as per user’s request.
Want to get more information about Clad steel plate,please CONTACT TOBO NOW
Other steel products we can offer:
Carbon steel plate Boiler steel plate High strength steel plate
Shipbuilding steel plate Oil platform steel plate Low alloy steel plate
Pipeline steel plate Angle steel Bulb flat steel Flat bar Stainless steel plate
Clad steel plate Galvanized steel plate Channel Steel Weathering steel plate
Seamless steel pipe Extra High strength ship plate
All steel grades for boiler steel plates we can offer as follows:
|
STANDARD |
STEEL GRADE |
|
EN10028 |
P235GH,P265GH,P295GH,P355GH,16Mo3 P275N,P275NH,P275NL1,P275NL2,P355N,P355NH,P355NL1,P355NL2,P460N, P460NH,P460NL1,P460NL2 P355Q,P355QH,P355QL1,P355QL2,P460Q,P460QH,P460QL1,P460QL2, P500Q,P500QH,P500QL1,P500QL2,P690Q,P690QH,P690QL1,P690QL2 P355M,P355ML1,P355ML2,P420M,P420ML1,P420ML2,P460M,P460ML1, P460ML2 |
|
DIN 17155 |
HI,HII,17Mn4,19Mn6,15Mo3,13CrMo44,10CrMo910 |
|
ASME
ASTM |
A203/A203M SA203/SA203M A203 Grade E,A203 Grade F,A203 Grade D,A203 Grade B,A203 Grade A SA203 Grade E,SA203 Grade F,SA203 Grade D,SA203 Grade B,SA203 Grade A A204/A204M SA204/SA204M A204 Grade A,A204 Grade B,A204 Grade C SA204 Grade A,SA204 Grade B,SA204 Grade C A285/A285M A285 Grade A,A285 Grade B,A285 Grade C SA285/SA285M SA285 Grade A,SA285 Grade B,SA285 Grade C A299/A299M A299 Grade A,A299 Grade B SA299/SA299M SA299 Grade A,SA299 Grade B A302/A302M SA302/SA302M A302 Grade A,A302 Grade B,A302 Grade C,A302 Grade D SA302 Grade A,SA302 Grade B,SA302 Grade C,SA302 Grade D A387/A387M SA387/SA387M A387Gr11CL1,A387Gr11CL2,A387Gr12CL1, A387Gr12CL2,A387Gr22CL1,A387Gr22CL2 SA387Gr11CL1,SA387Gr11CL2,SA387Gr12CL1, SA387Gr12CL2,SA387Gr22CL1,SA387Gr22CL2 A455/A455M A455, SA455/SA455M SA455 A515/A515M SA515/SA515M A515 Grade 60,A515 Grade 65,A515 Grade 70 SA515 Grade 60,SA515 Grade 65,SA515 Grade 70 A516/A516M SA516/SA516M A516 Grade 55,A516 Grade 60,A516 Grade 65,A516 Grade 70 SA516 Grade 55,SA516 Grade 60,SA516 Grade 65,SA516 Grade 70 A533/A533M SA533/SA533M A533GrA CL1/CL2/CL3,A533GrB CL1/CL2/CL3, A533GrC CL1/CL2/CL3,A533GrD CL1/CL2/CL3 SA533GrA CL1/CL2/CL3,SA533GrB CL1/CL2/CL3, SA533GrC CL1/CL2/CL3,SA533GrD CL1/CL2/CL3 A537/A537M A537CL1,A537CL2,A537CL3 SA537/SA537M SA537CL1,A537CL2,A537CL3 |
|
JIS |
SB410,SB450,SB480,SB450M,SB480M SPV235,SPV315,SPV355,SPV410,SPV450,SPV490 |
|
GB713
GB3531 |
Q245R,Q345R,Q370R,18MnMoNbR,13MnNiMoR,5CrMoR,14Cr1MoR, 12Cr2Mo1R,12Cr1MoVR 16MnDR,15MnNiDR,09MnNiDR |
