But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760

  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
  • But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM B815 UNS S31803 / S32205 / S32750 A B16.9
Minimum Order Quantity 1PC
Price 1
Packaging Details PLY-WOODEN CASE OR PALLET
Supply Ability 9900000PCS
Product Details
Product Name Butt Weld Fittings Size 1"-96"
Material Grrade ASTM B815 UNS S31803 / S32205 / S32750 Standard ASME B16.9,DIN,EN,ASTM,BS,JIS,GB,etc.
Highlight

butt welded pipe fittings

,

industrial pipe fittings
Leave a Message
Product Description

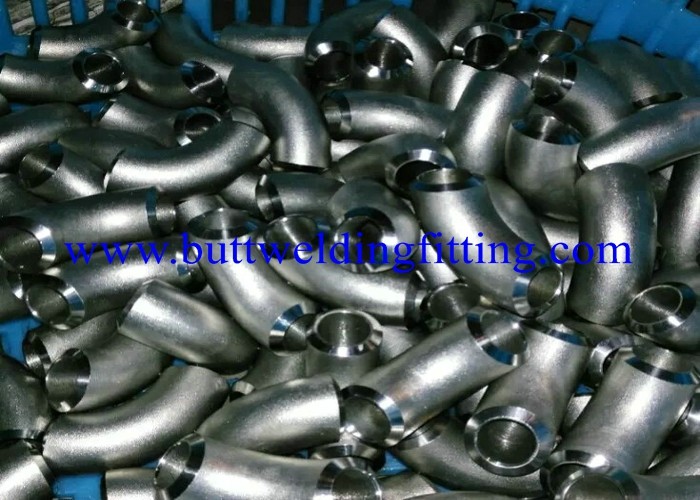

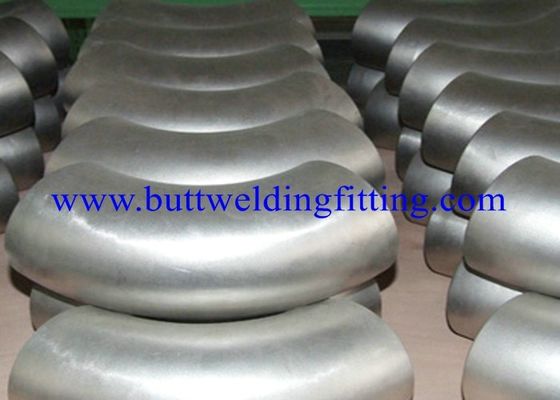

But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760



Product Name:  Stainless steel butt weld fittings

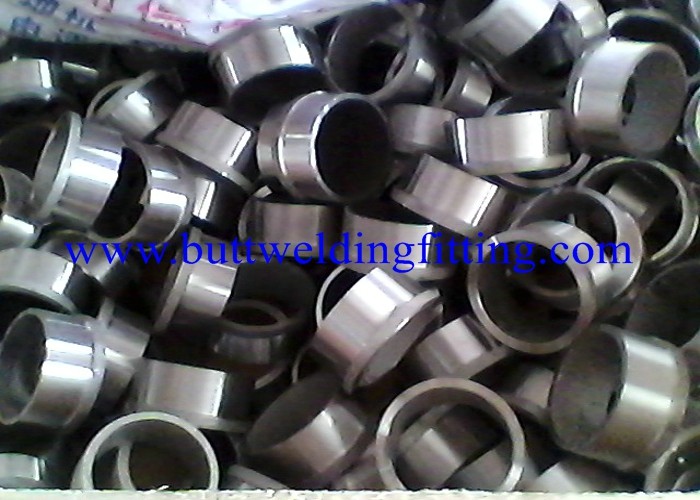

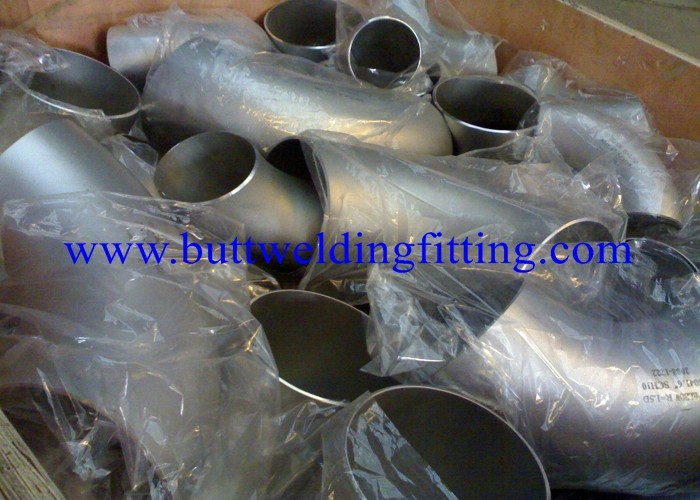

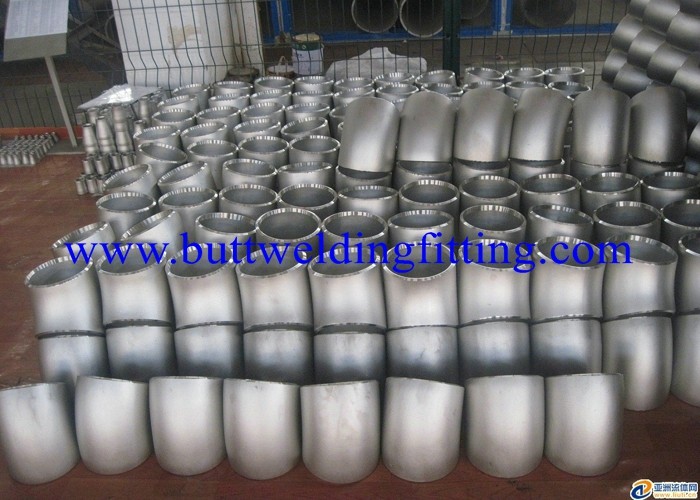

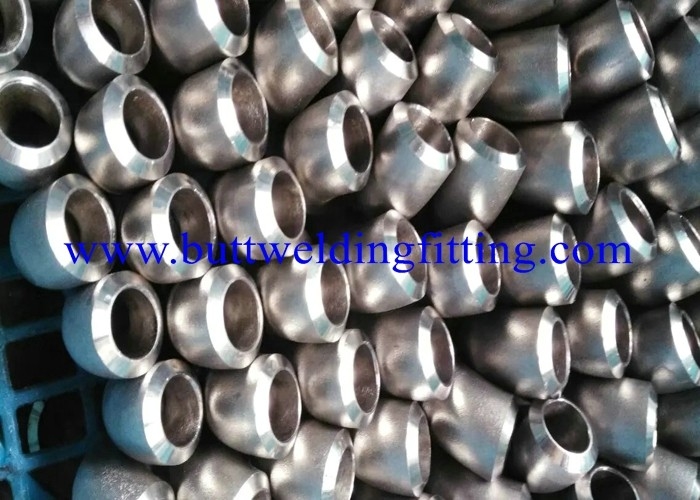

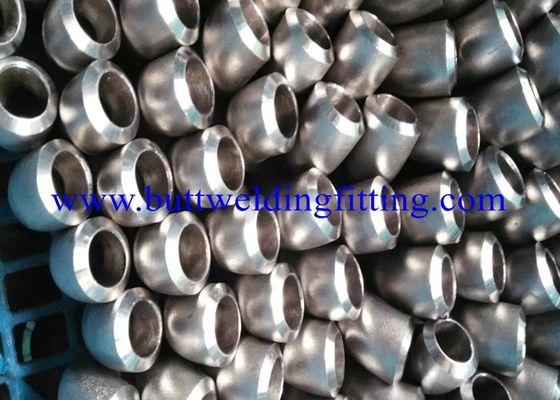

Butt welded stianless steel elbow,Con. reducer,Ecc. Reducer,Tee,Stub end
Size Range:
DN15-DN600  (1/2"-24")       Seamless Type
DN15 - DN1200 (1/2"- 48" )  Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408  ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,



Materials:

BS 1640: Steel Butt Welding Pipe Fittings for petroleum Industry part 1-Wrought Carbon and ferritie Alloy Steel Fittings
BS 1965: Butt Welding Pipe Fittings for pressure purpose part 1-Carbon Steel & Austenitic Stainless Steel

ASTM B366 - 10a Standard Specification for Factory-Made Wrought Nickel and Nickel Alloy Fittings

ASTM A403: Wrough Autenitic Stainless Steel Pipe Fittings
ASTM A815: Wrough Ferritic, Ferritic/Autenitic and martensitic Stainless Steel Pipe Fittings

IPS-M-PI-150: Standard for Flanges and Fittings

Materials
Austenitic Stainless steel
ASTM A403 WP304, 304L, 304H, 310S, 316, 316L, 316H, 321, 321H, 347, 347H, 317, 317L
ASTM A182 F304, F304L, F304H, F310S, F316, F316L, F316H, F321, F321H, F347, F347H, F348

Ferritic Steel
ASTM 815 WP27-33-429-430-430TI-446 (Duplex)
Duplex 2205, Duplex 2205, Duplex 2205, Duplex UNS S31803, Din 1.4462 EN 10088 F51
Duplex 2205 SANMAC, URANUS 45N, PREN=33, PREN=34, PREN=35, PREN=36 DIN 1.4462
Duplex-2205 UNS S31803 / UNS S32205 DIN-1.4462 EN 10088-3 PREN = 33, PREN = 34, PREN = 35

Ferritic/Austenitic Steel
UNS S331803 (Duplex)
UNS S32750-S32760-32550 (Superduplex)
Super Duplex 2507, Super Duplex 2507, Super Duplex -2507, Super Duplex UNS S32750 F53
Super Duplex 2507 UNS S32750 DIN 1.4410 EN-10088 URANUS 47N(+) PREN=41 Minimum

Super Duplex UNS S32760 F-55 ASTM A182 F55 SA182 F-55 DIN 1.4501 UNS 32760 F55

Martensitic Steel ASTM 815 WP410





Specification



ND

OD(MM)

Center to end

Approx Weight KG/PCS

DN

INCH

OD

A

O

5S

10S

20S

40S

80S

20

3/4

25 20.7

-

-

-

-

-

-

-

25

1

32 33.4

25

50

0.055

0.096

0.11

0.11

0.15

32

11/4

38 42.2

32

64

0.069 0.075

0.102 0.132

0.14 0.15

0.158 0.17

0.20 0.236

40

11/2

45 48.3

38

76

0.12 0.13

0.18 0.186

0.2 0.21

0.22 0.24

0.3 0.33

50

2

57 60.3

51

102

0.17 0.176

0.297 0.308

0.787 0.396

0.42 0.44

0.6 0.616

65

21/2

73 76.1

64

128

0.35 0.364

0.53 0.546

0.64 0.655

0.89 0.91

1.0 1.29

80

3

89

76

152

0.486

0.729

0.972

1.36

1.94

90

31/2

101.6

89

178

0.7

1.05

1.4

1.96

2.8

100

4

108 114.3

102

204

0.90 0.94

1.2 1.4

1.7 1.876

2.56 2.77

4.0 4.13

125

5

133 141.3 139.7

127

254

1.8 2.02

2.1 2.37

3.2 3.49

4.0 4.4

6.5 6.98

150

6

159 168.3 165.2

152

304

2.6 2.9

3.1 3.4

4.8 5.0

6.8 7.1

10.3 11.0

200

8

219 216.3

203

406

6.25 5.0

7.0 6.8

11.08 10.7

14.1 13.5

22 21

250

10

273 267.3

254

508

10.08 9.7

11.2 10.0

17.6 16.0

24.6 23.0

44.8 40.0

300

12

325 323.9 318.5

305

610

14.8

16.7

23.3

37

64.5

350

14

377 355.6

356

711

19.1 15.6

22 19.5

38 34

48.6 42.6

80.0 74.0

400

18

426 406.4

406

812

29.0 26.5

35 30

57.0 49.9

67 62

149.0 135.0

500

20

529 508

508

1016

-

-

-

-

-

550

22

559

559

1118

-

-

-

-

-



But Weld Fittings, Duplex Stainless Steel Elbow LR/SR , ASTM B815 UNS S31803 / S32205 / S32750 / 32760
