| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | , A403 WP321, 321H , WP347, SB366 INCONEL 825 |
| Minimum Order Quantity: | 3PCS |
| Price: | USD 3-30 PER PC |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 9600000PCS |
| Product Name:: | UNS S32750 UNS S32205 UNS S31803 Pipe Fittings Tee | Standards:: | ANSI, DIN, JIS, ASME, ASTM, MSS And EN |
|---|---|---|---|
| Size:: | 1/2" ~ 48" (DN15mm ~ 1, 200mm) | Surface Treatment: S: | Shot Blasted, Rust-proof Black Oil |
| Highlight: | steel pipe tee,butt weld tee |
||

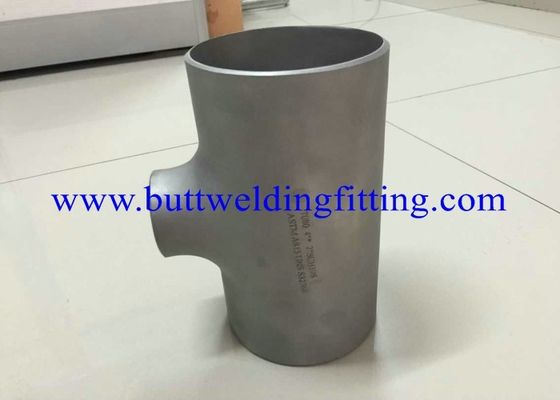

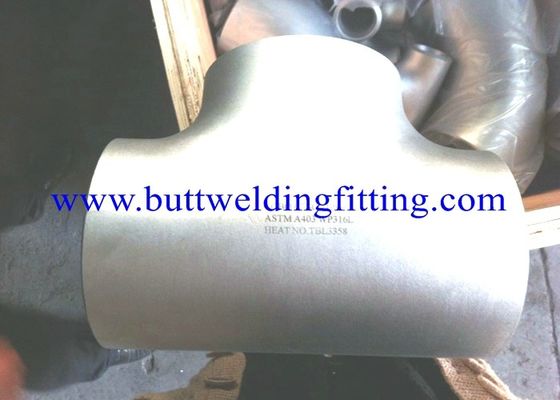

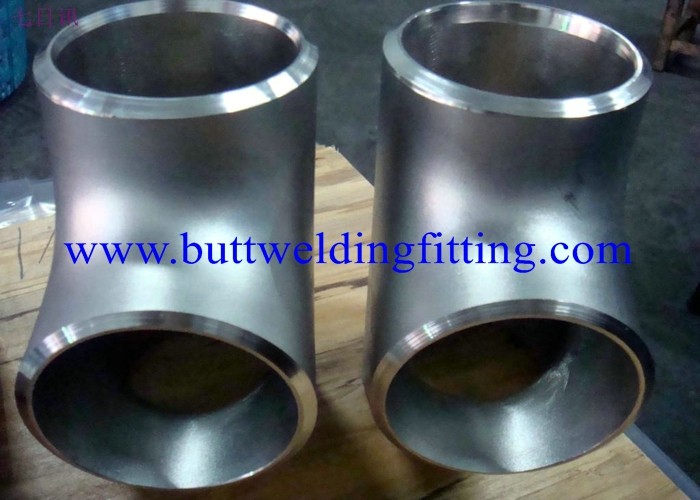

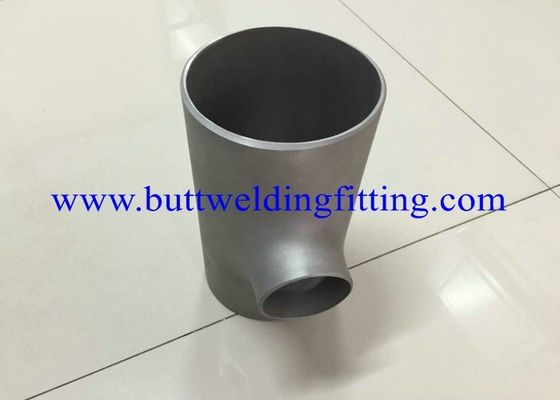

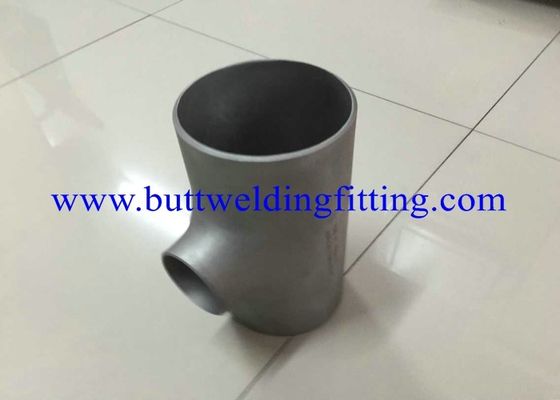

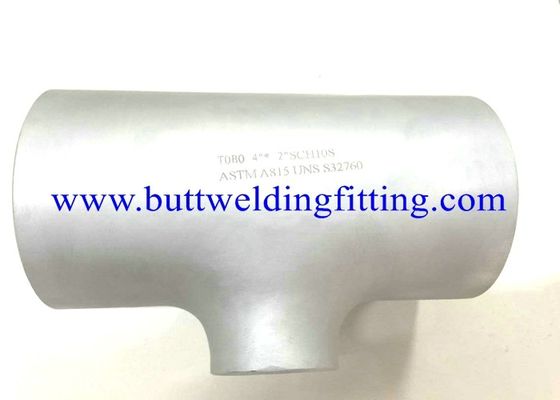

Super Duplex Steel UNS S32750, UNS S32760, Stainless Steel Tee , A403 WP321, 321H , WP347, SB366 INCONEL 825
Standards:
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990
Dtailed Production Description
1) Size: Seamless: 1/2”-60" SCH10s-XXS
2) Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO
3) Material:carbon steel:A234-WPB WPC,
alloy steel :A420-WPL6, A234-WP11, A234-WP12, A234-WP5,A234-WP9,A234-WP22,15Mo3,15CrMoV,35CrmoV
stainless steel:A403 WP 304-304L-304H-304LN-304N
A403 WP 316-316L-316H-316LN-316N-316Ti
A403 WP 321-321H
A403 WP 347-347H
low tempture steel: A402 WPL3-WPL6
high performance steel: A860 WPHY 42-46-52-60-55-70
4) Surface treatment: carbon steel: shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
alloy steel: Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
stainless steel: pickled ,Polish
5) Nominal wall thickness:SCH5-SCH160, STD, XS, XXS
6) Packing: Wooden case or wooden pallet according to the size of fittings
7) Delivery time:7-10 days for a 20 ft container
8) Others:1) Special design available 2)All the production process are made under the ISO 9001:2000 strictly.
Application
Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical), chemical
and pharmaceutial, pulp and paper, fertilizer, desalination, nuclear, electrict power, boiler,heat exchanger,metallurgy, refinery,
machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile,ect.
our advangtage
1) Raw material use 100% material steel
2) good service
3) Competive price
4) Fast delivery
5)High quality products
Other products
we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality, competitive price
and excellence service are your best choice.
|
Unit : inch |
Outside Dia. |
Wall Thickness (T) |
Tees Center To Ends C.M |
|||
|
Sch.5S |
Sch.10S |
Sch.40S |
Sch.80S |
|||
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.00 |
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.13 |
|
1 |
1.315 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
|
1-1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
|
1-1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
2.50 |
|
2-1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.00 |
|
3 |
3.500 |
0.083 |
0.120 |
0.216 |
0.300 |
3.38 |
|
4 |
4.500 |
0.083 |
0.120 |
0.237 |
0.337 |
4.13 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
4.88 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
5.63 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
7.00 |
|
10 |
10.750 |
0.134 |
0.165 |
0.375 |
0.500 |
8.50 |
|
12 |
12.750 |
0.156 |
0.180 |
0.375 |
0.500 |
10.00 |
|
14 |
14.000 |
0.156 |
0.250 |
0.375 |
0.500 |
11.00 |
|
16 |
16.000 |
0.165 |
0.250 |
0.375 |
0.500 |
12.00 |
|
18 |
18.000 |
0.165 |
0.250 |
0.375 |
0.500 |
13.50 |
|
20 |
20.000 |
0.188 |
0.250 |
0.375 |
0.500 |
15.00 |
|
24 |
24.000 |
0.218 |
0.250 |
0.375 |
0.500 |
17.00 |
