Place of Origin: | China |
---|---|
Brand Name: | TOBO |
Certification: | ISO ,API 5L |
Model Number: | Forged Steel Flange BS4504 PN6 To PN40 Stainless Steel Slip On Weld Flange ASME B16.5 |
Minimum Order Quantity: | 1PC |
Price: | USD1-10/PC |
Packaging Details: | WOOD PACKAGES |
Delivery Time: | 10--30DAYS |
Supply Ability: | 10000000/PC/MONTH |
Material: | Forged Steel Flange BS4504 PN6 To PN40 Stainless Steel Slip On Weld Flange ASME B16.5 | Packaging Details: | PLY-WOODEN CASE |
---|---|---|---|
Delivery Time: | 10days | ||
Highlight: | forgings flanges and fittings,forged fittings and flanges |

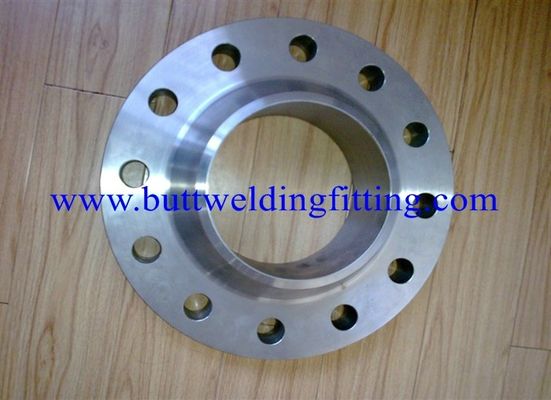

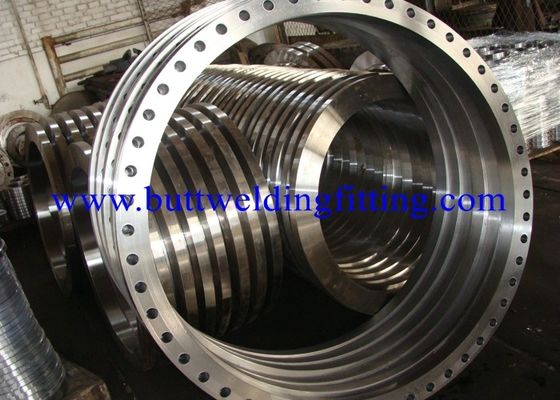

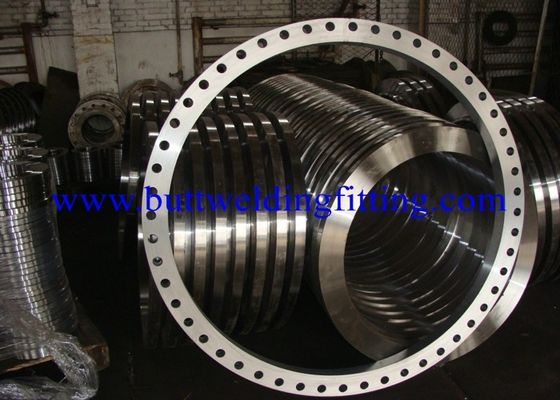

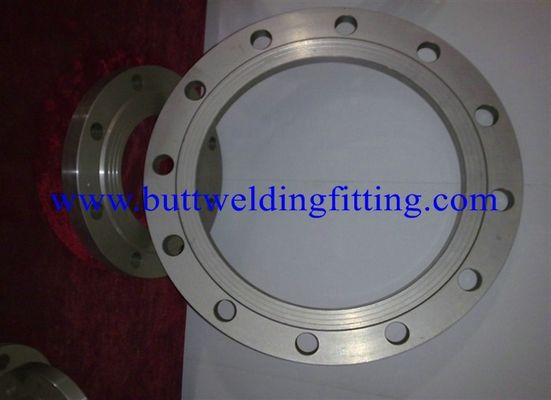

Forged Steel Flange BS4504 PN6 To PN40 Stainless Steel Slip On Weld Flange ASME B16.5
Detailed Product Description
Slip-on Flanges
Slip-on flanges are a popular type of pipe flanges. These are type of flanges that slide over the end of piping and then welded in place. These flanges are ideal for lower pressure applications. These are easily fitted and welded into different pipes. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications.
|
How to measure slip-on flanges?
Take the measurements of:
Key Features of Slip-On Flanges :
Some important features are as follows:
One size fits all pipe schedules.
Fabricators can more easily cut pipe to length for slip-on flanges.
The smaller thickness of this flange allows for easier alignment of bolting holes.
They are generally not preferred for high pressure temperature environments.
Advantages of slip on flanges:
Low cost installation
Less time needed to spent on ensuring the accuracy of the cut pipe
they are somewhat easier to align
the slip-on flanges have low hub because the pipe slips into the flange before welding
the flange is welded both inside and outside to provide sufficient strength
they prevent leakage
Product Range-
Size : 1/8" NB TO 48"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel Slip on Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel Slip on Flanges : ASTM A 105, ASTM A 181
Alloy Steel Slip on Flanges: ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys Slip on Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Slip on Flanges : Copper, Brass & Gunmetal
Slip on Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Product Range-
Size : 1/8" NB TO 48"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.
Stainless Steel Slip on Flanges: ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel Slip on Flanges : ASTM A 105, ASTM A 181
Alloy Steel Slip on Flanges: ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys Slip on Flanges : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys Slip on Flanges : Copper, Brass & Gunmetal
Slip on Flanges Standard
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
Slip On Weld Flange SOHFF With JIS B2220 - 1984 5K 10K 16K 20K For Petroleum
Description:
This slip on weld flange is according to JIS standard.It is a flange system made by Japan. This kind of flange include lots of specification,like SOP, SPH, Blind flange, plate flange, welded neck flange, etc.
Slip on weld flanges are slipped over the pipe and welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on Flanges are at the low cost end of the scale, and do not require high accuracy when cutting the pipe to length. These SO flanges can sometimes have a boss or hub, and can be made with a bore to suit either pipe or tube.
The material of the flanges is carbon steel. The flange can connecting pipes, valves, pumps and other equipment to form a pipework systems. It is the machinery, petroleum, chemical, water, electricity, shipbuilding sectors piping systems and devices most widely used pipe fittings.
Specifications:
Type: SOHFF Flange
Material: SS400
Standard: JIS B2220-1984
Pressure: 5K, 10K, 16K, 20K
Size: 15A-1500A
Coating: Rust-proof oil,yellow paint,galvanized.
Type | Size | Pressure | Material |
SOH | 15A-1500A | 5K, 10K, 16K,20K | SS400 SS304/304L, SS316/316L |
SOP | 15A-1500A | 5K, 10K, 16K,20K |
SS400 SS304/304L, SS316/316L |
BLIND | 15A-1500A | 5K, 10K, 16K,20K | SS400 SS304/304L, SS316/316L |
