| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | JIS Sus304 , Sus316L Tee Din 1.4301 , 1.4306 , 1.4401 , 1.4571 |
| Minimum Order Quantity: | 2PCS |
| Price: | USD1-500 PER PC |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Craft:: | Seamless Or Welded,butt Weld | Type Of Pipe Fittings: | Straight Tee & Straight Cross |
|---|---|---|---|
| Standard Specification: | ASTM,JIS,BS,DIN,UNI Etc. | Surface Of Finish: | Annealed&pickled,both Mirror Polish Etc. |
| Highlight: | steel pipe tee,butt weld tee |
||

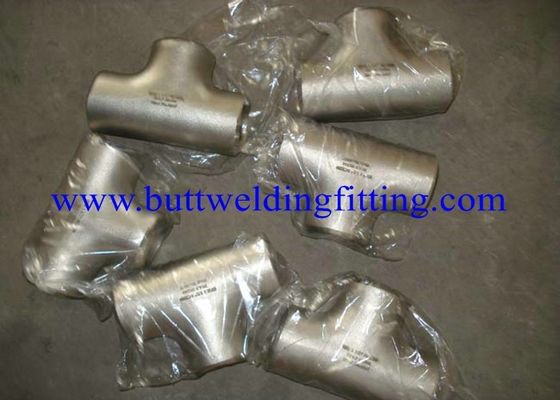

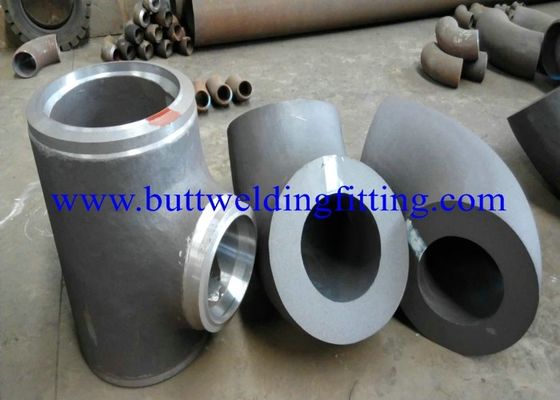

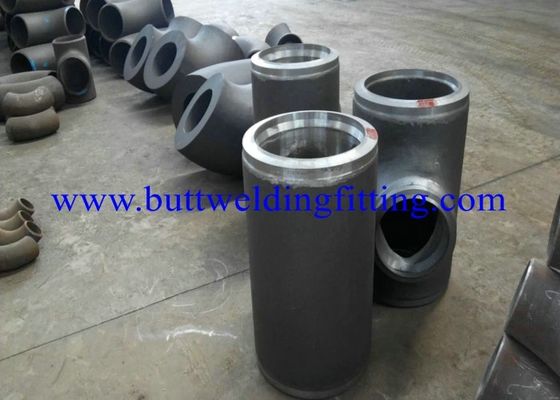

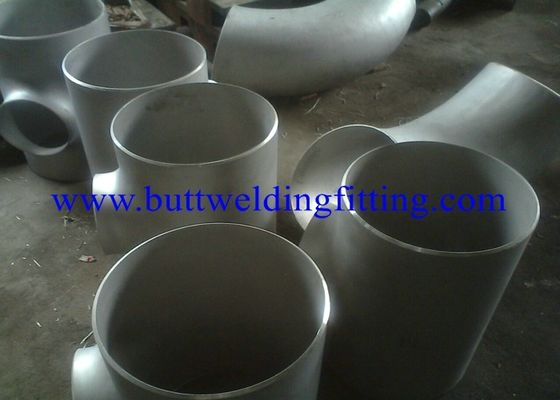

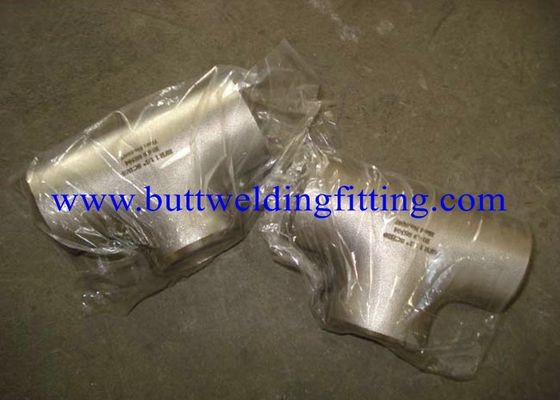

Stainless Steel Tee JIS Sus304 , Sus316L Tee Din 1.4301 , 1.4306 , 1.4401 , 1.4571 Equal Seamless Tee
We can supply type of tee:
Equal Seamless 90Degree Tee
Equal Welded 90Degree Tee
Reduce Seamless 30Degree Tee
Reduce Welded 30Degree Tee ...
Description:
1. Product : Stainless steel tee
2. Size:1/2 to 80-inch/DN15-DN2000
3. Thickness:Sch5s,Sch10s,Sch20s,Sch30,Sch40.Sch60,Sch80,Sch100,
Sch120,Sch140, Sch160,XS XXS STD
4. Certification:ISO 9001,CE,API,PED,LRQA,MTC,ect
5. Degree:30D,45D,60D,90D,180D,ect
6. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
7. Packing: Wooden box or wooden pallet.
8. H.S Code: 73072300
9. Material:
Stainless Steel: 304(CF8,1.4301),316 (CF8M,1.4408),2205 etc.
Alloy Steel: 12Cr1Mov, 10CrMo910, 15CrMo, A335, P22 etc.
Duplex steel: A815 UNS S31803, S32750, S32760 etc (w1.4462, 1.4410, 1.4501, 1.4507 etc.)
10. Standard:
China Standard GB12459-90 etc
U.S.A Standard ASTM A403,ANSI B16.9,ANSI B16.28,ANSI B16.11 etc
Germany Standard KIN2605, DIN2606, DIN2615 etc
Japanese Standard JIS B2311, JIS B2312, JIS B2313 etc.
Applications:
Widely used in connecting the long-distance piping engineering ,such as transmission of the finished oil,
transmission of the natural gas and the deep processing as well as transmission of coal bed gas,
petroleum industry, chemical industry, construction industry, domestic installation pharmaceutical, electrical power,
light industry, textile, Iron &steel industry, nuclear station, vessels and transmission of the coal slurry and etc.
Specification
|
Norminal Pipe Size DN |
Outside Diameter at Bevel |
Genter to End |
||
|
D1 |
D2 |
C |
M |
|
|
Series A |
Series B |
|||
|
15 |
21.3 |
18 |
25 |
|
|
20 |
26.9 |
25 |
29 |
|
|
25 |
33.7 |
32 |
38 |
|
|
32 |
42.4 |
38 |
48 |
|
|
40 |
48.3 |
45 |
57 |
|
|
50 |
60.3 |
57 |
64 |
|
|
65 |
76.1 |
76 |
76 |
|
|
80 |
88.9 |
89 |
86 |
|
|
90 |
101.6 |
102 |
95 |
|
|
100 |
114.3 |
108 |
105 |
|
|
125 |
139.7 |
133 |
124 |
|
|
150 |
168.3 |
159 |
143 |
|
|
200 |
219.1 |
219 |
178 |
|
|
250 |
273.0 |
273 |
216 |
|
|
300 |
323.9 |
325 |
254 |
|
|
350 |
355.6 |
377 |
279 |
|
|
400 |
406.4 |
426 |
305 |
|
|
450 |
457.0 |
478 |
343 |
|
|
500 |
508.0 |
529 |
381 |
|
|
550 |
559.0 |
- |
419 |
|
|
660 |
610.0 |
630 |
432 |
|
|
650 |
660.0 |
- |
495 |
|
|
700 |
711.0 |
720 |
521 |
|
|
750 |
762.0 |
- |
559 |
|
|
800 |
813.0 |
820 |
597 |
|
|
850 |
864.0 |
- |
635 |
|
|
900 |
914.0 |
920 |
673 |
|
|
950 |
965.0 |
- |
711 |
|
|
1000 |
1016.0 |
1020 |
749 |
|
|
1050 |
1067.0 |
- |
762 |
711 |
|
1100 |
1118.0 |
1120 |
813 |
762 |
|
1150 |
1168.0 |
- |
851 |
800 |
|
1200 |
1220.0 |
1220 |
889 |
836 |
Our advantage
i. Ultrasonic equipment for thickness inspection
ii. Ultrasonic flaw detecting equipment
iii. Universal material testing equipment
iv. Carbon and sulfur analyzer
