| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | TP304/TP304L/TP316L/TP304H/TP347H/ |
| Minimum Order Quantity: | 0.5-1 tons |
| Price: | negotiable |
| Packaging Details: | in plastic bags then in bundles |
| Delivery Time: | According to the qty |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 7500 tons per year |
| Standard:: | EN10216-5,EN10216-2,DIN 17456,DIN 17458,ASTM A312, A213,A269,A511,A789, A790 ETC,GOST 9941,JIS G3459 | Color: | White Silver Gold |
|---|---|---|---|
| Types:: | Stainless Steel Seamless Pipe / Tube | Material Grade: | 316Ti (UNS S31635) |
| Outer Diameter: | 6mm-830mm | ||
| Highlight: | seamless stainless steel tube,stainless steel round tube |
||

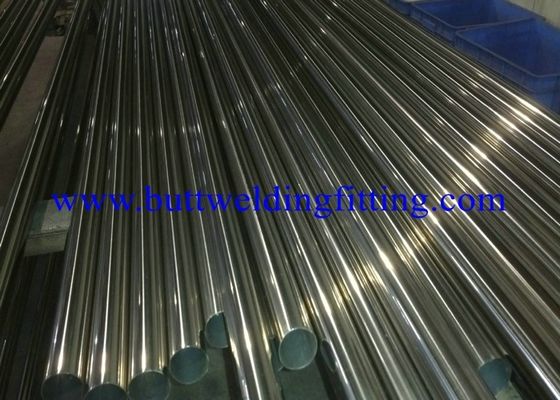

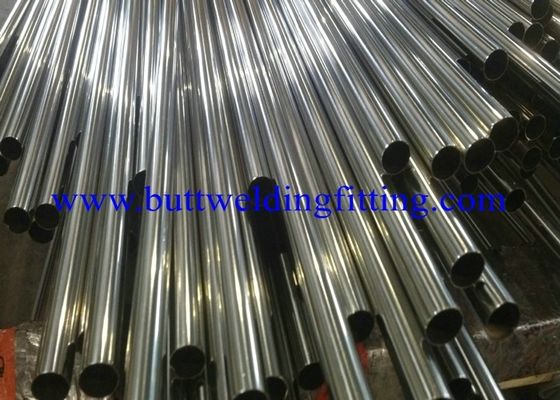

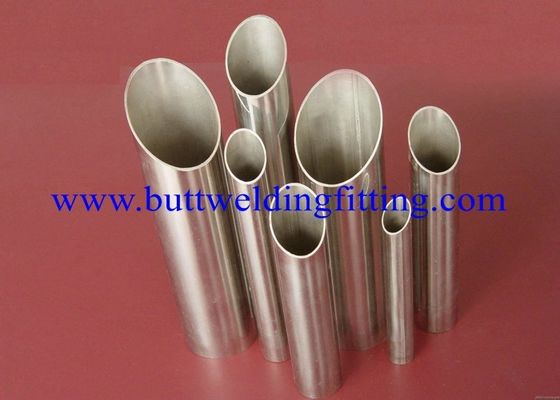

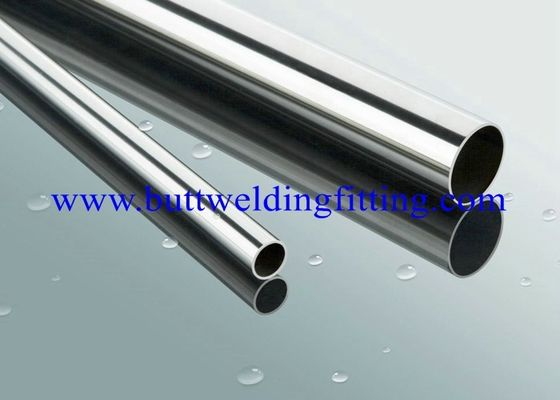

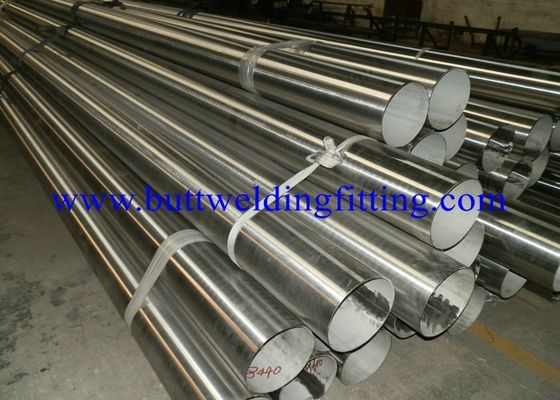

ASTM A213 TP316Ti Stainless Steel Seamless Pipe , UNSS31635 1.4571 Seamless Tube
Quick Detail:
Type 316Ti (UNS S31635) is a titanium stabilized version of Type 316 molybdenum-bearing austenitic stainless steel.
316Ti (UNS S31635) is a titanium stabilised version of 316 molybdenum-bearing austenitic stainless steel. The 316 alloys are more resistant to general corrosion and pitting/crevice corrosion than the conventional chromium-nickel austenitic stainless steels such as 304. They also offer higher creep, stress-rupture and tensile strength at elevated temperature. High carbon Alloy 316 stainless steel can be susceptible to sensitisation, the formation of grain boundary chromium carbides at temperatures between approximately 900 and 1500°F (425 to 815°C) which can result in intergranular corrosion. Resistance to sensitisation is achieved in Alloy 316Ti with titanium additions to stabilise the structure against chromium carbide precipitation, which is the source of sensitisation. This stabilisation is achieved by an intermediate temperature heat treatment, during which the titanium reacts with carbon to form titanium carbides. This significantly reduces susceptibility to sensitisation in service by limiting the formation of chromium carbides. Thus, the alloy can be used for extended periods at elevated temperatures without compromising its corrosion resistance. 316Ti has equvilent corrosion resistance to sensitisation as the low carbon version 316L.
ASTM A213 316Ti Stainless Steel Seamless Pipe, UNS S31635 1.4571 Seamless Tubing
Typical Application
***Chemical industry
***Textile industry
***Cellulose industry
***Pharmaceutical industry
***Water management
Processing
The possibilities for cold forming 316Ti are very good. The considerably greater strain hardening compared to plain steel grades demands correspondingly higher forming forces. The annealing colours or scaling occurring during hot forming or welding impair the corrosion resistance. They must be removed by pickling, grinding or sand-blasting (iron free). Metal-cutting machining must be performed with tools made of high-quality high-speed steel (good cooling necessary), or preferably with carbide tools, owing to the strain hardening and the low thermal conductivity. The 316Ti material version displays better cutting properties owing to the specific addition of sulphur.
Welding
Good weldability using all process (except gas welding).
Notes on use
Owing to the addition of titanium as a carbode former, 316Ti is resistant to intercrystalline corrosion, regardless of thickness and cross-section and even when welded, in continuous operation at up to 400 o C. Owing to the molybdenum content, 316Ti displays good resistance to media containing chloride and to non-oxidising acids. 316Ti is used in the construction of apparatus for the chemical and pharmaceutical industries, and for textile finishing.
Material Grade:
|
American Standard |
Austenitic Steel: TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439,... |
|
Europen Standard |
1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
|
Russia Standard |
08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ |
Chemical Composition
Physical Properties
Mechanical Properties
Typical Application
***Chemical industry
***Textile industry
***Cellulose industry
***Pharmaceutical industry
***Water management
Processing
The possibilities for cold forming 316Ti are very good. The considerably greater strain hardening compared to plain steel grades demands correspondingly higher forming forces. The annealing colours or scaling occurring during hot forming or welding impair the corrosion resistance. They must be removed by pickling, grinding or sand-blasting (iron free). Metal-cutting machining must be performed with tools made of high-quality high-speed steel (good cooling necessary), or preferably with carbide tools, owing to the strain hardening and the low thermal conductivity. The 316Ti material version displays better cutting properties owing to the specific addition of sulphur.
Welding
Good weldability using all process (except gas welding).
Notes on use
Owing to the addition of titanium as a carbode former, 316Ti is resistant to intercrystalline corrosion, regardless of thickness and cross-section and even when welded, in continuous operation at up to 400 o C. Owing to the molybdenum content, 316Ti displays good resistance to media containing chloride and to non-oxidising acids. 316Ti is used in the construction of apparatus for the chemical and pharmaceutical industries, and for textile finishing.
Tag: Stainless steel pipe, 316TI seamless pipe, 316ti seamless tube
