| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | Nickel Alloy Steel Alloy 625 / Inconel 625 |
| Minimum Order Quantity: | 5PCS |
| Price: | Discussion |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Delivery Time: | 15 Days |
| Payment Terms: | T/T, L/C, Western Union, D/A, D/P |
| Supply Ability: | 9900000PCS PER MONTH |
| Material: | Nickel Alloy Steel Alloy 625 / Inconel 625 | Application: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc |
|---|---|---|---|
| Size: | 1/2’’~48’’(Seamless);16’’~72’’(Welded) | Wall Thickness: | Sch5~Sch160\XXS |
| Brand Name:: | TOBO | Certification:: | API,CE,ISO9001:2008,LRQA,PED |
| Highlight: | steel pipe tee,butt weld tee |
||

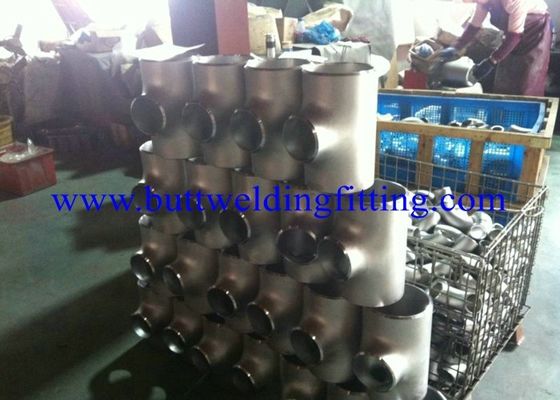

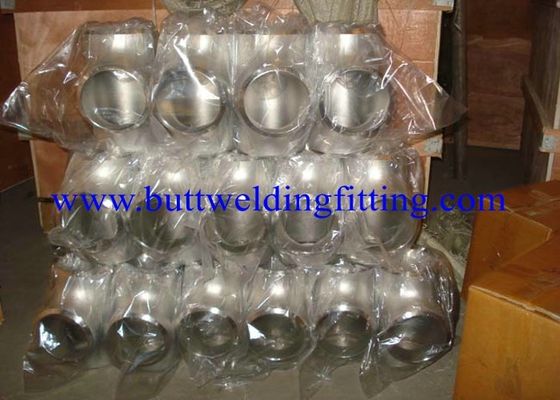

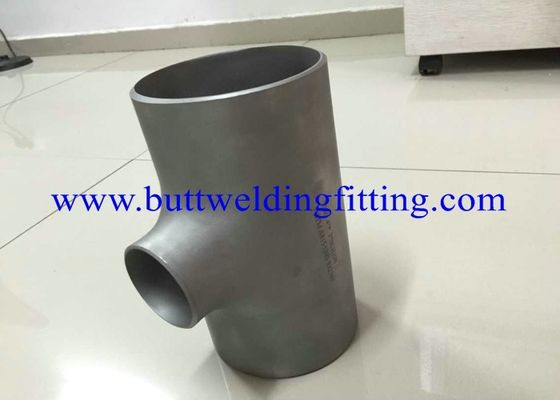

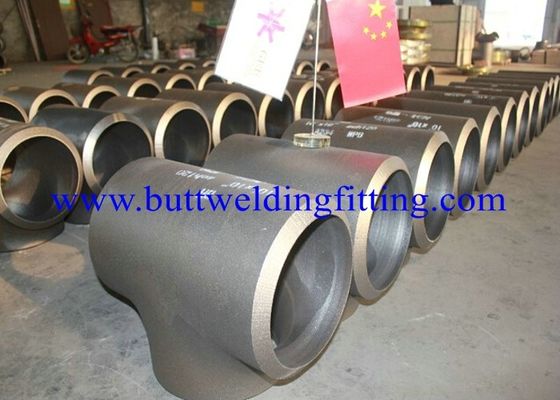

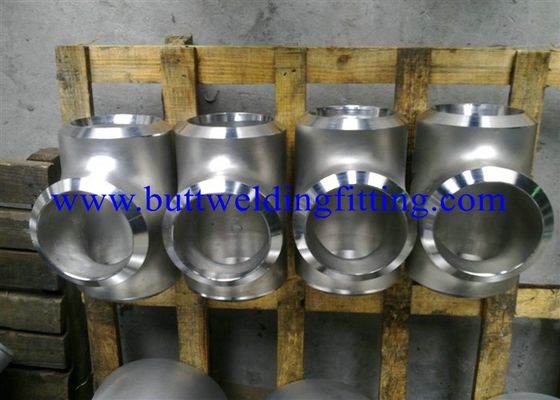

Nickel Alloy Steel Alloy 625 / Inconel 625 Stainless Steel Tee NO6625 / NS336 / 2.4856 Tee
alloy 625/inconel 625 fittings
Description
UNS: N06625
W.Nr.: 2.4856
A nickel-chromium-molybdenum alloy with an addition of niobium that acts with the molybdenum to stiffen the alloy’s matrix and thereby provide high strength without a strengthening heat treatment. The alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion. Used in chemical processing, aerospace and marine engineering, pollution-control equipment, and nuclear reactors.Our main products involve a wide variety of nickel-base alloy welding sticks, nickel-base alloy power, nickel-base electric welding rods, nickel-base alloy precision castings ,forging and wrought alloys .
| Limiting Chemical Composition (%) | |||
| Nickel | 58.0 min. | Silicon | 0.50 max. |
| Chromium | 20.0-23.0 | Phosphorus | 0.015 max. |
| Iron | 5.0 max. | Sulfur | 0.015 max. |
| Molybdenum | 8.0-10.0 | Aluminum | 0.40 max. |
| Niobium (plus Tantalum) | 3.15-4.15 | Titanium | 0.40 max. |
| Carbon | 0.10 max. | Cobalt | 1.0 max. |
| Manganese | 0.50 max. | ||
Get the full physical and chemicial specification, contact us !!
Other nickel bese alloys, we have:
Inconel 600 Inconel 601 Inconel 617 Inconel 625LCF Inconel 686
Inconel 690 Inconel 718 Inconel 725 Inconel X-750
Hastelloy C-276 Hastelloy C Hastelloy C-22 Hastelloy C-2000
Hastelloy G Hastelloy G-30 Hastelloy B Hastelloy B-2
Hastelloy B-3
Monel 400 Monel 401 Monel 404 Monel R405 Monel K-500
Nickel 200 Nickel 201 Nickel 205
Nimonic 80A Nimonic 90 Nimonic 105 Nimonic 115 Nimonic 901
Udimet 188 Udimet 720 Udimet R41 Udimet 300
Inconel 625
Equivalent designations
UNS N06625
DIN W. Nr. 2.4856
|
Form |
ASTM |
|
Rod and bar |
B 446 |
|
Plate, sheet and strip |
B 443, B 906 |
|
Seamless pipe and tube |
B 444, B 829 |
|
Welded pipe |
B 705, B 775 |
|
Welded tube |
B 704, B 751 |
|
Welding fitting |
B 366 |
|
Billet and bar for reforging |
B 472 |
|
Forging |
B 564 |
Chemical composition
|
% |
Ni |
Cr |
Mo |
Fe |
C |
Mn |
Si |
P |
S |
Co |
Nb+Ta |
Al |
Ti |
|
min |
58.0 |
20.0 |
8.0 |
|
|
|
|
|
|
|
3.15 |
|
|
|
max |
|
23.0 |
10.0 |
5.0 |
0.10 |
0.50 |
0.50 |
0.015 |
0.015 |
1.00 |
4.15 |
0.40 |
0.40 |
Physical properties
|
Density |
8.44 g/cm3 |
|
Melting range |
1290-1350℃ |
