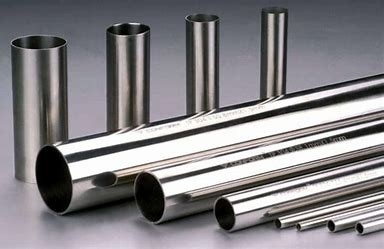

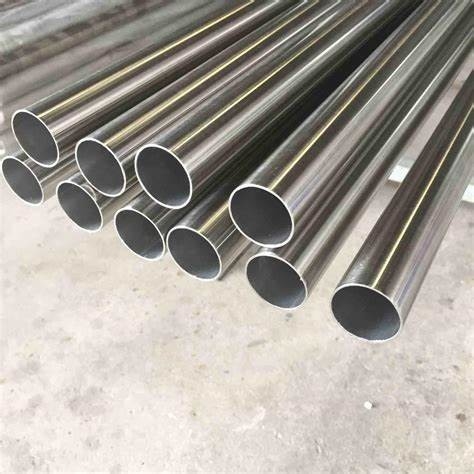

Astm A358 316l Stainless Steel Pipe Seamless Weled
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | 1.4835 Stainless Steel Seamless Pipe |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | 15days-> |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 7500 tons per year |
Product Details
| Standard | DIN, ANSI, ISO, GB, JIS | Application | Fluid Pipe,Structure Pipe |
|---|---|---|---|
| Surface | Annealed & Pickled, Bright Annealing, Polished | Types | Seamless |
| Thickness | 0.5-100mm | Outer Diameter | 6-813mm |
| Material | Carbon Steel,Stainless Steel,alloy Steel,Brass,copper | Sample | Provided,Free,Available Free Within 7days |
| Highlight | ASTM A358 316L stainless steel pipe,seamless welded stainless steel pipe,316L stainless steel seamless pipe |
||
Product Description
astm a358 316l stainless steel pipe seamless/weled with good price
Product Description
1. Stainless Steel Main Feature:
Stainless steel is a production which not easy rust,acid resistance and corrosion resistance,so it is widely used in light industry,heavy industry,daily necessities and the decoration industry.My company long-term supply stainless steel products including:stainless steel tube&pipe, stainless steel bar, stainless steel plate&sheet, stainless steel wire etc.
2. Description:
| Description | Stainless Steel pipe |
| Supply Capacity | 10000 tons/year |
| Process Method | cold drawn and cold rolled |
| Out Diameter | 6-711mm |
| Wall Thickness | 0.5-40mm |
| Length | 6-25 meters |
| Steel Grade | 200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%) |
| 301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti | |
| 317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc. | |
| Standards | ASTM / ASME, GB, DIN, JIS, T14975, etc. |
| Specification | O.D: 1/4" - 32" (inch) |
| W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. | |
| Or non-regular size to be tailored as required. | |
| Application | Heat exchanger,Liquid delivery,Structure,etc. |
| Packing | 1.with plastic cap to protect both ends |
| 2.plastic bag wrapped outside the pipe | |
| 3.bundles to be covered by polythene & strapped securely . | |
| 4.if require ,then pack into wooden box. | |
| Certificate | ISO 9001:2008 |
| Delivery time | 30-60 days depend on Quantity |
| Payment Term | T/T, Irrevocable L/C at sight |
| Trade Term | FOB , CFR , CIF |
3. Material
3.1 Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201(1Cr17Mn6Ni5N) | ≤0.15 | ≤1.0 | ≤5.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — | ≤0.25 |
| 202(1Cr18Mn8Ni5N) | ≤0.15 | ≤0.07 | ≤7.5 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | — | ≤0.25 |
| 304(0Cr18Ni9) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 304L(00Cr18Ni10) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 305 | ≤012 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.5-13.0 | 17.0-19.0 | ||
| 316(0Cr17Ni12Mo2) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 316L(0Cr17Ni14Mo2) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 309s | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 12.00-15.00 | 22.00-24.00 | ||
| 310s | ≤0.08 | ≤1.50 | ≤2.0 | ≤0.045 | ≤0.03 | 19.00-22.00 | 24.00-26.00 | ||
| 317l | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.04 | ≤0.03 | 9.0-12.0 | 17.0-19.0 | Ti≥5xC | |
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.5 | 10.5-11.7 | Ti6xC%≤0.70 | |
| 409L | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.5 | 10.5-11.7 | Ti8xC%≤0.70 | |
| 430 | ≤0.12 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 16.0-18.0 | |||
| SS329J4L | ≤0.03 | ≤1.0 | ≤1.5 | ≤0.04 | ≤0.03 | 5.50-7.50 | 24.00-26.00 | 2.50-3.50 |
|
Application
|
Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
| Transport | Exhaust systems, car trim, road tankers, ship containers, ships chemical tankers etc | |
| Chemical/Pharmaceutical | Pressure vessels, process piping etc | |
| Oil & Gas | Platform accomodation, cable trys, subsea pipelines etc | |
| Water | Water and sewage treatment, water tubing, hot water tankers etc | |
| Medical | Surgical instruments, surgical implanets, MRI scanners etc. | |
| Food & Drink | Catering equipment, brewing, food processing etc |
FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
