Products

12x8 Reducer Stainless Steel Reducer Concentric Sch Std, A403 wp304l / wp316l / 321 / 321h

Basic Information

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	A403 wp304l / wp316l / 321 / 321h

Minimum Order Quantity:	3PCS
Price:	USD0.3-60 PER PC
Packaging Details:	PLY-WOODEN CASE OR PALLET
Delivery Time:	15DAYS
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	9990000PCS Per Month

Get Best Price Contact Now

Types:	Conc.reducer ; Ecc Reducer	Material:	A403 Wp304l / Wp316l / 321 / 321h
Thickness::	Sch5-Sch160, STD, XS, XXS	Standard::	ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313
Surface Finish::	Sand Blast, Black Painting, Galvanizing Finish
Highlight:	Pipe Reducer Fittings , Concentric Pipe Reducer

Concentric Reducer, Sch Std, A403 wp304l / wp316l / 321 / 321h Stainless Steel Reducer 12"x8"

Product details

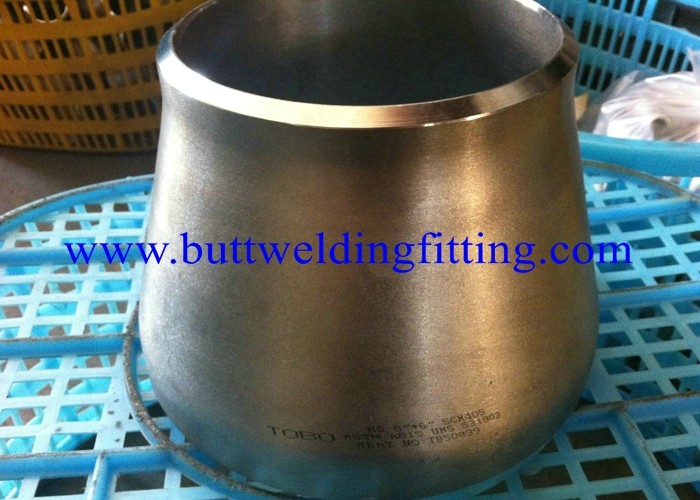

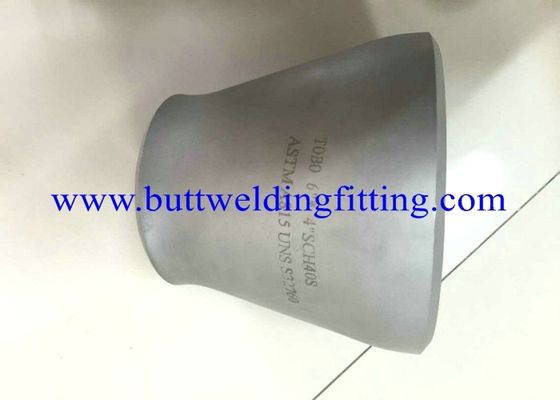

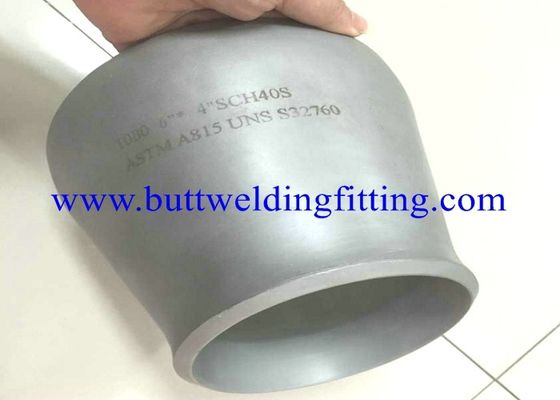

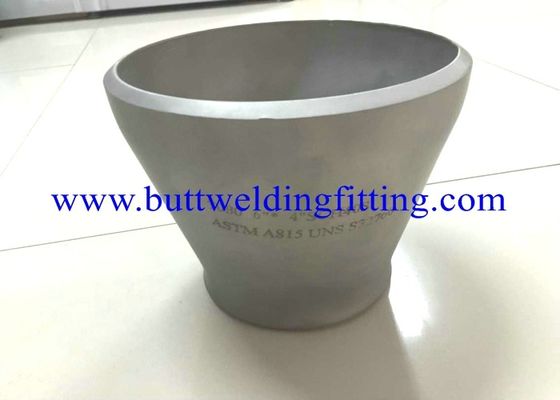

Stainless Steel Conc Reducer

1 Product Standard & Marterial

Standard

1) Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2) Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS

Material :

Carbon Steel: ASTM A-234 (WPB,WPC) EN 10216-2 (P235GH,P265GH) EN10222-2 (P245GH,P280GH) NF A49-213 (TU42C,TU48C)

Low Alloy Steel : ASTM A-420(WPL6) ASTM A-234(WP11,WP22,WP5) ASTM A-860(A860-

WPHY52)

Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347, WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12 2(1.4401),X2CrNiMo17-12-2(1.4404)

Remarks :

1) Normal size above are provided for you reference .

2) Custom made as customers' requirements for special Size .

Quality Control

3 Production Line & Related Test

We pay attention to every step of manufacturing, and carefully control evry details from process ,design ,manufacture and test , in order to guarantee superexcellent product .

a Raw material inspection :

dimension and tolerance check, appearance quality check, mechanical properties testing, weight check and raw material's quality assurance certificate check

b Semi-finished goods inspection :

dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection

c Finished goods inspection :

dimension and tolerance, appperance quality check and mechanical properties testing

12x8 Reducer Stainless Steel Reducer Concentric Sch Std, A403 wp304l / wp316l / 321 / 321h 0

d Inspection before ex-factory:

We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.

Specification

Cocentric Reduer Eccentric Reduer

Nominal Diameter		Outside Diameter		End to End
Nominal Diameter		*D1D2**		End to End
DN	NPS	Series A	Series B	H
20×15	3/4×1/2	26.9×21.3	25×18	38
20×10	3/4×3/8	26.9×17.3	25×14	38
25×20	1×3/4	33.7×26.9	32×25	51
25×15	1×1/2	33.7×21.3	32×18	51
32×25	1.1/4×1	42.4×33.7	38×32	51
32×20	1.1/4×3/4	42.4×26.9	38×25	51
32×15	1.1/4×1/2	42.4×21.3	38×18	51
40×32	1.1/2×1.1/4	48.3×42.4	45×38	64
40×25	1.1/2×1	48.3×33.7	45×32	64
40×20	1.1/2×3/4	48.3×26.9	45×25	64
40×15	1.1/2×1/2	48.3×21.3	45×18	64
50×40	2×1.1/2	60.3×48.3	57×45	76
50×32	2×1.1/4	60.3×42.4	57×38	76
50×25	2×1	60.3×33.7	57×32	76
50×20	2×3/4	60.3×26.9	57×25	76
65×50	2.1/2×2	73.0×60.3	76×57	89
65×40	2.1/2×1.1/2	73.0×48.3	76×45	89
65×32	2.1/2×1.1/4	73.0×42.4	76×38	89
65×25	2.1/2×1	73.0×33.7	76×32	89
80×65	3×2.1/2	88.9×73.0	89×76	89
80×50	3×2	88.9×60.3	89×57	89
80×40	3×1.1/2	88.9×48.3	89×45	89
80×32	3×1.1/4	88.9×42.4	89×38	89
90×80	3.1/2×3	101.6×88.9	-	102
90×65	3.1/2×2.1/2	101.6×73.0	-	102
90×50	3.1/2×2	101.6×60.3	-	102
90×40	3.1/2×1.1/2	101.6×48.3	-	102
90×32	3.1/2×1.1/4	101.6×42.4	-	102
100×90	4×3.1/2	114.3×101.6	-	102
100×80	4×3	114.3×88.9	108×89	102
100×65	4×2.1/2	114.3×73.0	108×76	102
100×50	4×2	114.3×60.3	108×57	102
100×40	4×1.1/2	114.3×48.3	108×45	102
125×100	5×4	141.3×114.3	133×108	127
125×90	5×3.1/2	141.3×101.6	-	127
125×80	5×3	141.3×88.9	133×89	127
125×65	5×2.1/2	141.3×73.0	133×76	127
125×50	5×2	141.3×60.3	133×57	127
150×125	6×5	168.3×141.3	159×133	140
150×100	6×5	168.3×114.3	159×108	140
150×90	6×3.1/2	168.3×101.6	-	140
150×80	6×3	168.3×88.9	159×89	140
150×65	6×2.1/2	168.3×73.0	159×76	140
200×150	8×6	219.1×168.3	219×159	152
200×125	8×5	219.1×141.3	219×133	152
200×100	8×4	219.1×114.3	219×108	152
200×90	8×3.1/2	219.1×101.6	-	152
250×200	10×8	273.0×219.1	273×219	178
250×150	10×6	273.0×168.3	273×159	178
250×125	10×5	273.0×141.3	273×133	178
250×100	10×4	273.0×114.3	273×108	178
300×250	12×10	323.9×273.1	325×273	203
300×200	12×8	323.9×219.1	325×219	203
300×150	12×6	323.9×168.3	325×159	203
300×125	12×5	323.9×141.3	325×133	203
350×300	14×12	355.6×323.9	377×325	330
350×250	14×10	355.6×273.0	377×273	330
350×200	14×8	355.6×219.1	377×219	330
350×150	14×6	355.6×168.3	377×159	330
400×350	16×14	406.4×355.6	426×377	356
400×300	16×12	406.4×323.9	426×325	356
400×250	16×10	406.4×273.0	426×273	356
400×200	16×8	406.4×219.1	426×219	356
450×400	18×16	457×406.4	478×426	381
450×350	18×14	457×355.6	478×377	381
450×300	18×12	457×323.9	478×325	381
450×250	18×10	457×273.0	478×273	381
500×450	20×18	508×457	529×478	508
500×400	20×16	508×406.4	529×426	508
500×350	20×14	508×355.6	529×377	508
500×300	20×12	508×323.9	529×325	508
550×500	22×20	559×508	-	508
550×450	22×18	559×457	-	508
550×400	22×16	559×406.4	-	508
550×350	22×14	559×355.6	-	508
600×550	24×22	610×559	-	508
600×500	24×20	610×508	630×529	508
600×450	24×18	610×457	630×478	508
600×400	24×22	610×406.4	630×426	508
650×600	26×24	660×610	-	610
650×550	26×22	660×559	-	610
650×500	26×20	660×508	-	610
650×450	26×18	660×457	-	610
700×650	28×26	711×660	-	610
700×600	28×24	711×610	720×630	610
700×550	28×22	711×559	-	610
700×500	28×20	711×508	720×530	610
750×700	30×28	762×711	-	610
750×650	30×26	762×660	-	610
750×600	30×24	762×610	-	610
750×550	30×22	762×559	-	610
800×750	32×30	813×762	-	610
800×700	32×28	813×711	820×720	610
800×650	32×26	813×660	-	610
800×600	32×24	813×610	820×630	610
850×800	34×32	864×813	-	610
850×750	34×30	864×762	-	610
850×700	34×28	864×711	-	610
850×650	34×26	864×660	-	610
900×850	36×34	914×864	-	610
900×800	36×32	914×813	920×820	610
900×750	36×30	914×762	-	610
900×700	36×28	914×711	920×720	610
950×900	38×36	965×914	-	610
950×850	38×34	965×864	-	610
950×800	38×32	965×813	-	610
950×750	38×30	965×762	-	610
1000×950	40×38	1016×965	-	610
1000×900	40×36	1016×914	1020×920	610
1000×850	40×34	1016×864	-	610
1000×800	40×32	1016×813	1020×820	610
1050×1000	42×40	1067×1016	-	610
1050×950	42×38	1067×965	-	610
1050×900	42×36	1067×914	-	610
1050×850	42×34	1067×864	-	610
1100×1050	44×42	1118×1067	-	610
1100×1000	44×40	1118×1016	1120×1020	610
1100×950	44×38	1118×965	-	610
1100×900	44×36	1118×914	1220×920	610
1150×1100	46×44	1168×1118	-	711
1150×1050	46×42	1168×1067	-	711
1150×1000	46×40	1168×1016	-	711
1150×950	46×38	1168×965	-	711
1200×1150	48×46	1220×1168	-	711
1200×1100	48×44	1220×1118	1220×1120	711
1200×1050	48×42	1220×1067	-	711
1200×1000	48×40	1220×1016	1220×1020	711
Note: The dimensions conform to GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T05010 standard.

12x8 Reducer Stainless Steel Reducer Concentric Sch Std, A403 wp304l / wp316l / 321 / 321h 2
