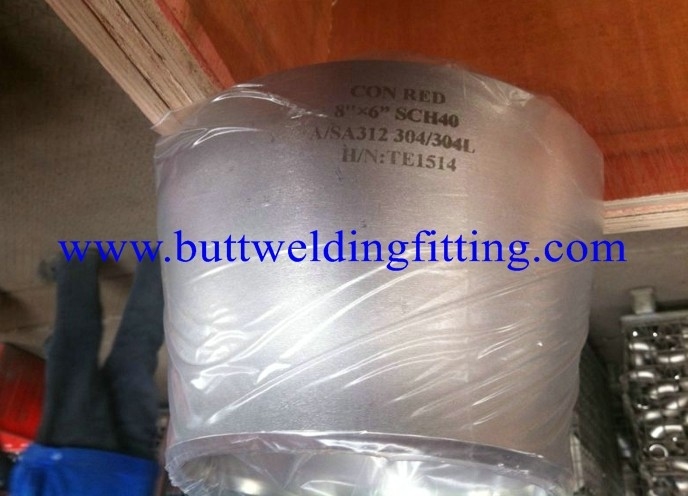

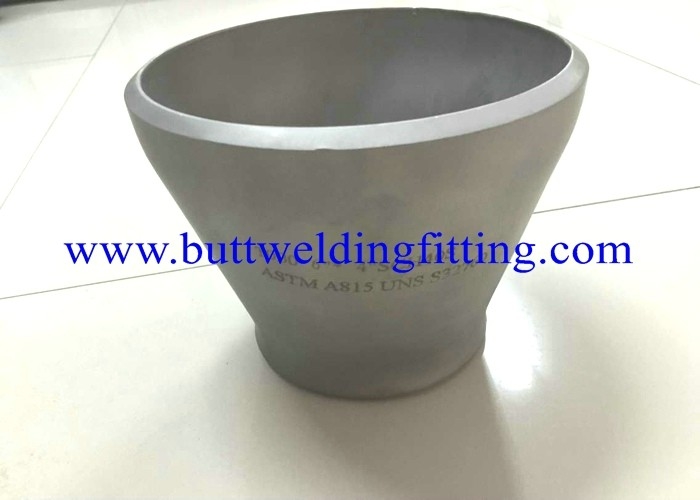

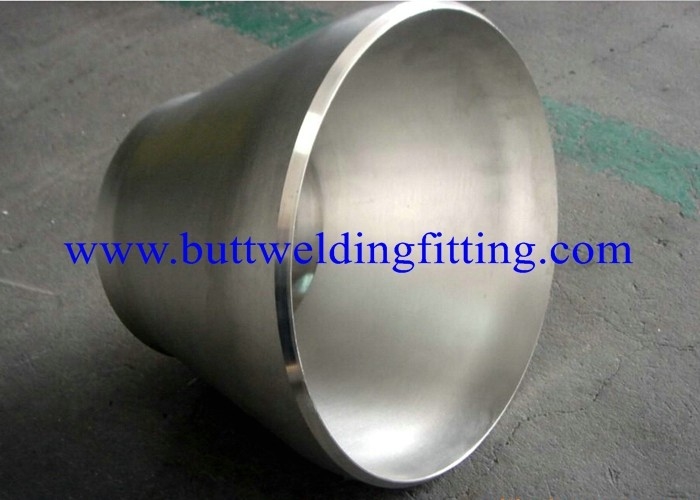

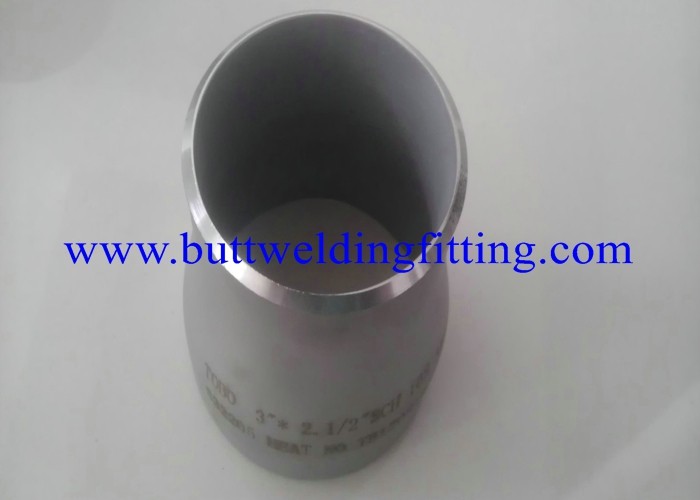

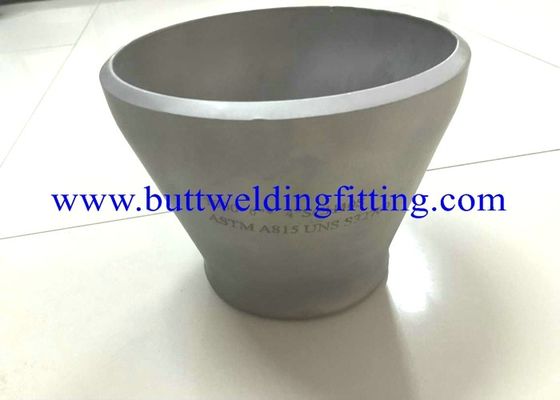

12” SCH80S Stainless Steel Reducer Con Reducer ASME / ANSI B16.9 ASTM A403 WP304H / 310H

ASME / ANSI B16.9 ASTM A403 WP304H / 310H  Stainless Steel Reducer CON REDUCER 12” SCH80S

Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75
Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.

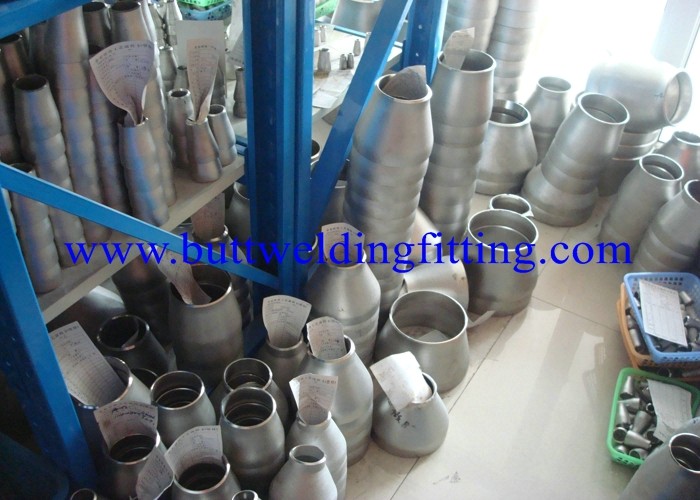

· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.
Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.

Product name : stainless steel eccentric reducer

Item : buttweld-Reducer

Details :

Nominal Diameter Outside Diameter End to End D1*D2 DN NPS Series A Series B H 20×15 3/4×1/2 26.9×21.3 25×18 38 20×10 3/4×3/8 26.9×17.3 25×14 38 25×20 1×3/4 33.7×26.9 32×25 51 25×15 1×1/2 33.7×21.3 32×18 51 32×25 1.1/4×1 42.4×33.7 38×32 51 32×20 1.1/4×3/4 42.4×26.9 38×25 51 32×15 1.1/4×1/2 42.4×21.3 38×18 51 40×32 1.1/2×1.1/4 48.3×42.4 45×38 64 40×25 1.1/2×1 48.3×33.7 45×32 64 40×20 1.1/2×3/4 48.3×26.9 45×25 64 40×15 1.1/2×1/2 48.3×21.3 45×18 64 50×40 2×1.1/2 60.3×48.3 57×45 76 50×32 2×1.1/4 60.3×42.4 57×38 76 50×25 2×1 60.3×33.7 57×32 76 50×20 2×3/4 60.3×26.9 57×25 76 65×50 2.1/2×2 73.0×60.3 76×57 89 65×40 2.1/2×1.1/2 73.0×48.3 76×45 89 65×32 2.1/2×1.1/4 73.0×42.4 76×38 89 65×25 2.1/2×1 73.0×33.7 76×32 89 80×65 3×2.1/2 88.9×73.0 89×76 89 80×50 3×2 88.9×60.3 89×57 89 80×40 3×1.1/2 88.9×48.3 89×45 89 80×32 3×1.1/4 88.9×42.4 89×38 89 90×80 3.1/2×3 101.6×88.9 - 102 90×65 3.1/2×2.1/2 101.6×73.0 - 102 90×50 3.1/2×2 101.6×60.3 - 102 90×40 3.1/2×1.1/2 101.6×48.3 - 102 90×32 3.1/2×1.1/4 101.6×42.4 - 102 100×90 4×3.1/2 114.3×101.6 - 102 100×80 4×3 114.3×88.9 108×89 102 100×65 4×2.1/2 114.3×73.0 108×76 102 100×50 4×2 114.3×60.3 108×57 102 100×40 4×1.1/2 114.3×48.3 108×45 102 125×100 5×4 141.3×114.3 133×108 127 125×90 5×3.1/2 141.3×101.6 - 127 125×80 5×3 141.3×88.9 133×89 127 125×65 5×2.1/2 141.3×73.0 133×76 127 125×50 5×2 141.3×60.3 133×57 127 150×125 6×5 168.3×141.3 159×133 140 150×100 6×5 168.3×114.3 159×108 140 150×90 6×3.1/2 168.3×101.6 - 140 150×80 6×3 168.3×88.9 159×89 140 150×65 6×2.1/2 168.3×73.0 159×76 140 200×150 8×6 219.1×168.3 219×159 152 200×125 8×5 219.1×141.3 219×133 152 200×100 8×4 219.1×114.3 219×108 152 200×90 8×3.1/2 219.1×101.6 - 152 250×200 10×8 273.0×219.1 273×219 178 250×150 10×6 273.0×168.3 273×159 178 250×125 10×5 273.0×141.3 273×133 178 250×100 10×4 273.0×114.3 273×108 178 300×250 12×10 323.9×273.1 325×273 203 300×200 12×8 323.9×219.1 325×219 203 300×150 12×6 323.9×168.3 325×159 203 300×125 12×5 323.9×141.3 325×133 203 350×300 14×12 355.6×323.9 377×325 330 350×250 14×10 355.6×273.0 377×273 330 350×200 14×8 355.6×219.1 377×219 330 350×150 14×6 355.6×168.3 377×159 330 400×350 16×14 406.4×355.6 426×377 356 400×300 16×12 406.4×323.9 426×325 356 400×250 16×10 406.4×273.0 426×273 356 400×200 16×8 406.4×219.1 426×219 356 450×400 18×16 457×406.4 478×426 381 450×350 18×14 457×355.6 478×377 381 450×300 18×12 457×323.9 478×325 381 450×250 18×10 457×273.0 478×273 381 500×450 20×18 508×457 529×478 508 500×400 20×16 508×406.4 529×426 508 500×350 20×14 508×355.6 529×377 508 500×300 20×12 508×323.9 529×325 508 550×500 22×20 559×508 - 508 550×450 22×18 559×457 - 508 550×400 22×16 559×406.4 - 508 550×350 22×14 559×355.6 - 508 600×550 24×22 610×559 - 508 600×500 24×20 610×508 630×529 508 600×450 24×18 610×457 630×478 508 600×400 24×22 610×406.4 630×426 508 650×600 26×24 660×610 - 610 650×550 26×22 660×559 - 610 650×500 26×20 660×508 - 610 650×450 26×18 660×457 - 610 700×650 28×26 711×660 - 610 700×600 28×24 711×610 720×630 610 700×550 28×22 711×559 - 610 700×500 28×20 711×508 720×530 610 750×700 30×28 762×711 - 610 750×650 30×26 762×660 - 610 750×600 30×24 762×610 - 610 750×550 30×22 762×559 - 610 800×750 32×30 813×762 - 610 800×700 32×28 813×711 820×720 610 800×650 32×26 813×660 - 610 800×600 32×24 813×610 820×630 610 850×800 34×32 864×813 - 610 850×750 34×30 864×762 - 610 850×700 34×28 864×711 - 610 850×650 34×26 864×660 - 610 900×850 36×34 914×864 - 610 900×800 36×32 914×813 920×820 610 900×750 36×30 914×762 - 610 900×700 36×28 914×711 920×720 610 950×900 38×36 965×914 - 610 950×850 38×34 965×864 - 610 950×800 38×32 965×813 - 610 950×750 38×30 965×762 - 610 1000×950 40×38 1016×965 - 610 1000×900 40×36 1016×914 1020×920 610 1000×850 40×34 1016×864 - 610 1000×800 40×32 1016×813 1020×820 610 1050×1000 42×40 1067×1016 - 610 1050×950 42×38 1067×965 - 610 1050×900 42×36 1067×914 - 610 1050×850 42×34 1067×864 - 610 1100×1050 44×42 1118×1067 - 610 1100×1000 44×40 1118×1016 1120×1020 610 1100×950 44×38 1118×965 - 610 1100×900 44×36 1118×914 1220×920 610 1150×1100 46×44 1168×1118 - 711 1150×1050 46×42 1168×1067 - 711 1150×1000 46×40 1168×1016 - 711 1150×950 46×38 1168×965 - 711 1200×1150 48×46 1220×1168 - 711 1200×1100 48×44 1220×1118 1220×1120 711 1200×1050 48×42 1220×1067 - 711 1200×1000 48×40 1220×1016 1220×1020 711
