ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S

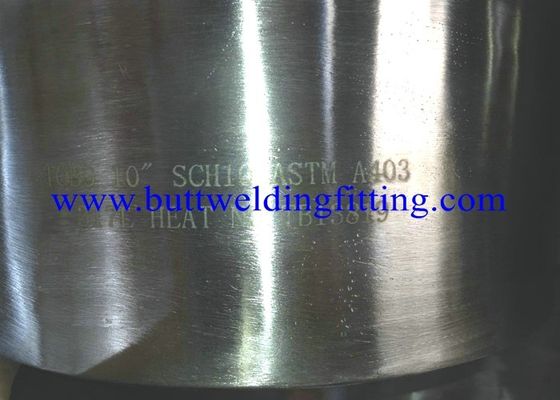

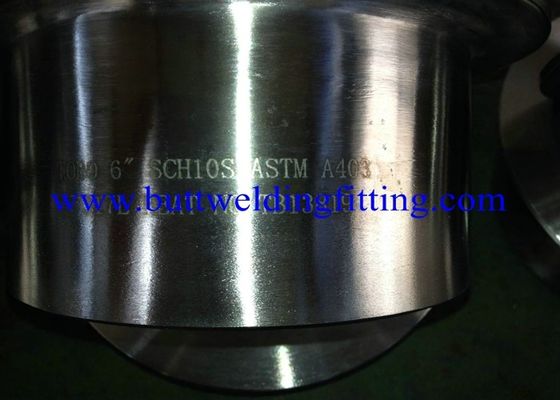

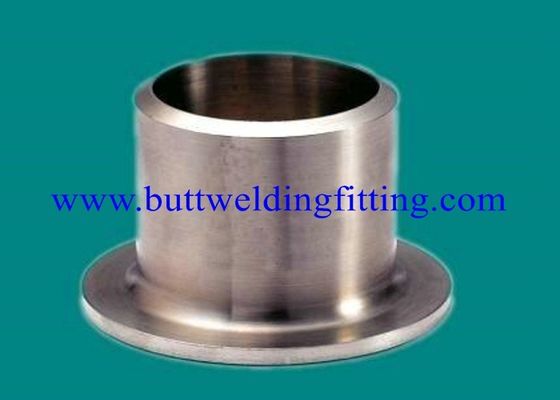

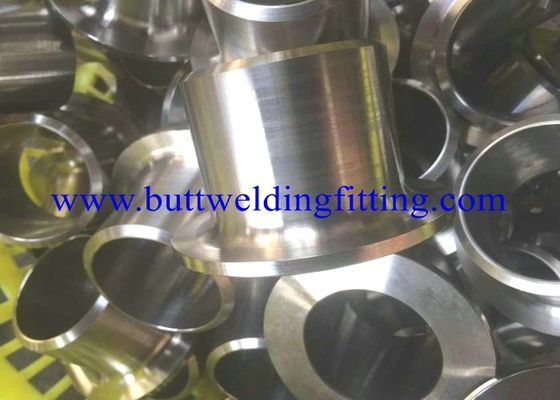

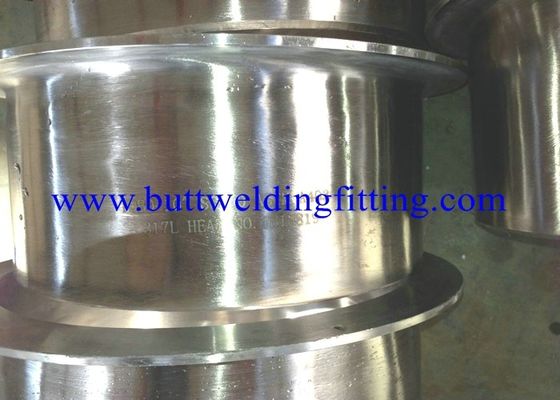

  • ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
  • ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
  • ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
  • ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
  • ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 WP317L / 310H
Minimum Order Quantity 2PCS
Price USD0.3-50 PER PC
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9990000PCS Per Month
Product Details
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded) Material ASME / ANSI B16.9 ASTM A403 WP304H / 310H
Connection Thickness SMLS, Welding Standard ASME/ANSI B16.9 MSS SP-43
Manufacturing Process Push, Press, Forge, Cast, Etc.
Highlight

Lap Joint Stub End

,

SS Stub End
Leave a Message
Product Description



ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint  10” SCH40S


Product Name: Butt Welding Stainless Steel Fitting  Stub end
Size Range:
DN15-DN600  (1/2"-24")       Seamless Type
DN15 - DN1200 (1/2"- 48" )  Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN  1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408  ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection,


ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S

lap joint stub end lap joint stub end lap joint stub end

Product name : lap joint stub end
Item : buttweld-Lap Joint Stub End
Details :


Nominal Pipe Size

Outside Diameter at Bevel
Length

Radius of Fillet

Diameter of Lap
A
B
NPS
D
L
R
G
1/2
3/4
1
21.3
26.7
33.4
51
51
51
3.0
3.0
3.0
0.8
0.8
0.8
35
43
51
11/4
11/2
2
42.2
48.3
60.3
51
51
64
5.0
6.0
8.0
0.8
0.8
0.8
64
73
92
21/2
3
31/2
73.0
88.9
101.6
64
64
76
8.0
10.0
10.0
0.8
0.8
0.8
106
127
140
4
5
6
114.3
141.3
168.3
76
76
89
11.0
11.0
13.0
0.8
1.6
1.6
157
185
218

8
10
12
219.1
273.0
323.8
102
127
152
13.0
13.0
13.0
1.6
1.6
1.6
270
324
381
14
16
18
355.6
406.4
457.0
152
152
152
13.0
13.0
13.0
1.6
1.6
1.6
413
470
533
20
22
24
508.0
559.0
610.0
152
152
152
13.0
13.0
13.0
1.6
--
1.6
584
641
692

ASTM A403 WP317L / 310H /321H Stainless Steel Stub End Lap Joint 10 inch SCH40S
