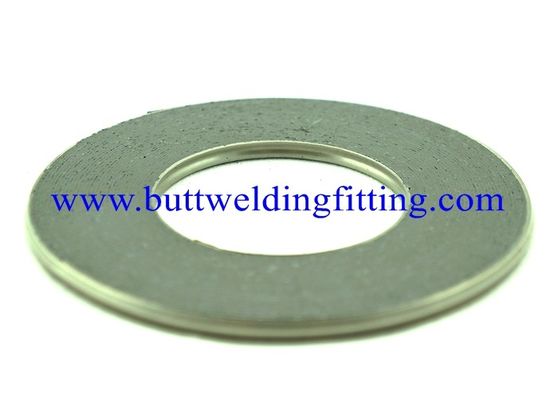

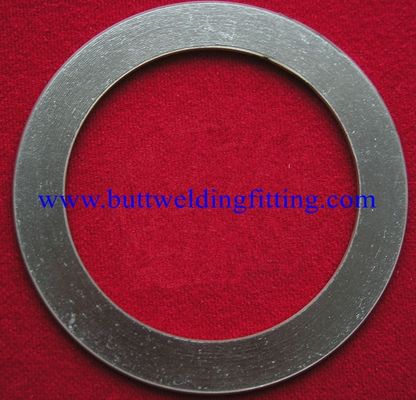

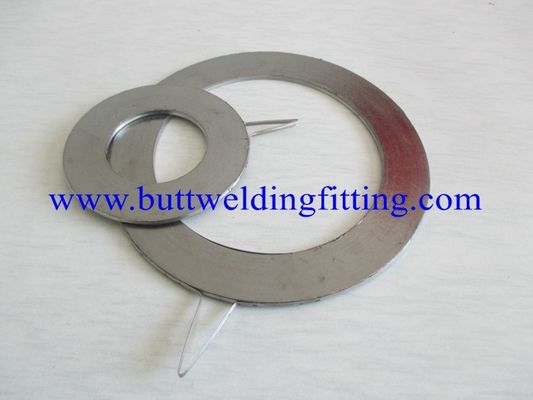

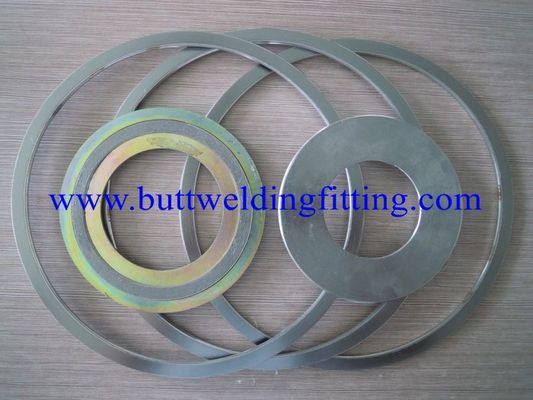

Corrugated Flat Metal SS Spiral Wound Gasket Super Dulpex 32760 F55
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | flat gasket; flat ring gasket; flat metal gasket; non graphited compressed white asbestos gasket;natural white rubber gasket;compressed asbestos class gasket;PTFE impregnated asbestos gasket;double jacketed gasket;non-metallic gasket;lens gasket;octagonal |
| Minimum Order Quantity | 1PC |
| Price | 0.1USD |
| Packaging Details | PLY-Wooden Case |
| Delivery Time | 3-15workdays |
| Payment Terms | Western Union, |
| Supply Ability | 3000000pcs/Year |
Product Details
| Product Name | Stainless Steel Gasket | Model Number | 32760 F55 Super Duplex Stainless Steel Gasket |
|---|---|---|---|
| Standard Or Nonstandard | Standard | Standard | DlN EN 1514-4 |
| Highlight | Stainless Steel Gasket,Corrugated Metal Gasket |
||
Product Description
Spiral Wound Gasket Super Dulpex 32760 F55 corrugated gaskets flat metal gasket Stainless Steel Gasket.
Metal ring gasket is sealed pressure pipe flange ,an applied to oil and gas pressure vessel, submarine, high-speed joint surface, high temperature and high pressure valve cover joint.There are a variety of materials and in a form suitable for the different design and operational requirements, completely compliance with ANSI B16.20. In the new flat type grooved flange, the common black iron, stainless steel elliptical(Oval) and the octagonal can be used interchangeably. the company can in the most short period of delivery.
Note: the metal ring material hardness selected should be lower than 15~20 HB flange, and the old product is not recommended for repeated use, because the material hardening and damage may occur and the flange or the sealing performance.
Hollow metal O - ring is made of high temperature resistant and no corrosion of stainless steel tube production. It could make holes in the inner or outer of the hollow metal o ring, when the pressure goes up,that self sealing function will work. The o ring with the small holes of the ring, especially the application of pressure over 70kgf/cm ², it can handle more pressure than the basic O type ring. The hollow metal ring based on customer needs, as PTFE plated or silver plating and surface.
|
Material
|
Max Hardness
HBS HRB |
Max Temperature
℃
|
Abbreviation
|
|
304
|
160 83
|
700
|
304
|
|---|---|---|---|
|
304L Stainless Steel
|
150 80
|
450
|
304L
|
|
316 Stainless Steel
|
160 83
|
700
|
316
|
|
316L Stainless Steel
|
150 80
|
450
|
316L
|
|
321 Stainless Steel
|
160 83
|
700
|
321
|
|
410 Stainless Steel
|
170 86
|
650
|
310
|
|
347 Stainless Steel
|
160 83
|
700
|
347
|
|
Carbon Steel
|
-40 -130
|
5401000
|
CRS
|
|
Core Material |
Max. Temperature |
|
|
|
Stainless Steel |
1000-1600°F535-870°C) |
|
|
|
Carbob Steel |
800°F425°C |
|
|
|
Brass |
500°F260°C |
|
|
|
Copper |
600°F315°C) |
|
|
|
Aluminum |
800°F(425°C |
|
|
|
Monel |
1500°F(815°C |
|
|
|
Nickel |
1400°F760°C |
|
|
|
Inconel |
2000°F1100°C |
|
|
|
Facing Material |
Max. Temperature |
Pressure at Room Temp |
|
|
|
|
Min.Mpa(PSI) |
Max.Mpa(PSI) |
|
Flexible Graphite |
500°C932°F |
17(2500 |
500(72500) |
|
Non-Asbestos Sheet |
400°C752°F |
233300 |
500(72500) |
|
PTFE |
260°C500°F |
172500 |
500(72500) |
