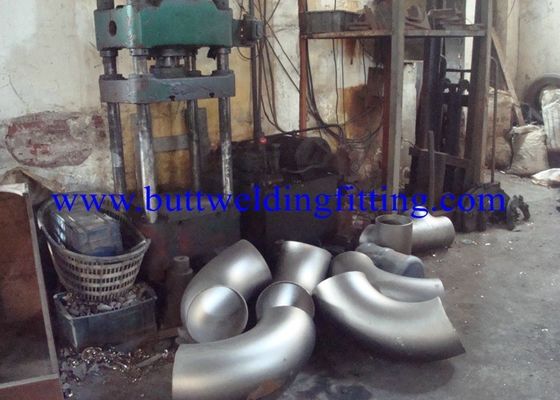

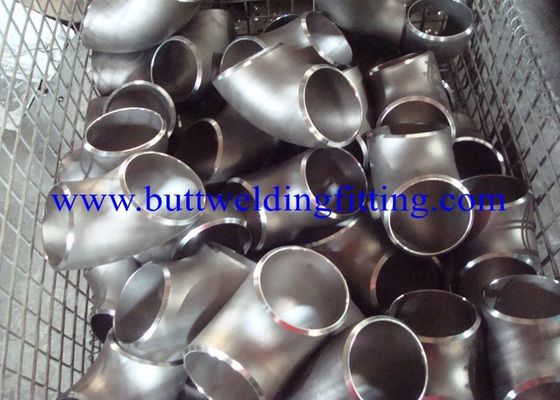

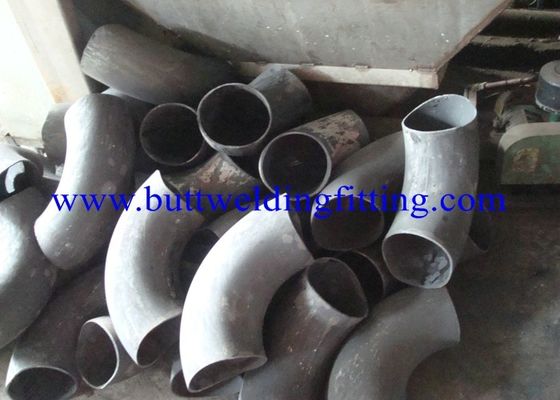

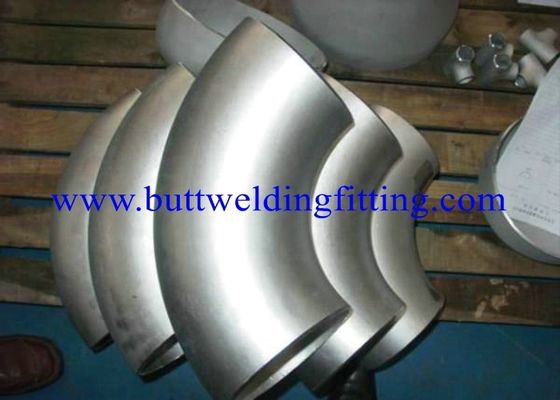

180 Degree Stainless Steel Tube Elbows , SR / 90 LR Elbow DN50 SCH40S SCH160

WP304L / 316L / 321H Stainless Steel 90 /180 Degree Elbow , LR / SR DN50 SCH40S SCH160

Type of pipe fittings

Short / Long Radius Elbow(90D,45D,180D)

Standard Specification

ASTM,JIS,BS,DIN,UNI etc.

SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb

Outside Diameter

1/8"-100" (6-2500mm)

Surface of Finish

Annealing,Picking,Hair Line,Polished,Bright,Brush,Coated,Sand Blast,etc

Description:

2.    Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female

3.    Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc
We can also produce other specifications according to customers' requirements.

4.    Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,

5.    304N,304LN,302, 301,201,202,904L,Duplex,etc

6.    Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91

7.    Working pressure: -20° C~150° C

8.    Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.

9.    Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow

10.  Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc

11.  Type:15  °  ,30 °  ,45 °  ,60 ° ,90 °  , 180 ° ,male and female

12.  Outside Diameter: 1/8"-100" (6-2500mm)

13.  Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb

14.  Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc

15.  Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,etc

16.  Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

17.  Packing: Wooden box or wooden pallet.

18.  H.S Code: 73072300

19.  Material:

Product name : stainless steel 90º elbow

Item : buttweld-Elbow

Details :

Nominal Diameter  Outside Diameter  at Bevel  Center to End Center to Center Back to Face 45°Elbow           90°Elbow 180°Elbow B        A       O        K DN NPS Series A Series B Long  Radius Long  Radius Short   Radius Long  Radius Short   Radius Long  Radius Short   Radius 15 1/2 21.3 18 16 38 - 76 - 48 - 20 3/4 26.9 25 19 38 - 76 - 51 - 25 1 33.7 32 22 38 25 76 51 56 41 32 1.1/4 42.4 38 25 48 32 95 64 70 52 40 1.1/2 48.3 45 29 57 38 114 76 83 62 50 2 60.3 57 35 76 51 152 102 106 81 65 2.1/2 76.1(73) 76 44 95 64 190 127 132 100 80 3 88.9 89 51 114 76 229 152 159 121 90 3.1/2 101.6 - 57 133 89 267 178 184 140 100 4 114.3 108 64 152 102 305 203 210 159 125 5 139.7 133 79 190 127 381 254 262 197 150 6 168.3 159 95 229 152 457 305 313 237 200 8 219.1 219 127 305 203 610 406 414 313 250 10 273.0 273 159 381 254 762 508 518 391 300 12 323.9 325 190 457 305 914 610 619 467 350 14 355.6 377 222 533 356 1067 711 711 533 400 16 406.4 426 254 610 406 1219 813 813 610 450 18 457.2 478 286 686 457 1372 914 914 686 500 20 508.0 529 318 762 508 1524 1016 1016 762 550 22 559 - 343 838 559 1676 1118 1118 838 600 24 610 630 381 914 610 1829 1219 1219 914 650 26 660 - 406 991 660 1982 1320 - - 700 28 711 720 438 1067 711 2134 1422 - - 750 30 762 - 470 1143 762 2286 1524 - - 800 32 813 820 502 1219 813 2438 1626 - - 850 34 864 - 533 1295 864 2590 1728 - - 900 36 914 920 565 1372 914 2744 1828 - - 950 38 965 - 600 1448 965 2896 1930 - - 1000 40 1016 1020 632 1524 1016 3048 2032 - - 1050 42 1067 - 660 1600 1067 3200 2134 - - 1100 44 1118 1120 695 1676 1118 3352 2236 - - 1150 46 1168 - 727 1753 1168 3506 2336 - - 1200 48 1220 1220 759 1829 1219 3658 2440 - -
