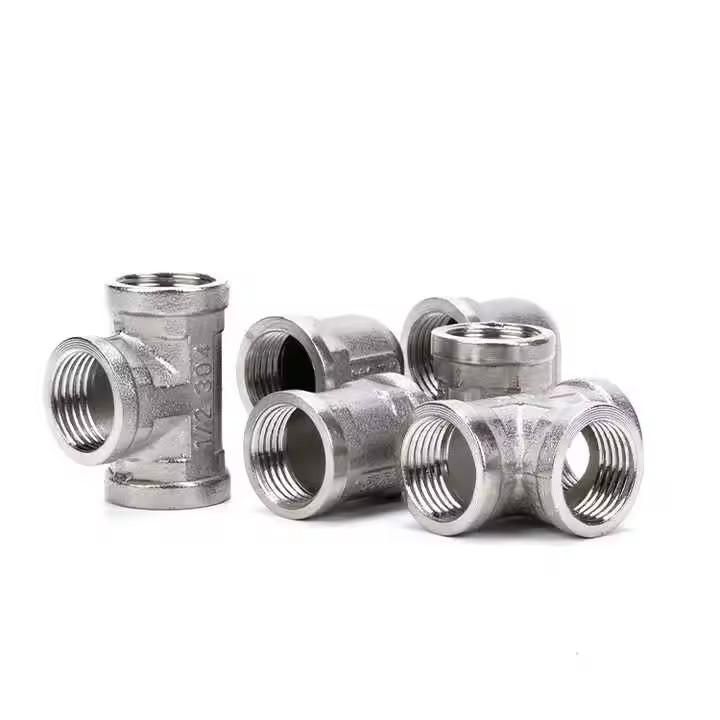

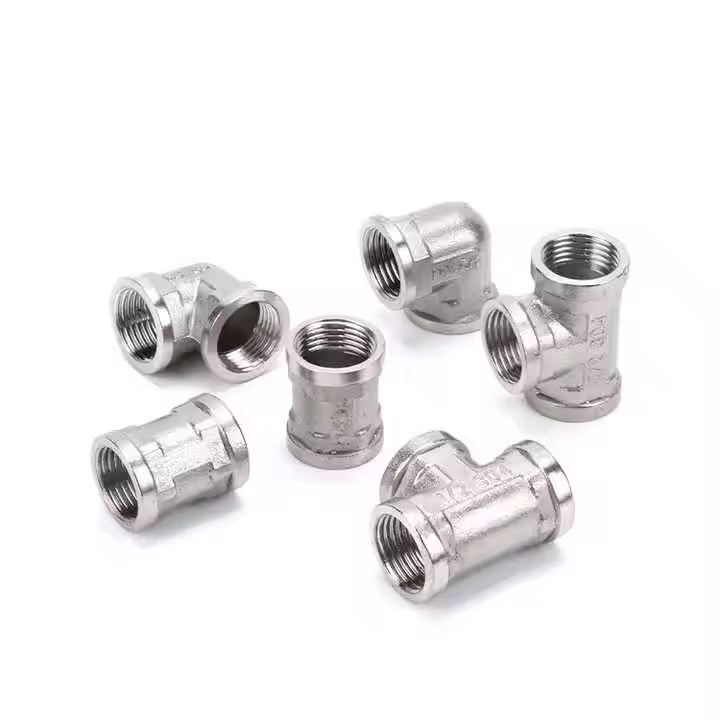

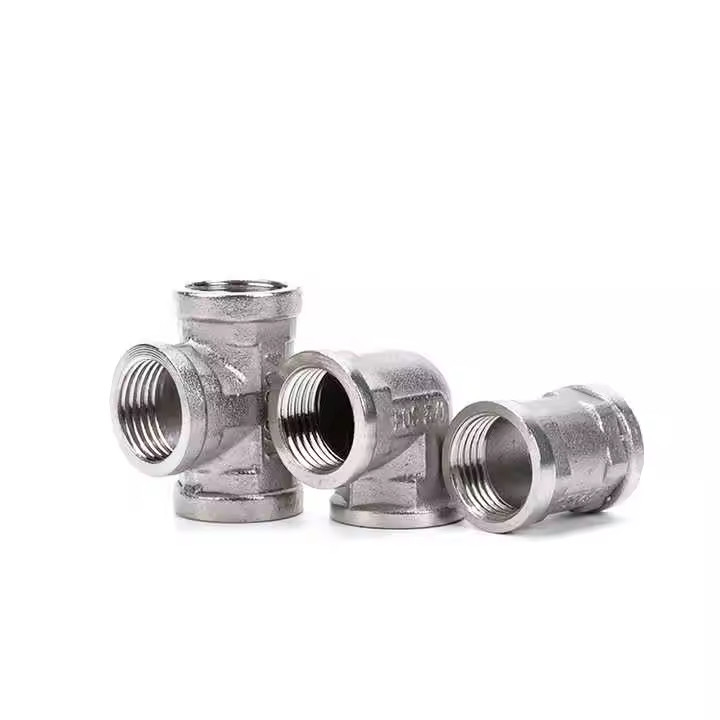

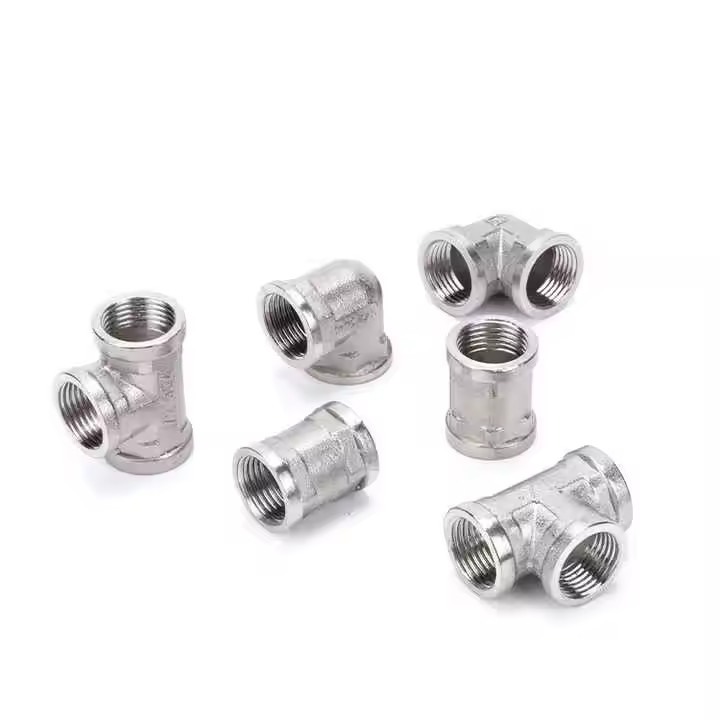

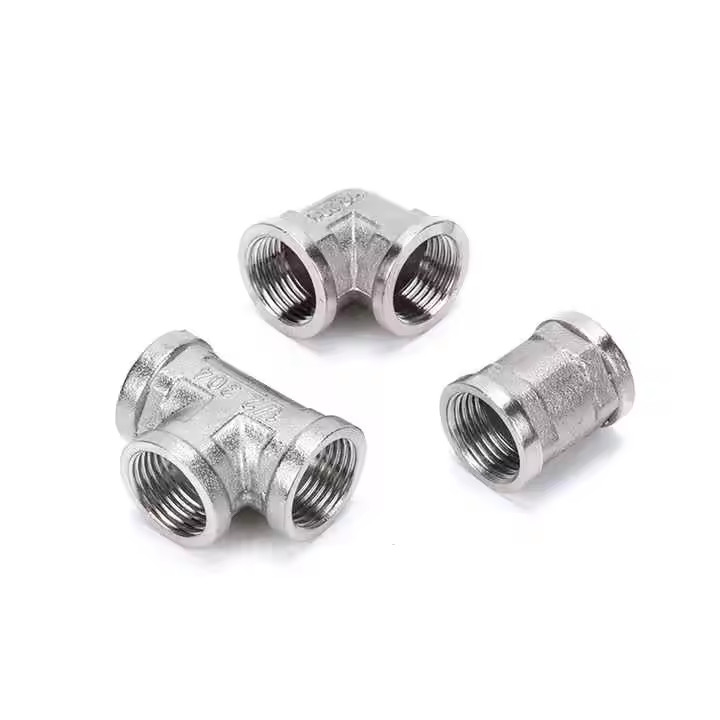

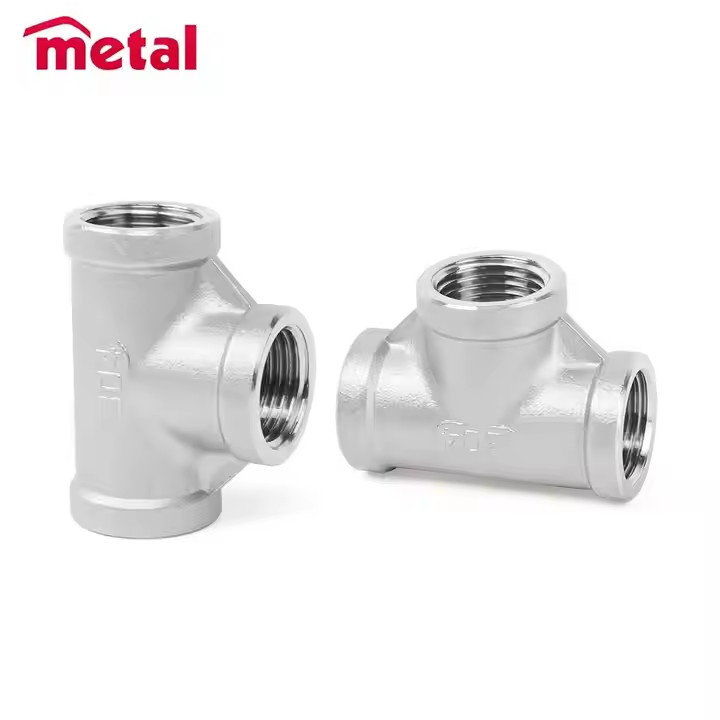

Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee

  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
  • Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee
Place of Origin China
Brand Name TOBO GROUP
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Stainless Steel
Minimum Order Quantity 1PCS
Price Negotiation
Packaging Details Wooden case
Delivery Time 15workdays
Payment Terms L/C, T/T, Western Union
Supply Ability 100TON/MONTH
Product Details
Highlight

Stainless Steel 304 tube fittings

,

316 stainless steel welding tee

,

Stainless Steel equal tee clamp
Leave a Message
Product Description

Stainless steel 304 316 tube pip fittings clamp welding equal tee



1. According to the diameter of pipe fittings, there are generally equal diameter tees, reducing tees, etc.

2. According to the direction of the branch pipe is divided into positive tee and oblique tee.

3,.According to the material divided into carbon steel, alloy steel, stainless steel,Tee joint,Tee joint Copper, pvc and other tee.

4.According to the connection mode divided into ordinary tee, threaded tee, sleeve tee, socket tee.

5.Tee expression method is as follows: for equal diameter tee, such as "T6" three means that the outer diameter is 6 inches of equal diameter tee.





Tee Type Stainless steel tee
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacture Standard: ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB/T13401, HGJ514, SH3408, SH3409, HG/T21635, HG/T21631,
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.4550;

347H/UNS S34709/1.4912;

348/UNS S34800;
Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;
Duplex steel
WP27 CR27 UNSS44627 WP33 CR33
CR429 UNS S42900 WP430 CR430 UNS S43000
UNS S43036 WP446 CR446 UNS S44600 WPS31803
WPS32101 CRS32101 UNS S32101 WPS32202 CRS32202
CRS32750 UNS S32750 WPS32950 CRS32950 UNS S32950
UNS S32760 WPS39274 CRS39724 UNS S32974 WPS32550
WPS32205 CRS32205 UNS S32205 WP410 CR410
UNS S41008 WPS41500 CRS41500 UNS S41500 CRS31803
UNS N44626 WP429 WP430TI CR430TI UNS S31803
UNS S32202 WPS32750 WPS32760 CRS32760 CRS32550
UNS S32550 WPS41008 CRS41008
Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/ Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/ Alloy 218/ UNS S21800
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Welcome to contact us.







Technical Drawing & Size Specification





Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) Tees Center To Ends C.M
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.13
1 1.315 0.065 0.109 0.133 0.179 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25
2 2.375 0.065 0.109 0.154 0.218 2.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.00
3 3.500 0.083 0.120 0.216 0.300 3.38
4 4.500 0.083 0.120 0.237 0.337 4.13
5 5.563 0.109 0.134 0.258 0.375 4.88
6 6.625 0.109 0.134 0.280 0.432 5.63
8 8.625 0.109 0.148 0.322 0.500 7.00
10 10.750 0.134 0.165 0.375 0.500 8.50
12 12.750 0.156 0.180 0.375 0.500 10.00
14 14.000 0.156 0.250 0.375 0.500 11.00
16 16.000 0.165 0.250 0.375 0.500 12.00
18 18.000 0.165 0.250 0.375 0.500 13.50
20 20.000 0.188 0.250 0.375 0.500 15.00
24 24.000 0.218 0.250 0.375 0.500 17.00











































































Standards

ASME B16.9-2007

ASME B16.25-2007

ASME B16.5-2007

EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008

DIN2605-1-1992 DIN2605-2-1995

JIS B2311-2009 JIS B2312-2009 JIS B2313-2009

GB/T12459-2005 GB/T13401-2005 GB/T10752-2005

SH/T3408-1996 SH/T3409-1996

SY/T0609-2006 SY/T0518-2002 SY/T0510-1998

DL/T695-1999 GD2000 GD87-1101

HG/T21635-1987 HG/T21631-1990



Detailed Production Description

1) Size: Seamless: 1/2”-60" SCH10s-XXS

2) Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO

3) Material:

  • carbon steel: A234-WPB WPC
  • Alloy steel: A420-WPL6, A234-WP11, A234-WP12, A234-WP5, A234-WP9, A234-WP22,15Mo3,15CrMoV,35CrmoV
  • stainless steel: A403 WP 304-304L-304H-304LN-304N A403 WP 316-316L-316H-316LN-316N-316TiA403/ WP 321-321H A403 WP 347-347H
  • low tempture steel: A402 WPL3-WPL6
  • high performance steel: A860 WPHY 42-46-52-60-55-70



4) Surface treatment:

  • carbon steel: shot blasted, black painting, rust-proof oil, transparent oil, galvanizing, hot galvanizing
  • alloy steel: Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing, hot galvanizing
  • stainless steel: pickled, Polish



5) Nominal wall thickness: SCH5-SCH160, STD, XS, XXS

6) Packing: Wooden case or wooden pallet according to the size of fittings

7) Delivery time:7-10 days for a 20 ft container

8) Others:

  • Special design available
  • All the production process are made under the ISO 9001:2000 strictly.

Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee 0

Stainless Steel 304 316 Tube Pipe Fittings Clamp Welding Equal Tee 1



Application

Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical), chemical and pharmaceutical, pulp and paper, fertilizer, desalination, nuclear, electric power, boiler, heat exchanger, metallurgy, refinery, machinery, steel fabrication, shipbuilding, water disposal, construction, aviation, textile and etc.



Our advantage

1) Raw material use 100% material steel

2) good service

3) Competitive price

4) Fast delivery

5) High quality products



Other products

we can provide steel butt weld pipe fittings such as elbow, tee, reducer, cap, bend and so on. Good quality, competitive price

and excellence service are your best choice.
