Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160

  • Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160
  • Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160
  • Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160
  • Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160
Place of Origin Shanghai
Brand Name Metal
Certification Certificate of origin
Minimum Order Quantity 1PC
Price negotiable
Packaging Details Wooden Case
Delivery Time 7-15workdays
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 200000
Product Details
Packaging Type Wooden Case Dimensions 2.5 X 1.5 X 1.5 Inches
Max Pressure 3000 Psi Standard ASME/ANSI/DIN/JIS/BS
End Connection Threaded Heat Treatment Normalizing, Annealing, Tempering
Pressure 150#-2500# Type Reducer
Application Pipe Fitting Transport Package Wooden Cases Or Pallets
Style Reducer Lead Time 7-15 Days
Head Code Round Outside Diameter 1/2
Package Wooden Case, Pallet, Carton, Etc.
Highlight

carbon steel concentric reducer

,

CS 234 WPB eccentric reducer

,

2x3 inch SCH40 pipe reducer
Leave a Message
Product Description

Product descriptions from the supplier



Warning/Disclaimer

California Proposition 65 Consumer Warning

Product Description

Carbon steel pipe reducer is one type of buttweld fittings in material grades ASTM A234 WPB, A860 WPHY 65 and A420 WPL6 for low temperature service. The other butt weld fittings also can be delivered in a short time, such as elbow, tee, cross and cap. What is the difference? Pipe reducer has one connection method that BW only. Not like them, also have socket weld and threaded types.

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 0

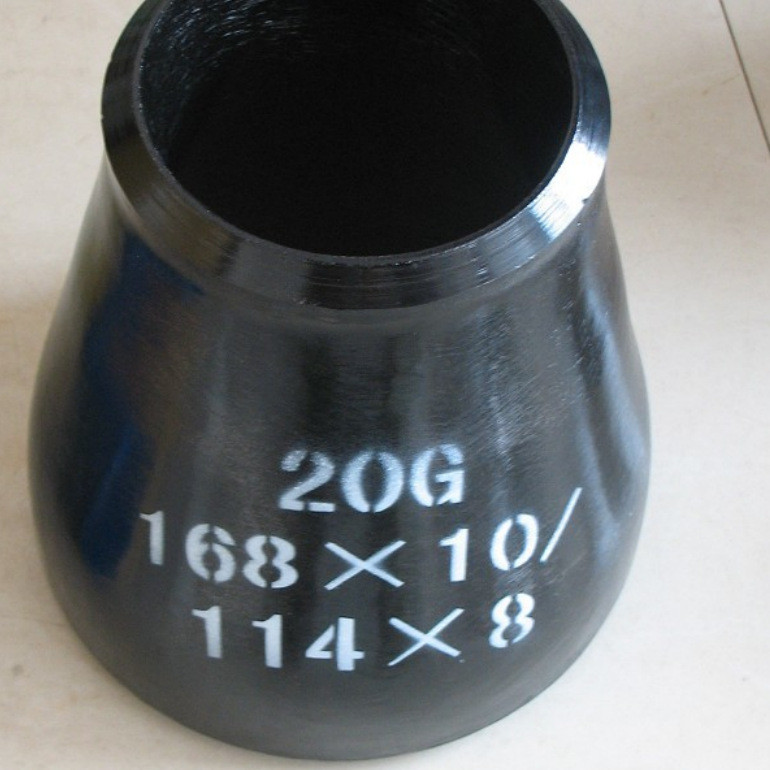

The concentric reducer is made with both inlet and outlet on a common center line. Compare with eccentric type, it is less costly to manufacture adaptable to most piping installations.

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 1

The eccentric reducer has the reducing outlet end off center. In contrast with concentric reducer, that can be hung or suspended flush against a flat ceiling or wall.



Specification for ASTM A234 Pipe Fittings

Specification: ASTM A234 / ASME SA234
Size: 1/2″, 1″, 2″, 3″, 4″, 6″, 8″, 10″, 12″, 16″, 20″, 24″ to 60″
Schedule: Sch 20, STD, Sch 40, XS, Sch 80, Sch 160, XXS
End: Plain or Bevel
Type: Seamless and Welded Pipe Reducer



What is Buttweld Pipe Reducer?

Steel pipe reducer is used in piping system to change the diameter of pipe. ANSI / ASME B16.9 Butt weld pipe reducer is an pipe connector or pipe joint that reduces the size of pipe from larger diameter to smaller. The reduction in size is mainly equal to the average smaller and larger pipe diameter. It comes in two types that Concentric Reducer and Eccentric Reducer. The Concentric Pipe Reducer is used in vertical piping system. The Eccentric Pipe Reducer is used in horizontal piping system.

Detailed Photos

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 2







Company Information

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 3











Cooperate Brand

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 4

Packaging & Shipping

Concentric Eccentric Reducer Carbon Steel CS 234 WPB 2InchX3Inch SCH40 80 160 5

Our Services

TOBO 3S Service
1. Small Quantity
2. Special Material
3. Short Delivery


If you have any specific inquiry, pls kindly send us.
