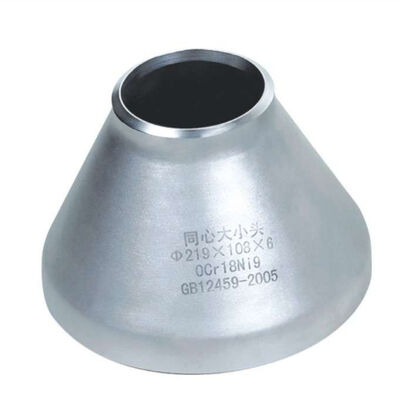

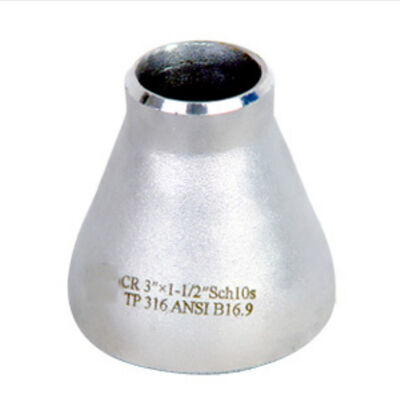

ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting

  • ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting
  • ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting
  • ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting
  • ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting
  • ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Reducer
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name ASME B16.9 Stainless Steel 304/316L Butt Weld Reducer Class 150 Pipe Fitting Head Code Round, Square, Hexagon
Application Piping Systems For Fluid Transport Durability Excellent
Wallthickness Schedule 10 To Schedule 160 Outer Diameter 6-813mm
Product Nam Pipe Fitting Steel Grade 316,316L
Productname Stainless Steel Reducer Surface Treatment Polished, Sand Blasted, Etc.
Ends Plain End, Beveled End, Threaded End Name Reducer Stainless Steel Reducer
Corrosion Resistance Excellent Style Reducer
Applicable Standard ASME/ANSI, JIS, EN, DIN Warranty 1 Year
Highlight

ASME B16.9 Butt Weld Reducer

,

304/316L Stainless Steel Pipe Fitting

,

Class 150 Stainless Steel Reducer
Leave a Message
Product Description

ASME B16.9 Stainless Steel 304/316L Butt Weld Reducer Class 150 Pipe Fitting

1. Product Description



Stainless Steel Reducer (commonly known as reducing pipe fitting) is a vital component used to connect pipes of different diameters in piping systems. Manufactured from high-grade austenitic or duplex stainless steel, it is divided into Concentric Reducer (with aligned centerlines, suitable for vertical risers or pump discharges) and Eccentric Reducer (with parallel but offset centerlines, ideal for horizontal pipelines to prevent liquid pooling and air pockets).
Production methods include cold reduction, hot expansion, combined forming, and stamping. Seamless reducers are available from DN15 to DN500 (1/2″–20″), while welded (seam-welded) reducers range from DN15 to DN1200 (1/2″–48″), with custom sizes up to DN1800 (72″) on request. The products fully comply with GB/T, ASME, DIN, JIS, and other international standards.


2. Product Applications

  • Connecting pipes of different nominal diameters for smooth transition;

  • Installed at pump and compressor inlets/outlets to reduce fluid impact and cavitation;

  • Used upstream of flow meters, control valves, and heat exchangers to stabilize flow velocity;

  • Eccentric reducers are preferred for horizontal lines to facilitate drainage or venting and prevent water hammer;

  • Widely used in petrochemical, power generation, pharmaceutical, food & beverage, papermaking, marine, water treatment, and semiconductor industries.

​3.Product Advantages

  • Superior Corrosion Resistance: Alloying elements such as Cr, Ni, and Mo provide excellent resistance to acids, seawater, and chlorides, far exceeding carbon steel lifespan;

  • High Strength & Temperature Resistance: Service range from -196℃ up to 800℃ (depending on grade), with capability to withstand high pressures;

  • Full Range of Sizes: Wall thickness schedules from SCH5S to SCH160S; custom dimensions available per drawings;

  • Excellent Weldability: Suitable for TIG, MIG, and SAW welding, with high joint strength and low crack risk;

  • Smooth Inner Surface: Low roughness prevents scaling and supports CIP cleaning, meeting hygienic standards;

  • Cost-Effective: Low total cost of ownership with long maintenance-free intervals.

ASME B16.9 304/316L Stainless Steel Butt Weld Reducer Class 150 Pipe Fitting 0

4.Key Product Parameters


Parameter Specification
Product Name Stainless Steel Reducer (Concentric / Eccentric)
Common Materials 304/304L, 316/316L, 316Ti, 317L, 321, 904L, Duplex 2205, Super Duplex 2507, etc.
Seamless Size Range DN15–DN500 (1/2″–20″)
Welded Size Range DN15–DN1200 (1/2″–48″); custom up to DN1800 (72″) available
Wall Thickness Schedules SCH5S, SCH10S, SCH20S, SCH40S, SCH80S, SCH160S, etc.
Applicable Standards GB/T 12459, GB/T 13401, ASME B16.9, ASME B16.28, MSS SP-43, HG/T 21635, SH 3408, DIN 2616, JIS B2311/2312
End Connections Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP)
Forming Processes Cold extrusion, hot pushing, stamping, forging
Dimensional Tolerances Outside diameter: ≤ ±1.6mm; Wall thickness: ≤ ±12.5%
Ovality Not exceeding 80% of OD tolerance, and max 3mm
Surface Finishes Pickled, passivated, mechanically polished, mirror polished (Ra≤0.4μm) optional
Inspection Methods Chemical analysis, tensile test, hydrostatic test, RT, PT, etc.




FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
