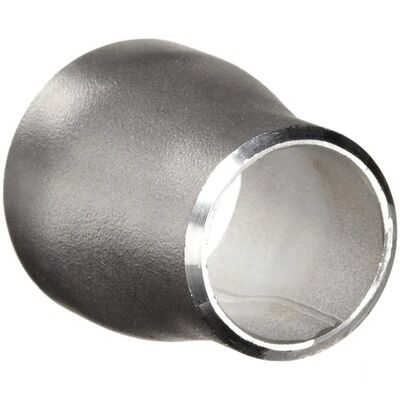

Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End

  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
  • Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Stainless Steel Reducer
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10 Ton/Month
Product Details
Product Name Schedule 40 Stainless Steel Butt Welding Reducer ASME B16.9 Class 150 Flange End End Type Concentric
Head Code Circle Payment Term T/T/L/C/Western Union/Paypal
Pressure Sch5s-Sch160 Standard ASTM A403, ASME B16.9
Usageindustry Oil & Gas, Chemical, Food Processing, Pharmaceutical Connection Type Butt Weld
Transport Package Wooden Cases Or Pallets Name Reducer Stainless Steel Reducer
End Connection Threaded Test X-Ray Test, Hydro Test, UT Test
Material Reducer Stainless Steel /304/316L/1.1307/1.4404 Types Conc.reducer ; Ecc Reducer
Certifications ASTM A403, ASME B16.9 Finish Polished, Matte, Or Brushed
Highlight

ASME B16.9 Class 150 Stainless Steel Reducer

,

Schedule 40 Butt Welding Reducer

,

Flange End Pipe Fitting Reducer
Leave a Message
Product Description

Schedule 40 Stainless Steel Butt Welding Reducer ASME B16.9 Class 150 Flange End


1. Product Description

Stainless Steel Reducer is a pipe fitting designed to connect pipes of different diameters, ensuring smooth diameter transition and reduced fluid turbulence. Available in two types: Concentric (centerlines aligned) and Eccentric (offset design with a flat side)


2. Product Applications

  • Petroleum & Natural Gas

  • Chemical & Petrochemical

  • Water Supply & Treatment

  • Power Generation

  • Pharmaceutical & Food Processing

  • Marine & Shipbuilding

  • HVAC & Refrigeration

  • Construction & Papermaking

​3.Product Advantages

  1. Superior corrosion & rust resistance for harsh environments.

  2. High mechanical strength with excellent pressure and wear resistance.

  3. Precision machined for secure, leak-proof connections.

  4. Integrated stamping forming reduces fracture risks.

  5. Low maintenance, waterproof, and long service life.

  6. Pressure loss < 5%; operating temperature from -20°C to 400°C.

  7. Customizable sizes, materials, and surface finishes available.

​Schedule 40 ASME B16.9 Class 150 Stainless Steel Butt Welding Reducer with Flange End 0

4.Key Product Parameters



Parameter Specification
Material Grades 304, 304L, 316, 316L, 317, 317L, 321, 310, 347, 904L, Duplex, Super Duplex
Size Range Seamless: 1/2" – 20" (DN15 – DN500)
Welded: 1/2" – 48" (DN15 – DN1200)
Wall Thickness SCH 5S, 10S, 20S, 40S, 80S, STD, XS (1mm – 30mm)
Types Concentric, Eccentric
Connections Butt Weld, Socket Weld
Standards ASME B16.9, ASME B16.28, MSS SP-43, DIN 2616, JIS B2313, GB/T12459
Tensile Strength ≥515 MPa (316 SS)
Surface Finish Polished, Sandblasting, Electro-polished
Temp. Range -20°C to 400°C
Pressure Loss <5%




FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
