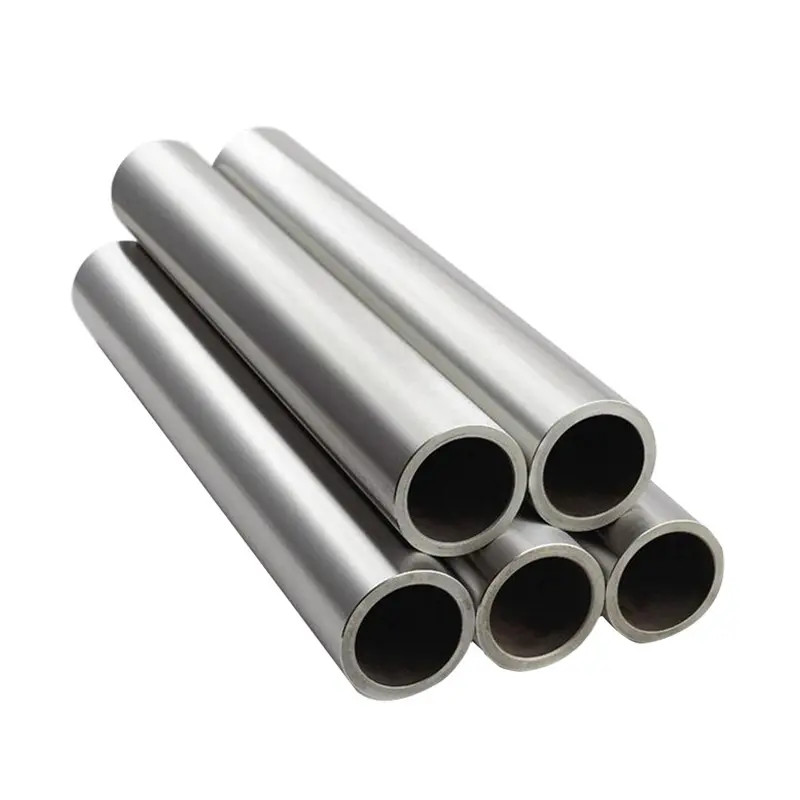

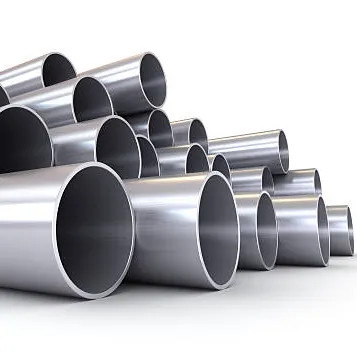

Marine Grade 316L Stainless Steel Seamless Pipe Offshore Platform Seawater Resistant

Marine Grade 316L Stainless Steel Seamless Pipe for Offshore Platform Seawater Service

Our marine grade 316L stainless steel seamless pipe is specifically engineered for demanding offshore platform seawater service where conventional stainless steels fail due to chloride-induced pitting and crevice corrosion. The 2.0-3.0 percent molybdenum addition in 316L (UNS S31603, EN 1.4404) significantly elevates the Pitting Resistance Equivalent Number (PREN) to a minimum of 24, providing reliable protection against localized corrosion in marine atmospheres, splash zones, and submerged seawater piping systems. The low carbon content (maximum 0.03 percent) prevents intergranular carbide precipitation during welding, eliminating the need for post-weld heat treatment in most service conditions.

Manufactured to ASTM A312/A312M standards with seamless construction, these pipes deliver superior structural integrity for high-pressure seawater cooling systems, firewater deluge networks, ballast water piping, and topsides process utility lines on offshore platforms, FPSO vessels, and subsea installations. Each pipe undergoes 100 percent hydrostatic testing, ultrasonic inspection, and eddy current examination to ensure zero-defect delivery for safety-critical marine applications where pipe failure could compromise platform integrity and crew safety.

Technical Specifications

Key Advantages for Marine and Offshore Applications

• Superior Chloride Pitting Resistance: The 2.0-3.0 percent molybdenum content in 316L significantly outperforms standard 304/304L stainless steel in chloride-rich seawater environments, extending service life and reducing replacement frequency in offshore platform piping systems.
• Excellent Crevice Corrosion Protection: The PREN value of 24 or higher ensures reliable performance in tight crevices such as flange gasket surfaces, threaded connections, and under-deposit conditions where stagnant seawater creates aggressive localized corrosion cells.
• Weld Integrity Without Post-Weld Treatment: The low carbon content (max 0.03 percent) prevents chromium carbide precipitation in the heat-affected zone during welding, maintaining full corrosion resistance without requiring post-weld solution annealing for most service thicknesses.
• High Strength-to-Weight Ratio: The seamless construction combined with 316L mechanical properties enables thinner wall designs that reduce topsides weight loading on offshore structures while maintaining required pressure containment capacity.
• Wide Temperature Range: 316L stainless steel maintains excellent toughness from cryogenic temperatures down to minus 196 degrees Celsius through to elevated service temperatures up to 450 degrees Celsius, suitable for both LNG and steam service on offshore facilities.
• Compliance With Marine Classification Standards: Full material traceability and certification to DNV, ABS, Lloyd's Register, and BV rules for offshore classification, with EN10204 3.2 inspection certificate option for critical service piping systems.

Applications

• Seawater Cooling Systems: Main seawater lift piping, heat exchanger cooling water supply and return lines, and once-through cooling circuits on offshore production platforms and FPSO vessels requiring continuous corrosion resistance against flowing seawater.
• Firewater Deluge Networks: Firewater ring main piping, deluge valve stations, and sprinkler distribution piping complying with NFPA and SOLAS requirements where pipe integrity during emergency conditions is non-negotiable.
• Ballast Water Treatment: Ballast water intake and discharge piping, treatment system interconnecting pipework, and transfer lines meeting IMO Ballast Water Management Convention standards for marine environmental protection.
• Produced Water Handling: Produced water injection and disposal piping systems where combined chloride levels, dissolved solids, and elevated temperatures demand the enhanced corrosion resistance of molybdenum-alloyed 316L stainless steel.
• Topsides Utility Piping: Instrument air, hydraulic oil return, drain systems, and open drain piping on offshore structures where atmospheric salt spray exposure requires pitting-resistant materials for long-term structural integrity.

Frequently Asked Questions

Q: Why choose 316L stainless steel over 304L for offshore platform seawater piping?
A: The critical difference lies in molybdenum content. 316L contains 2.0-3.0 percent molybdenum, while 304L has none. Molybdenum significantly enhances resistance to pitting corrosion in chloride-containing environments like seawater. The PREN (Pitting Resistance Equivalent Number) for 316L is typically 24-26, compared to 18-20 for 304L. In practical offshore service, 304L pipes can develop through-wall pits within months of seawater exposure, while 316L provides decades of reliable service. The incremental material cost of 316L over 304L is recovered within the first maintenance cycle through avoided pipe replacement, platform shutdown costs, and production deferment losses.

Q: What classification society certifications are available for marine grade 316L seamless pipe?
A: We provide full certification to major marine classification societies including DNV (Det Norske Veritas), ABS (American Bureau of Shipping), Lloyd's Register (LR), and Bureau Veritas (BV). The certification scope covers material grade verification, manufacturing process audit, mechanical testing witness, NDT procedure qualification, and corrosion testing per ASTM G48 Method A. For critical service applications, EN10204 3.2 inspection certificates with third-party surveyor sign-off are available. All certification documentation is traceable to individual heat numbers and can be submitted through client document management systems for design review and regulatory compliance verification.

Q: Is post-weld heat treatment required for 316L stainless steel seamless pipe in offshore service?
A: For most offshore service conditions with wall thicknesses up to 20mm, post-weld heat treatment (PWHT) is generally not required for 316L due to its low carbon content (maximum 0.03 percent). The low carbon level prevents chromium carbide precipitation at grain boundaries during welding thermal cycles, which would otherwise deplete the chromium content adjacent to grain boundaries and create susceptibility to intergranular corrosion (sensitization). However, for specific service environments such as hot chloride stress corrosion cracking conditions above 60 degrees Celsius or for wall thicknesses exceeding 20mm where restraint stresses are significant, solution annealing at 1040-1120 degrees Celsius followed by rapid quenching may be specified by the project engineering team.

Q: What testing verifies seawater corrosion resistance before shipment?
A: Our quality assurance program for marine grade 316L seamless pipe includes multiple verification steps. Chemical composition is verified by optical emission spectrometer (OES) analysis on each heat, confirming molybdenum content within 2.0-3.0 percent range. The ASTM G48 Method A ferric chloride pitting test is performed on sample coupons to verify a critical pitting temperature (CPT) of at least 15 degrees Celsius for 316L in the solution-annealed condition. Intergranular corrosion testing per ASTM A262 Practice E (Streicher test) confirms freedom from sensitization. Positive Material Identification (PMI) using X-ray fluorescence (XRF) is performed on 100 percent of pipes to verify grade before packaging and shipment.
