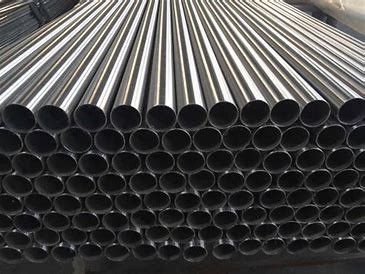

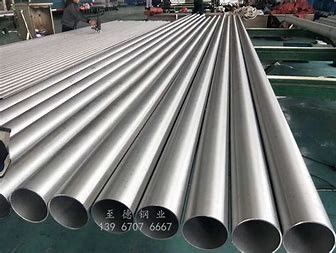

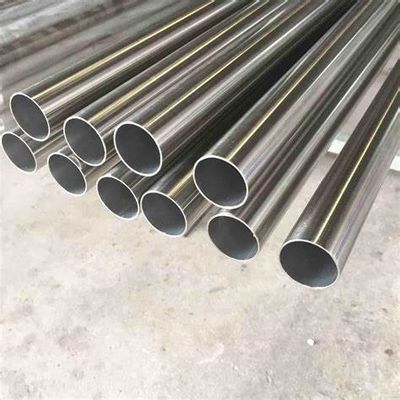

ASTM A312 TP304 Stainless Steel Seamless Pipe 1/2-24 Inch Schedule 40 for Chemical Processing Industry
| Place of Origin | Zhejiang, China |
|---|---|
| Brand Name | WNRLN |
| Certification | ISO 9001:2015, CE, DNV |
| Model Number | SS-304-A312-SMLS |
| Minimum Order Quantity | 500 kg |
| Price | USD 3,200-6,500 / Ton |
| Packaging Details | End caps with plastic protection, bundled with steel straps, export-grade seaworthy wooden case |
| Delivery Time | 5-10 working days for stock, 15-25 days for production |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 800 Tons per Month |
Product Details
| Material | 304 Stainless Steel (UNS S30400 / 1.4301) | Standard | ASTM A312, ASME SA312, EN 10216-5 |
|---|---|---|---|
| Outer Diameter | 12.7mm - 610mm (1/2 Inch - 24 Inch) | Wall Thickness | SCH 5S, 10S, 40S, 80S, 160, XXS |
| Length | 6m Fixed Length, Or Cut To Customer Specification | Surface Finish | Pickled And Passivated, Bright Annealed, 180/320/600 Grit Polished |
| End Type | Plain End, Beveled End | Application | Chemical Processing, Food Grade, Pharmaceutical, Architectural |
| Highlight | ASTM A312 TP304 Seamless Pipe,Stainless Steel Schedule 40 Tube,Chemical Processing Industry Pipe |
||
Product Description
ASTM A312 TP304 Stainless Steel Seamless Pipe
Our ASTM A312 TP304 stainless steel seamless pipes represent the industry standard for general corrosive service applications. Manufactured from premium 18Cr-8Ni austenitic stainless steel, these pipes deliver exceptional corrosion resistance, formability, and weldability across a broad range of industrial applications including chemical processing, food production, and pharmaceutical manufacturing.
Key Features
- ✓General Corrosion Resistance: Excellent resistance to a wide range of oxidizing acids, organic chemicals, and atmospheric conditions. Suitable for continuous service up to 870°C.
- ✓Food & Pharmaceutical Grade: Meets sanitary requirements with smooth surface finish options, non-reactive to food products and pharmaceutical compounds.
- ✓Full Size Range: Available from 1/2 inch to 24 inch nominal bore in Schedule 5S through XXS wall thicknesses.
- ✓Excellent Fabricability: Readily formed, bent, and welded with standard TIG, MIG, and plasma arc welding methods using ER308L filler wire.
Chemical Composition (Weight %)
| Element | C | Mn | P | S | Si | Cr | Ni |
|---|---|---|---|---|---|---|---|
| 304 | 0.08 max | 2.0 max | 0.045 max | 0.030 max | 1.0 max | 18.0-20.0 | 8.0-11.0 |
Typical Applications
Chemical Processing Plants
Food & Beverage Production Lines
Pharmaceutical Pipelines
Architectural Handrails & Balustrades
Water Treatment Facilities
Petrochemical Heat Exchangers
Testing & Inspection
All TP304 seamless pipes undergo 100% hydrostatic testing and eddy current inspection per ASTM A312 requirements. In-house tensile testing, flattening testing, and intergranular corrosion testing (ASTM A262 Practice E) are performed on each production lot. Full 3.1 material certification is provided with every shipment.
