Round P22 Heat Exchanger Stainless Steel Seamless Pipe Hot Rolled

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	A335 Grade P22

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	15days->
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Standard::	ASTM, ANSI A213-2001, ASTM A335-2006	Technics:	Hot Rolled
Surface:	As Per Your Requirements	Types::	API Pipe
Thickness:	1.73 - 59.54 Mm	Outer Diameter:	10.3 - 1219 Mm
Application:	Boiler Pipe, Heat-exchanger Etc	Section Shape:	Round
Highlight:	marine stainless steel tubing , seamless stainless steel tube

Round P22 Heat Exchanger Stainless Steel Seamless Pipe Hot Rolled

Quick Details

Standard:	ASTM, ANSI A213-2001, ASTM A335-2006	Thickness:	1.73 - 59.54 mm	Section Shape:	Round
Outer Diameter:	10.3 - 1219 mm	Place of Origin:	China (Mainland)	Secondary Or Not:	Non-secondary
Application:	Boiler Pipe	Certification:	API	Surface Treatment:	As per your requirements
Alloy Or Not:	Is Alloy	Title:	ASTM A335 Grade P22 Alloy Steel Pipe & Seamless Line Pipes	Protection:	As per your requirements
Usage:	For boiler, heat-exchanger etc

Packaging & Delivery

Packaging Details:	In bundle or as per your requirements
Delivery Detail:	15~120 days (according to the quantity of order)

Specifications

1. Flexible Payment: O/A, DP, TT etc.
2. Any Third Part Inspection Is Acceptable.
3. Quick response

Key Words: ASTM A335/ASME SA335 P22 High Pressure Steel Pipe, ASTM A335 Alloy Steel Pipes & Tubes

ASME SA335 P22 Seamless Alloy Steel Pipe,

ASTM A335 Grade P22 Alloy Steel Pipe & Seamless Line Pipes

1.Basic Information

Standard	ASTM
Grade	T2/T5/T5b/T5c/T9/T11/T12/T22/T23/T24/T91/T92/T122/T911 etc P1/P2/P5/P9/P11/P12/P22/P23/P91/P92/P122/P911 etc
Minimum Order Quantity (MOQ)	1 Ton
Outside Diameter(OD) Ranges	1/8’’~48’’ Or DN6~DN1200 Or 10.3mm~1219mm
Wall Thickness (WT) Ranges	SCH10~SCH160 Or STD,XS,XXS Or 1.73mm~59.54mm
Length	Single Random Length	16ft-22ft/4.8m-6.7m	Or as per your requirements
	Double Random Length	22ft-35ft/6.7m-10.7m
	Fixed Length	16ft-41ft/4.8m-12.5m
Type	Seamless
Technique	Cold Drawn, Hot Rolled

product and more

Alloy pipe is a kind of seamless steel pipe, Alloy tube performance is much higher than the generalseamless steel tubes, because the Alloy tube containing Cr inside is more, its high temperature resistance,low temperature resistance, corrosion resistance is the performance of the seamless steel tube than the other, so the Alloy pipe in the oil, aerospace, chemical, electric power, boiler, military industry and other industries use more widely.

1 Detailed information about p22 material alloy pipe

Product	Materials	Standards	Spec (mm)	Application
Alloy pipe	12Cr1MoVG	GB/T5310-2008	8-1240*1-200	Alloy steel pipe applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant steamless steel pipe used. Our company has cooperative relation between the domestic agents. Alloy steel pipe can be made according to the customers requirements.
	12CrMoG	GB6479-2000
	15CrMoG	GB9948-2006
	12Cr2Mo<A335P22>	DIN17175-79
	Cr5Mo<A335P5>	ASTM SA335
	Cr9Mo<A335P9>	ASTM SA213
	10Cr9Mo1VNb<A335P91>	JISG3467-88
	15NiCuMoNb5<WB36>	JISG3458-88
	12Cr2MoWVTiB

Grade	Chemical Composition(%)
Grade	C	Si	Mn	P	S	Cr	Mo	Ni
10	0.07~0.14	0.17~0.37	0.35~0.65	≤0.035	≤0.035	≤0.15	/	≤0.25
20	0.17~0.24	0.17~0.37	0.35~0.65	≤0.035	≤0.035	≤0.25	/	≤0.25
15CrMo	0.12~0.18	0.17~0.37	0.40~0.70	≤0.035	≤0.035	0.80~1.10	0.40~0.55	≤0.30
1Cr2Mo	≤0.15	0.50~1.00	0.30~0.60	≤0.035	≤0.030	2.15~2.85	0.45~0.65	/
1Cr5Mo	≤0.15	≤0.50	≤0.60	≤0.035	≤0.030	4.00~6.00	0.45~0.60	≤0.60
12Cr1MoV	0.08~0.15	0.17~0.37	0.40~0.70	0.035	0.04	0.40~0.70	0.40~0.55
P22	0.08~0.15	0.40~0.70	≤0.50	0.035	0.035	2.00~2.50	0.90~1.20

1.Hydrostatic or Nondestructive Electric Test 2.Heat Treatment: according to Standard 3.Surface Condition:According to Standard. 4.Grain Size:According to standard 5.Sampling:flattening,flaring,grain size,Marking

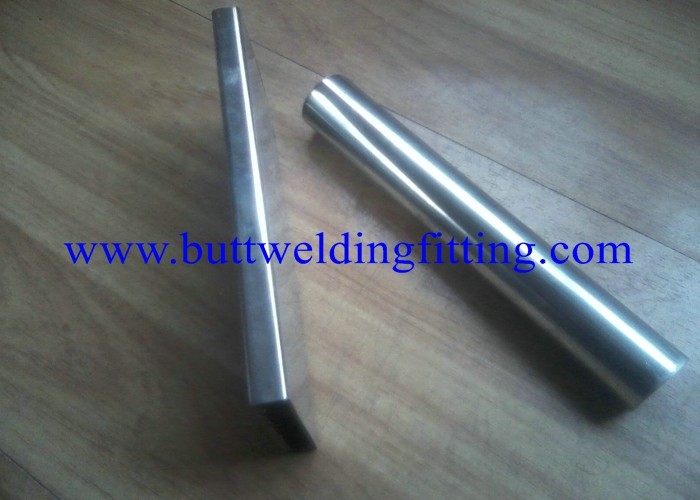

Round P22 Heat Exchanger Stainless Steel Seamless Pipe Hot Rolled 1
