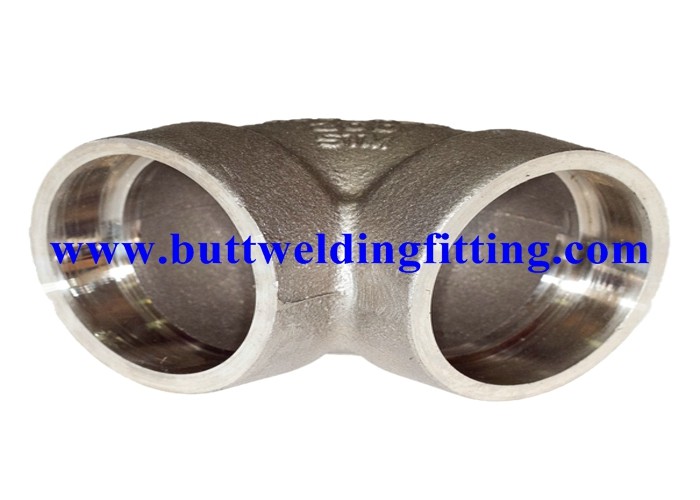

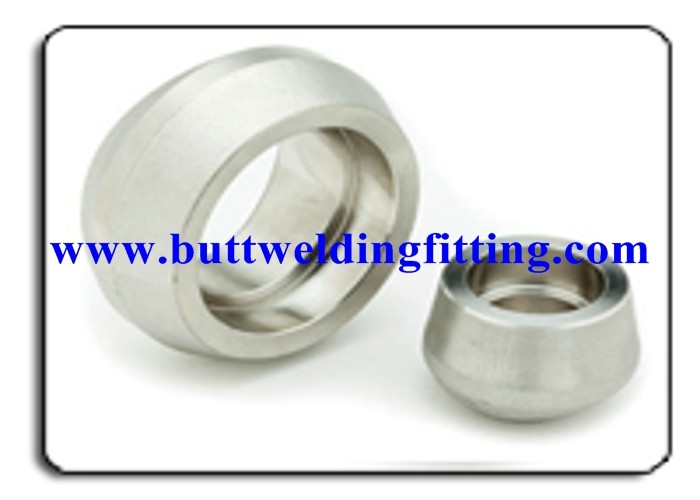

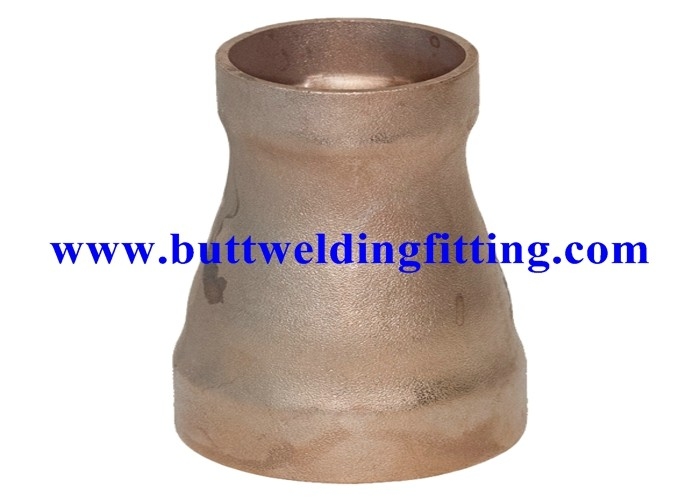

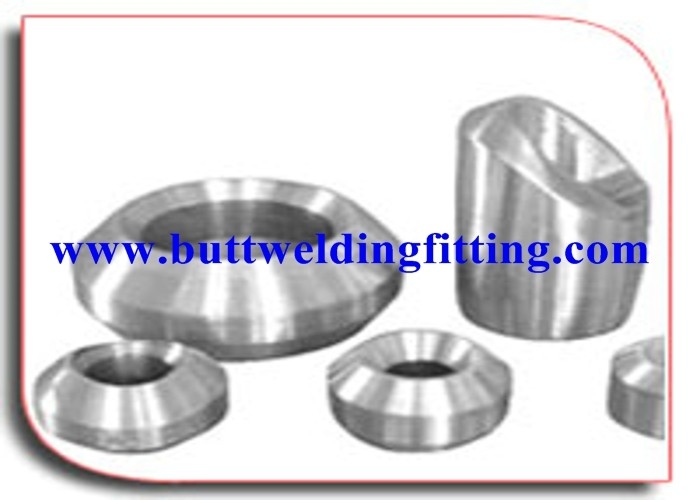

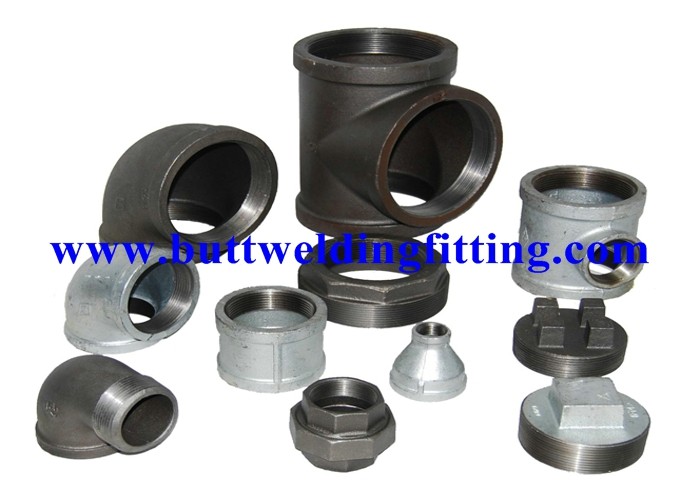

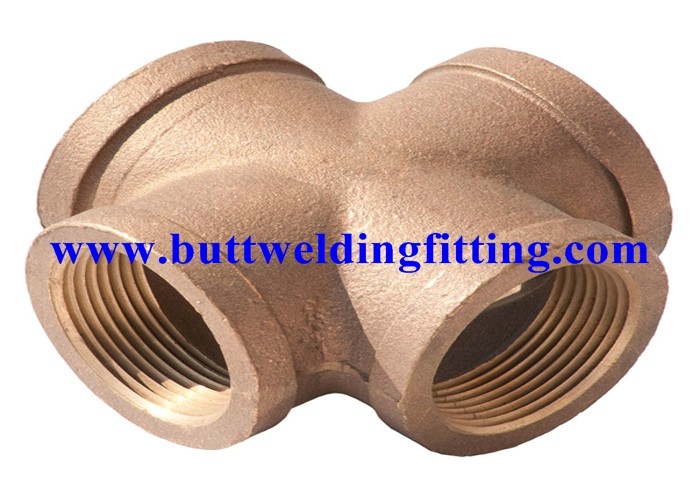

Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval

  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
  • Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval
Place of Origin CHINA
Brand Name TOBO
Certification ISO-9001:2000, API,CCS
Model Number 70/30 CuNi
Minimum Order Quantity 3PCS
Price USD0.1-30 PER PC
Packaging Details PLY-WOODEN CASE
Payment Terms T/T, Western Union, L/C, D/A, D/P
Supply Ability 10000000 PCS PER MONTH
Product Details
NAME ANSI B16.11 Forged Fittings, Steel Forged Pipe Fitting Type Cupronickel Pipe Fit
Standard ASME B16.11 Application Marine
OD 8 Mm OD To 200 Mm Wall Thickness 0.5 Mm To 15 Mm
Shape Equal OEM Accepted
Highlight

forged steel pipe fittings

,

stainless steel forged fittings
Leave a Message
Product Description



Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval



Quick Details

Material:
Alloy
 Technics:
Forged
 Type:
Flange
Place of Origin:
Shanghai, China (Mainland)
 Model Number:
C71500
 Brand Name: TOBO
Connection:
Flange
 Head Code:
round
 CuNi pipe fitting:
C71500
keywords:
CuNi pipe fitting

Packaging & Delivery

Packaging Details: Seaworthy Plywooden cases or wooden cases.
Delivery Detail: 20-30 DAYS

Specifications

CuNi pipe fitting:70/30 copper nickel
chemical composition:70 % copper ,30% nickel



Specifications

Cupronickel Pipe Fitting
Copper Nickel Alloy
ASTM ASME DIN MIL ANSI B16.9
Seamless Welded ERW Forged
UNS C70600 C71500



Specifications:


  • Material: Nickel
  • Size : 1/2"NB TO 12"NB IN
  • Class : 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
  • Type : Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

 Copper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS ApprovalCopper Nickel 70/30 CuNi Seamless Pipe Fitting ISO API CCS Approval



Specifications

45 degree elbow CuNi 70/30:
1. ASME B 16.9/ASME B16.11
2.DN6-1200, 1/8"-24"

45 degree elbow CuNi 70/30  :



1. Standard: ASME B16.11, ASME B16.9, ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc





2. Size:DN6-1200, 1/8"-48"



3. Wall thickness: SCH5S, SCH10S, SCH10, SCH20, SCH30...XXS;



     Pressure: 2000#, 3000#, 6000#



4. Material: C70600:CuNi90/10, CuNi 70/30 (C71500)



5.Connection: Butt weld, socket weld, forged, threaded.

Standard ASME SB165, SB111, etc.
Material C44300(brass alloys), C70600(90-10), C68700(CZ110 Aluminium barss alloy), C71500(70-30), C71640(66-30-2-2),etc.
OD 6-219.1mm
WT 0.7-12.7mm
Length 0-38000mm
Heat treatment solution annealing/Light Draw/Stress Relieving Heat Treatment
Test requirement 1.100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS 100% PMI
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3.TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST
4.100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS

NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS.

OPTION TEST & INSPECTION ITEMS:
1.STRAIGHTNESS TEST
2.ROUGHNESS TEST
3.CRYSTALLING PHASE ANALYSIS
4.INTERGRANULAR ATTACK TESTS
5.SHIPPING NOTIFICATION BEFORE SHIPMENT
6 .IMPACT ATTACK TEST UNDER LOW TEMPERATURE.

THE DOCUMENT LSI WILL PROVIDE YOU:
a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN10204/3.2;
b.RAW MATERIAL CERTIFICATION
c.ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d.HEAT TREATMENT REPORT
e.SHIPPING NOTIFICATION BEFORE SHIPMENT
f.QUALITY WARRANTY LETTER.
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product processing  Cold drawn, cold rolled.
Product origin Shanghai, China(main land).
Ends PE, BE.
Trade terms FOB, CIF, CFR, DDP, EXW, etc.
Delivery Container, LCL, consignment.
