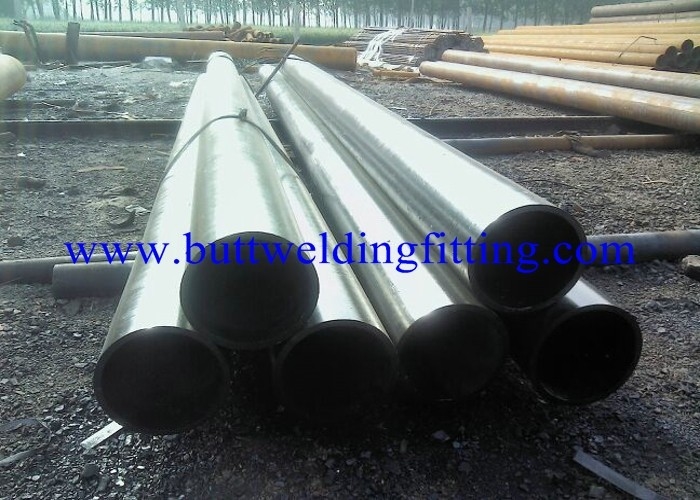

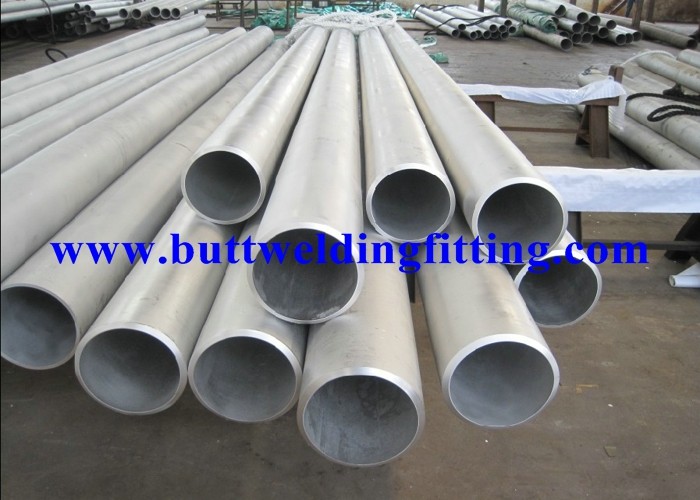

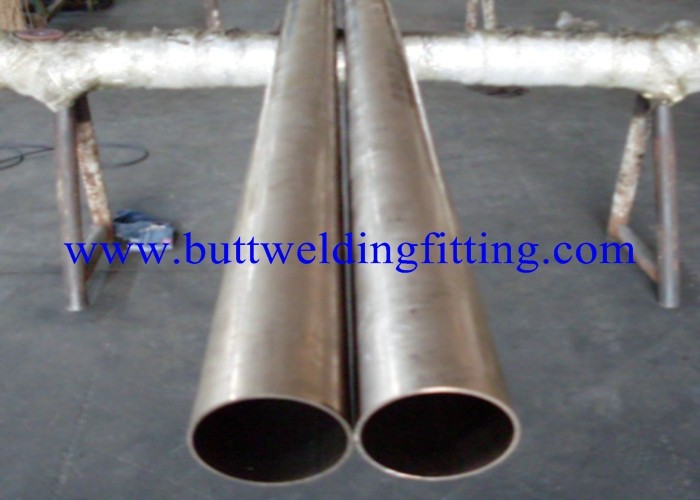

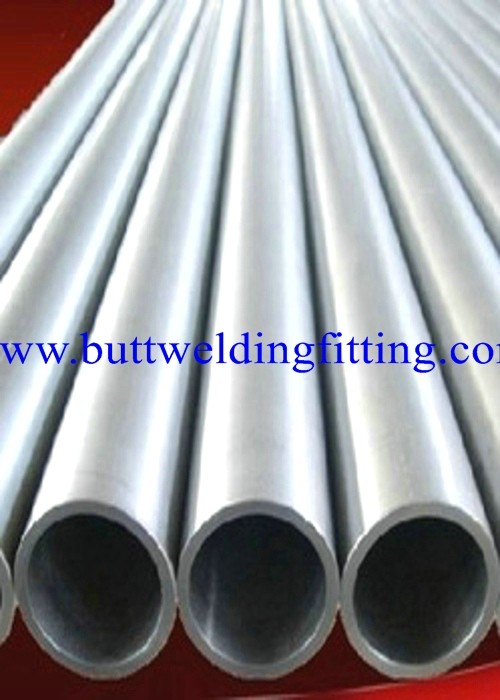

254 SMO 1.4547 UNS S31254 Stainless Steel Seamless Pipe Super Austenitic
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | S31254 |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | 15days-> |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | 50000tons/year or stocks |
Product Details
| Standard | JIS, AISI, ASTM, GB, DIN, EN, Other | Technics | Hot Rolled |
|---|---|---|---|
| Types | Seamless | Thickness | 0.5-100mm |
| Outer Diameter | 6-813mm | Grade | 300 Series |
| Application | Fluid Pipe,Structure Pipe,Oil Pipe,,Boiler Tube,Heat Exchanger Tube | Process | Cold Drawn,Cold Rolled,Precision Cold Rolled |
| FINISH | Annealed & Pickled, Bright Annealing, Polished | ||
| Highlight | marine stainless steel tubing,seamless stainless steel tube |
||
Product Description
254 SMO 1.4547 UNS S31254 Stainless Steel Seamless Pipe Super Austenitic
Quick Details
| Standard: |
JIS, AISI, ASTM, GB, DIN, EN, Other
|
Place of Origin: |
China (Mainland)
|
Brand Name: |
BSTP
|
| Type: |
Seamless
|
Steel Grade: |
300 Series
|
Application: |
Fluid pipe,Structure Pipe,Oil pipe,,Boiler tube,Heat exchanger tube
|
| Certification: |
ISO
|
Thickness: |
0.5-100mm
|
Outer Diameter: |
6-813mm
|
| FINISH: |
Annealed & Pickled, Bright Annealing, Polished
|
Process: |
Cold Drawn,Cold Rolled,Precision Cold Rolled
|
Packaging & Delivery
| Packaging Details: | Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested. |
| Delivery Detail: | 30 Days |
Specifications
100% PMI,Spectro Chemical Aanlysis Test for raw material
100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test;
Description & Name: 254SMo 1.4547 UNS S31254 Super Austenitic Stainless Steel Seamless Pipe or Tube
Standard:
ASTM A312, A213, A269, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458,JISG3459, JIS GS3463, GS3467, JIS G3448, GOST 9940, GOST 9941,
Material: 254SMo 1.4547 UNS S31254
Nominal Dia: 1/2 "to 32" NB for seamless pipe
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Length:
30 m(Max) or as your requirement
Process:
Cold drawn, Cold rolled, Precision Rolled for Seamless Pipe or Tube
Finish: Annealed & pickled, bright annealing, polished
Ends: Beveled or plain end, square cut, burr free ,Plastic Cap at Both end

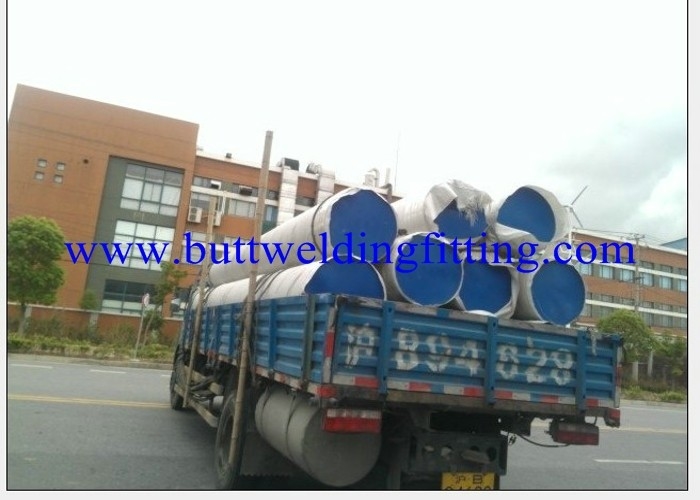

Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Inspection and Test Procedure
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6.Straightness Test (optional) |
| 7.Roughness Test (optional) |
| 8.Intergranular Corrosion Test(optional) |
| 9.Impact Test (optional) |
| 10.Grain Size Determinations (optional) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
|
Alloys 254 / 254 SMO / 6 Mo is an austenitic stainless steel with a high molybdenum content. Coupled with Nickel and Copper this gives the alloy a good resistance to pitting and crevice corrosion, especially in environments containing halide ions, e.g. chloride, bromide and fluoride solutions. 254 SMO (UNS S31254) may offer a cost effective solution to Nickel and Titanium alloys in these environments. |
| Alloy | Common Name | Related Specifications | Tensile Strength | Proof Stress | Elongation | ||
|---|---|---|---|---|---|---|---|
| British | European | United States | |||||
| Alloy 254 | 254SMO | 1.4547 | ASTM A479/A473, /A240 S31254 F44 |
655 [95] |
305 [44.2] |
35 | |
Alloy 254 Technical Information
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
