A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch

  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
  • A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
Place of Origin China
Brand Name Tobo
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Reducer
Minimum Order Quantity 1pcs
Price 1usd
Packaging Details Wooden case
Delivery Time 15 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 90000pcs per mouth
Product Details
Size 1-96 Inch Material Grrade 904L
Standard ASME B16.9 Product Type Butt Weld Reducer
Highlight

Concentric Pipe Reducer

,

Butt Weld Reducer
Leave a Message
Product Description

A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch

Specifications

1.Stainless steel reducer
2.sch5s-schxxs





Quick Details

Material: Stainless Steel Technics: Butt Weld ,Forged Type: Reducer
Place of Origin: China (Mainland) Model Number: Con ,Ecc reducer Brand Name: TOBO
Connection: Welding, welding,threaded connection , socket weld Shape: Equal Head Code: Round
Standards: ANSI / ASME / DIN / JIS/API /GB /ISO Certifications:

ISO9001/2008

,ISO14001,OHSMS18000

 Size Range: DN15-DN2400(1/2"-96")

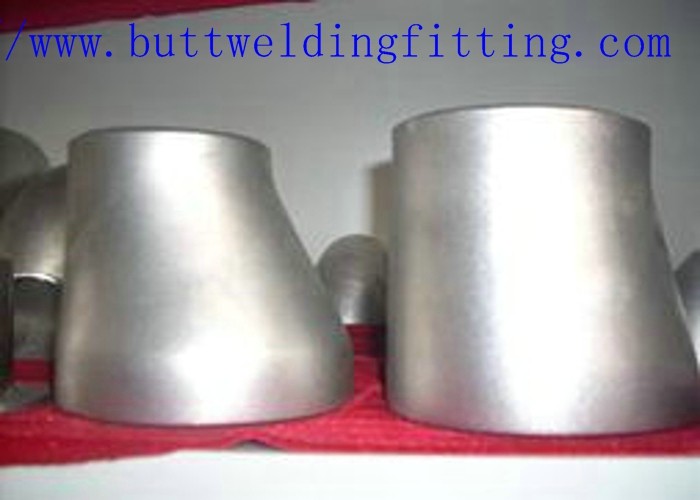

Wall Thickness: SCH5-SCH160 XXS Types: Conc.reducer ; Ecc reducer Surface Finish: sand blast, black painting, galvanizing finish
Materials: carbon steel ,alloy steel, stainless steel Application: natural gas, chemicals, shipbuilding and so on. Trade Term: FOB, C&F, CIF or other customer request term

Packaging & Delivery

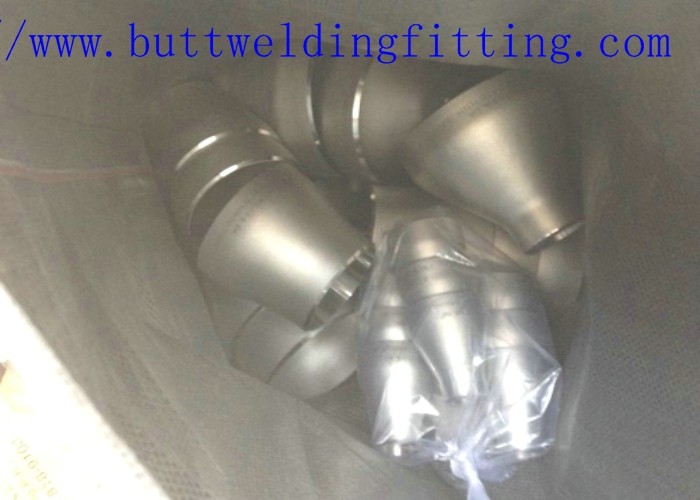

Packaging Details: Wooden case or wooden pallet or according to the buyer's requirements
Delivery Detail: 25-30 days after confirming order

Specifications

All kind of pipe fittings with high quality and best price
1) MOQ:1PCS
2) Certifiation :IS0 API ABS BV GL DNV CE CCS

Product details

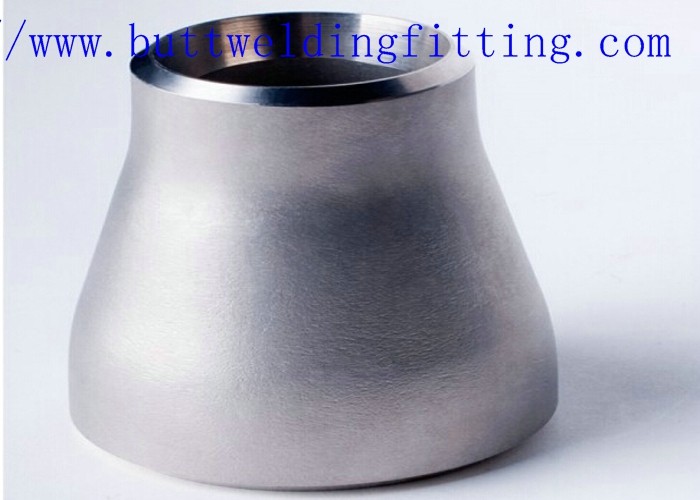

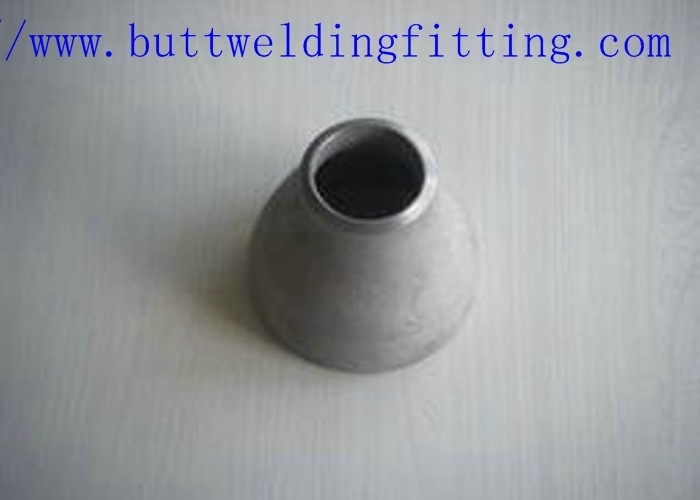

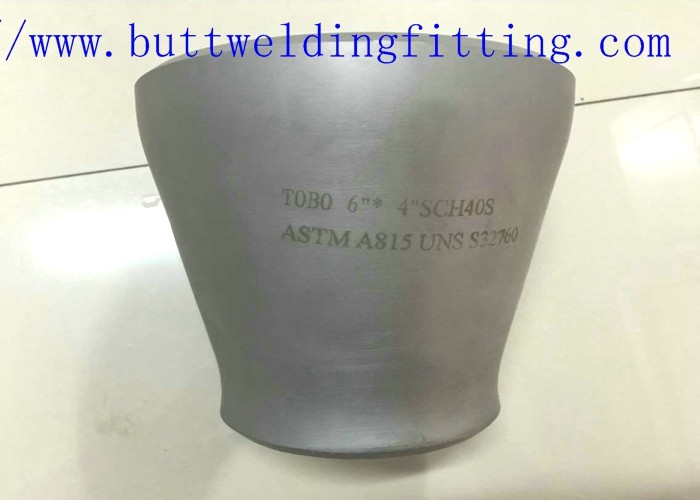

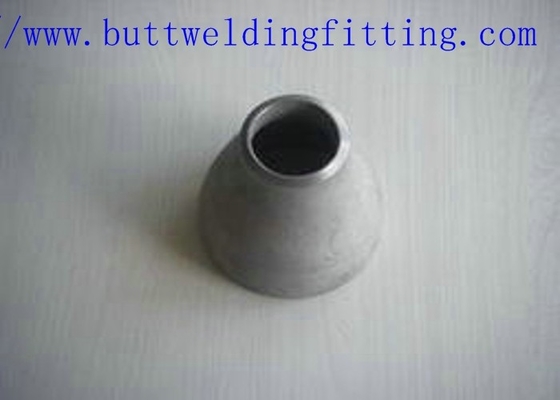

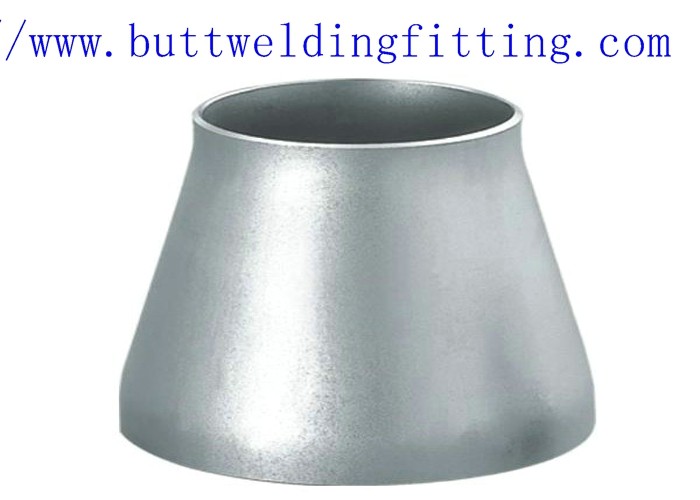

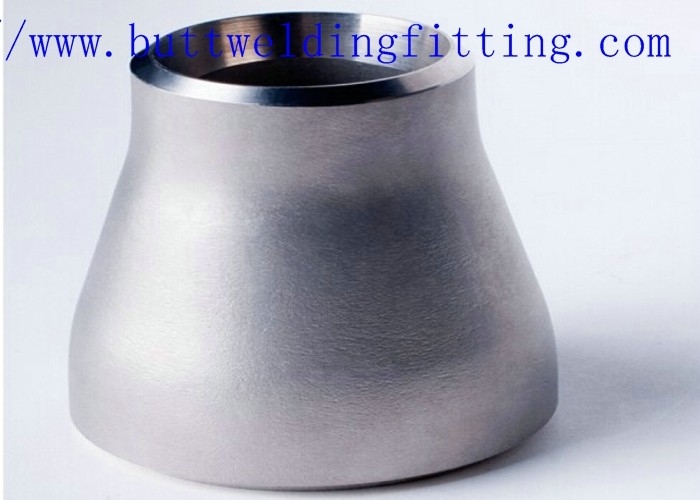

Stainless Steel Conc Reducer

1 Product Standard & Marterial

Standard

1)Standard: ASTM, ASME , DIN ,JIS,API ,GB ,ISO

2)Certifications : ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS



Material :

Carbon Steel: ASTM A-234 (WPB,WPC) EN 10216-2 (P235GH,P265GH) EN10222-2 (P245GH,P280GH) NF A49-213 (TU42C,TU48C)

Low Alloy Steel : ASTM A-420(WPL6) ASTM A-234(WP11,WP22,WP5) ASTM A-860(A860-

WPHY52)

Stainless Steel: ASTMA403M (WP304,WP304L,WP304H,WP316,WP316L,WP321,WP321H,WP347, WP347H) EN10216-5(X2CrNiN18-10(1.4311),X5CrNi18-10(1.4301),X5CrNiMo17-12 2(1.4401),X2CrNiMo17-12-2(1.4404)

dimension and tolerance check, physical and chemical inspection, leakage magnetism and ultrasonic inspection

c Finished goods inspection :

dimension and tolerance, appperance quality check and mechanical properties testing

d Inspection before ex-factory:

We arrange our QC staff to manufacture’s plant for final quality and packing inspection each time before we deliver goods to port for shipping, and the connected sales staff will be with QC staff to make sure we did everything fully and strictly meet our customers’ requirements.



Nominal Diameter Outside Diameter End to End
D1*D2
DN NPS Series A Series B H
20×15 3/4×1/2 26.9×21.3 25×18 38
20×10 3/4×3/8 26.9×17.3 25×14 38
25×20 1×3/4 33.7×26.9 32×25 51
25×15 1×1/2 33.7×21.3 32×18 51
32×25 1.1/4×1 42.4×33.7 38×32 51
32×20 1.1/4×3/4 42.4×26.9 38×25 51
32×15 1.1/4×1/2 42.4×21.3 38×18 51
40×32 1.1/2×1.1/4 48.3×42.4 45×38 64
40×25 1.1/2×1 48.3×33.7 45×32 64
40×20 1.1/2×3/4 48.3×26.9 45×25 64
40×15 1.1/2×1/2 48.3×21.3 45×18 64
50×40 2×1.1/2 60.3×48.3 57×45 76
50×32 2×1.1/4 60.3×42.4 57×38 76
50×25 2×1 60.3×33.7 57×32 76
50×20 2×3/4 60.3×26.9 57×25 76
65×50 2.1/2×2 73.0×60.3 76×57 89
65×40 2.1/2×1.1/2 73.0×48.3 76×45 89
65×32 2.1/2×1.1/4 73.0×42.4 76×38 89
65×25 2.1/2×1 73.0×33.7 76×32 89
80×65 3×2.1/2 88.9×73.0 89×76 89
80×50 3×2 88.9×60.3 89×57 89
80×40 3×1.1/2 88.9×48.3 89×45 89
80×32 3×1.1/4 88.9×42.4 89×38 89
90×80 3.1/2×3 101.6×88.9 - 102
90×65 3.1/2×2.1/2 101.6×73.0 - 102
90×50 3.1/2×2 101.6×60.3 - 102
90×40 3.1/2×1.1/2 101.6×48.3 - 102
90×32 3.1/2×1.1/4 101.6×42.4 - 102
100×90 4×3.1/2 114.3×101.6 - 102
100×80 4×3 114.3×88.9 108×89 102
100×65 4×2.1/2 114.3×73.0 108×76 102
100×50 4×2 114.3×60.3 108×57 102
100×40 4×1.1/2 114.3×48.3 108×45 102
125×100 5×4 141.3×114.3 133×108 127
125×90 5×3.1/2 141.3×101.6 - 127
125×80 5×3 141.3×88.9 133×89 127
125×65 5×2.1/2 141.3×73.0 133×76 127
125×50 5×2 141.3×60.3 133×57 127
150×125 6×5 168.3×141.3 159×133 140
150×100 6×5 168.3×114.3 159×108 140
150×90 6×3.1/2 168.3×101.6 - 140
150×80 6×3 168.3×88.9 159×89 140
150×65 6×2.1/2 168.3×73.0 159×76 140
200×150 8×6 219.1×168.3 219×159 152
200×125 8×5 219.1×141.3 219×133 152
200×100 8×4 219.1×114.3 219×108 152
200×90 8×3.1/2 219.1×101.6 - 152
250×200 10×8 273.0×219.1 273×219 178
250×150 10×6 273.0×168.3 273×159 178
250×125 10×5 273.0×141.3 273×133 178
250×100 10×4 273.0×114.3 273×108 178
300×250 12×10 323.9×273.1 325×273 203
300×200 12×8 323.9×219.1 325×219 203
300×150 12×6 323.9×168.3 325×159 203
300×125 12×5 323.9×141.3 325×133 203
350×300 14×12 355.6×323.9 377×325 330
350×250 14×10 355.6×273.0 377×273 330
350×200 14×8 355.6×219.1 377×219 330
350×150 14×6 355.6×168.3 377×159 330
400×350 16×14 406.4×355.6 426×377 356
400×300 16×12 406.4×323.9 426×325 356
400×250 16×10 406.4×273.0 426×273 356
400×200 16×8 406.4×219.1 426×219 356
450×400 18×16 457×406.4 478×426 381
450×350 18×14 457×355.6 478×377 381
450×300 18×12 457×323.9 478×325 381
450×250 18×10 457×273.0 478×273 381

A403 WP347 WP904L Stainless Steel Reducer SCH80S SCH40S 1-96 inch
