Place of Origin: | China |
---|---|
Brand Name: | Tobo |
Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
Model Number: | TEE |
Minimum Order Quantity: | 1pcs |
Price: | USD Depending on quantity |
Packaging Details: | PLY-WOODEN CASE OR PALLET |
Delivery Time: | 10-100 days depending on quantity |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,0000pcs per month |
Product Name: | Super Duplex Uns S32750 | Size: | 1-48 Inch |
---|---|---|---|
Material Grrade: | UNS S32750 UNSS32760 | Standard: | ASME B16.9 |
High Light: | stainless steel pipe tee,butt weld tee |

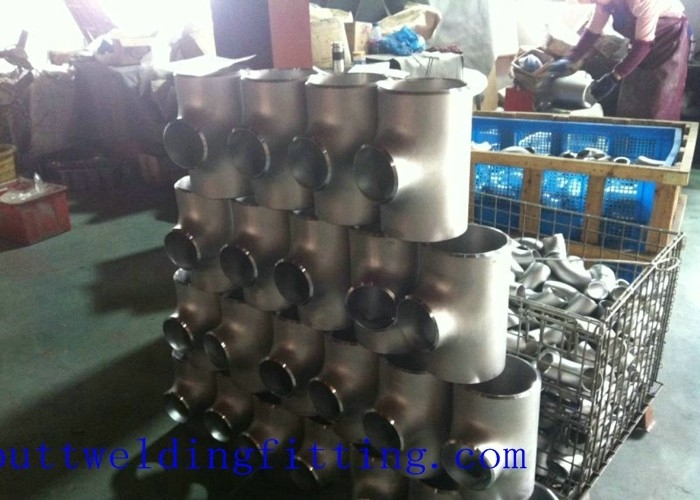

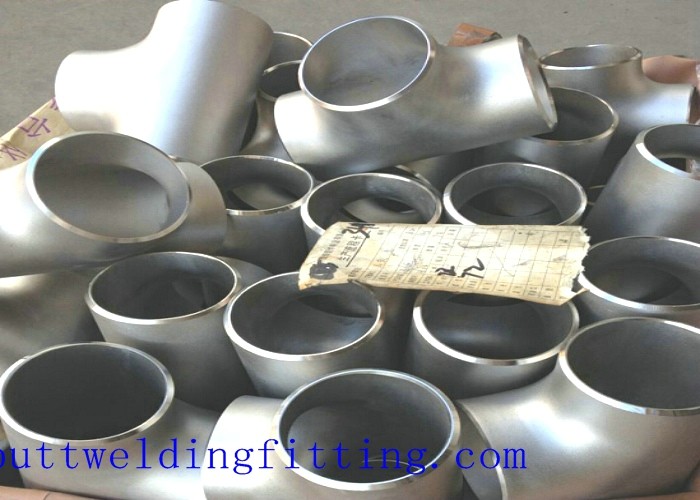

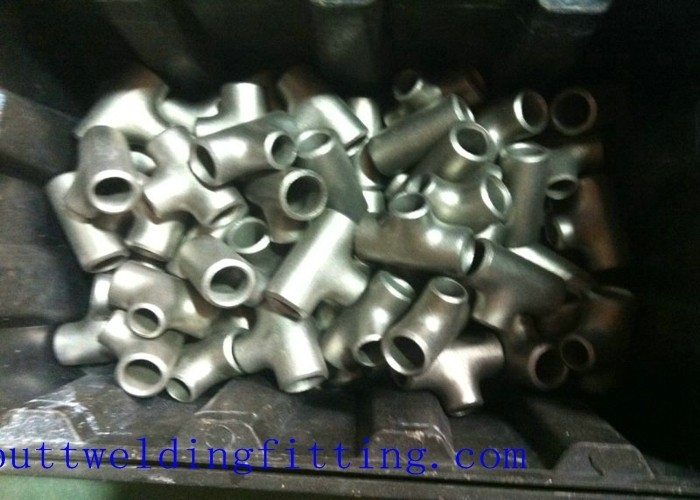

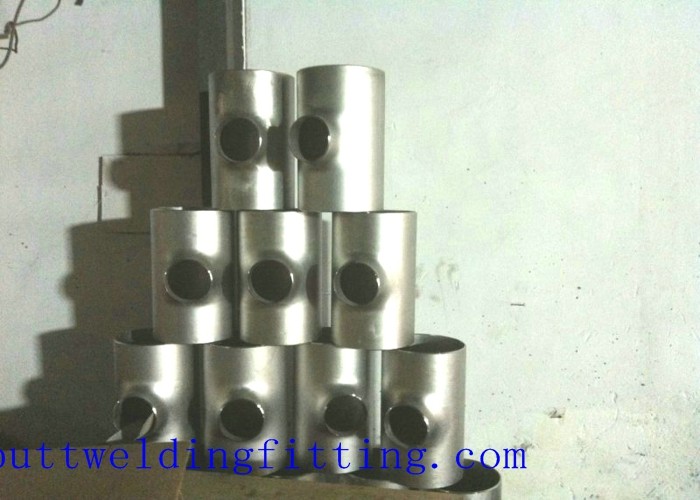

A182 316 Seamless Stainless Steel Pipe Tee Nickel Alloy Steel Alloy 625
Quick Detail:
· Material:Carbon Steel,Aolly Steel,Seamless Steel
· Technics:Forged,forging butt welding
· Type:Tee & Cross
· Connection:Welding
· Shape:Reducing
· Head Code:Round
· size:1/2-18
· Standard:ASME B16.9 B16.49 B16.25
· Packing:wooden cases or as cusdtomers' demands
· OD:40mm-500mm
· surfacetreatment:painting galvaized or as customers' demands
· WT:Sch10-Sch190 xxs
Description:
1. Product Item No.: 005fittings-Cosco Steel
2. Size: NPS 1/2"-120"(DN15-3000)
3. Varieties: SCH5S/10S, SCH20/40/8 Pipe Fitting Stainless steel SMLS reducer tee 0/160, STD/XS/XXS, SGP
4. Material:
Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8…
Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80…
Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…
5. Standard: ANSI B16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615/GB-12459/GB-T13401,Gost17376,we can also produce according to drawing by customers.
6. Surface treatment:
Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil,galvanizing,, hot galvanizing
Alloy steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing
Stainless steel: pickled,
7. Trade term: FOB, CNF&CFR, CIF
8. Usage: Petroleum/ Power/ Chemical use/ Construction use/ Gas/ Metallury/ Shipbuilding
9. Certificate:GB/T19001-2008-ISO 9001:2008
10. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

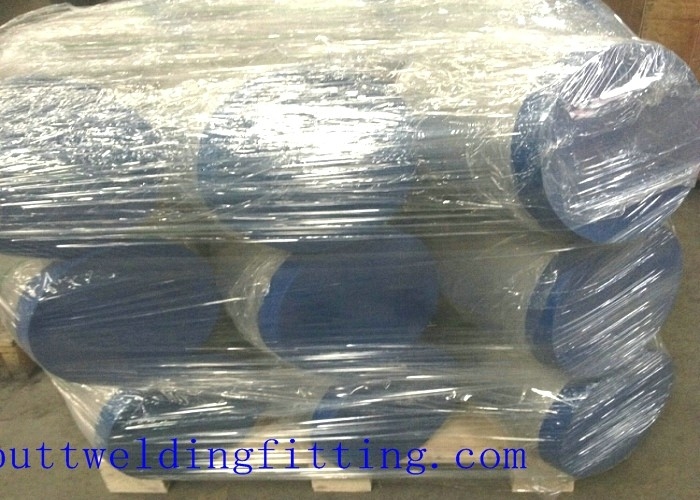

11. Packing: Wooden box or wooden pallet.
12. H.S Code: 73072300
Specification
Norminal Pipe Size |
Outside Diameter at Bevel |
Center to End |
||||
DN |
D1 |
D2 |
C |
M |
||
Series A |
Series B |
Series A |
Series B |
|||
20×20×15 |
26.9 |
25 |
21.3 |
18 |
29 |
29 |
25×25×20 |
33.7 |
32 |
26.9 |
25 |
38 |
38 |
25×25×15 |
33.7 |
32 |
21.3 |
18 |
38 |
38 |
32×32×25 |
42.4 |
38 |
33.7 |
32 |
48 |
48 |
32×32×20 |
42.4 |
38 |
26.9 |
25 |
48 |
48 |
32×32×15 |
42.4 |
38 |
21.3 |
18 |
48 |
48 |
40×40×32 |
48.3 |
45 |
42.4 |
38 |
57 |
57 |
40×40×25 |
48.3 |
45 |
33.7 |
32 |
57 |
57 |
40×40×20 |
48.3 |
45 |
26.9 |
25 |
57 |
57 |
40×40×15 |
48.3 |
45 |
21.3 |
18 |
57 |
57 |
50×50×40 |
60.3 |
57 |
48.3 |
45 |
64 |
60 |
50×50×32 |
60.3 |
57 |
42.4 |
38 |
64 |
57 |
50×50×25 |
60.3 |
57 |
33.7 |
32 |
64 |
51 |
50×50×20 |
60.3 |
57 |
26.9 |
25 |
64 |
44 |
65×65×50 |
76.1(73) |
76 |
60.3 |
57 |
76 |
70 |
65×65×40 |
76.1(73) |
76 |
48.3 |
45 |
76 |
67 |
65×65×32 |
76.1(73) |
76 |
42.4 |
38 |
76 |
64 |
65×65×25 |
76.1(73) |
76 |
33.7 |
32 |
76 |
57 |
80×80×65 |
88.9 |
89 |
76.1(73) |
76 |
86 |
83 |
80×80×50 |
88.9 |
89 |
60.3 |
57 |
86 |
76 |
80×80×40 |
88.9 |
89 |
48.3 |
45 |
86 |
73 |
80×80×32 |
88.9 |
89 |
42.4 |
38 |
86 |
70 |
90×90×80 |
101.6 |
-- |
88.9 |
-- |
95 |
92 |
90×90×65 |
101.6 |
-- |
76.1(73) |
-- |
95 |
89 |
90×90×50 |
101.6 |
-- |
60.3 |
-- |
95 |
83 |
90×90×40 |
101.6 |
-- |
48.3 |
-- |
95 |
79 |
100×100×90 |
114.3 |
-- |
101.6 |
-- |
105 |
102 |
100×100×80 |
114.3 |
108 |
88.9 |
89 |
105 |
98 |
100×100×65 |
114.3 |
108 |
76.1(73) |
76 |
105 |
95 |
100×100×50 |
114.3 |
108 |
60.3 |
57 |
105 |
89 |
100×100×40 |
114.3 |
108 |
48.3 |
45 |
105 |
86 |
125×125×100 |
139.7 |
133 |
114.3 |
108 |
124 |
117 |
125×125×90 |
139.7 |
-- |
101.6 |
-- |
124 |
114 |
125×125×80 |
139.7 |
133 |
88.9 |
89 |
124 |
111 |
125×125×65 |
139.7 |
133 |
76.1(73) |
76 |
124 |
108 |
125×125×50 |
139.7 |
133 |
60.3 |
57 |
124 |
105 |
150×150×125 |
168.3 |
159 |
139.7 |
133 |
143 |
137 |
150×150×100 |
168.3 |
159 |
114.3 |
108 |
143 |
130 |
150×150×90 |
168.3 |
-- |
101.6 |
-- |
143 |
127 |
150×150×80 |
168.3 |
159 |
88.9 |
89 |
143 |
124 |
150×150×65 |
168.3 |
159 |
76.1(73) |
76 |
143 |
121 |
200×200×150 |
219.1 |
219 |
168.3 |
159 |
178 |
168 |
200×200×125 |
219.1 |
219 |
139.7 |
133 |
178 |
162 |
200×200×100 |
219.1 |
219 |
114.3 |
108 |
178 |
156 |
200×200×90 |
219.1 |
-- |
101.6 |
-- |
178 |
152 |
250×250×200 |
273 |
273 |
219.1 |
219 |
216 |
203 |
250×250×150 |
273 |
273 |
168.3 |
159 |
216 |
194 |
250×250×125 |
273 |
273 |
139.1 |
133 |
216 |
191 |
250×250×100 |
273 |
273 |
114.3 |
108 |
216 |
184 |
300×300×250 |
323.9 |
325 |
273 |
273 |
254 |
241 |
300×300×200 |
323.9 |
325 |
219.1 |
219 |
254 |
229 |
300×300×150 |
323.9 |
325 |
168.3 |
159 |
254 |
219 |
300×300×125 |
323.9 |
325 |
139.7 |
133 |
254 |
216 |
Size : 1/2"-24" (DN15-DN600), Welded 1/2"-48" (DN15-DN1200),MaxRange:<80" Special size can be customized according to the demand of customers
Standard:ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO
Material: , ASTM A403 304, 304L, 316, 316L, 316Ti, 317, 317L, 321, 321H,304H,S31803,310S,904L,F51,2205
Surface:Sandblasting firstly and then painted black lacquer or transparent oil on surface to prevent corrosion
Thickness:SCH5-SCH160, STD, XS, XXS
End:Bevel, plain, thread
Applications range:Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Others 1)Special design available 2)All the production process are made under the ISO 9001:2000 strictly.
We have the most advanced pipe fittings production equipments all the china,all the products are produced by ourself,so we can give you Best and fair price with First class quality!
