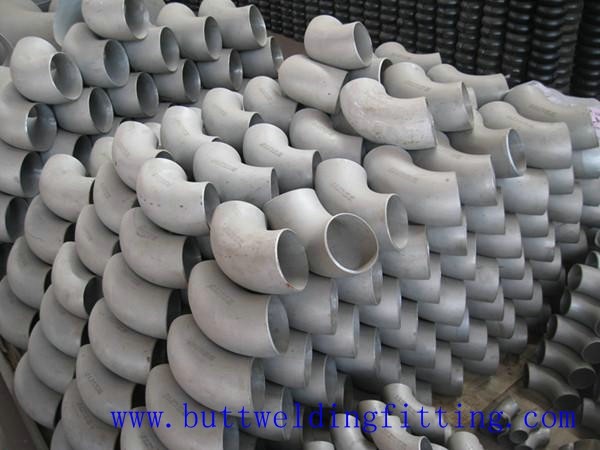

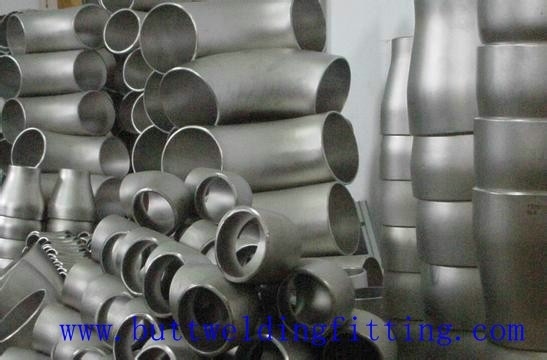

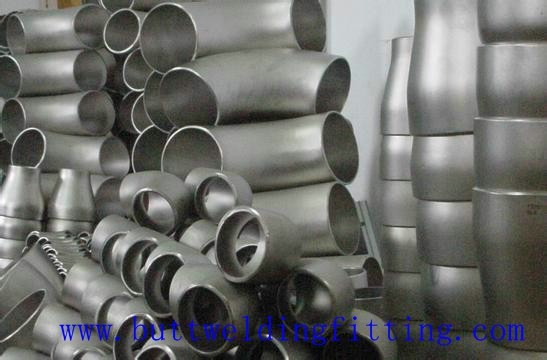

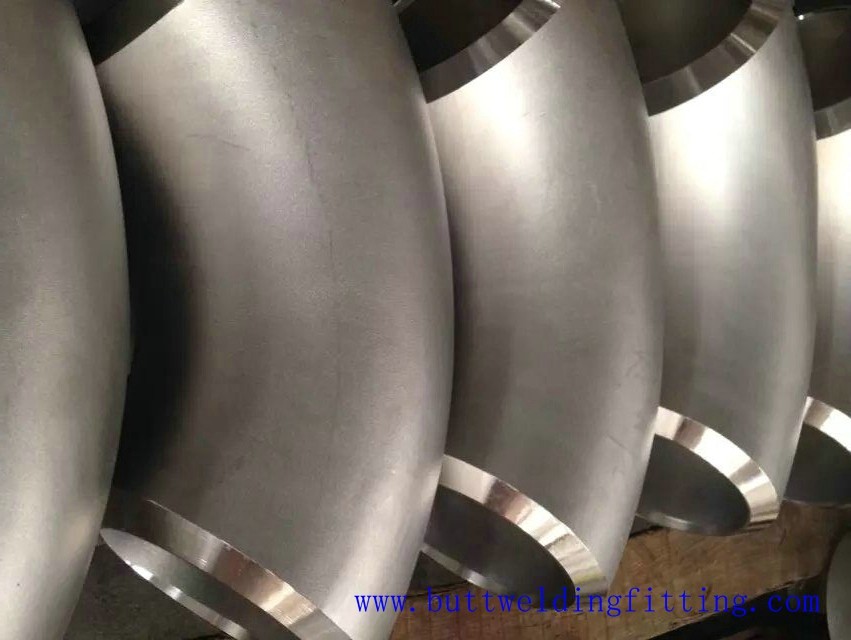

Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow

  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
  • Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow
Place of Origin China
Brand Name Tobo
Certification ISO9001, API,CE
Model Number Elbow
Minimum Order Quantity 1pcs
Price USD Depending on quantity
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 10-100 days depending on quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 3,0000pcs per month
Product Details
Shape Equal Size Seamless 1/2" To 24" Welded 24" To 72"
Thickness Sch10-Sch160 XXS Material Stainless Steel
Highlight

butt weld tube fittings

,

butt welded pipe fittings
Leave a Message
Product Description



Carbon Steel Butt Weld Fittings Astm A234 WPB Short / Long Radius Elbow



1. Product Item No.: 002fittings-Cosco Steel

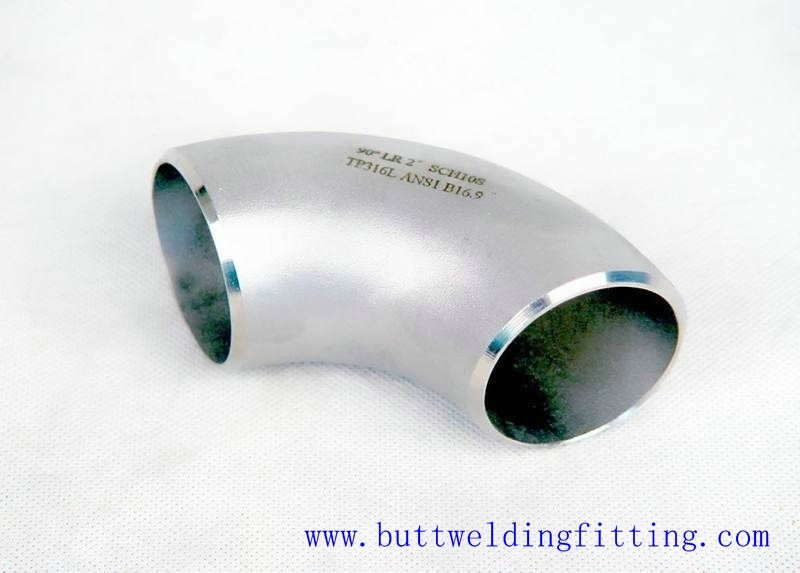

2. Product name: 2205 Stainless Steel 90D LR Elbow

3. Material: stainless steel,alloy steel,carbon steel

4. Size:
Seamless(SMLS) Elbows : 1/2"-2 4" ,DN15-DN600
Butt Welded Elbows (seam) :24"-72",DN600-DN1800

5. Thickness:SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS

6. Type:
SR 30,45,60,90,180 degree
1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

7. Pressure: Sch5--Sch160,XXS

8. Standard: ASME,ANSI B16.9; DIN2605,2615,2616,2617,JIS B2311 ,2312,2313; EN 10253-1 ,EN 10253-2

9. CE and Certification: ISO9001:2000, API, BV, SGS, LOIYD

10. Application Range: "Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, water and nuclear power etc."

11. The third party inspection: BV, SGS, LOIYD, TUV, and other party alloyed by clients.

12. Remark: Also can supply IBR fittings and Specialized NACE & HIC Fittings.

13. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

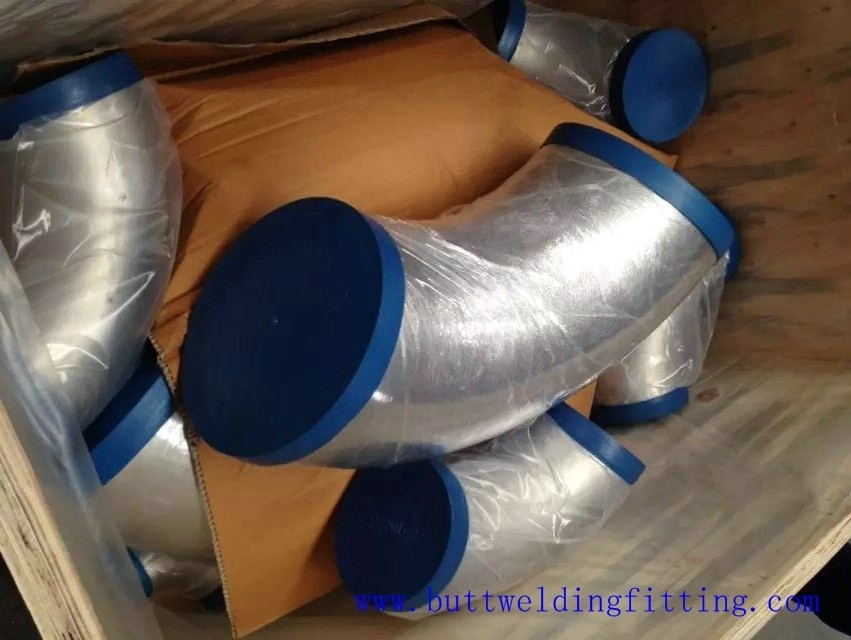

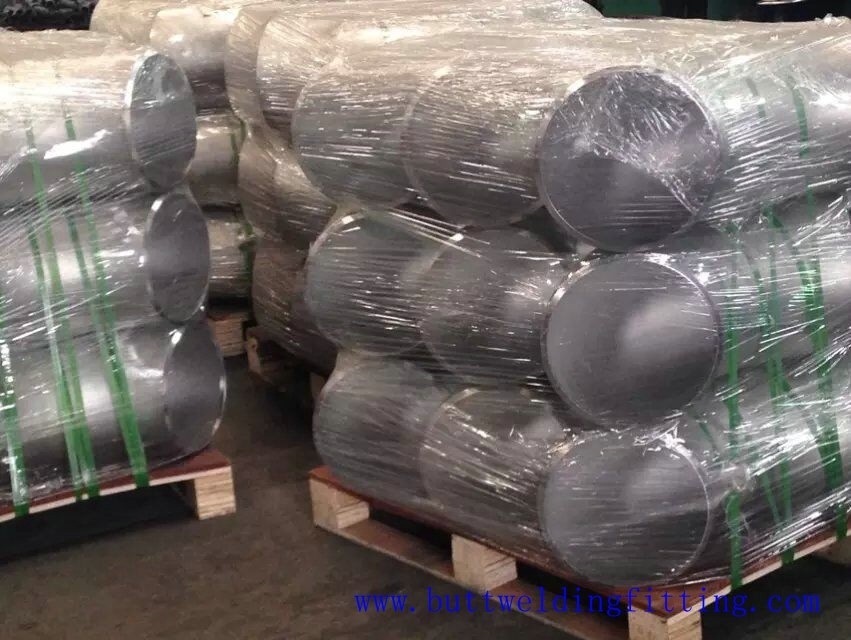

14. Packing: Wooden box or wooden pallet.

15. H.S Code: 73072300

16. Material:



Material ASTM Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6.

Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,

00Cr17Ni14Mo2, ect.)
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,
A420WPL6,A420WPL3
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB 10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,
12CrMo, 12CrMoG, 12Cr1Mo



































Applications:



We,this type pipe fittings be widely used in kinds of industries:

a. Paper Making,Waste-water Treatment

b. Chemical Industry and Natural Gas

c. Shipbuilding

d. Electrical equipment

e. Nuclear Energy

f. Construction

g. Petroleum



Specification



ND OD(MM) Center to end Approx Weight KG/PCS
DN INCH OD A O 5S 10S 20S 40S 80S
20 3/4 25 20.7 - - - - - - -
25 1 32 33.4 25 50 0.055 0.096 0.11 0.11 0.15
32 11/4 38 42.2 32 64 0.069 0.075 0.102 0.132 0.14 0.15 0.158 0.17 0.20 0.236
40 11/2 45 48.3 38 76 0.12 0.13 0.18 0.186 0.2 0.21 0.22 0.24 0.3 0.33
50 2 57 60.3 51 102 0.17 0.176 0.297 0.308 0.787 0.396 0.42 0.44 0.6 0.616
65 21/2 73 76.1 64 128 0.35 0.364 0.53 0.546 0.64 0.655 0.89 0.91 1.0 1.29
80 3 89 76 152 0.486 0.729 0.972 1.36 1.94
90 31/2 101.6 89 178 0.7 1.05 1.4 1.96 2.8
100 4 108 114.3 102 204 0.90 0.94 1.2 1.4 1.7 1.876 2.56 2.77 4.0 4.13
125 5 133 141.3 139.7 127 254 1.8 2.02 2.1 2.37 3.2 3.49 4.0 4.4 6.5 6.98
150 6 159 168.3 165.2 152 304 2.6 2.9 3.1 3.4 4.8 5.0 6.8 7.1 10.3 11.0
200 8 219 216.3 203 406 6.25 5.0 7.0 6.8 11.08 10.7 14.1 13.5 22 21
250 10 273 267.3 254 508 10.08 9.7 11.2 10.0 17.6 16.0 24.6 23.0 44.8 40.0
300 12 325 323.9 318.5 305 610 14.8 16.7 23.3 37 64.5
350 14 377 355.6 356 711 19.1 15.6 22 19.5 38 34 48.6 42.6 80.0 74.0
400 18 426 406.4 406 812 29.0 26.5 35 30 57.0 49.9 67 62 149.0 135.0
500 20 529 508 508 1016 - - - - -
550 22 559 559 1118 - - - - -






Our advantage



i. Ultrasonic equipment for thickness inspection

ii. Ultrasonic flaw detecting equipment

iii. Universal material testing equipment

iv. Carbon and sulfur analyzer
