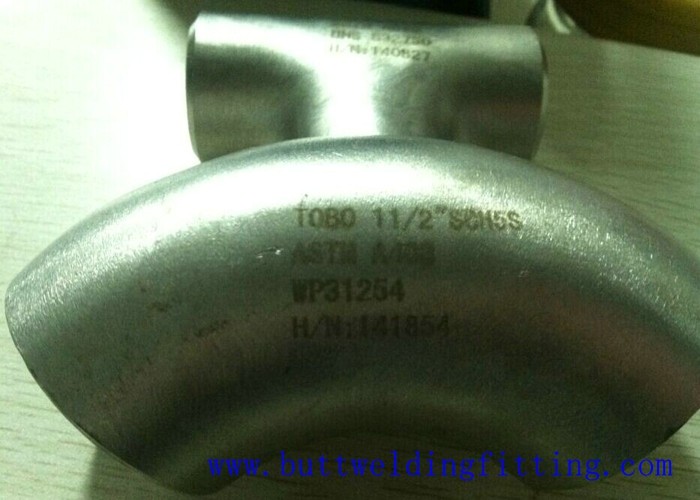

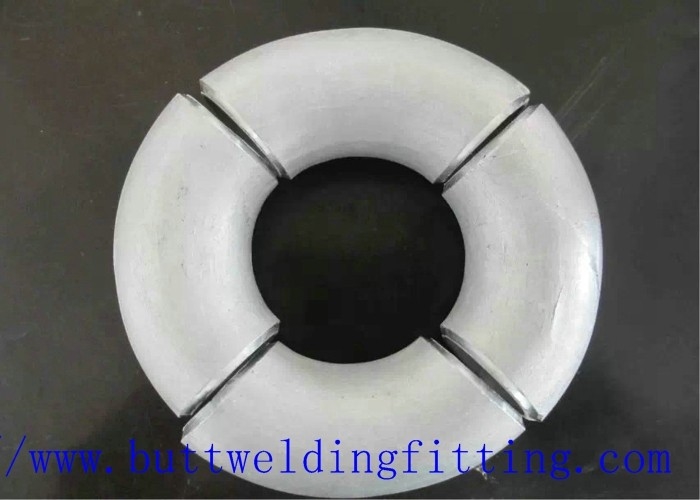

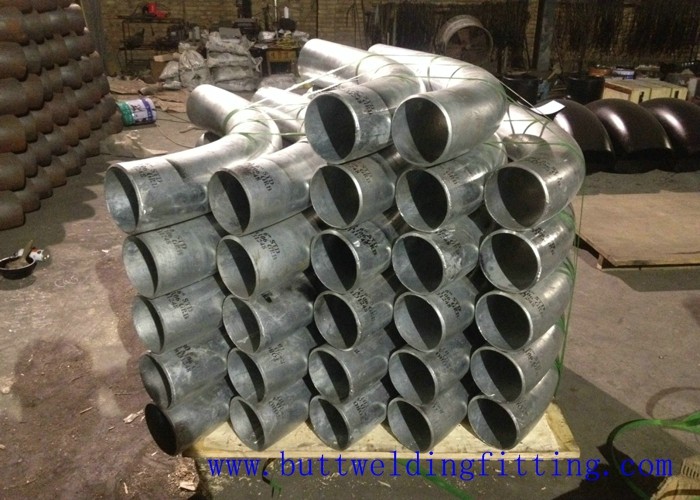

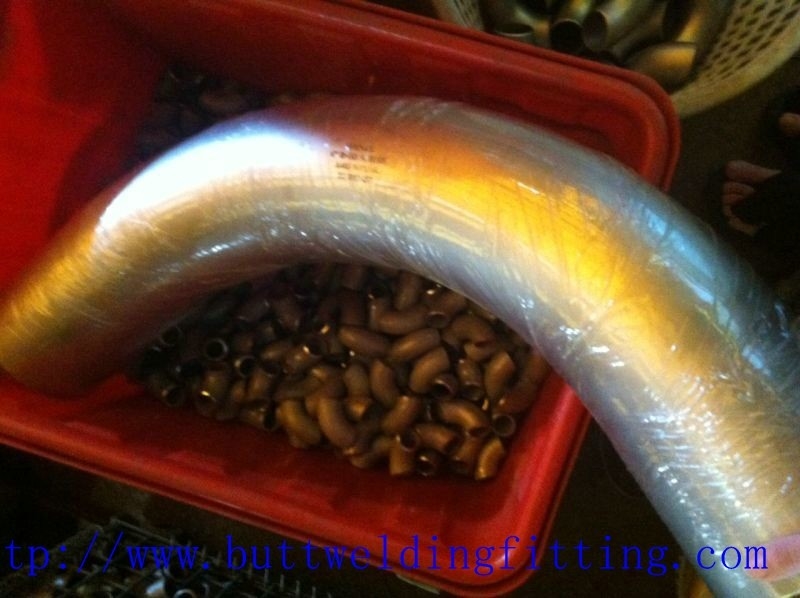

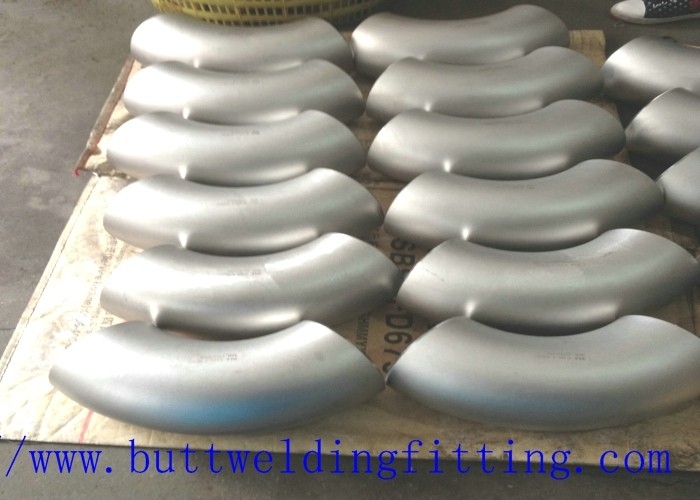

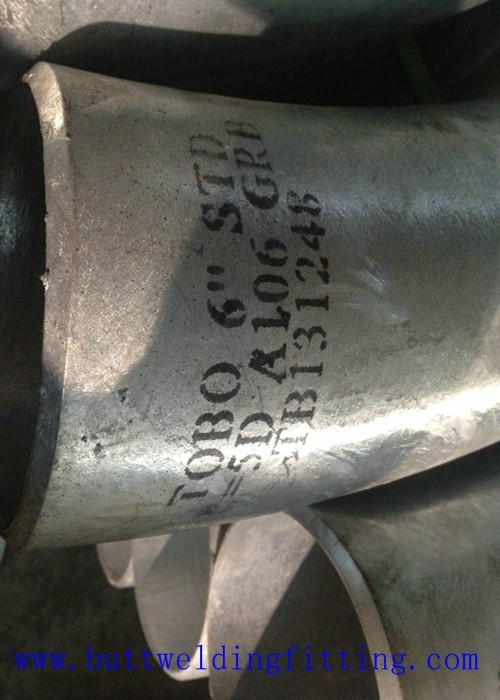

904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5

  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
  • 904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Elbow 003
Minimum Order Quantity 1pc
Price USD Depending on quantity
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 10-100 days depending on quantity
Payment Terms L/C, T/T, Western Union
Supply Ability 3,0000pcs per month
Product Details
Size 1-48 Inch Material Grrade WP304
Type Seamless Or Weld Standard ASME B16.9
Connection Welding Shape Equal
Highlight

Pipe Fittings Elbow

,

Stainless Steel 90 Degree Elbow
Leave a Message
Product Description

904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5



Specifications

1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

product: stainless steel ansi b 16.9 a403 wp 904l elbow -BG BEST



Products : Elbow bend equal ,/reduce tee,concentric/eccentric reducer , cap,flange

Size: Seamless(SMLS) Elbows : 1/2"-24" ,DN15-DN600

Butt Welded Elbows (seam) :24”-96",DN600-DN1800

Type: LR 30,45,60,90,180 degree SR 30,45,60,90,180 degree

1.0D, 1.5D, 2.0D, 2.5D, 3D,4D,5D,6D,7D-40D.

Thickness: SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS

Standard: ASME,ANSI B16.9;



Material ASTM

Carbon steel:ASTM A234WPB,,A234WPC,A420WPL6,A420WPL3

MSS SP75 WPHY42/46/52/56/60/65/70
Stainless steel:ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.
Alloy Steel:A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6,
DIN Carbon steel:St37.0,St35.8,St45.8
Stainless steel:1.4301,1.4306,1.4401,1.4571
Alloy steel:1.7335,1.7380,1.0488(1.0566)
JIS Carbon steel:PG370,PT410
Stainless steel:SUS304,SUS304L,SUS316,SUS316L,SUS321
Alloy steel:PA22,PA23,PA24,PA25,PL380
GB

10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo,

12CrMo, 12CrMoG, 12Cr1Mo
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Packing In wooded cases or pallets, or as for clients' requirements
Applications Petroleum, chemical, machinery, boiler,electric power, shipbuilding, papermaking, construction, etc
Certification API CE and ISO 9001:2008
Third part inspect BV,SGS,etc accept
Delivery time 7 after receipt of advanced payment ,have stock ~
special design as your drawing
test Direct-reading Spectrograph,Hydrostatic testing machine,
X-ray detector,Ultrasonic flaw detector,Magnetic particle
detector,etc
equipment Press machine ,Bending machine,Pushing Machine,electric bevelling machine Sand-blasting machine,etc





Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00

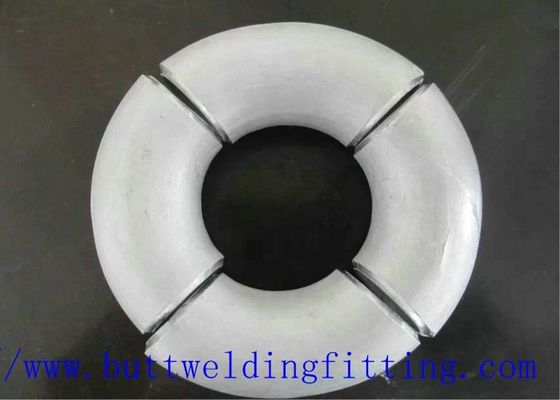

904L / A403 WP304 Stainless Steel Elbow LR / SR steel pipe elbows R5
