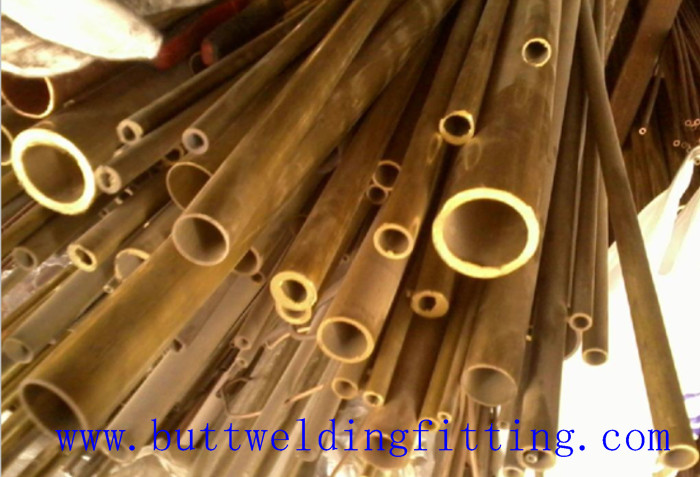

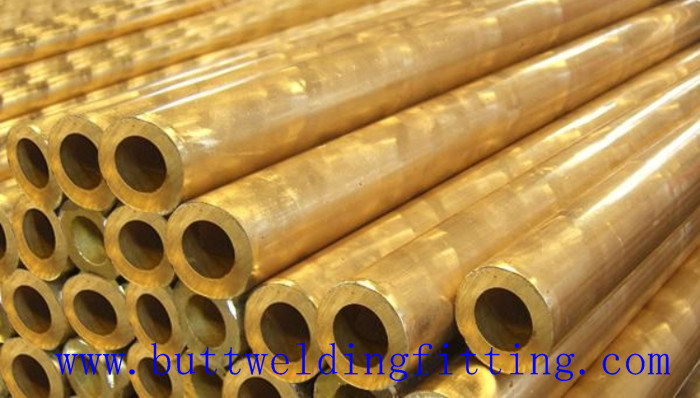

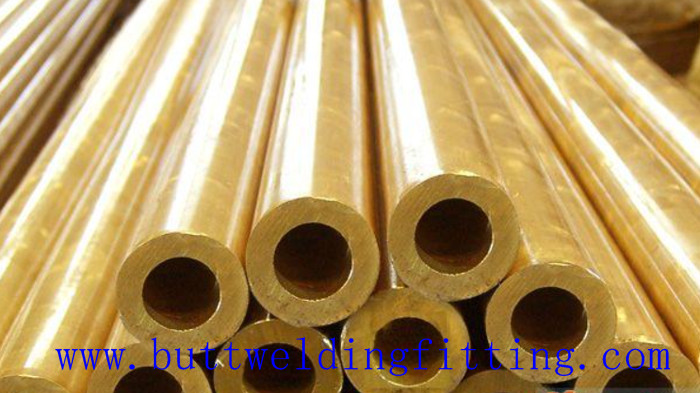

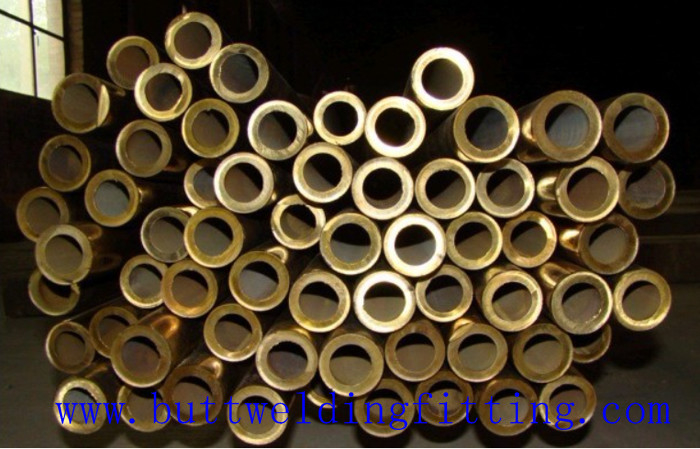

Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch

  • Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch
  • Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch
  • Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch
  • Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number Copper Nickel Pipe
Minimum Order Quantity 1M
Price USD
Packaging Details Wooden case
Delivery Time 10-100days
Payment Terms L/C, T/T, Western Union
Supply Ability 800 Tons every year
Product Details
Outer Diameter 1/8' '- 1 1/8'' Grade C12200, TP2
Cu (Min) 90% Outside Diameter 1/4''-4 1/4
Size 1-96 Inch Material Copper And Nickel
Highlight

Copper Nickel Alloy Pipe

,

copper nickel tubing
Leave a Message
Product Description

Copper Nickel Tube cu-ni 90/10 C70600 seamless copper nickel alloy tube Size 1-96 inch



Small diameter copper tube

1. Shape : Copper Pipe Pancake Coil and Copper Straight Pipe

2. Outside Diameter: 1/4"- 7/8"and 1/4" -4 1/8"

3. Length: 5.8m, 6m, 15m, 30m.

4. Temper: Hard, Half Hard, Soft

5. Standard: ASTM B280, EN12735, JIS H3300, AS1571.

6. Package: Carton Box, wooden pallet .

7.MOQ:300kgs each size

8.Payment:TT or LC

9.Delivery:within 15 days after receipt the deposit.



Specifications (for reference only)

OD: 4.0mm, Thickness: 0.40/0.45/0.50mm

OD: 4.76mm=3/16'', Thickness: 0.35mm - 1.00mm

OD: 6.00mm, Thickness: 0.35mm - 1.00mm

OD: 6.35mm=1/4'', Thickness: 0.35mm - 1.20mm

OD: 7.94mm=5/16'', Thickness: 0.30mm - 1.20mm

OD: 8.00mm, Thickness: 0.30mm - 1.20mm

OD: 9.52mm=3/8'', Thickness: 0.30mm - 1.50mm

OD: 12.00mm, Thickness: 0.35mm - 1.50mm

OD: 12.70mm=1/2'', Thickness: 0.35mm - 1.50mm

OD: 14.00mm, Thickness: 0.40mm - 1.50mm

OD: 15.00mm, Thickness: 0.40mm - 1.50mm

OD: 15.88mm=5/8'', Thickness: 0.40mm-1.50mm

OD: 16.00mm, Thickness: 0.50mm - 1.50mm

OD: 19.05mm=3/4'', Thickness: 0.60mm - 1.50mm

OD: 28.57mm = 1 1/8'', Thickness: 0.70mm - 1.50mm



Description Copper Nickel tube
Standards ASTM, AISI, JIS, SUS, EN, DIN, BS, GB
Material

ASTM :Copper (C10200,C11000,C10100,C10200,C12000,)C11600,



,

C46200.C46400,C26130,C65600,)

Bronze(C50500,C51100,C52100,C60800,C61000,C61900,C63010,

C62300,C63000,C63280,C63020,C17200,C17000,

C17500,C17510,C18200,C18100,C18200,C16200,C19400,C14500)

Cupronickel(C70400,C71000,C71300,C71500,C70400,C70600,

C75200,C77000,C75400,C79000,C79200)
Specifications

thickness 1mm to 220mm ,diameter 6mm to 2500mm

or as customer required


Price Term EX-Work, FOB, CFR, CIF
Payment Term T/T, L/C, Western Union
Delivery Time According to customer' s quantity.
Main Market

USA ,Germany ,India ,Iran,Dubai,Iraq,Viet Nam,Ireland,Sinagpore,

and so on .
Package Export standard package: bundled wooden box or be required;
Application

1.Straight Copper Tubes for ACR and Refrigeration

2.Inner-grooved copper tube for ACR and Refrigeration

3.Copper Pipe for Transportation System of water, gas and oil



Name seamless copper ( nickel ) pipe and tube
Standard ASME SB165, SB111, etc.
Material C44300(brass alloys), C70600(90-10), C68700(CZ110 Aluminium barss alloy), C71500(70-30), C71640(66-30-2-2),etc.
OD 6-219.1mm
WT 0.7-12.7mm
Length 0-38000mm
Surface treatment solution annealing/Light Draw/Stress Relieving Heat Treatment
Test requirement 1.100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS 100% PMI
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3.TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST
4.100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS

NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS.

OPTION TEST & INSPECTION ITEMS:
1.STRAIGHTNESS TEST
2.ROUGHNESS TEST
3.CRYSTALLING PHASE ANALYSIS
4.INTERGRANULAR ATTACK TESTS
5.SHIPPING NOTIFICATION BEFORE SHIPMENT
6 .IMPACT ATTACK TEST UNDER LOW TEMPERATURE.

THE DOCUMENT LSI WILL PROVIDE YOU:
a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN10204/3.2;
b.RAW MATERIAL CERTIFICATION
c.ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d.HEAT TREATMENT REPORT
e.SHIPPING NOTIFICATION BEFORE SHIPMENT
f.QUALITY WARRANTY LETTER.
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product processing Cold drawn, cold rolled
Product origin Jiangsu, China(main land).
Ends PE, BE.
Trade terms FOB, CIF, CFR, DDP, EXW, etc.
Delivery Container, LCL, consignment.



Name seamless copper ( nickel ) pipe and tube
Standard ASME SB165, SB111, etc.
Material C44300(brass alloys), C70600(90-10), C68700(CZ110 Aluminium barss alloy), C71500(70-30), C71640(66-30-2-2),etc.
OD 6-219.1mm
WT 0.7-12.7mm
Length 0-38000mm
Surface treatment solution annealing/Light Draw/Stress Relieving Heat Treatment
Test requirement 1.100% PMI / SPECTRO CHEMICAL ANALYSIS TESTS 100% PMI
2.100% DIMENSION TESTS & 100% VISUAL EXAMINATION
3.TENSION TEST, FLARING TESTS(FOR SEAMLESS TUBE/PIPE)/FLANGE TESTS(FOR WELDED TUBE/PIPE), HARDNESS TEST, REVERSED FLATTENING TEST
4.100% HYDROSTATIC TEST/100% NON-DESTRUCTIVE TESTS

NOTES : ALL THE TESTS AND INSPECTION NEED TO PROVIDE WITH REPORTS ACCORDING TO STANDARD AND TEST RESULTS.

OPTION TEST & INSPECTION ITEMS:
1.STRAIGHTNESS TEST
2.ROUGHNESS TEST
3.CRYSTALLING PHASE ANALYSIS
4.INTERGRANULAR ATTACK TESTS
5.SHIPPING NOTIFICATION BEFORE SHIPMENT
6 .IMPACT ATTACK TEST UNDER LOW TEMPERATURE.

THE DOCUMENT LSI WILL PROVIDE YOU:
a. MTC (MATERIAL TEST CERTIFICATION) ACCORDING TO EN10204/3.1 OR EN10204/3.2;
b.RAW MATERIAL CERTIFICATION
c.ALL THE TEST & INSPECTION REPORTS AS PER PO AND STANDARDS
d.HEAT TREATMENT REPORT
e.SHIPPING NOTIFICATION BEFORE SHIPMENT
f.QUALITY WARRANTY LETTER.
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product processing Cold drawn, cold rolled
Product origin Jiangsu, China(main land).
Ends PE, BE.
Trade terms FOB, CIF, CFR, DDP, EXW, etc.
Delivery Container, LCL, consignment.

2.Chemical composition:

Copper Nickel Tube
Grade Cu Pb Fe Zn Mn Ni+Co
C70400 Balance ≤0.05 1.3-1.7 ≤1.0 0.3-0.8 4.8-6.2
C70600 Balance ≤0.05 1.0-1.8 ≤1.0 ≤1.0 9.0-11.0
C70620 ≥86.5 ≤0.02 1.0-1.8 ≤0.50 ≤1.0 9.0-11.0
C71000 Balance ≤0.05 0.5-1.0 ≤1.0 ≤1.0 19.0-23.0
C71500 Balance ≤0.05 0.4-1.0 ≤1.0 ≤1.0 29.0-33.0



Copper Nickel Tube Cu - Ni 90/10 C70600 , Seamless Copper Nickel Pipe Size 1-96 Inch
