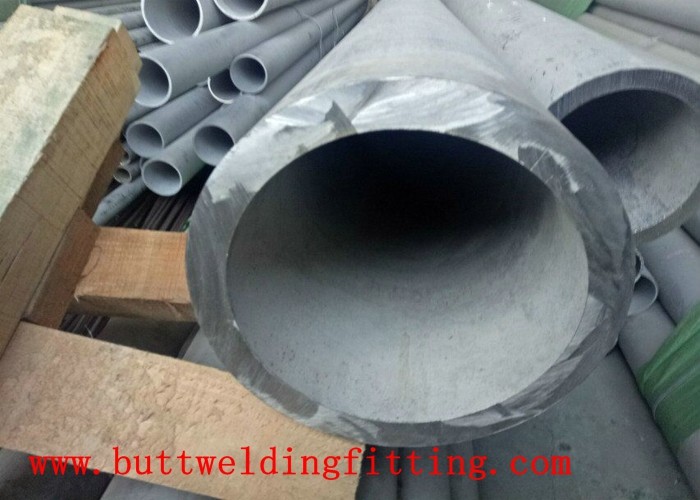

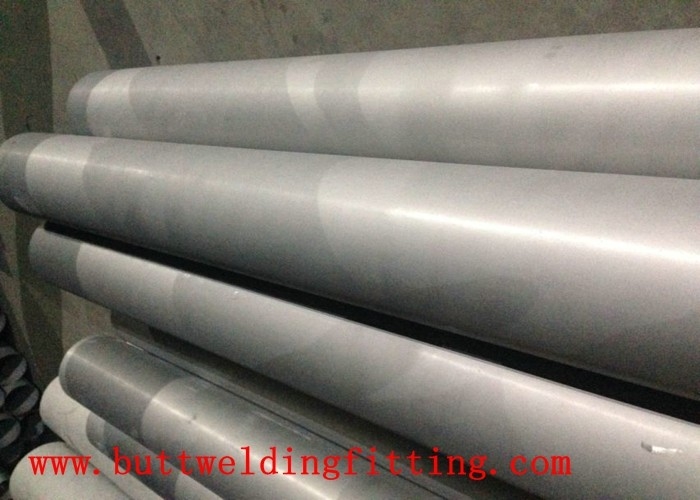

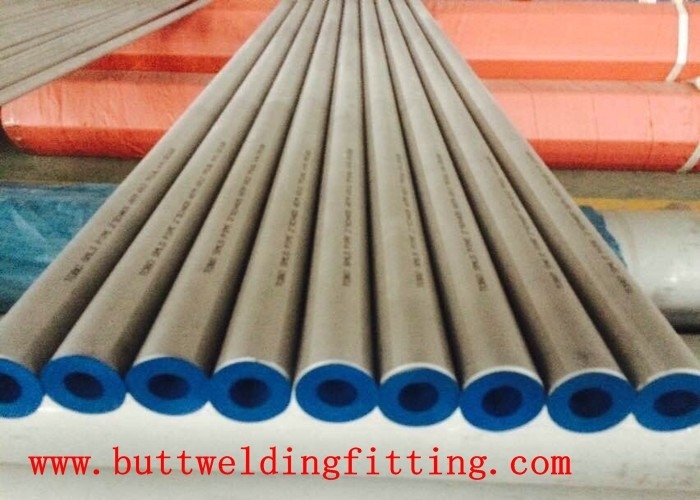

4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail

  • 4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail
  • 4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail
  • 4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail
  • 4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail
  • 4inch Sch STDThin Wall TIG Large Stainless Steel Pipe 304 Grade For Handrail , Curtain Rail
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number ASTM A554, A312, A249, A269 And A270,A688
Minimum Order Quantity 1TON
Price negotiable
Packaging Details Ply-wooden case or bundle
Delivery Time 20days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1000 tons per month
Product Details
Standard ASTM A554, A312, A249, A269 And A270,A688 Length 4-12 M
Grade 01,202,301,304,316,430,304L,316L Outer Diameter 9.53mm-101.6mm
Highlight

Welded Stainless Steel Tubing

,

SS Welded Tube
Leave a Message
Product Description

Thin Wall TIG Welded Stainless Steel Pipe For Handrail 201 304 Grade



Detailed Product Description

Material Grade: 201,202,301,304,316,430,304L,316L Outer Diameter: 9.53mm-101.6mm
Standard: ASTM A554, A312, A249, A269 And A270,A688 Surface Finish: 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish) 400G, 600G Mirror Finish
Type: Stainless Steel Welded Pipe / Tube Wall Thickness: 0.3mm - 3.0mm

Thin Wall TIG Welded Stainless Steel Pipe For Handrail 201 304 Grade


Quick Detail:

The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.



Name Stainless steel welded pipe/ tube
Standard ASTM A554, A312, A249, A269 and A270,A688
Material Grade 201,202,301,304,316,430,304L,316L
Size Range 20x10mm--100x50mm,10x10mm-100x100mm, 9.53-101.6mm, we can also accept sizes above 101.6mm
Thickness 0.3mm - 3.0mm
Length 6m or as customers' request

Tolerance		 a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Surface 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish)
400G, 600G Mirror finish
Application Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery,
Construction,Accessory,Airport,Bus Stop
Test Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT

Chemical Composition of Material
Composition

Material		 201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.35 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0

Mechanical Property		 Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90



ADVANTAGE:

1, Direct material sourcing from Bao Steel, ZPSS, TISCO.
2, More than 5 processing mills to produce the welded titanium tube for us. And also we own a steel tube mill.
3, Strong business cooperation with Bao Steel and Shanghai Minmetals.
4, More than usd$50,000,000 annual turnover.

We are professional manufacturer of stainless steel products, including stainless steel decorative pipes,industrial stainless welded pipes, special-shaped pipes, stainless steel sheet and etc.
