GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts

  • GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts
  • GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts
  • GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts
  • GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 35CrMo
Minimum Order Quantity 300 Kilogram/Kilograms
Price US $ 10 - 100 / Kilogram
Packaging Details Export standards or customer requirements
Delivery Time 7-30 working days after received deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Metric Ton/Metric Tons per Month
Product Details
Product Name Stainless Steel Pipe Product Type Steel Pipe
Grade 200 Series &300 Series &400 Series Shape Round
Dimensions 3 - 800 Mm Surface Polishing, Galvanized
Application Drill Pipe, Fluid Pipe, Hydraulic Pipe, Oil Pipe, Structure Pipe Techinque Cold Drawn
Highlight

seamless stainless steel tube

,

stainless steel round tube
Leave a Message
Product Description

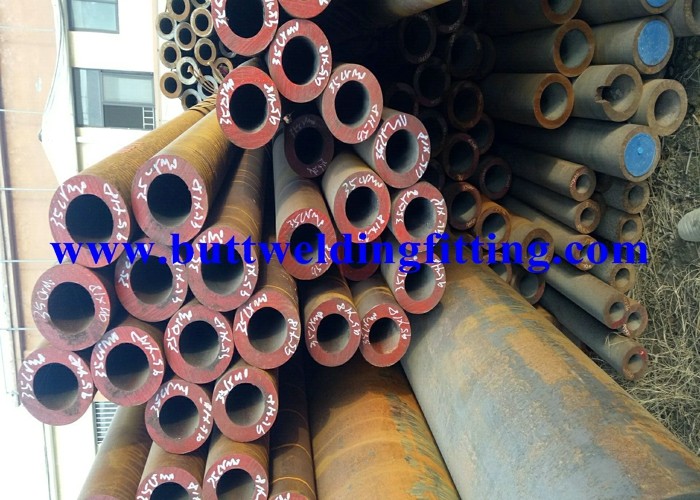

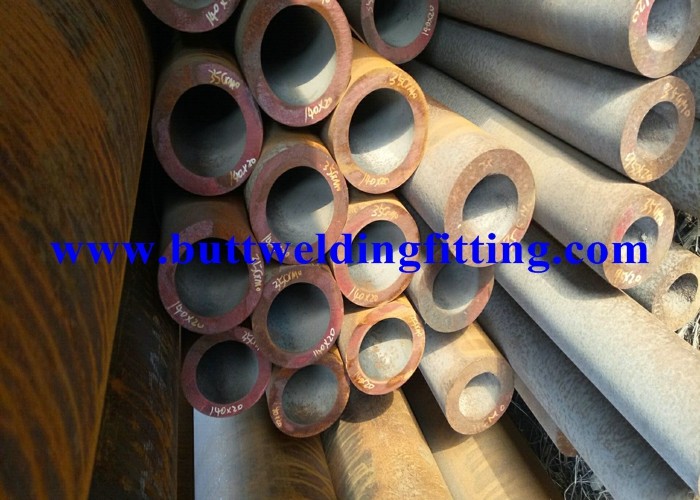

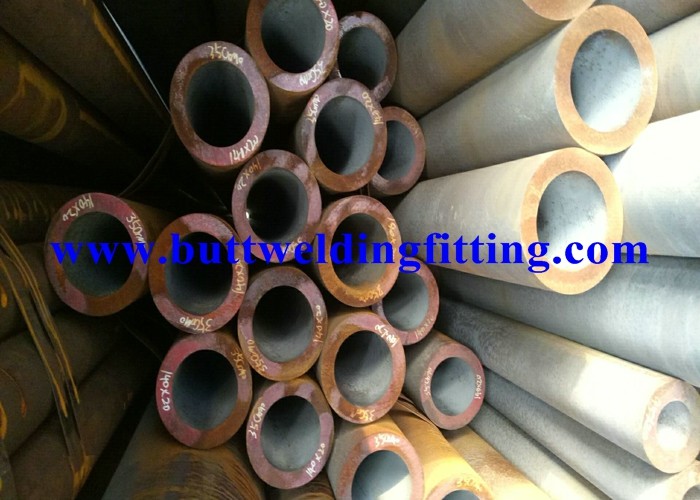

GB 35CrMo Small Size Cold Drawn Seamless Alloy Steel Tubes for Parts



Specifications

Standard:

ASTM, DIN, GB, JIS, ANSI A213M-2001, ASTM A179-1990, ASTM A53-2007, DIN 1629/3, DIN 1629/4, DIN 17175, DIN 2391, DIN EN 10305, GB/T 3639-2000, GB/T 8162-1999, GB/T 8163-1999, GB/T3639, GB/T8162, GB/T8163, JIS G3445-2006

Grade:

10#-45#, 16Mn, A53-A369, Cr-Mo alloy, Q195-Q345, ST35-ST52, 10#, 20#, 45#, 16Mn, A213, 30CrMo, 35CrMo4, Q195, Q235, Q345, ST35, St37, ST37.4, St45, St52

Thickness:

0.5 - 8 mm

Section Shape:

Round

Outer Diameter:

3 - 800 mm

Place of Origin:

Shanghai, China (Mainland)

Secondary Or Not:

Non-secondary

Application:

Drill Pipe, Fluid Pipe, Hydraulic Pipe, Oil Pipe, Structure Pipe

Technique:

Cold Drawn

Certification:

ISO9001:2008

Surface Treatment:

Polishing, Galvanized

Special Pipe:

Thick Wall Pipe

Alloy Or Not:

Is Alloy

color of steel tubes:

slivery

tolerance of steel tubes:

+/-0.03mm

shape of steel tubes:

round

technology of steel tubes:

cold drawn & cold rolled
Packaging & Delivery

Packaging Details:

1.Wrapped in waterproof paper 2.Sackcloth with several steel strips 3.cover cap 4. wooden case

Delivery Detail:

within 30 days after receiving the payment



GB 35CrMo

Chemical Composition(%) Mechanical Property
C Si Mn S P Cr Ni Cu Mo Yield Strength Tensile Strength
( σs ) ( σb )
0.32~0.40 0.17~0.37 0.40~0.60 ≤0.035 ≤0.035 0.80~1.10 ≤0.030 ≤0.30 0.15~0.25 ≥835(85)(MPa) ≥985(100)
(MPa)
End Shape Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements
Surface Oiled, Galvanized, Phosphate etc
Treatment
Technique Cold drawn
Application 1. Automotive and mechanical pipes
2. Petroleum cracking pipes
3. High Pressure Boiler Pipe
4. Low and middle pressure fluid transportation pipeline
5. Chemical fertilizer equipment pipes
6. Heat exchanger pipes
Delivery 1. BK (+C) No heat treatment after last cold forming process.
Conditions 2. BKW (+LC) After last heat treatment there is a light finishing pass (cold drawing)
  3. BKS (+SR) After the final cold forming process the tubes are stress relieve annealed.
  4. GBK (+A) After the final cold forming process the tubes are annealed in a controlled atmosphere.
  5. NBK (+N) After the final cold forming process the tubes are annealed above the upper transformation point in acontrolled atmosphere.
Package 1. Bundle Packing.
2. Plain end or vanished as per customer's request.
3. Wrapped in waterproof paper.
4. Sackcloth with several steel strips.
5. Pack in heavy tri-wall boxes.



GB 35CrMo Small Size Cold Drawn Stainless Steel Seamless Pipe , Alloy Steel Tubes for Parts
