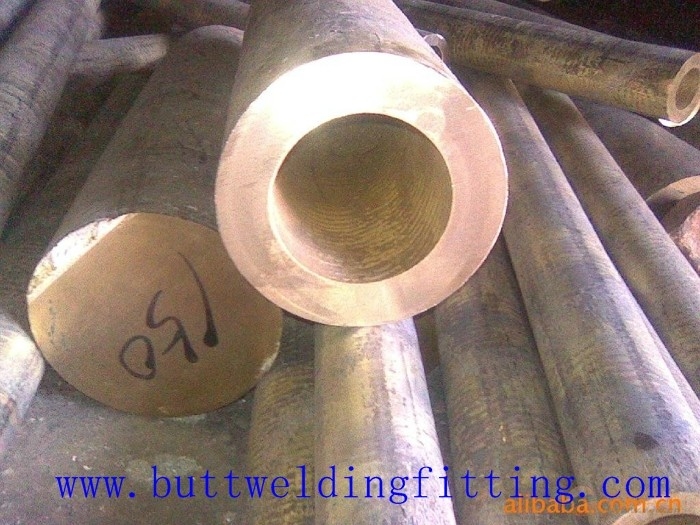

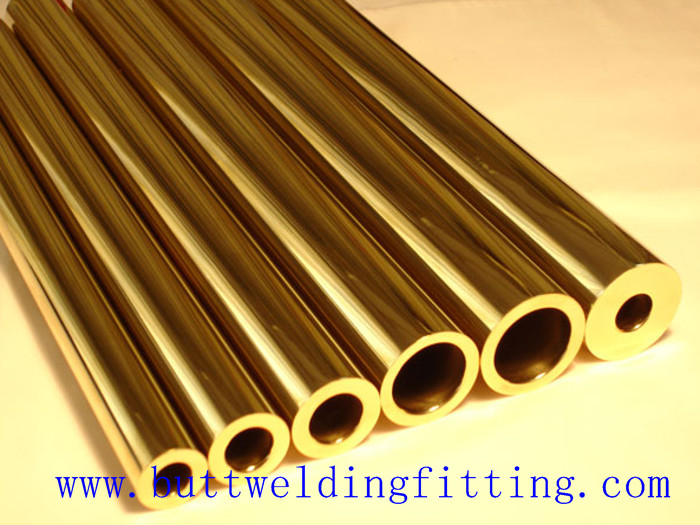

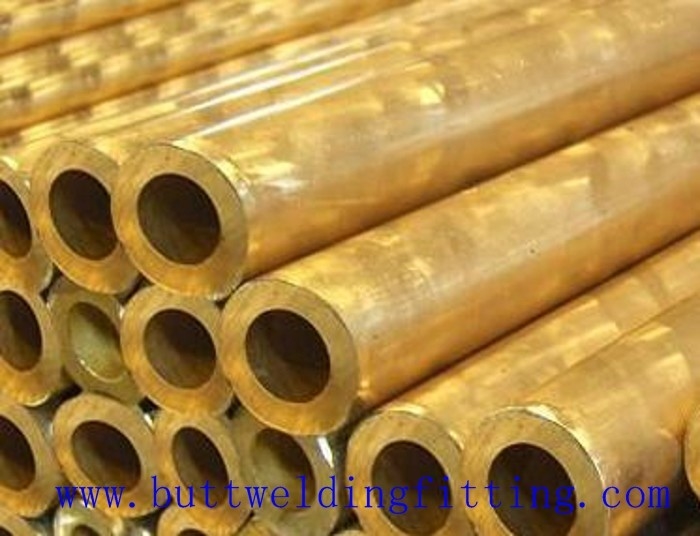

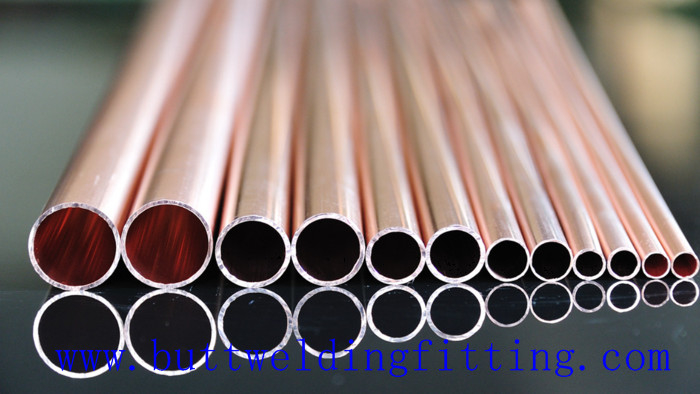

Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch

  • Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch
  • Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch
  • Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch
  • Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number C70600(90:10), C71500 (70:30)
Minimum Order Quantity 500KG
Price USD
Packaging Details wooden case
Delivery Time 10- 60 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 300 tons per month
Product Details
Material C70600(90:10), C71500 (70:30), Type Seamless Or Weld
Standard ASME A213 A312 DN 15-2400
OD 1/2- 60inch Thickness 0.1-60mm
Highlight

copper nickel pipe

,

copper nickel tubing
Leave a Message
Product Description

Copper Nickel Tube C70600(90:10), C71500 (70:30) ,Size1/2- 60inch



Copper Nickel tube/pipe
C70600, C71500

1.1.1 Specifications

1) Grade : C71500 C70600
2) Diameter :10mm-55mm
3) Wall thickness : 0.5mm-3mm
4) Length : 1000mm-8000mm
5)Temper: soft ,Hard

Nickel -Copper Tube :



We produce the tubes at different diameters, wall thicknesses and lengths according to your specific requirements.



Specification of Nickel-Copper Tube:
1) Grade:C71500 C70600
2) Diameter: 10mm-55mm
3) Wall thickness: 0.5mm-3mm
4) Length: 1000mm-8000mm
5) Temper:Soft, Half Hard ,Hard



More detailed imformation as the following table:


Grade Temper Section Size (mm) Length
Outer Diameter Wall Thickness

CuNi30Mn1Fe

(C71500)

 Soft Φ12 ~ 55 0.75-3.0 1000 ~ 8000
Half Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000
Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000

CuNi10Fe1Mn

( C70600 )

 Soft Φ12 ~ 55 0.5-3.0 1000 ~ 8000
Half Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000
Hard Φ10 ~ 50 0.75-3.0 1000 ~ 8000



Material: Inconel 625, 600, 601, 718, X-750, 925.



Standard: ASTM, AMSE, DIN, JIS,GB



Out Diameter:(1/2''-30'')5mm-762mm



Wall thickness:Sch5S-XXS



Length: 3m-6m or as required



Package:Standard seaworthy package(wooden boxes package,pvc package, and other request package)



Production capacity: 30 tons per month



Delivery time:15-20 days or based on order quantity



Payment terms:30% advance, balance against copy of B/L or L/C at sight.



Unique technology nickel plated copper tube with Ni200/201



Material UNS NO2200, UNS NO2201, N4,N5,N6,N7,N8
Standard ASTM B829-04, GB 2882-81
Specification Φ10-Φ168 x0.5-10x 100-18000 MM
Surface polished or as you requested
Delivery state annealed
Application

Heat exchanger coil pipe, Chemical processing, Marine Engineering,

Power Generation, Oil and Gas Extraction, Petrochemical processing, Telecommunications Etc.
Inspection Equipment

Nondestructive Tester; UT Testing Detector; Tensile Tester, Digital

Ultrasonic Detector; Infrared Tester; HV Hardness Tester
Payment Terms L/C, T/T, Western Union
Lead Time 7-15days
Package Wooden case as outside, plastic bag as inside



Advantages of us

(1) CE and ISO9001-2008 certified

(2)SGS TÜV Rheinland & BV Audited company

(3) third-party verification service provider

(4) most convenient transport & prompt delivery

(5)competitive price with best service

(6) Industry experience over 10 years



Product Feature

(1) Excellent corrosion resistant to turbulently used in condensers for

coastal power plants, petroleum refineries and chemical plants.

(2) High impingement corrosion resistant to brackish seawater at

velocities up to 3 to 4 m/sec used in desalination plants and other

seawater condenser application.







Dia 10mm - 55mm C70600 C71500 Copper Nickel Pipe 1/2- 60 Inch
