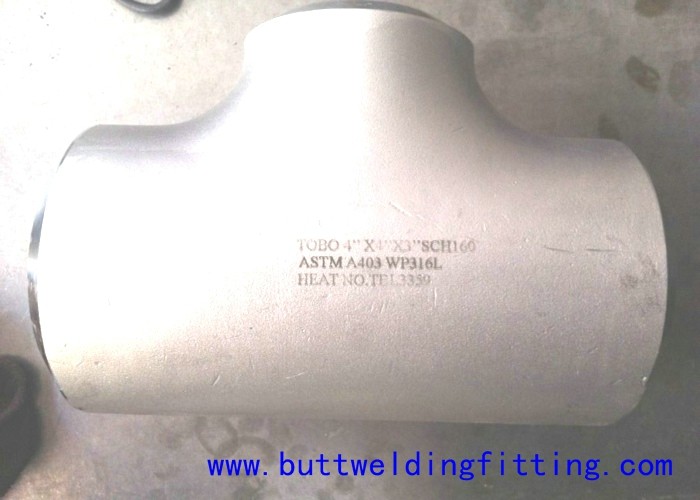

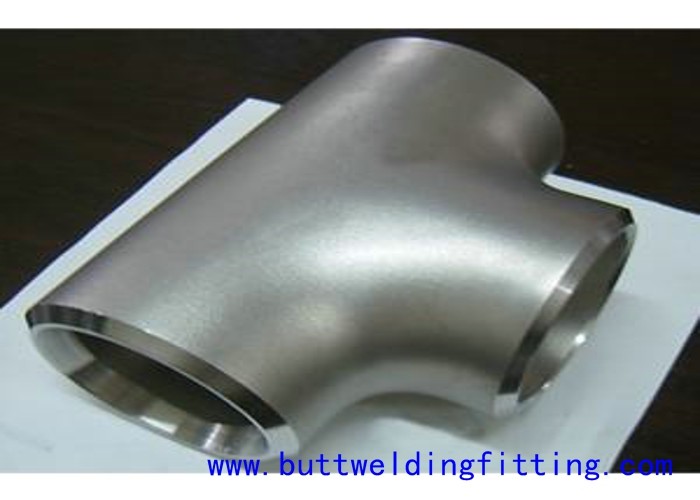

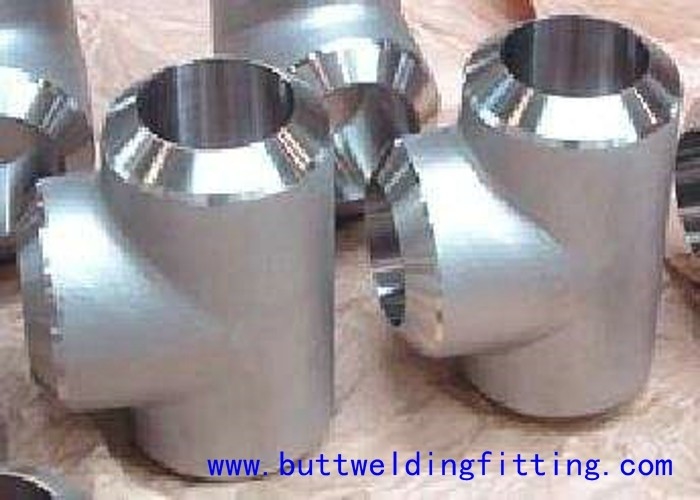

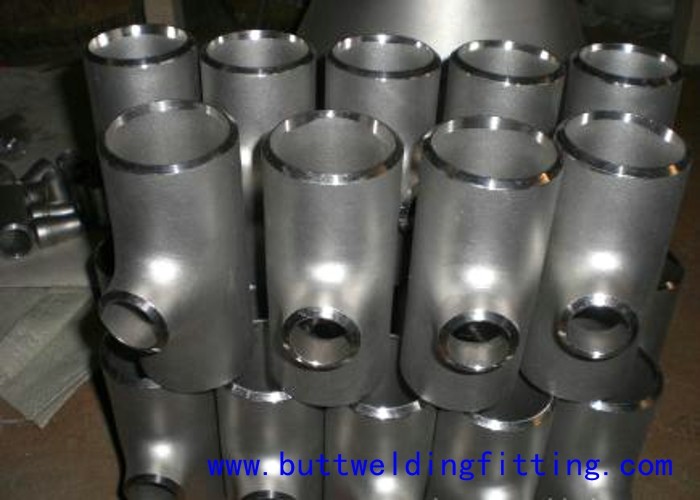

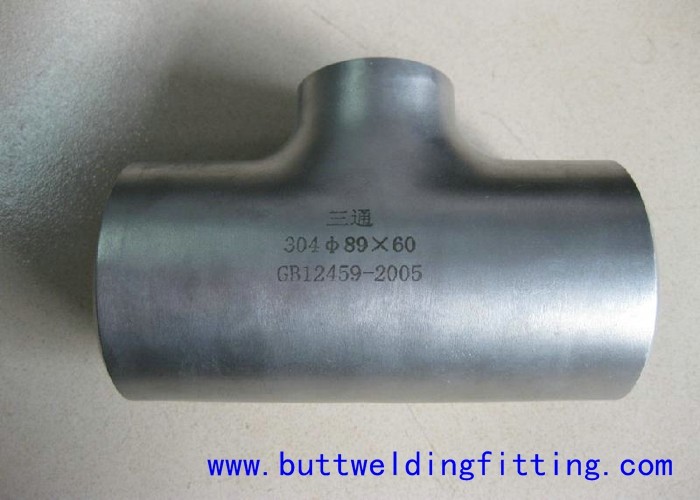

ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160

  • ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160
  • ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160
  • ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160
  • ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160
  • ASME B16.9 WP304H Seamless / Weld Stainless Steel Pipe Tee , Thickness Sch10-160
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Stainless Steel Tee
Minimum Order Quantity 1pc
Price USD
Packaging Details Wooden case
Delivery Time 10-100 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 8000pcs per month
Product Details
Material WP304H Size 1-48inch
Standard ASME B16.9 DN 15-1200
Type Seamless Or Weld Thickness Sch10-160
Highlight

stainless steel pipe tee

,

steel pipe tee
Leave a Message
Product Description

Stainless Steel Tee Material WP304H Size 1-48inch ASME B16.9 Sch10-160


Unit : inch
Nominal
Pipe
Size		Outside Dia.
(OD)		Wall Thickness (T)Tees Center To Ends C.M
Sch.5SSch.10SSch.40SSch.80S
1/20.8400.0650.0830.1090.1471.00
3/41.0500.0650.0830.1130.1541.13
11.3150.0650.1090.1330.1791.50
1-1/41.6600.0650.1090.1400.1911.88
1-1/21.9000.0650.1090.1450.2002.25
22.3750.0650.1090.1540.2182.50
2-1/22.8750.0830.1200.2030.2763.00
33.5000.0830.1200.2160.3003.38
44.5000.0830.1200.2370.3374.13
55.5630.1090.1340.2580.3754.88
66.6250.1090.1340.2800.4325.63
88.6250.1090.1480.3220.5007.00
1010.7500.1340.1650.3750.5008.50
1212.7500.1560.1800.3750.50010.00
1414.0000.1560.2500.3750.50011.00
1616.0000.1650.2500.3750.50012.00
1818.0000.1650.2500.3750.50013.50
2020.0000.1880.2500.3750.50015.00
2424.0000.2180.2500.3750.50017.00


standards
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB/T12459-2005 GB/T13401-2005 GB/T10752-2005
SH/T3408-1996 SH/T3409-1996
SY/T0609-2006 SY/T0518-2002 SY/T0510-1998
DL/T695-1999 GD2000 GD87-1101
HG/T21635-1987 HG/T21631-1990

Dtailed Production Description
1)Size: Seamless: 1/2”-60" SCH10s-XXS
2)Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO
3)Material:carbon steel:A234-WPB WPC,
alloy steel :A420-WPL6, A234-WP11, A234-WP12, A234-WP5,A234-WP9,A234-WP22,15Mo3,15CrMoV,35CrmoV
stainless steel:A403 WP 304-304L-304H-304LN-304N
A403 WP 316-316L-316H-316LN-316N-316Ti
A403 WP 321-321H
A403 WP 347-347H
low tempture steel: A402 WPL3-WPL6
high performance steel: A860 WPHY 42-46-52-60-55-70
4)Surface treatment: carbon steel: shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
alloy steel: Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing
stainless steel: pickled ,Polish
5)Nominal wall thickness:SCH5-SCH160, STD, XS, XXS
6)Packing: Wooden case or wooden pallet according to the size of fittings
7)Delivery time:7-10 days for a 20 ft container
8)Others:1) Special design available 2)All the production process are made under the ISO 9001:2000 strictly.
Application
Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical), chemical
and pharmaceutial, pulp and paper, fertilizer, desalination, nuclear, electrict power, boiler,heat exchanger,metallurgy, refinery,
machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile,ect.
our advangtage
1) Raw material use 100% material steel
2) good service
3) Competive price
4) Fast delivery
5)High quality products
other products
we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality, competitive price
and excellence service are your best choice.
