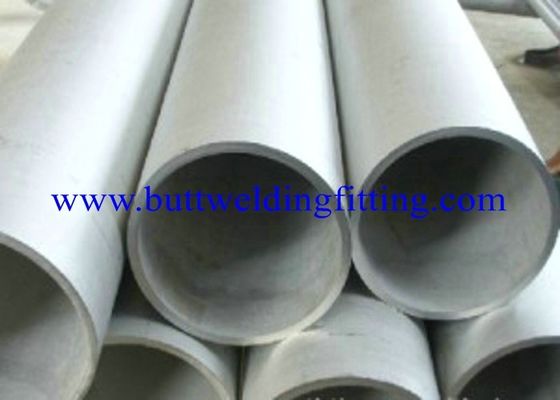

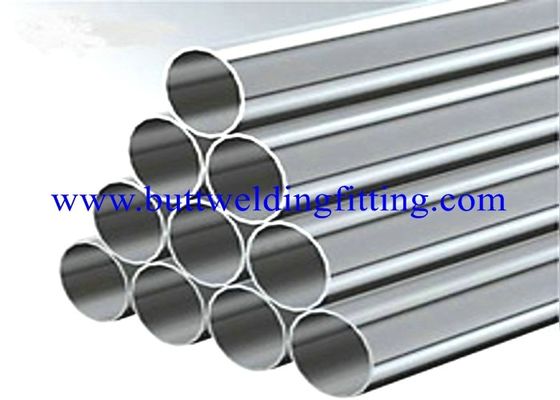

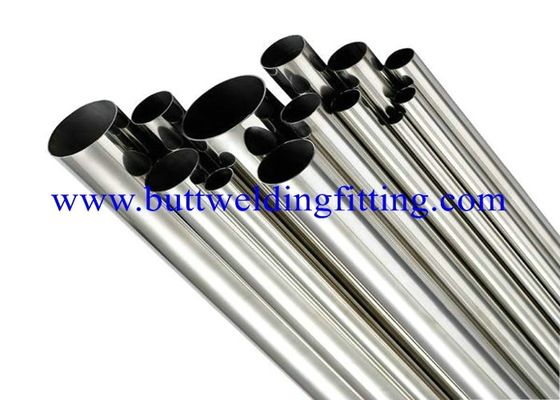

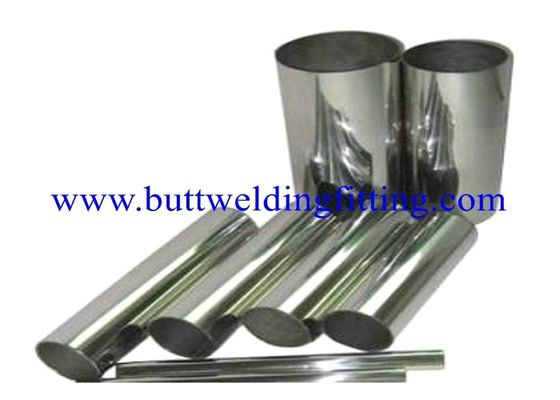

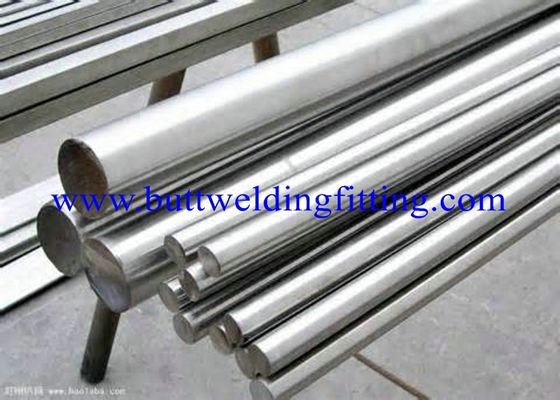

Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar

  • Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
  • Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
  • Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
  • Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
  • Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number TP304 / 304L, TP316 / 316L.
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 10days->
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 6000TONS/MONTH
Product Details
Standard TP304/304L , TP316/316L Color White Silver Gold
Types Stainless Steel Seamless Pipe Outer Diameter 6mm-830mm
Highlight

marine stainless steel tubing

,

stainless steel round tube
Leave a Message
Product Description

Stainless Steel Seamless Pipe, ASTM A511 Hollow Bar,Heavy Wall Thickness, TP304/304L , TP316/316



1.4306 - AISI 304L is essentially a more highly alloyed version of 1.4307. Due to the slightly higher chromium and notably higher nickel content, 1.4306 - AISI 304L is more corrosion resistant than 1.4307. Despite its improved corrosion resistance, 1.4306 - AISI 304L finds itself in a diminishing market as far as profiles is concerned. Most customers thus specify either 1.4307 and 1.4404, when improved corrosion resistance is required.
1.4306 - AISI 304L round bar hotrolled / forged, peeled / turned acc. DIN EN 10060 ( formerly DIN 1013 ), long 4-6 mtr
Sizes

Ø 35,00 mm

Ø 50,00 mm

Ø 70,00 mm

Ø 85,00 mm

Ø 110,00 mm

Ø 140,00 mm

Ø 40,00 mm

Ø 55,00 mm

Ø 75,00 mm

Ø 90,00 mm

Ø 120,00 mm

Ø 150,00 mm

Ø 45,00 mm

Ø 60,00 mm

Ø 80,00 mm

Ø 100,00 mm

Ø 130,00 mm

Ø 160,00 mm


1.4306 - AISI 304L Forgings

Forgings acc. to drawings, bars, discs and rings on request
 1.4306 - AISI 304L hollow bars hotrolled - pickled, long 2-7 mtr
Sizes 32 x 16 mm - 250 x 200 mm
 From roundbars turned and drilled on request]

1.4306 - AISI 304L Sheets/Plates hotrolled Finish 1
Sizes

                 thickness         0,5 mm - 150 mm

                 width               1000 / 1250 / 1500 / 2000 / 2500 mm

                 length              2000 / 2500 / 3000 / 6000 tot max. 8000 m

1.4306 - AISI 304L sheets / plates plasma cutting / water-jet cutting / laser-cutting / sawn cuttings
 Certificates:     EN 10204 / 3.1

  1.4404 / AISI 316L

Stainless steel                                                    1.4404 / AISI 316L                                    Acier Inoxydable

Rustfrit stål                                                                                                                            Acciai Inossidabli

Rostfrit stål                                                                                                                             Acero Inoxidable

W.Nr. 1.4404

BS 316S11

SIS 2348

AISI 316L

AFNOR Z3CND18.12.02

JIS

X2CrNiMo17-12-2

DIN 17740  1.4404



C max 0,03%     Cr 16,5 - 18,5     Mo 2,0 - 2,5    Ni 10,0 - 13,0

1.4404 - AISI 316L round bar brightdrawn /ground tol. h9 acc. to DIN EN 10278 in lengths of 3 mtr
Improved machinability

Sizes:

Ø 2,00 mm

Ø 10,76 mm

Ø 18,00 mm

Ø 27,00 mm

Ø 37,50 mm

Ø 50,00 mm

Ø 70,00 mm

Ø 3,00 mm

Ø 11,00 mm

Ø 18,27 mm

Ø 27,60 mm

Ø 38,00 mm

Ø 50,80 mm

Ø 71,40 mm

Ø 4,00 mm

Ø 11,30 mm

Ø 19,00 mm

Ø 28,00 mm

Ø 38,50 mm

Ø 53,50 mm

Ø 75,00 mm

Ø 5,00 mm

Ø 12,00 mm

Ø 20,00 mm

Ø 29,00 mm

Ø 39,00 mm

Ø 55,00 mm

Ø 76,00 mm

Ø 5,28 mm

Ø 13,00 mm

Ø 21,00 mm

Ø 30,00 mm

Ø 40,00 mm

Ø 56,40 mm

Ø 80,00 mm

Ø 6,00 mm

Ø 13,70 mm

Ø 21,30 mm

Ø 31,50 mm

Ø 41,00 mm

Ø 58,00 mm

Ø 82,50 mm

Ø 7,00 mm

Ø 14,00 mm

Ø 21,90 mm

Ø 32,00 mm

Ø 42,00 mm

Ø 60,00 mm

Ø 85,00 mm

Ø 7,12 mm

Ø 14,60 mm

Ø 22,00 mm

Ø 33,00 mm

Ø 44,00 mm

Ø 60,30 mm

Ø 90,00 mm

Ø 8,00 mm

Ø 15,00 mm

Ø 23,00 mm

Ø 33,25 mm

Ø 44,50 mm

Ø 64,00 mm

Ø 95,00 mm

Ø 8,95 mm

Ø 16,00 mm

Ø 24,00 mm

Ø 34,00 mm

Ø 45,00 mm

Ø 65,00 mm

Ø 100,00 mm

Ø 9,00 mm

Ø 17,00 mm

Ø 25,00 mm

Ø 35,00 mm

Ø 46,00 mm

Ø 65,50 mm



Ø 10,00 mm

Ø 17,70 mm

Ø 26,00 mm

Ø 36,00 mm

Ø 48,00 mm

Ø 67,00 mm




1.4404 - AISI 316L round bar brightdrawn/ground tol. h9 acc. to DIN EN 10278 in lengths of 6 mtr
Improved machinability

Sizes:

Ø 10,00 mm

Ø 20,00 mm

Ø 40,00 mm

Ø 60,00 mm

Ø 12,00 mm

Ø 25,00 mm

Ø 50,00 mm

Ø 80,00 mm

Ø 16,00 mm

Ø 30,0 0mm

Ø 55,00 mm



1.4404 - AISI 316L round bar hotrolled / forged, peeled / turned acc. DIN EN 10060 ( formerly DIN 1013 ), long 4-6 mtr
Sizes:

Ø 19,00 mm

Ø 40,00 mm

Ø 85,00 mm

Ø 140,00 mm

Ø 220,00 mm

Ø 330,00 mm

Ø 20,00 mm

Ø 42,00 mm

Ø 90,00 mm

Ø 145,00 mm

Ø 230,00 mm

Ø 340,00 mm

Ø 22,00 mm

Ø 45,00 mm

Ø 95,00 mm

Ø 150,00 mm

Ø 240,00 mm

Ø 350,00 mm

Ø 24,00 mm

Ø 48,00 mm

Ø 100,00 mm

Ø 155,00 mm

Ø 250,00 mm

Ø 375,00 mm

Ø 25,00 mm

Ø 50,00 mm

Ø 105,00 mm

Ø 160,00 mm

Ø 260,00 mm

Ø 400,00 mm

Ø 28,00 mm

Ø 52,00 mm

Ø 110,00 mm

Ø 165,00 mm

Ø 270,00 mm

Ø 425,00 mm

Ø 30,00 mm

Ø 55,00 mm

Ø 115,00 mm

Ø 170,00 mm

Ø 280,00 mm

Ø 450,00 mm

Ø 32,00 mm

Ø 60,00 mm

Ø 120,00 mm

Ø 175,00 mm

Ø 285,00 mm

Ø 475,00 mm

Ø 35,00 mm

Ø 65,00 mm

Ø 125,00 mm

Ø 180,00 mm

Ø 290,00 mm

Ø 500,00 mm

Ø 36,00 mm

Ø 70,00 mm

Ø 127,00 mm

Ø 190,00 mm

Ø 300,00 mm

Ø 525,00 mm

Ø 37,00 mm

Ø 75,00 mm

Ø 130,00 mm

Ø 200,00 mm

Ø 310,00 mm

Ø 550,00 mm

Ø 38,00 mm

Ø 80,00 mm

Ø 135,00 mm

Ø 210,00 mm

Ø 320,00 mm




 1.4404 - AISI 316L Forgings
Forgings acc. to drawings, bars, discs and rings on request
 1.4404 - AISI 316L Blocks / flats, sawn from forged primematerial

Sizes on request
 1.4404 - AISI 316L hollow bars hotrolled - pickled, long 2-7 mtr

Sizes:

32 x 16 mm

56 x 28 mm

80 x 63 mm

106 x 63 mm

132 x 80 mm

170 x 118 mm

224 x 140 mm

32 x 20 mm

56 x 36 mm

85 x 45 mm

106 x 71 mm

132 x 90 mm

170 x 130 mm

224 x 180 mm

36 x 16 mm

56 x 40 mm

85 x 67 mm

106 x 80 mm

132 x 106 mm

170 x 140 mm

236 x 150 mm

36 x 20 mm

63 x 32 mm

90 x 50 mm

112 x 63 mm

140 x 90 mm

180 x 100 mm

250 x 200 mm

36 x 25 mm

63 x 36 mm

90 x 56 mm

112 x 80 mm

140 x 100 mm

180 x 125 mm

275 x 200 mm

40 x 20 mm

63 x 40 mm

90 x 63 mm

118 x 63 mm

140 x 112 mm

180 x 140 mm

300 x 200 mm

40 x 25 mm

63 x 50 mm

90 x 71 mm

118 x 71 mm

150 x 80 mm

180 x 150 mm

340 x 200 mm

40 x 28 mm

71 x 36 mm

95 x 50 mm

118 x 80 mm

150 x 95 mm

190 x 132 mm

380 x 230 mm

45 x 20 mm

71 x 45 mm

95 x 67 mm

118 x 90 mm

150 x 106 mm

190 x 150 mm

420 x 300 mm

45 x 28 mm

71 x 56 mm

100 x 56 mm

125 x 71 mm

150 x 125 mm

190 x 160 mm



45 x 32 mm

75 x 40 mm

100 x 63 mm

125 x 80 mm

160 x 90 mm

200 x 140 mm



50 x 25 mm

75 x 50 mm

100 x 71 mm

125 x 90 mm

160 x 112 mm

200 x 160 mm



50 x 32 mm

80 x 45 mm

100 x 80 mm

125 x 100 mm

160 x 122 mm

212 x 130 mm



50 x 36 mm

80 x 50 mm

106 x 56 mm

132 x 71 mm

160 x 132 mm

212 x 170 mm




 From roundbars turned and drilled on request

 1.4404 - AISI 316L hexagon bars brightdrawn tolerance h11 DIN EN 10278 ( formerly DIN 176 ) long 3 mtr

Improved machinability

Sizes:

6,00 mm

13,00 mm

22,00 mm

38,10 mm

70,00 mm

7,00 mm

14,00 mm

24,00 mm

41,00 mm



8,00 mm

15,00 mm

27,00 mm

46,00 mm



9,00 mm

16,00 mm

30,00 mm

50,00 mm



10,00 mm

17,00 mm

32,00 mm

55,00 mm



11,00 mm

18,00 mm

34,00 mm

60,00 mm



12,00 mm

19,00 mm

36,00 mm

65,00 mm




1.4404 - AISI 316L square bars brightdrawn tolerance h11 DIN EN 10278 ( formerly DIN 176 ) long 3 mtr

Improved machinability
Sizes:

8,00 mm

13,00 mm

18,00 mm

25,00 mm

40,00 mm

10,00 mm

14,00 mm

20,00 mm

30,00 mm

45,00 mm

11,00 mm

15,00 mm

22,00 mm

32,00 mm

50,00 mm

12,00 mm

16,00 mm

24,00 mm

35,00 mm

60,00 mm


1.4404 - AISI 316L square bars hotrolled and pickled tolerance DIN EN 10059 ( formerly DIN 1014 ) long 4-6 mtr



Sizes:

10,00 mm

20,00 mm

40,00 mm

70,00 mm

150,00 mm

12,00 mm

25,00 mm

45,00 mm

80,00 mm



15,00 mm

30,00 mm

50,00 mm

100,00 mm



16,00 mm

35,00 mm

60,00 mm

120,00 mm




1.4404 - AISI 316L flat bars brightdrawn tolerance h11 DIN EN 10278 ( formerly DIN 174 ) long 3 mtr
Sizes 10 x 3 - 120 x 15 mm

1.4404 - AISI 316L flat bars hotrolled and pickled tolerance DIN EN 10058 ( formerly DIN 1017 ) long 4-6 mtr
Sizes 20 x 5 - 150 x 50 mm

1.4404 - AISI 316L flat bars cut /slitted from sheets tolerance DIN EN 10058 ( formerly DIN 1017 ) long 4-6 mtr
Sizes 15 x 5 - 150 x 10 mm

1.4404 - AISI 316L Angle bars equal hotrolled and pickled tolerance DIN 1028 long 6 mtr
Sizes 10 x 10 x 2 - 200 x 200 x 13 mm

1.4404 - AISI 316L Angle bars unequal hotrolled and pickled tolerance DIN 1029 long 6 mtr
Sizes 20 x 10 x 3 - 200 x 100 x 12 mm

1.4404 - AISI 316L T-profiles hotrolled long 6 mtr
Sizes  30 x 60 x 5,5 - 60 x 120 x 10 mm
           20 x 20 x 3 - 100 x 100 x 10 mm

1.4404 - AISI 316L U-profiles hotrolled long 6 mtr
Sizes 20 x 10 x 3 x 3,5 - 300 x 100 x 10 x 16 mm

1.4404 - AISI 316L Sheets/Plates hotrolled Finish 1
Sizes    thickness   0,20 mm - 150 mm
            width         1000 / 1250 / 1500 / 2000 / 2500 / 3000 mm
            length        2000 / 2500 / 3000 / 6000 tot max. 15000 mm

1.4404 - AISI 316L sheets / plates plasma cutting / water-jet cutting / laser-cutting / sawn cuttings


Certificates:     EN 10204 / 3.1

 Seamless tubes/pipes EN 10216-5 / ASTM/ASME A/SA 3

Seamless tubes/pipes EN 10216-5 / ASTM/ASME A/SA 312

W.Nr.

ASTM/ASME

1.4301

TP 304

1.4306

TP 304L

1.4401/04

TP 316/316L

1.4462

UNS S31803 (Duplex)

1.4501

UNS S32760 (Super Duplex)

1.4539

UNS N08904 (TP 904L)

1.4541

TP 321

1.455

TP 347

1.4571

( TP 316Ti )

1.4948

TP 304/304H

Size range



D: 4 - 508 mm

1/8” - 20 “

T: 0,5 - 40,45 mm

Sch 10S - XXS



 Heat-resistant tubes/pipes seamless / welded

W.Nr.

W.Nr.

1.4713

1.4828

1.472

1.4841

1.4724

1.4845

1.4742

1.4864

1.4749

1.4876

1.4762

1.4877

1.4821

1.4878

Size range



4 x 0,50 mm - 406,40 x 12,70 mm







Heavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow BarHeavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow BarHeavy Wall Round Stainless Steel Seamless Pipe ASTM A511 SS Hollow Bar
