ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9

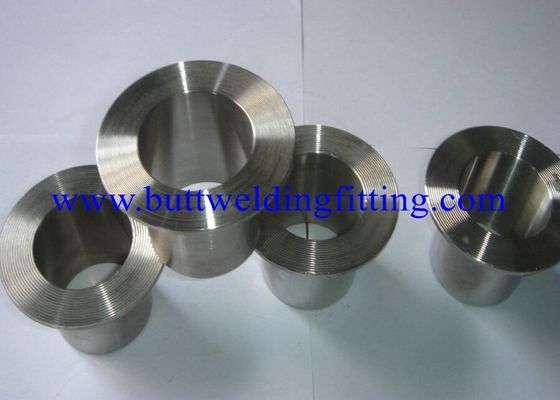

  • ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9

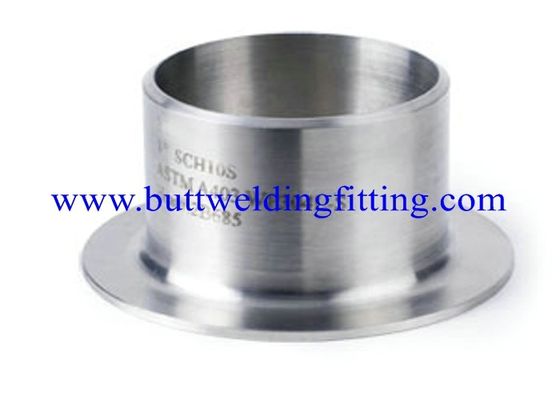

  • ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9

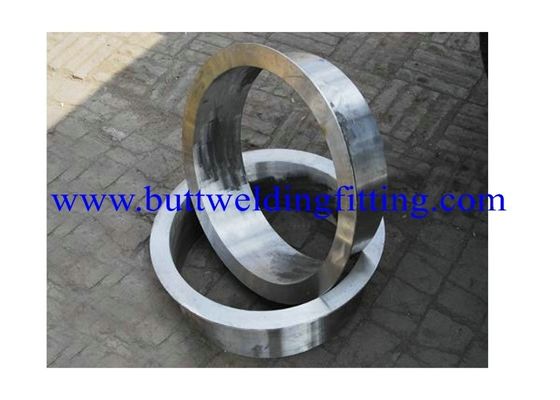

  • ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9

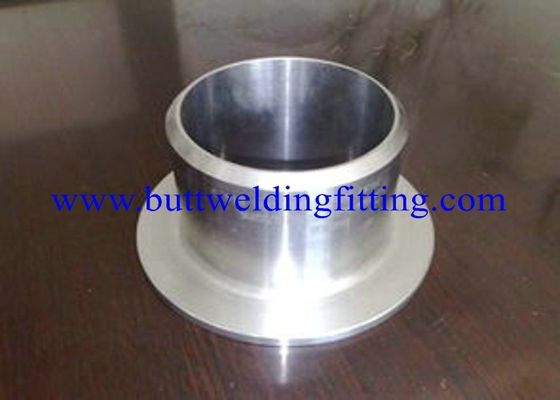

  • ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9

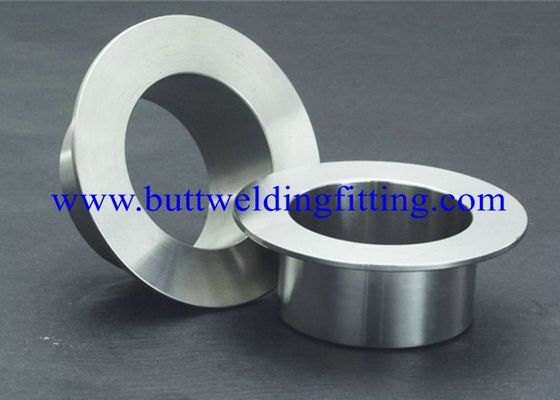

  • ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A403 304L / 316L , WP321, WP347 WPS31254
Minimum Order Quantity 2PCS
Price USD0.3-100 PER PC
Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9990000PCS Per Month
Product Details
Product Name Butt Welding Stainless Steel Fitting Stub End Material Grade ASTM A403 304L / 316L , WP321, WP347 WPS31254
Size Range DN15-DN600 (1/2"-24") Seamless Type DN15 - DN1200 (1/2"- 48" ) Welded Type Thickness Sch5-Sch160, STD, XS, XXS
Standard STM B16.9
Highlight

SS Stub End

,

Stub End Fittings
Leave a Message
Product Description

 ASTM A403 304L / 316L ,  WP321, WP347  WPS31254 Stainless Steel Stub End Lap Joint  ANSI B16.9



STUB ENDS IN STAINLESS STEEL

Type:
 Long & short stub end.


Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75

Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.





ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9



DN

NPS

Outside Diameter

Long Pattern Length,F

Short Pattern Length,F


Radius of Filet,R

Diameter  of Lap,G

Max

Min

mm

Inch

mm

Inch

15

1/2

22.8

0.896

20.5

0.809

76

51

3

35

20

3/4

28.1

1.106

25.9

1.019

76

51

3

43

25

1

35.0

10376

32.6

1.284

102

51

3

51

32

1.1/4

43.6

10716

41.4

1.629

102

51

5

64

40

1.1/2

49.9

1.965

47.5

1.869

102

51

6

73

50

2

62.4

2.456

59.5

2.344

152

64

8

92

65

2.1/2

75.3

2.966

72.2

2.844

152

64

8

105

80

3

91.3

3.596

88.1

3.469

152

64

10

127

90

3.1/2

104.0

4.096

100.8

3.969

152

76

10

140

100

4

116.7

4.593

113.5

4.469

152

76

11

157

125

5

144.3

5.683

140.5

5.532

203

76

11

186

150

6

171.3

6.743

167.5

6.594

203

89

13

216

200

8

222.1

8.743

218.3

8.594

203

102

13

270

250

10

277.2

10.913

272.3

10.719

254

127

13

324

300

12

328.0

12.913

323.1

12.719

254

152

13

381

350

14

359.9

14.170

354.8

13.969

305

152

13

413

400

16

411.0

16.180

405.6

15.969

305

152

13

470

450

18

462.0

18.190

456.0

17.969

305

152

13

533

500

20

514.0

20.240

507.0

19.969

305

152

13

584

550

22

565.0

22.240

558.0

21.969

305

152

13

641

600

24

616.0

24.240

609.0

23.969

305

152

13

692


ASTM A403 304L / 316L WP321 WP347 WPS31254 Stainless Steel Stub Ends Lap Joint ANSI B16.9



Tags:

Stub End Fittings

Lap Joint Stub End

SS Stub End
