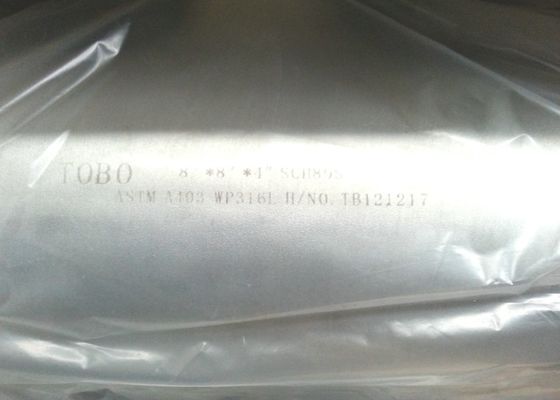

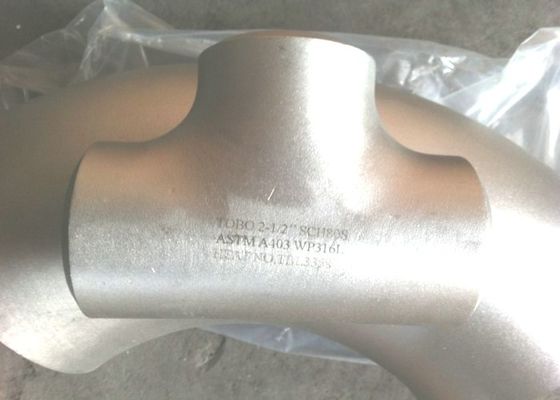

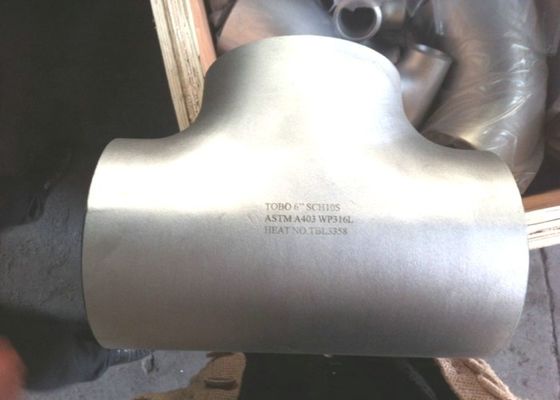

Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9

  • Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
  • Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
  • Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
  • Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Stainless Steel 316Ti
Minimum Order Quantity 3PCS
Price Negotiation

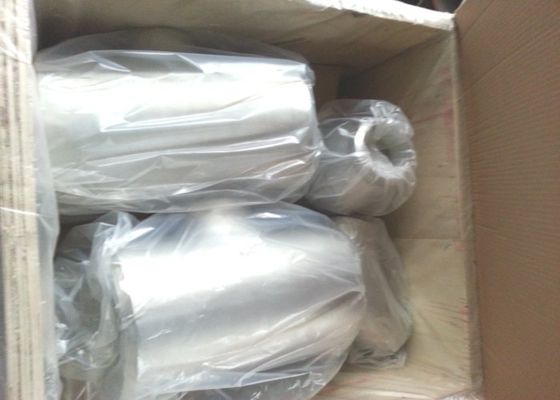

Packaging Details PLY-WOODEN CASE OR PALLET
Delivery Time 15DAYS
Payment Terms T/T, L/C, Western Union
Supply Ability 9980000PCS Per Month
Product Details
Material Stainless Steel 316Ti Standard ASME B16.9, ASME B16.25, MSS SP-75 DIN2617 JISB2311 JISB2312 JISB2313
Manufacturing Process Push, Press, Forge, Cast, Etc. Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Packaging Details Butt Welding Pipe Fitting Commonly Should Be Shipped In Wooden Cases, Wooden Pallets Or As Per Customers Request Test Direct Reading Light Spectrum, Hydrostatic Test ,X-ray Detector,ultrasonic Flaw Detection ,magnetic Powder Detector ,etc
Highlight

butt weld tube fittings

,

industrial pipe fittings
Leave a Message
Product Description



Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9





Stainless Steel 316Ti
1)higher strength and better creep resistance
2)excellent mechanical and corrosion properties
3)ISO9001

Stainless Steel 316Ti



S.S 316Ti offers higher strength and better creep resistance at higher temperatures than S.S 304.  S.S 316Ti also possesses excellent mechanical and corrosion properties at sub-zero temperatures.



Chemical Composition


  C Mn P S Si Cr Ni Mo Ti
S.S 316
S.S 316L
S.S 316Ti		 0.08 max
0.03 max
0.08 max		 2.0
max		 0.045
max		 0.030
max		 1.0
max		 16.0
to
18.0		 10.0
to
14.0		 2.00
to
3.00		 -
0.5 max
5X%C



Mechanical Properties at Room Temperature

  S.S 316 S.S 316L S.S 316Ti
  Typical  Minimum Typical Minimum Typical Minimum
Tensile Strength, MPa 580 515 570 485 600 515
Proof Stress (0.2 % offset), MPa 310 205 300 170 320 205
Elongation (Percent in L = 5.65 So) 55 40 60 40 50 40
Hardness (Brinell) 165 - 165 - 165 -







Asme butt-weld pipe Fittings



1/2"- 24" seamless
4"-48" seam welding
ANSI,ASME,DIN,JIS,GOST,BS
30,45,90,180 degree SR, LR,



PIPE FITTING

Size range: seamless  1/2" to 24"

                    seam weldding  4" to 48"



Material: carbon steel ASTM A234 wpb, wpc; A106; st37.0; S235JR;

               SS400; CT20, 20#; Q235A; Q235B



Standard: ANSIB16.9, ASME B16.28; DIN 2605, DIN 2615, DIN2616,

                 DIN2617;GOST 17375; GOST 17378; JIS2311



Wall thickness: 2MM----25MM

                         SCH5,SCH10S, SCH10, SCH20, SCH30, STD, SCH40,

                          XS, SCH60, SCH80, SCH100, SCH120, SCH140,

                         SCH160, XXS, SGP, LG,



Products:

Elbow: 45 deg, 90 deg, 180 deg, long redius, short redius

Tee: equal, reducing

Reducer: concentric, eccentric,

Cap

Cross





Stainless Steel 316Ti Butt Weld Reducing Tee , Steel Pipe Tee ASME B16.9
