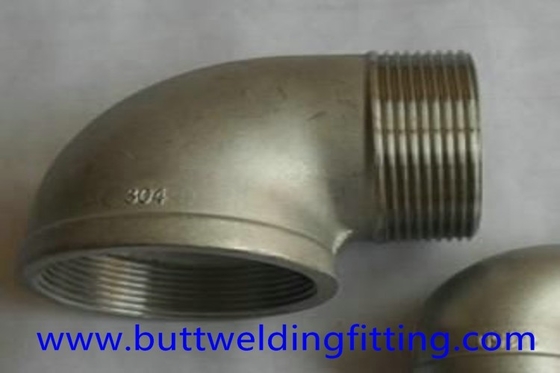

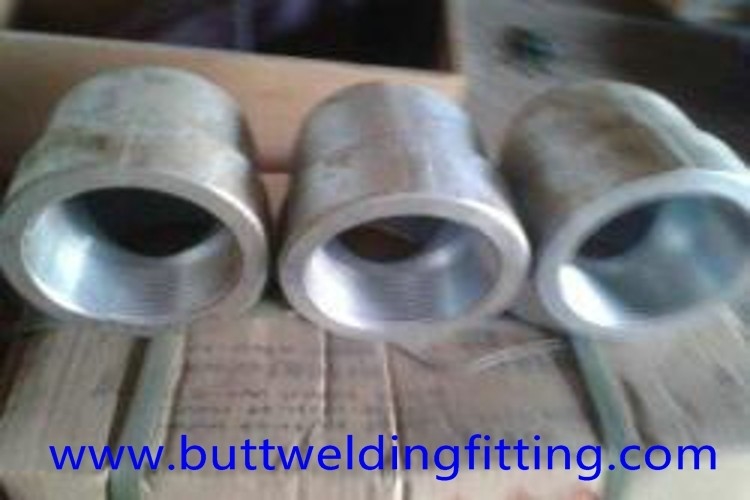

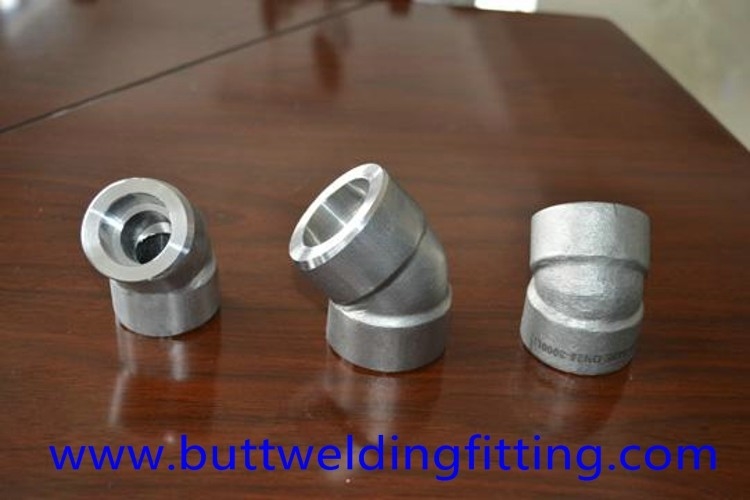

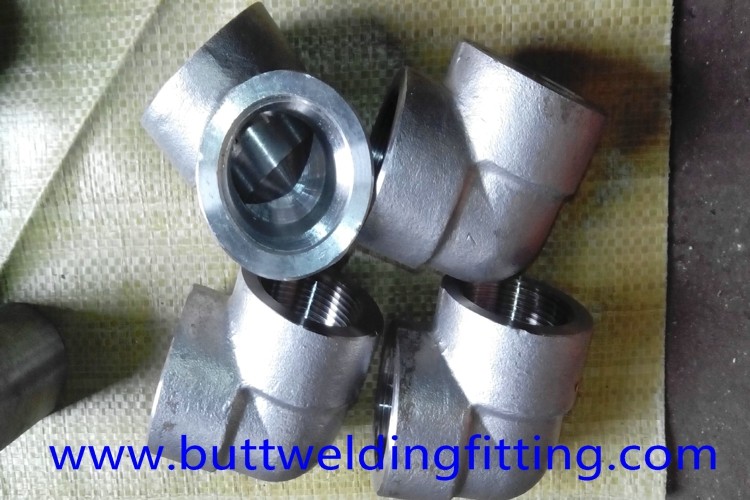

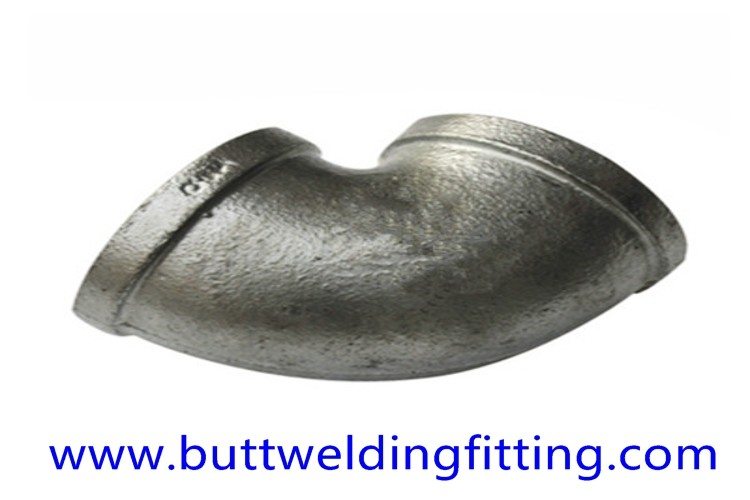

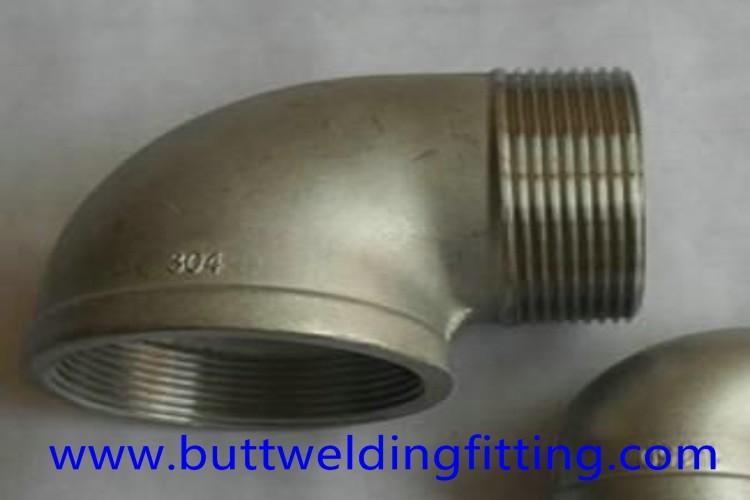

8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42

  • 8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
  • 8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
  • 8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
  • 8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
  • 8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
Place of Origin Shanghai, China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number TOBO076
Minimum Order Quantity 1pcs
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PCS/MONTH
Product Details
Product Name Forged Elbow Material Carbon Steel
Size 8'' Type 90 Deg Elbow
Wall Thickness SCH40/SCH40s Material Grade ASTM A694 F42
Price Negotiation Connection Welding
Highlight

forged steel pipe fittings

,

forged high pressure pipe fittings
Leave a Message
Product Description
Forged Pipe Fittings ANSI B 16.9 SW Elbow DN 8" x 45º Sch40/Sch40s ASTM 694 F42

Specifications

  1. Forged Elbow
  2. ISO9001,ISO9000
  3. Size: 8''
  4. WT:SCH40/SCH40s
  5. Standard: ANSI B 16.9
  6. Market:America,Africa,Middle East,Southeast of Asia



Standard ASME/ANSI B16.9
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel



PRODUCTS forged steel elbow, forged steel ASTM A105 elbow, Forged Steel ASTM A182 F1/F5/F9/F11/F12/F22/F91 SW Elbow, Forged Steel ASTM A694 F42/F46/F52/F60/F65/F70/F80 SW Elbow, forged steel socket weld(SW) elbow, forged steel ASTM A105 socket weld(SW) elbow, forged socket weld(SW) elbow,forged high pressure elbow...
SIZE NPS1/2”-8”(DN15-200)
PRESSURE SCH80/SCH160, 2000#/3000#/6000#/9000#.....
MATERIAL carbon steel: SS400,A105……
  alloy steel: ASTM A694 F42,F46, F52, F56, F60, F65, F70, A350 LF2 , ASTMA182 F1, F5, F9, F11, F12, F22, F91……
  stainless steel: ASTM A182 F304/304L, F316/F316L, F321, F347…..
STANDARD ANSI B16.11/MSS SP97/MSS SP95/MSS SP83/JIS 2316/GB-T14383/GB-T14626 etc.
  we can also produce according to drawing by customers.





Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings

TYPE

A:ELBOW,TEE,COUPLING,HALCOUPLING,CAP,PLUG,BUSHING,UNION,

OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX

NIPPLE,STREET ELBOWS,BOSS...ETC.
B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING,
SIZE NPS 1/8"-4"; DN6-100
RATING PRESSURE:THREADED END -2000/3000/6000LBS.
SOCKET-WELD END -3000/6000/9000/LBS.
BUTT WELD END -SCH40/SCH80/SCH160/XXS.

SPECIFICATIONS

STANDARD

A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005);

MSS SP- 79,83,95,97and BS3799.

B.ASTM A105,A350 LF2,A106,A312,A234,A403,ASTM A182(F304,

F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,91).
C.SIZE of RAW MATERIAL:DIA.19-85MM ROUND BAR.
MARKING A.CARBON and ALLOY STEEL:MARKED BY STAMPING.

B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or

STAMPING.
C.3/8"UNDER:BRAND ONLY.

D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE,

B16(FOR ASME B16.11PRODUCT),RATING AND SIZE.
E:AS THE REQUIREMENT of CUSTOMER.
PACING IN WOODEN CASES or PALLETS,or AS PER CLIENTS’ REQUIREMENTS.
APPLICATION

PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING,

CONSTRUCTION,ECT.
Special design available as the requirement of customer





8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42





Packing&Delivery



Packing Details :In wooden case, pallets or as per customers’ requirement

Delivery Details : 7-15 days after the PO





8" x 45º SW Elbow Forged Pipe Fittings ANSI B 16.9 Sch40 / Sch40s ASTM 694 F42
