Super Duplex Stainless Steel pipe caps 2205 2507 UNS S32205 S331803 S332750 S32760
Product Details
| Material | ASTM A815 UNS S31803/S32205/S32750/S32760 | Wall Thickness | SCH5 To SCH160 |
|---|---|---|---|
| Product Name | Pipe End Cap | Size | DN15 - DN1200 (1/2"- 48" ) |
| Surface | Annealing,polishing,mirror Finished,pickling,etc | Standard | ASME B36.10M |
| Highlight | butt welded pipe fittings,butt weld tube fittings |
||
Product Description
Overview
Product Name: Super Duplex Stainless Steel Pipe Cap 2205 2507 UNS S32205 S331803 S332750 S32760
Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
alloy steel SCH10 High quality Inconel 690 steel pipe cap round end cap
| Standard | ASTMA234,ASTM A420,ANSI B16.9/B16.28/B16.25,ASME B16.9 |
| JIS B2311-1997/2312, JIS B2311/B2312, DIN 2605-1/2617/2615 | |
| GB 12459—99,EN Standard etc. | |
| Size | 1/2"—72" |
| Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60,XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS etc are vailable |
| Material | stainless steel, carbon steel, alloy steel |
| Stainless steel(ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, etc) | |
| Carbon steel(ASTM A234WPB,,A234WPC,A420WPL6. 20#,Q235,10#,20#,A3, Q235A, 20G,16Mn, etc) | |
| Alloy steel(ASTM A234 WP12,WP11,WP22,WP5,WP9,WP91,16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910,15CrMo, 12Cr2Mo1, etc) | |
| Connection | Butt welding |
| Socket welding | |
| Threaded | |
| Surface | stainless steel: Polishing, Sand-blasting |
| carbon steel/alloy steel | |
| Black painting, varnish paint, anti rust oil, hot galvanized, cold | |
| galvanized, 3PE,etc | |
| Certificate | API, and ISO9001:2000 Certificates, CE, BV, etc. |
| Package |
Plastic film, wooden cases ,wooden pallet |
Packaging & Shipping
Packing: Bare packing/bundle packing with woven bag/wooden or steel frame crate packing/plastic cap protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.
Shipment: By sea with FCL/LCL contianer or in bulk ;by airfreight, by railway

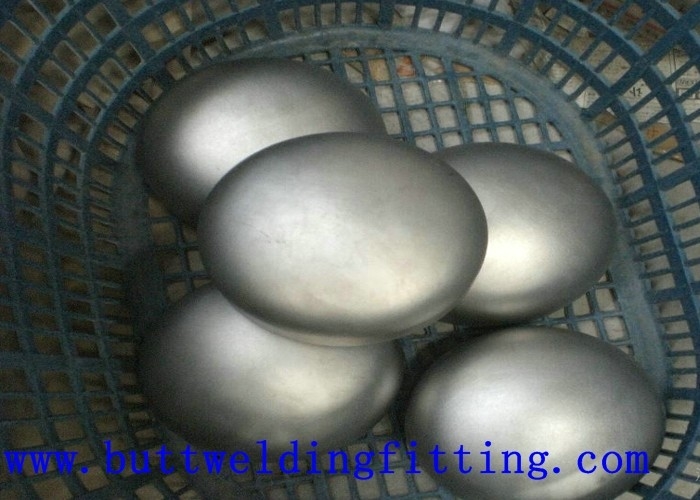

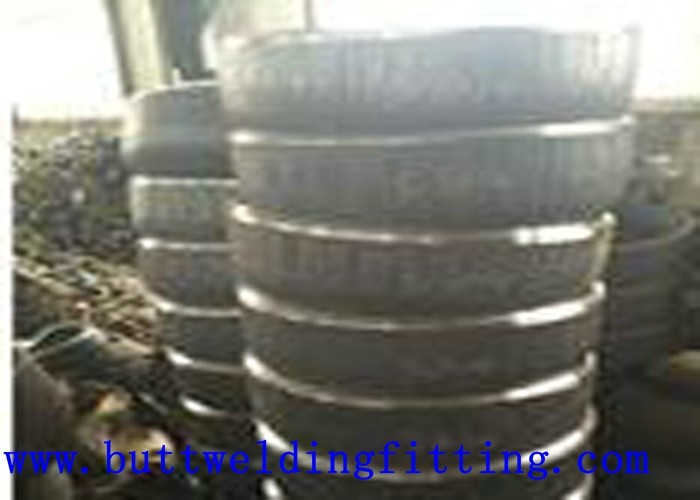

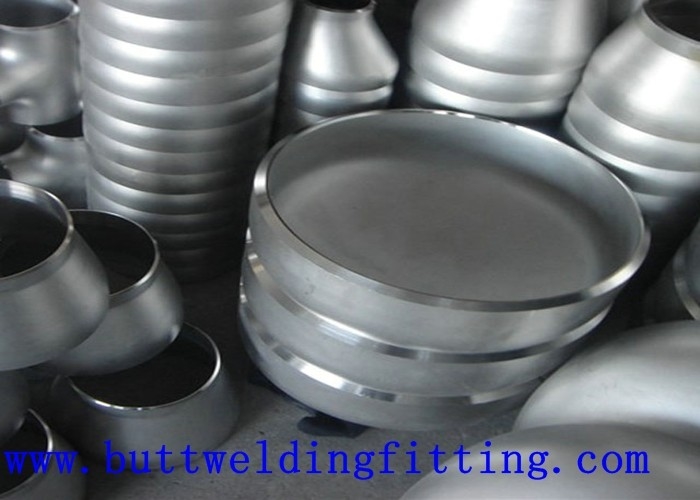

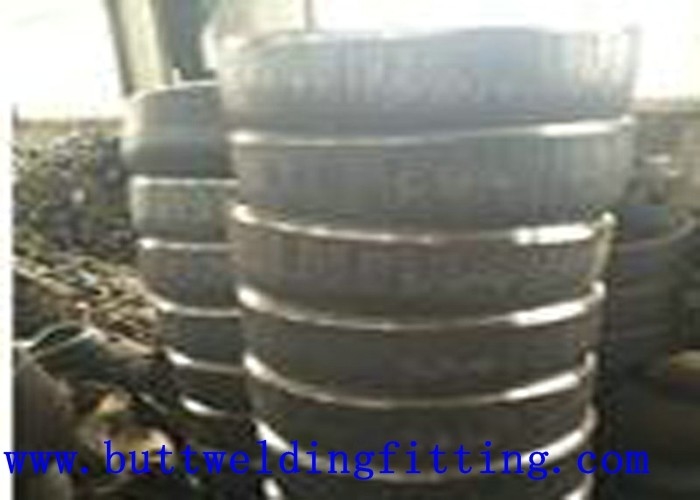

Product Photos

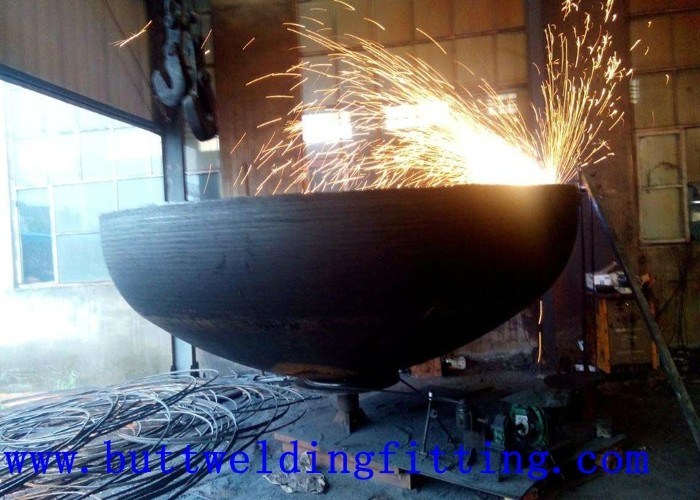

large diameterstainless steel pipe end cap
| 1. | Item |
High quality Inconel 690 steel pipe cap round end cap |
|
| 2. | Standard | ASTM,AISI,JIS,SUS,GB,DIN,EN,and etc. | |
|
3. |
Material |
200 series | 300 series |
| 201,202 |
301,304,304l,304n,304ln,309s,310s, 316,316Ti,316l,316n,317,317l,321,321h,347,347h. |
||
| 4. | Sizes | Outside diameter | 6mm-2500mm |
| Wall Thickness | 1mm-150mm | ||
| 5. | Surface | Annealing,polishing,mirror finished,pickling,etc | |
| 6. | Connection | Welding,casting,forged. | |
|
7. |
Application |
Stainless steel pipe end caps are widely used in following fields: 1.Petroleum,chemical enterprise,superheater fo boiler,heat exchanger. 2.High temperature resistant transmission fluid pipe in power station. 3.Ship with pressure pipe 4.The exhaust purification devices. 5.Construction and ornament. Or we can make it as your requirement. |
|
| 8. | Package | Export standard packaging | |
| 9. | Export to |
Stainless steel pipe end cap is exported to: America,Australia,France,India,Germany,Thailand,Singapore, Brazil,Iran,Iraq,Italy,Peru,Hong Kong,Korea,etc. |
|
| 10. | Contact |
If you have any question,please feel free to contact me. SKYPE:17717932304 Summer |
|
Products:
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6.Straightness Test (optional) |
| 7.Roughness Test (optional) |
| 8.Intergranular Corrosion Test(optional) |
| 9.Impact Test (optional) |
| 10.Grain Size Determinations (optional) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
