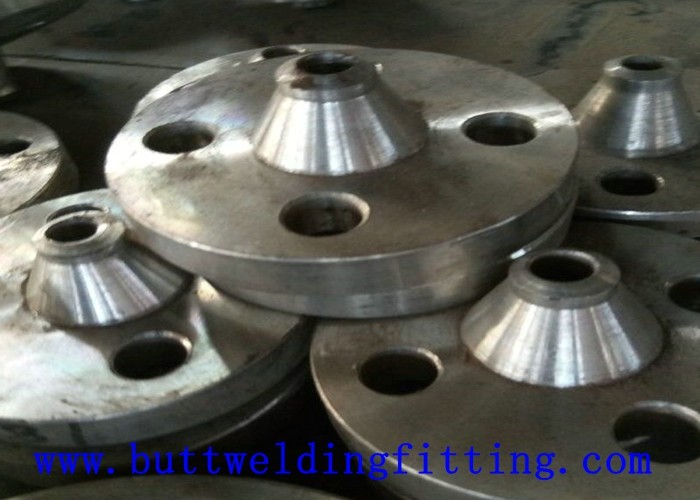

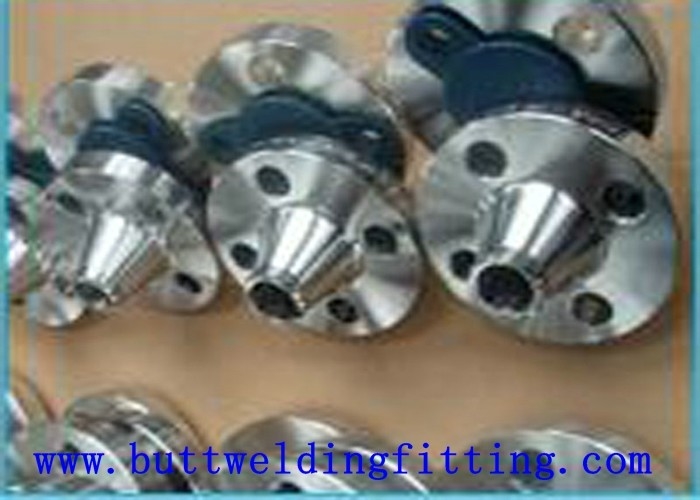

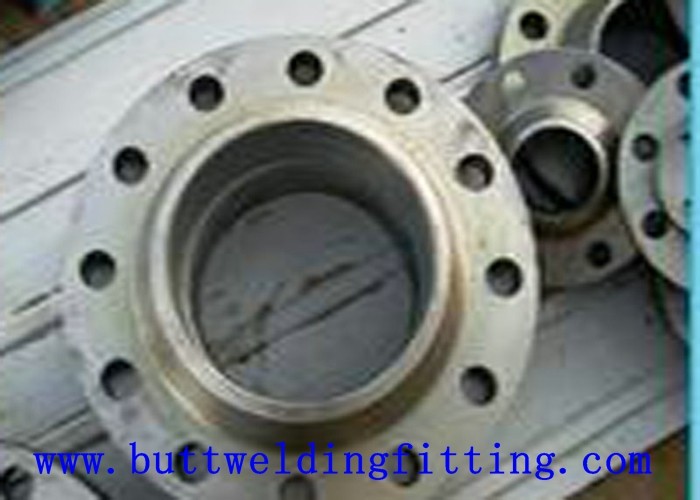

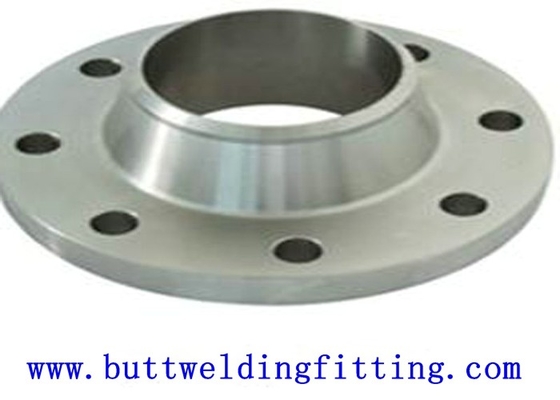

UNS S32750 2507 WN Forged Steel Flanges for natural gas DN10 ~ DN3000

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Certification:	ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS
Model Number:	TOBO-065

Minimum Order Quantity:	1PCS
Price:	55 USD per pcs
Packaging Details:	Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1118000 pcs per month

Get Best Price Contact Now

Product Name:	TOBO Butt Welding Fitting Flange	Material:	Super Duplex Stainless Alloy
Standard:	ANSI EN DIN BS UNI JIS KS AS AWWA	Application:	Nuclear, Chemical , Petroleum, Shipbuilding, Natural Gas, Power.etc
Size:	3/8"~120",DN10~DN3000	Technics:	Forged
Place Of Origin:	China	Type:	Flange
Highlight:	forgings flanges and fittings , forged fittings and flanges

UNS S32750 SUPER DUPLEX STEELforged super duplex alloy steel 2507 UNS S32750 flanges WN flange

Skype: 17717932304

Or send to summer[at]tobo-group.com

Size:

ANSI 1/2, 3/4, 1, 1 1/4, 1 1/2, 2, 2 1/2, 3, 3 1/2, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 60, 66, 72, 78, 84, 90, 96, 102, 108, 114, 120 inch(") and etc.

DN 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, 350, 400, 500, 600, 700, 800, 900, 1000, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000, 3200, 3400, 3600, 3800, 4000 MM and etc.

UNS S32750 2507 WN Forged Steel Flanges for natural gas DN10 ~ DN3000 0

FLANGE STANDARD	PRESSURE RATING	TYPE	FACING	MATERIAL
ANSI B16.5	CLASS 150 300 400 600 900 1500 2500 LBS	SO WN SW TH LJ BL LWN	RF FF RTJ etc	ASTM SA105/105N A350 LF2 CL1/CL2 A694 F45/52/65, s235jr C22.8; A182 F304/304L A182 F316/316L A182 F317L A182 F310 F321 F347; A182 F5 F9 F11 F51 F53 F55 F60 F304H F316H F317H, C276 INCONEL 600 625; and etc..
ANSI B16.47-A MSS	CLASS 150 300 400 600 900 LBS	WN BL
ANSI B16.47-B API	CLASS 75 150 300 400 600 900 LBS	WN BL
ANSI/ASME B16.36	CLASS 300 400 600 900 1500 2500 LBS	ORIFICE
ANSI/ASME B16.48	CLASS 150 300 400 600 900 1500 2500 LBS	FIG.8 SPACER AND BLANK SPECTACLE
AWWA C207	CLASS B & D TABLE 2/3, CLASS E TABLE 4	SO PL BL
EN 1092-1	PN 2.5 6 10 16 25 40 63 100 160 250 320 400	PL LOO BL WN SO TH
BS 4504	PN 2.5 6 10 16 25 40	PL WN TH BL SO
DIN	PN 6 10 16 25 40	PL WN TH BL LOO SO
UNI	PN 6 10 16 25 40	PL WN TH BL LOO
SABS/SANS 1123	CLASS 600 1000 1600 2500 4000 KPA	WN PL TH SO BL
JIS B2220/KS	5K 10K 16K 20K 30K 40K	SOP/PL SOH/SO BL
GOST	PN 1 1.6 2.5 4 6.3 10	PL WN BL
AS	TABLE D E F H	PL SO BL

product name	UNS S32750 SUPER DUPLEX STEELforged super duplex alloy steel 2507 UNS S32750 flanges WN flange
Pressure	American Series,CLASS 150,CLASS 300,CLASS 400,CLASS 600,CLASS 900,CLASS 1500,CLASS 2500
Pressure	European Series,PN 6,PN 10,PN 16,PN 25,PN 40,PN 63,PN 100
Size	3/8"~120",DN10~DN3000
Standard	ASME B16.5-2013,EN 1092-1-2007,EN 1759-1-2004,ISO 7005-1-1992,GB/T 9112-2010,GB/T 9114-2010,HG/T 20592-2009,HG/T 20615-2009,SH/T 3406-2013,GOST- AFNOR- BS- DIN
Flange Facing Types	American Series,Flat Face(FF),Raised Face(RF)
Flange Facing Types	European SeriesType A (Flat Face),Type B (Raised Face)
Process	Forging, Machining
Packing	Plywood pallet or cases, wooden pallet or cases, or according to customer's requirment

Carbon Steel	ASTM A105
Alloy Steel:	ASTM A182 F1/F5/F9/F11/F22/F91/F92 Etc
Duplex Steel:	Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Stainless Steel:	ASTM A182
	F304 F304L F304H F309 F310
	F310S F316 F316L F316 F316Ti
	F317 F317L F321 F347 F347H
Duplex Stainless Steel:	ASTM A182 F51/F53/F55/F60W)1E)`C(DW~FI3]O]3DTQUF.jpg
Nicke alloys:	Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
Cu-Ni:	90/10,70/30
