ASTM a182 f316l 2205 S31803 S32205 F51 Super Duplex Stainless Steel Flange
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS |
| Model Number | TOBO-068 |
| Minimum Order Quantity | 1PCS |
| Price | 5 USD per pcs |
| Packaging Details | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 1118000 pcs per month |
Product Details
| Product Name | TOBO Butt Welding Fitting Flange | Material | F51/2205/S31803,F53/2507/S32750 |
|---|---|---|---|
| Standard | ASME | Application | Petroleum/Power/Chemical |
| Size | 1/2"-80" | Pressure | Class 150Lbs |
| Place Of Origin | China | Type | Flange |
| Highlight | forgings flanges and fittings,butt weld flanges |
||
Product Description

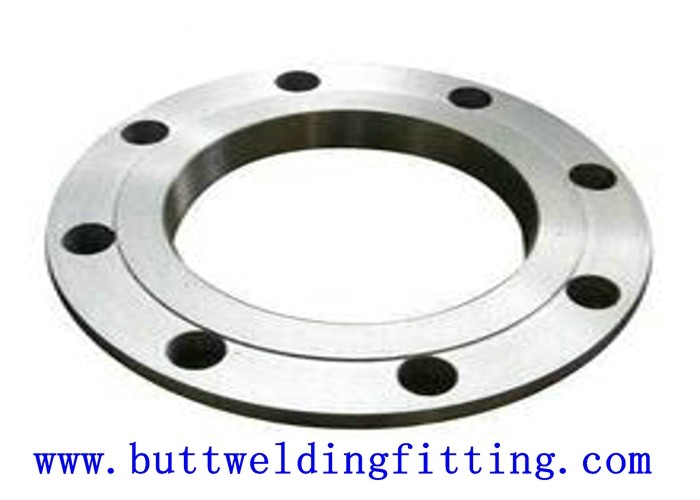

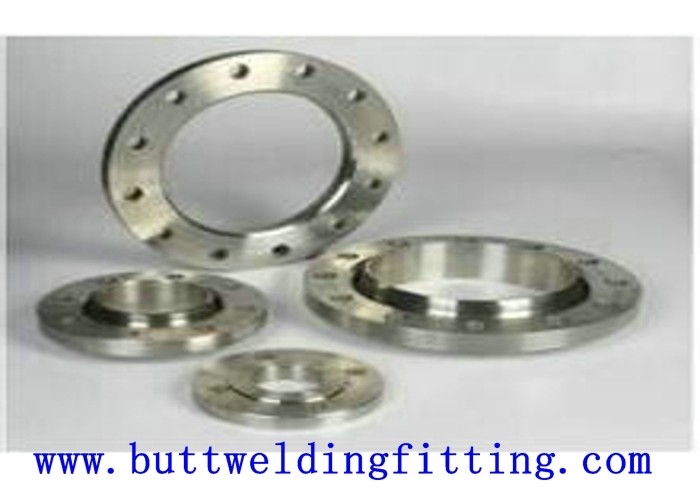

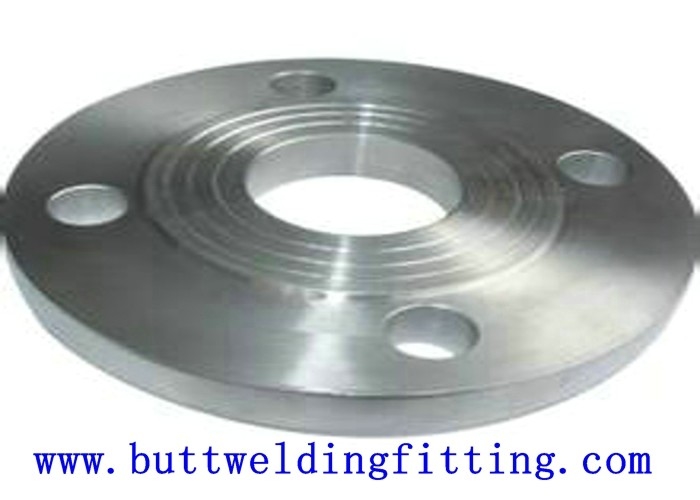

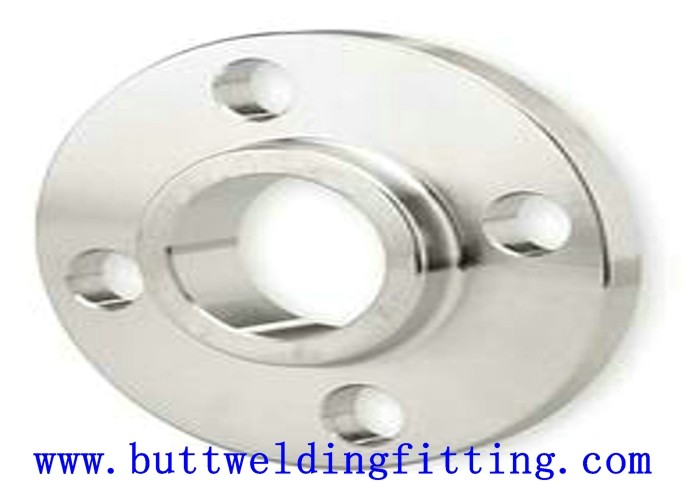

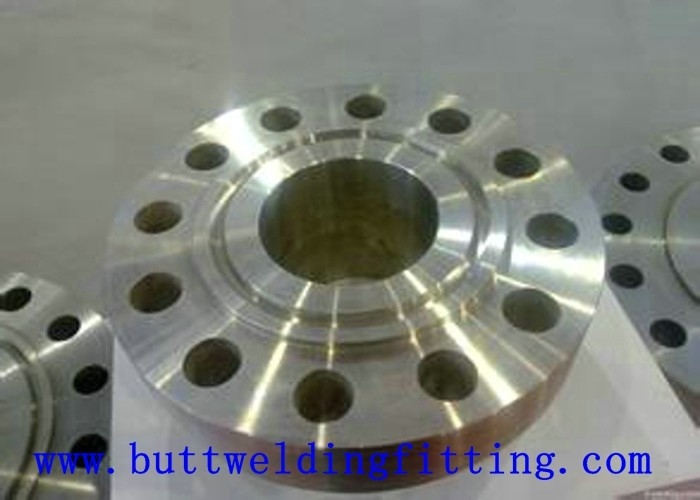

astm a182 f316l 2205 S31803 S32205 F51 super duplex stainless steel flange
Product Description
| Porduct Name | weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange, etc. |
| OD | 15mm-6000mm |
| Pressure | 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000 |
| Standard | ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc. |
| Wall thickness |
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc. |
| Material |
Stainless steel: A403 WP304/304L, A403 WP316/316L, A403 WP321, A403 WP310S, A403 WP347H, A403 WP316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541, 254Mo and etc. |
|
Duplex stainless steel: UNS31803, 2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc. |
|
| Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H, C22, C-276, Monel400, Alloy20 etc. | |
| Application | Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plart;ship buliding;water treament,etc. |
| Advantages | ready stock,faster delivery time;available in all sizes,austomized;high quality |
The flange is a connection between the shaft and the shaft, for the connection between the pipe ends; also used in the equipment on the inlet and outlet of the flange, for the connection between the two devices.
Material : Stainless Series ,Carton Series
Standard :ASTM, AISI, BS, DIN, JIS, NF
Grade : 201 ,304 ,316L
Dimension tolerance :Class CT4~CT7
Surface Smoothness :Ploish ,Pickling
Size :Custom Drawing
Duplex and Super duplex, Incoloy, Inconel, hastelloy, monel flanges, screw, stud bolt, hex bolt, hex nut, washer, thread rod or other custom fasteners as print.
The applications of Inconel 718 / UNS N07718 /DIN2.4668/GH4169 Hex bolt:
Size: M4-M100
According to the client's requirement
Surface: Plain
Material: Inconel718 / UNS N07718 /DIN2.4668/GH4169
Inconel 718 / UNS N07718 /DIN2.4668/GH4169 is a nickel-chromium-molybdenum alloy designed to resist a wide range of severely corrosive environments, pitting and crevice corrosion. This nickel steel alloy also displays exceptionally high yield, tensile, and creep-rupture properties at high temperatures. This nickel alloy is used from cryogenic temperatures up to long term service at 1200° F.
The characteristics of Inconel 718:
. Good mechanical properties tensile, fatigue and creep-rupture
. Yield tensile strength, creep, and rupture strength properties are exceedingly high
. Highly resistant to chloride and sulfide stress corrosion cracking
. Resistant to aqueous corrosion and chloride ion stress corrosion cracking
. High temperature resistant
. Age-hardenable with a unique property of slow aging response that permits heating and cooling during annealing without the danger of cracking.
. Excellent welding characteristics, resistant to postweld age cracking
The applications of Inconel 718 / UNS N07718 /DIN2.4668/GH4169 Hex bolt:
· Nuclear reactors
· Aerospace
· Valves, fasteners, springs, mandrels, tubing hangers
· Pollution-control equipment
· Chemical processing
· Cryogenic storage tanks
· Liquid fuel rocket motor components
· Well head completion equipment and blow out preventers (BOP’s)
· Gas turbine engine parts
The forms of Inconel 718:
· Plate
· Pipe & Tube (welded and seamless)
· Bar
· Fastener
Our Company
Standard Production
Packing & Delivery
2205 S31803 S32205 F51 super duplex stainless steel flange
*Q1: What is the MOQ?
A: The minimum order is 1000pcs Casting.
*Q2: How long is the mass producing?
A: It based on qty, dimension, etc. If as your drawing, the time will be much longer.
*Q3: Why the price is different from the prices on the web?
A: All the price on my web are current & estimate price. Somtimes I can't renew them in time. Moreover the price is also based on your qty and designs. Because the products production as your drawing or samples.
*Q4: Does your products can be customized?
A: Yes, customized shapes and dimension also available.
*Q5: How can we process the order?
A: If you confirm the order,we will send you purchase invoice . After we get your deposite, we will arrange manufacture at once and finish goods within 25-30days based on different quantity.
*Q6: Are you a trader or factory?
A: We are factory.
