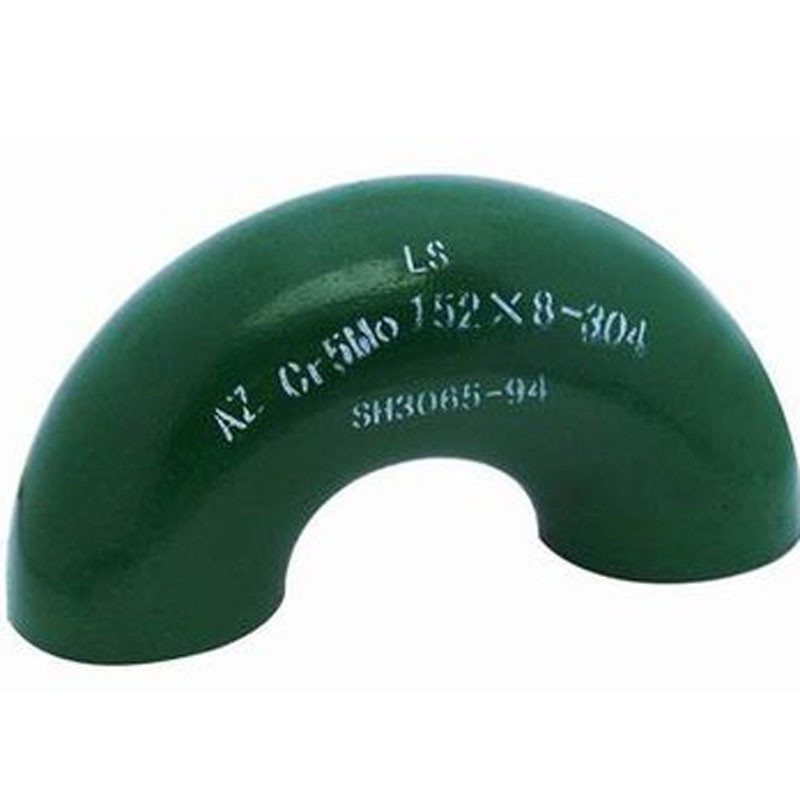

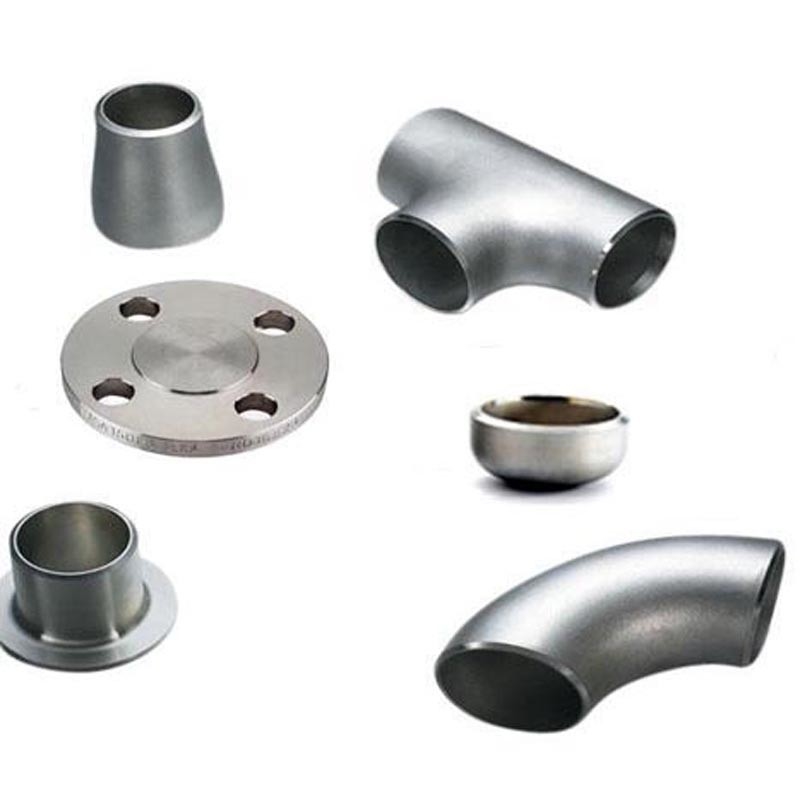

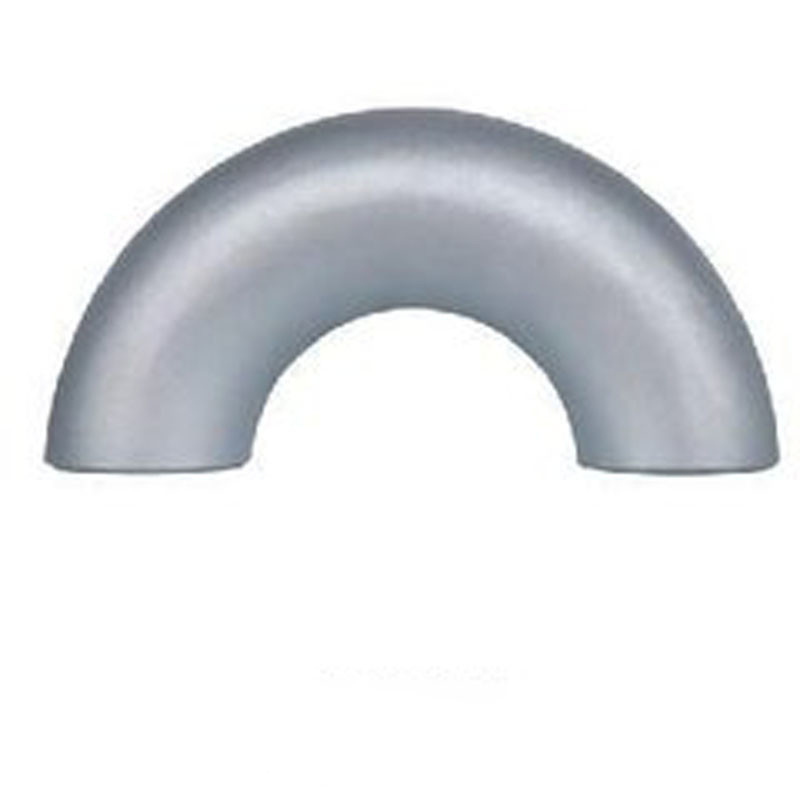

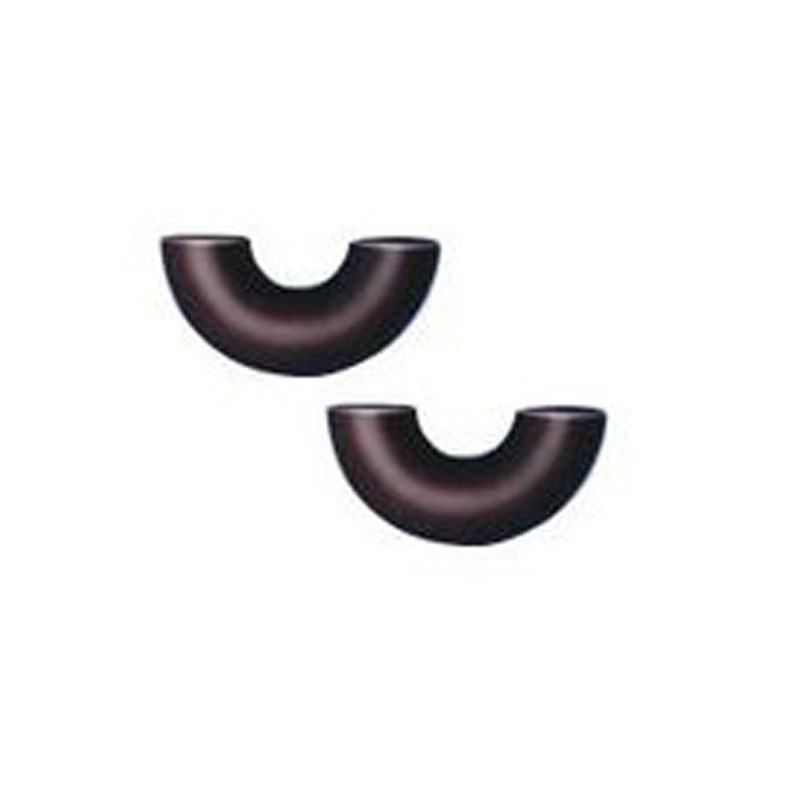

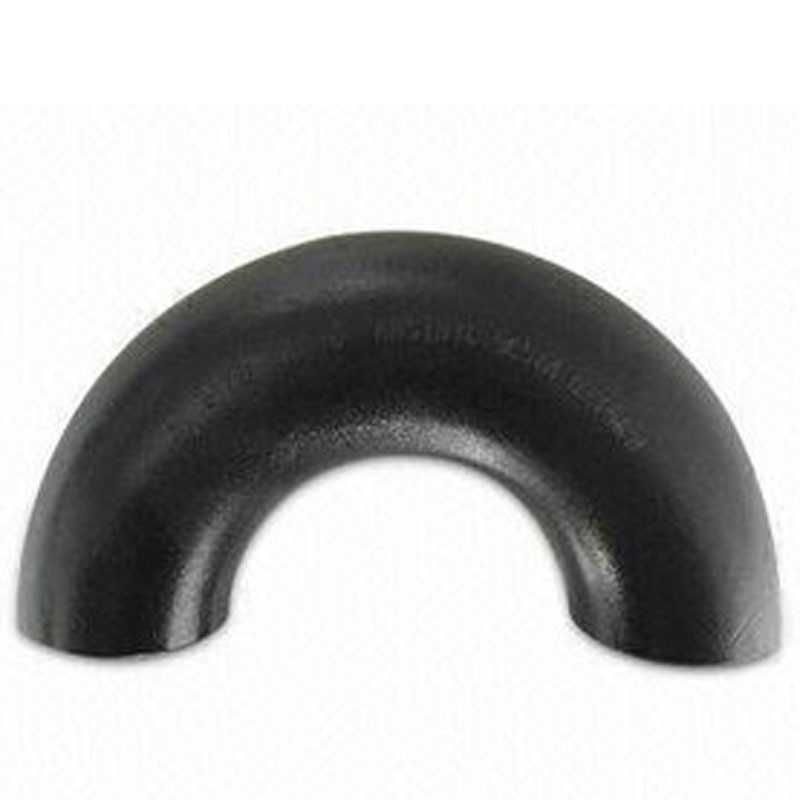

1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow

  • 1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
  • 1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
  • 1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
  • 1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
  • 1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
Place of Origin China
Brand Name TOBO
Certification ISO/PED/TUV/SGS/LR/BV
Model Number TOBO-48
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details Wooden case or as request
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 100000pcs per month
Product Details
Product Name TOBO Pipe Fitting Elbow Standard JIS B2311,B2312,B2312,B2
Size 1/8"-100" Material CuNi 90/10
WT SCH5-SCH 160S Chemical Composition Ni MIn63%,Cu 28%-34%,Fe Max2.5%
Type Elbow Place Of Origin China
Highlight

butt welded pipe fittings

,

butt weld tube fittings
Leave a Message
Product Description

Specifications

Description:
1. Product Item No.: 010fittings-Cosco Steel
2. Degree:15 ° , 30° , 45° , 60° , 90° , 180° , male and female
3. Grade: 310S, 310, 309, 309S, 316, 316L, 316Ti, 316LN, 317, 317L, 321, 321H, 347, 347H, 304, 304L, 304H, 304N, 304LN, 302, 301, 201, 202, 904L, Duplex, etc We can also produce other specifications according to customers' requirements.
4. Material:310S,310,309,309S,316,316L,316Ti,316LN,317,317L,321,321H,347,347H,304,304L,304H,
5. 304N,304LN,302, 301,201,202,904L,Duplex,etc
6. Standard:
JIS B2311,B2312,B2312,B2316
ASME/ANSI B16.9,B16.11,B16.28,ASTM A403
MSS SP-43,SP-83,SP-97
GB 12459,GB/T 13401-2005,GB/T 14383-2005,GB/T10752-1995
SY/T0510-1998,ST5257-91
7. Working pressure: -20° C~150° C
8. Applications range:For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.
9. Technique: welded elbow,punched elbow,Hot-pressed elbow,forged elbow
10. Radius:Long radius,Short radius ,R=1.5D,R=3D,R=5D,female,male,etc
11. Type:15 ° ,30 ° ,45 ° ,60 ° ,90 ° , 180 ° ,male and female
12. Outside Diameter: 1/8"-100" (6-2500mm)
13. Wall Thickness:SCH5-SCH 160S ,SCH XXS 150lb,300lb,400lb,600lb,900lb,1500lb,2500lb
14. Surface:annealing,picking,hair line,polished,bright,brush,coated,sand blast,etc
15. Export to: Ireland,Singapore,Indonesia,Ukraine,SaudiArabia,Spain,Canada,USA,Brazil,Thailand,Korea,Iran,India, Egypt,Oman,Kuwait,South Africa,Dubai,Mexico,Peru,Malaysia,Viet Nam,Russia,Italy,etc
16. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
17. Packing: Wooden box or wooden pallet.
18. H.S Code: 73072300

CUNI ELBOW.



Form Buttweld, Socket Weld, Forged, Threaded, Reducing,
Type Seamless, ERW, Welded
Standards Astm A182, ASTM A403, DIN, JIS, ASME, GB
Dimensional ASTM B 16.9 /16.11 B 16.28 JIS B 2311/2220 DIN2617/2616/2615/2391
Butt Weld Range ½” (15 NB) to 48” (1200NB) in sch 5, sch 10, sch20, sch 40, sch 80, sch 160, sch xxs etc.
Socketweld/Forged Range ½” (15 NB) to 48” (1200NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6, PN 10, PN 16, PN 25, PN 40, PN 64, PN 100,PN 160 ETC.
Stainless Steel Elbows Grades ASTM A 182, ASTM A240 304, 304L, 304H, 309, 310, 310S, 316, 316Ti, 316 S33, 316L, 317, 317L, 321, 347, 347H, 409, 410, 410S, 420, 430
Duplex Steel Elbows Grades Duplex F51 2205 UNS S31803, Super Duplex 2507 (UNS S32750), F55 (UNS S32760)
Copper & Copper Nickel Elbows Copper, Copper Nickel, Cuni UNS C71520 (70/30), UNS C70600 (90/10)
Monel Elbows UNS 4400 (Monel 400), Monel 500
Inconel Elbows UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), Incolloy 800, UNS 8825 INCONEL (Incolloy 825)
Others Elbows Grades ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) Hastelloy 904, NICKEL 200













































Elbow CuNi 90/10:
1. ASME B 16.9/ASME B16.11
2.DN6-1200

Elbow CuNi 90/10:



1. Standard: ASME B16.11, ASME B16.9, ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc





2. Size:DN6-1200, 1/8"-48"



3. Wall thickness: SCH5S, SCH10S, SCH10, SCH20, SCH30...XXS;



Pressure: 2000#, 3000#, 6000#



4. Material: C70600:CuNi90/10



5.Connection: Butt weld, socket weld, forged, threaded.

1/8" - 100" SCH5-SCH 160S Seamless Pipe Fittings Concentric / Eccentric Elbow
