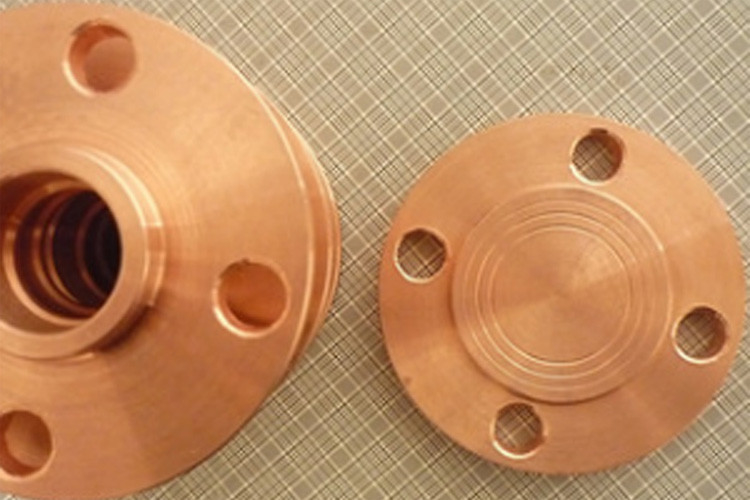

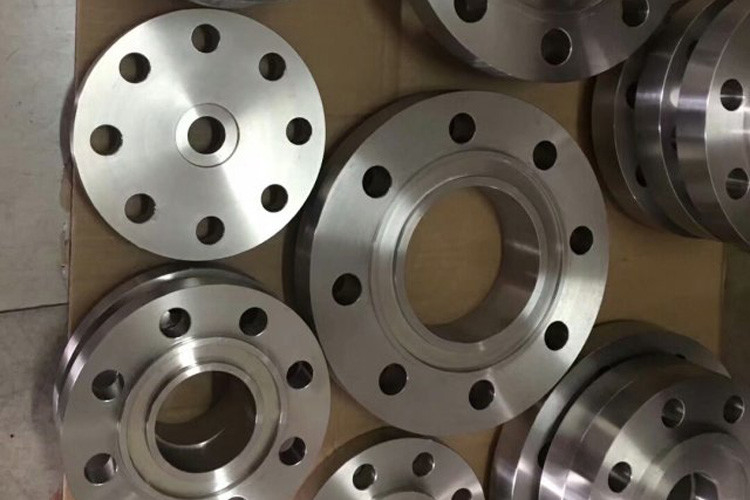

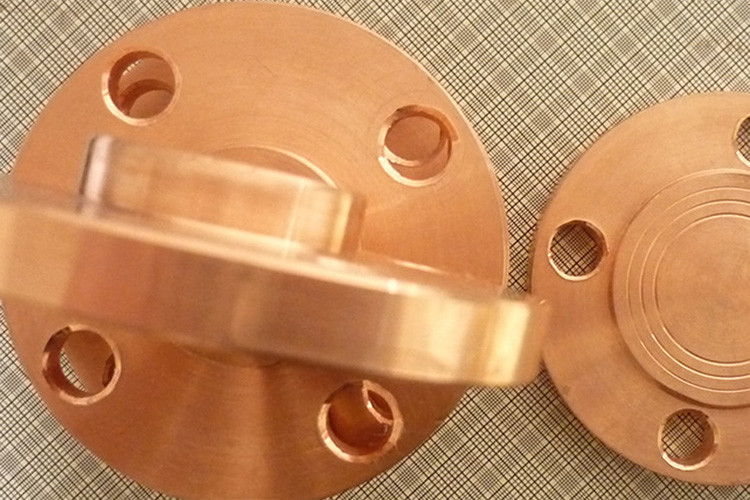

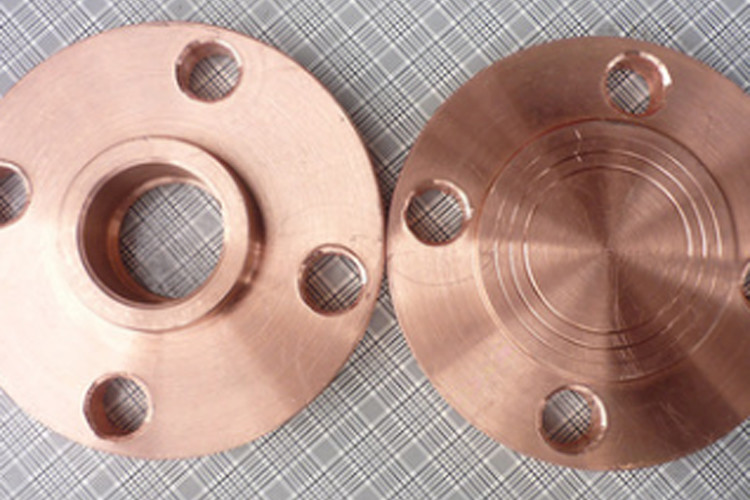

ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding

  • ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding
  • ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding
  • ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding
  • ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Flange
Minimum Order Quantity 1pc
Packaging Details Packing by wooden case
Delivery Time 10-35days
Payment Terms L/C, T/T, Western Union
Supply Ability 3,0000pcs per month
Product Details
Size 1-48 Inch Material Grrade Copper Nickel
Type Thread Or Weld Standard DIN,EN,ASTM,BS,JIS,GB,etc.
Pressure 150#-3000# Colour Silver And Yellow
Highlight

forgings flanges and fittings

,

forged fittings and flanges
Leave a Message
Product Description

ANSI CLASS 150 BL Blind welding Copper nickel 90/10 pipe fitting flange

1.Stainless steel flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

ASTM Copper nickel flange

Product Name ASTM Copper nickel flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type 1.4835 (UNS S30815 – 253MA – SS2368)Pipe
Materials

Stainless steel:ASTM/ASMES/A182 F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347|316Ti | 309S |310S | 405 |409|410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA

Nickel Alloy: ASTM/ASME S/B366 UNS N08020 | N04400| N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | Incoloy 800 | Incoloy 800H | Incoloy 800HT | Incoloy 825 | Incoloy 901 | Incoloy 925 | Incoloy 926, Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L S32750 | S32760

Hastelloy:HastelloyB | HastelloyB-2 | HastelloyB-3 | HastelloyC-4 | Hastelloy C-22 | Hastelloy C-276 | Hastelloy X |Hastelloy G | Hastelloy G3
Nimonic: Nimonic 75 | Nimonic 80A | Nimonic 90
Duplex Steel: ASTM A182 F51 | F53 | F55, S32101 | S32205 | S31803 | S32304

Copper nickel: 90/10 Copper Nickel , 70/30 Copper Nickel Etc.
Alloy Steel: ASTM/ASME S/ A182 F11 | F12 | F22 | F5 | F9 | F91

Carbon steel: API 5L...
Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Applications

Ø EN 1.4835 has a good weldability and can be welded using the following methods:

  1. Shielded metal arc welding (SMAW)



  1. Gas tungsten arc welding, GTAW (TIG)



  1. Plasma arc welding (PAW)



  1. Gas metal arc GMAW (MIG)



  1. Submerged-arc welding (SAW)
  • Typical application areas for 1.4835:
  1. Ovens
  2. Construction
  3. Building
  4. As details at high temperature
Advantages




Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Cap Length
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625   1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438   1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00





Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00



TOBO copper nickel fittings





TOBO copper nickel fittings It's heat welding, quick, convenient and connection strength.It's also 100% of raw materials to produce products, not mixed with calcium carbonate and other miscellaneous materials to ensure product quality.This product has a welding stability, easy installation, long service life.



The product has special features flexible: low-value rigidity, corrosion resistance.It's good elasticity and high pressure.It's of high quality with beautiful appearance, smooth surface.



copper fitting round pipe end cap

standard: GB, ASTB, BS, EN, JIS

10mm pipe copper nickel fittings
air conditioner copper nickel fittings
widely used in air condition,water tube&bathroom fittings

Material: 90/10 Copper Nickel , 70/30 Copper Nickel, C10100,C10200,C10300,C10400,C10500,C10700,

C10800,C10910,C10920,C10930,C11000,C11400,

C11500,C11600,C12000,C12200,C12300,C12500,

C14200,C14420,C14500,C14510,C14520,C14530,

C17200,C19200,C21000,C23000,C26000,C27000,

C27400,C28000,C33000,C33200,C37000,C44300,

C44400,C44500,C60800,C63020,C65500,C68700,

C70400,C70620,C71000,C71500,C71520,C71640,C72200,etc.

Standard GB/T1527-2006,JIS H3300-2006,ASTM B75M,

ASTM B42,ASTM B111,ASTM B395,ASTM B188,

ASTM B698,ASTM B640,





ANSI CLASS 600 BL Copper And Nickel 70/30 Flange Connector So FF RF RTJ Slip On Welding
