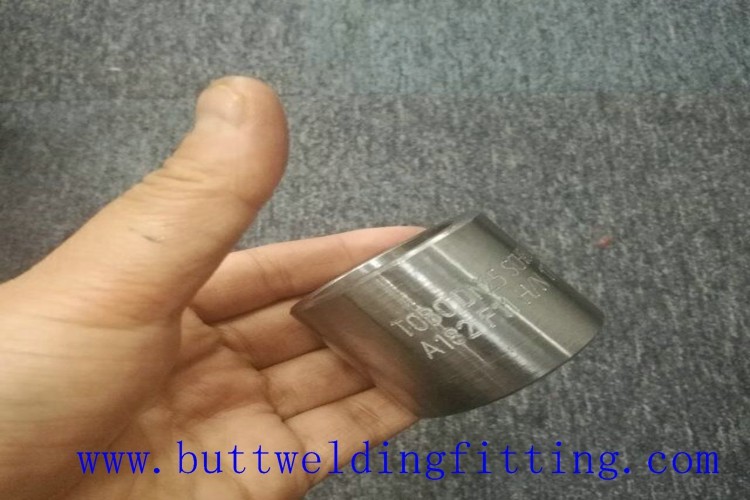

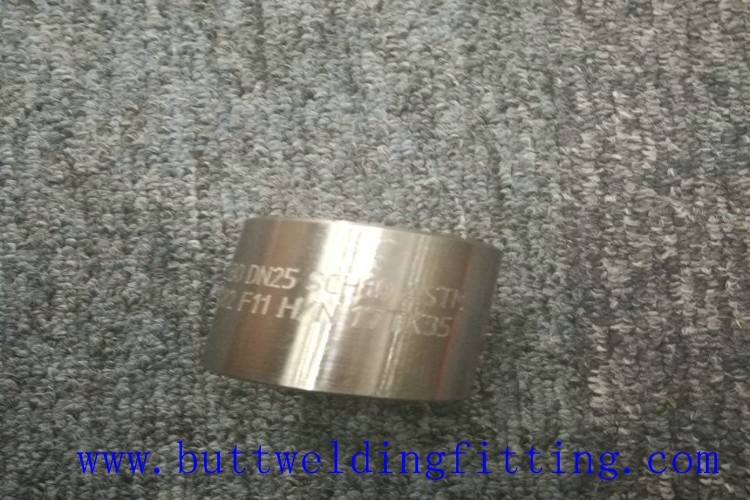

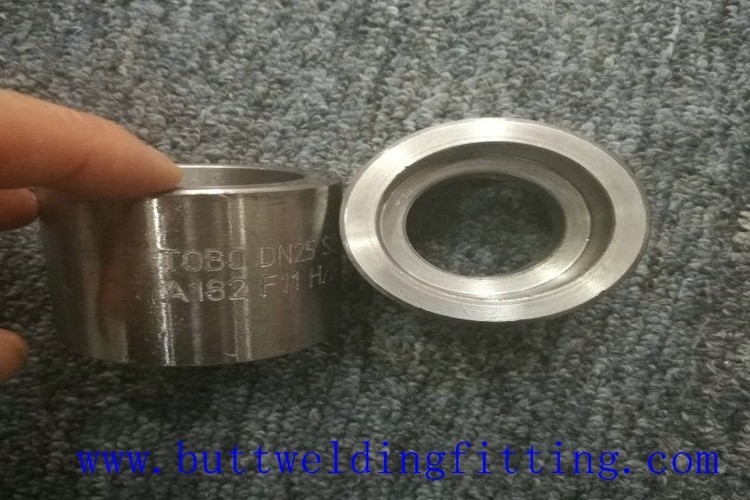

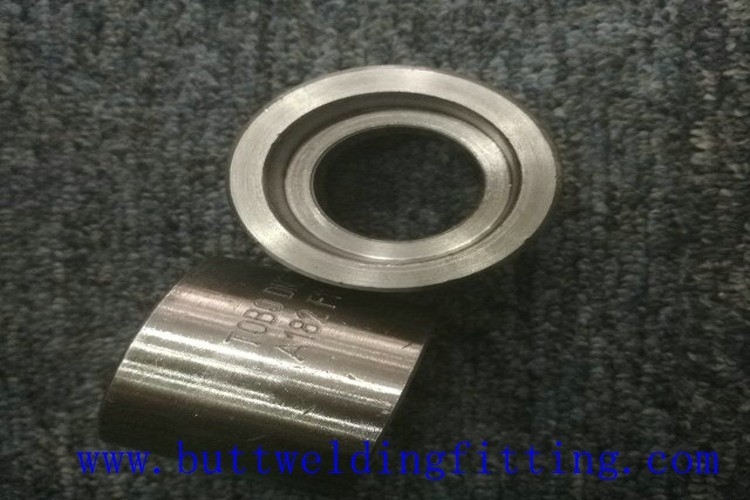

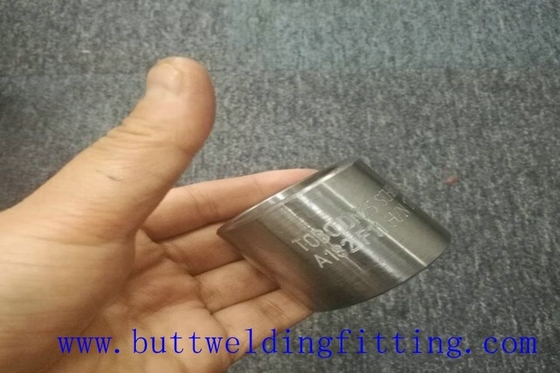

Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling

Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling
Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling
Basic Information
Place of Origin: China
Brand Name: TOBO
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: TOBO-46
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Wooden case or as request
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs per month
Get Best Price Contact Now
Product Name: TOBO Coupling Standard: ASME,ANSI,MSS,DIN,JIS,BS
Size: 1/8"-4" Material: Malleable Cast Iron
Class: Class 3000/6000/9000 Type: Pipe Coupling
Place Of Origin: China Certificate: ISO9001
Highlight:

forged steel pipe fittings

,

forged high pressure pipe fittings

Duplex Steel Forged Female NPT / BSP Threaded Half / Full Coupling high pressure pipe fittings



Product Name Duplex Steel Forged Female NPT / BSP Threaded Half / Full Coupling high pressure pipe fittings
Material Carbon Steel ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Alloy Steel ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Forged Alloy Steel ASTM A182 F304,F304L,F316,F316L,F304H,F316H, F317L,F321,F321H,F11,F22,F91
Stainless Steel ASTM A403 WP304/304L,WP316/316/L, WP317L, WP309 ,WP321, WP321H,WP347 & WPS31254
Duplex and super duplex steel ASTM A815 UNS S31803/S32205/S32750/S32760
Standard ASME, ANSI, JIS, EN, DIN, Other
Certifications CE/ISO/PED/CQC
Pressure Class Class 3000,6000,9000
Surface Treatment Shot blasted, Rust-proof black oil
Size 1/8''-4'' (DN6-DN100)
Payment Terms T/T, 100% at sight, 100%LC 30 or 60 Days after BL of date
Delivery Time 20 days according to actual order




High Pressure Forged Steel Pipe Fittings



size 1/2"-4"

Type

45 DEG Elbows,90 DEG Elbows,Tees,Half Couplings,Couplings Tube to Tube,

Sockets,Weldolets,Threadolets,Boss,Hex Nipples,Nipples,Hex Bushings,Bushings etc.
thickness 2000Lbs, 3000Lbs,6000Lbs( SCH80, SCH160, XXS)
standard ASME B16.11,MSS-SP-97, MSS-SP-79,JIS B2316
material Carbon steel(ASTM A105,A350LF2,A350LF3,)
Stainless steel(ASTM A182 F304, F304L,
F316,F316L,F321,F347,F310F44F51,A276
S31803, A182, F43, A276 S32750,A705
631,632,A961, A484,
Alloy steel(ASTM A694 F42,F46,F52,F56,
F60,F65,F70, A182 F12,F11,F22,F5,F9,F91,F1ECT)
qualification ISO9001:2008 ,ISO 14001 OHSAS18001 , API ,etc
packing in wooded cases or pallets,or as for clients' requirements
application Petroleum, chemical, machinery, electric power,
shipbuilding, papermaking, construction, etc
equipment Huge Heat treatment furnace,
RW-1500 lenge size radius induction pusher
,CG1600T-DB1200 induction pusher,
A grooving machine,Tube spraying grit treatment,etc
testing Dircet reading spectrometer,Mechanical testing,
Super living inspection,
Magentic particle inspection,etc
  chemical composition content   Mechanical properties
Material C Mn Si S P Cr Mo Ni   tensile
strength		 yield
strength		 elongation
A105 ≤0.35 0.6-1.05 0.1-0.35 ≤0.04 ≤0.035         ≥485 ≥250 ≥30




Product Description

Size: NPS1~24,DN25~600

Material: GR1 GR2 GR7 N200 N201 N6 Hastelloy-C276

Related Products

Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling 0



Application

Female NPT / BSP Threaded Duplex Steel Forged Pipe Fittings Half / Full Coupling 1

FAQ

Q: Are you a manufacturer or trading company?

A: We are a pre galvanized square and rectangular pipe maufacture.

Q: How about the delivery terms?

A: 1.Payment: T/T, Western Union, Paypal,30% deposit in advance and balance before delivery.

2.Min. Order Quantity :100KG , or as required.

3.Transportation: By express(DHL, TNT, FedEx), air, sea, and train.

Q: How about discount?

A: Price is bassed on products and order quantity.

Q: Do you accept sample order?

A: Yes, sure. please contact us for details.

Q: How about your after-sales service?

A: As a professional pre galvanized square and rectangular pipe exporter, we offer promote technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?

A: Quality first. In order to guarantee high quality for our products, Modern always makes a serious inspection for all steel pipes and raw materials in strict procedure.
