Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting

China Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting supplier
Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting supplier Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting supplier Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting supplier Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting supplier

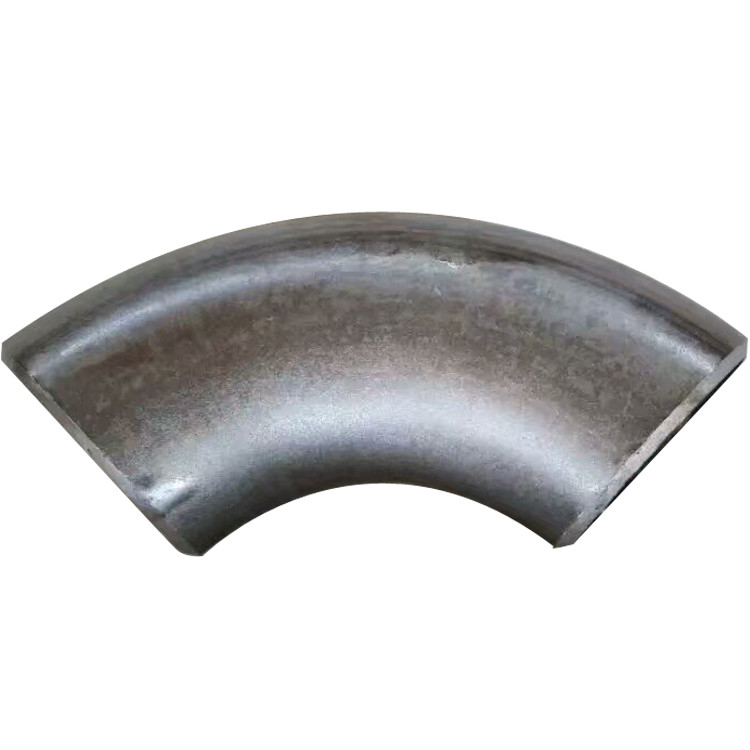

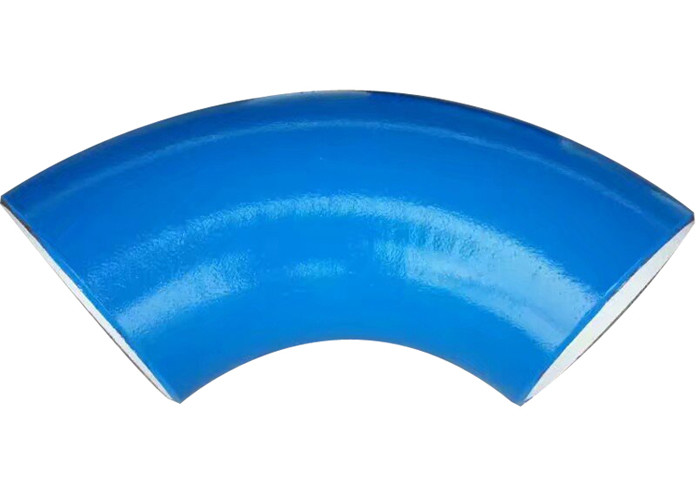

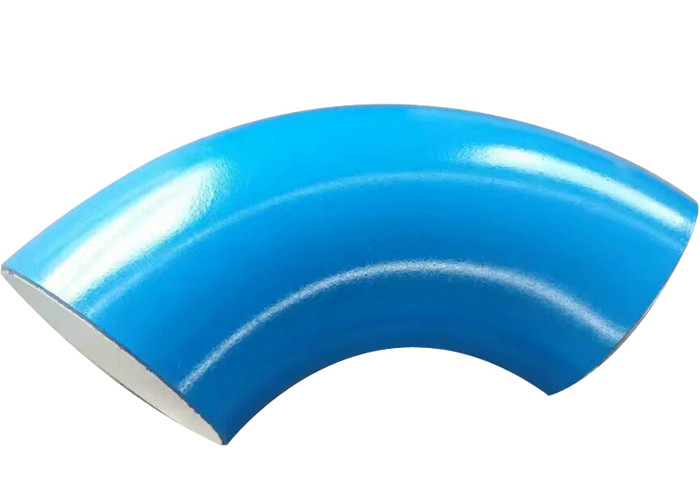

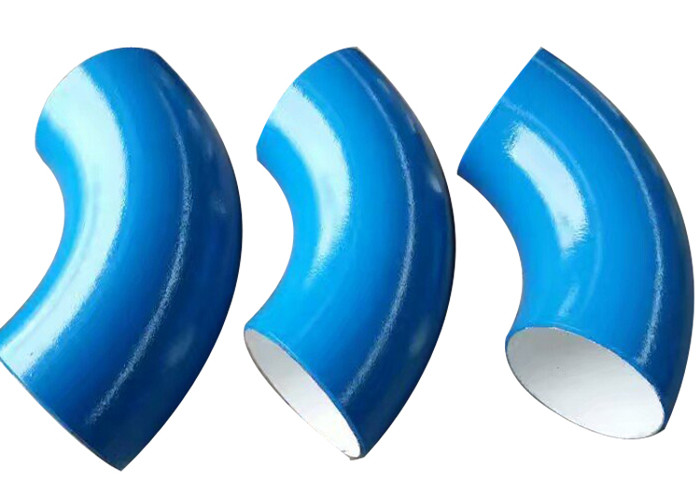

Large Image :  Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting

Product Details:

Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Elbow

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Packing by wooden case
Delivery Time: 10-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Size: 1-48 Inch Material Grrade: Super Stainless Steel F904L
Type: Seamless Or Weld Standard: DIN,EN,ASTM,BS,JIS,GB,etc.
DN: 15-1200 Colour: Silver

stainless steel 1.4301 90 Degree LR Elbow ASTM b16.9 1inch STD pipe Fitting



1.Stainless steel elbow
2.sch5s-schxxs
3.ISO9001
4.Market:America,Africa,Middle East,Southeast of Asia

Elbow Type Stainless steel elbow ,45/90/180 welded/seamless elbow; return elbow
Standard ASME/ANSI B16.9
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacturing process Push, Press, Forge, Cast, etc.
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.





4550;

347H/UNS S34709/1.4912;

348/UNS S34800;

Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;

Duplex steel

ASTM A182 F51/S31803/1.4462;

ASTM A182 F53/S2507/S32750/1.4401;

ASTM A182 F55/S32760/1.4501/Zeron 100;

2205/F60/S32205;

ASTM A182 F44/S31254/254SMO/1.4547;

17-4PH/S17400/1.4542/SUS630/AISI630;

F904L/NO8904/1.4539;

725LN/310MoLN/S31050/1.4466

253MA/S30815/1.4835;

Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800

Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.

Welcome to contact us.









Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Cap Length
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625   1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438   1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00





Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00

Stainless Steel 1.4301 90 Degree LR Elbow ASTM B16.9 1 Inch STD Pipe Fitting
