90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight

China 90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight supplier
90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight supplier 90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight supplier 90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight supplier 90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight supplier

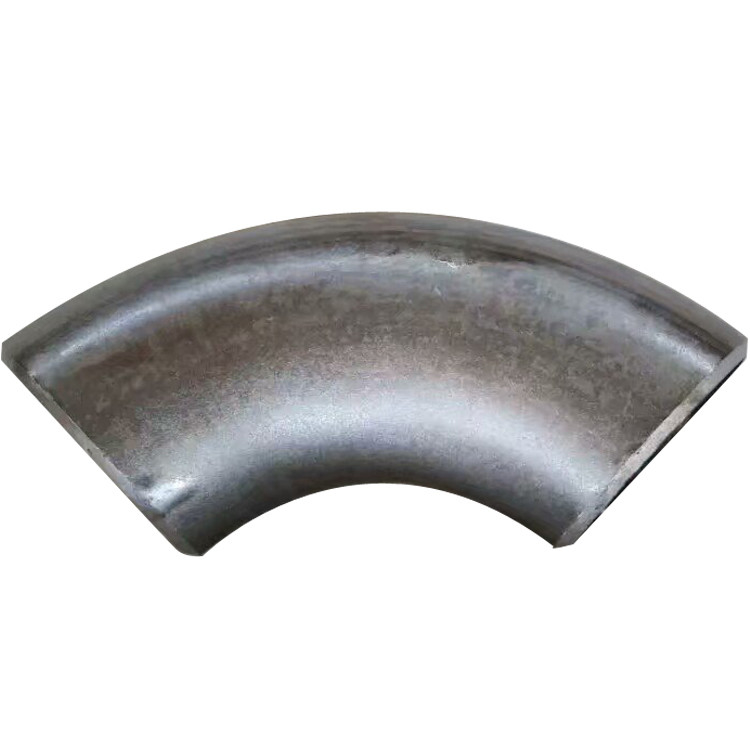

Large Image :  90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight

Product Details:

Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Elbow

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Packing by wooden case
Delivery Time: 10-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Size: Standard Size Material Grrade: Inconel 718
Type: Seamless Or Weld Standard: DIN,EN,ASTM,BS,JIS,GB,etc.
DN: 15-1200 Colour: Silver

90 Degree elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 standard weight



1. Inconel alloy elbow
2.sch5s-schxxs
3.ISO9001
4.Market:America,Africa,Middle East,Southeast of Asia



Inconel Series Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668
Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856
Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669
Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
Hastelloy Series Hastelloy B / UNS N10001
Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617
Hastelloy C
Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610
Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602
Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819
Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Incoloy Series Incoloy 925/UNS N09925-Oil
Incoloy 825 / UNS N08825 / NS142 / W.Nr 2.4858
Incoloy 800HT / UNS N08811 / W.Nr 1.4954
Incoloy 800H/UNS N08810/W.Nr 1.4876
Incoloy A-286 / UNS S66286 / W. Nr. 1.4980
Monel Series Monel 400 / UNS N04400 / W.Nr 2.4360
Monel K-500 / UNS N05500
Pure Nickel Series Nickel 200 / UNS N02200 / W.Nr 2.40
Nickel 201 / GB/T N02201 / W.Nr 2.4060
Other Nickel Alloys INVAR 36 / UNS K93600 / W.NR.1.3912 Ni36
Alloy 28 / Alloy 52 / Alloy 42/ Alloy 31
Alloy 20/W.NR.1.4562
Titanium and Alloys

Gr1(TA1), Gr2(TA2), Gr3(TA3), Gr4(TA4),Gr5(TC4), Gr6(TA7),
Gr7(TA9), Gr9(TA18), Gr11(TA9-1), Gr12(TA10), Gr23(TC4 ELI),

TA19 (Ti-6Al-2Sn-4Zr-2Mo-0.1Si), TB5(Ti-15V-3Cr-3Sn),

TB6(Ti-10V-2Fe-3Al), Ti5553 (TiAl5V5Mo5Cr3), TC16, T

C16, TC18, TC19, TC21, TC20 (Ti-6Al-7Nb), TC26 (Ti-13Nb-13Zr),
Ti-Nb (titanium niobium alloy)

Other Alloys Zirconium and Zirconium alloys (Zr702, Zr704, Zr705)



Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Cap Length
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625   1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438   1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00





Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00

90 Degree Elbow Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668 Standard Weight
