Bend Stainless Steel Street Elbow , 1 - 48 Inch Pipe Fittings Elbow

Basic Information

Place of Origin:	China
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	Elbow

Minimum Order Quantity:	1pc
Price:	1USD
Packaging Details:	Packing by wooden case
Delivery Time:	10-35days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	3,0000pcs per month

Get Best Price Contact Now

Size:	1-48 Inch	Material Grrade:	Alloy Steel WP12
Type:	Seamless Or Weld	Standard:	DIN,EN,ASTM,BS,JIS,GB,etc.
DN:	15-1200	Colour:	Silver
Highlight:	Stainless Steel 90 Degree Elbow , Pipe Fittings Elbow

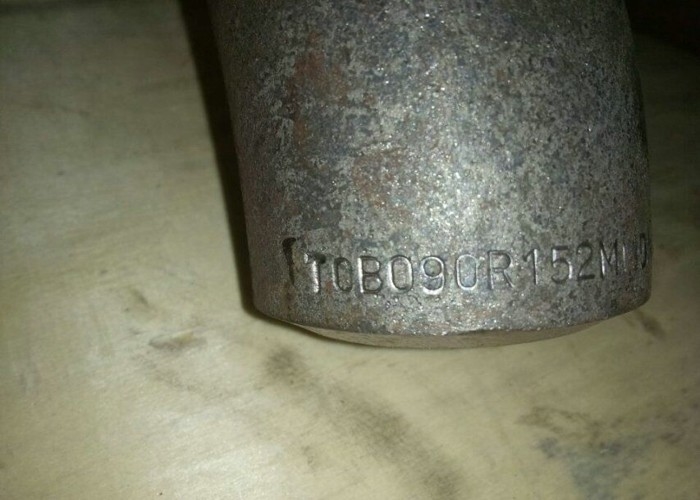

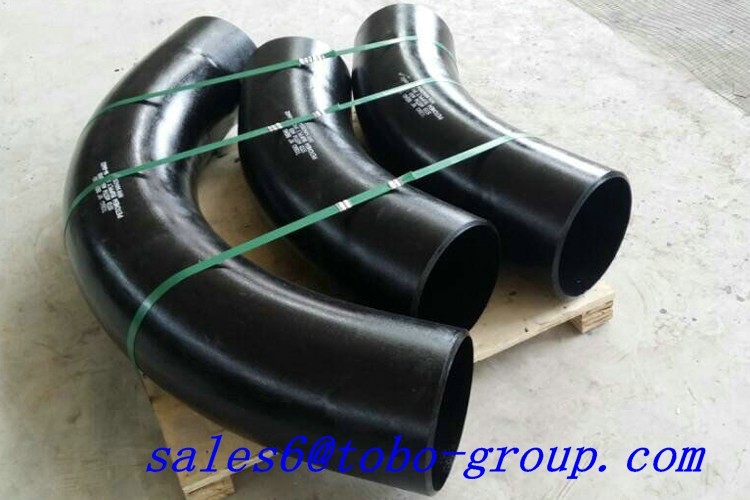

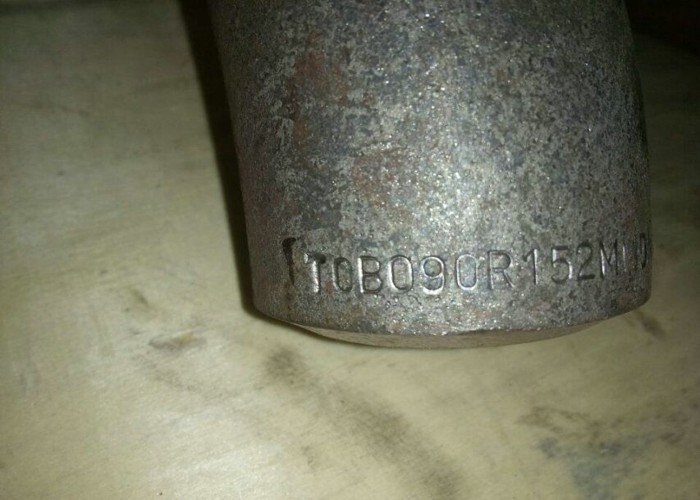

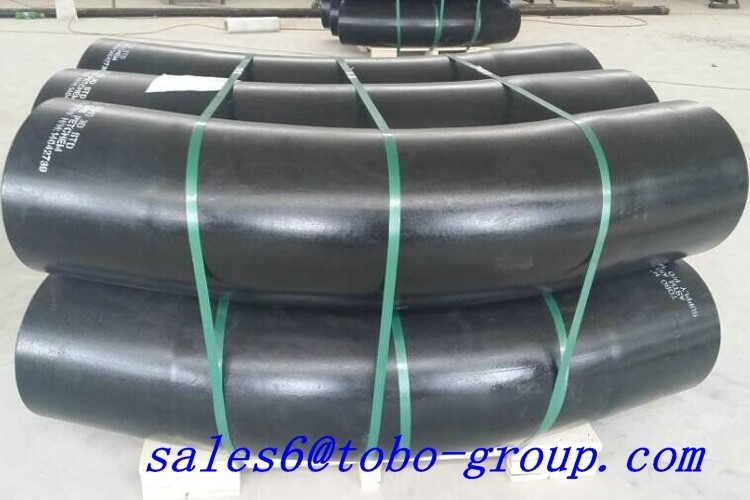

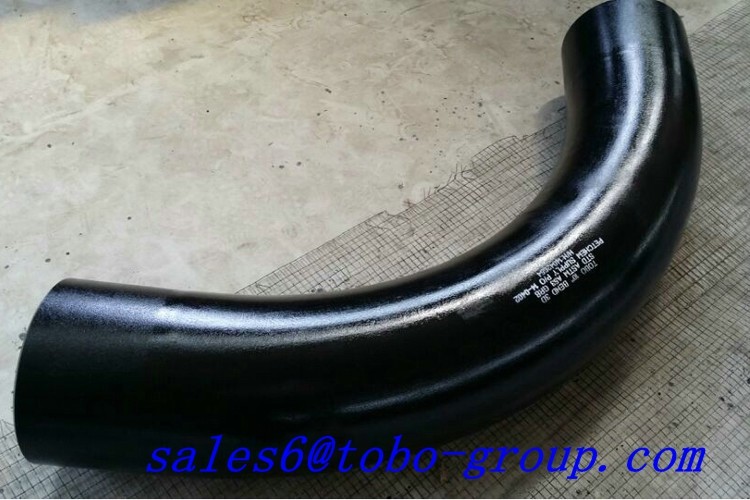

WP12 Alloy steel butt weld 3D bend 20 IN STD ASTM A234 steel pipe fitting

1.Alloy steel elbow
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

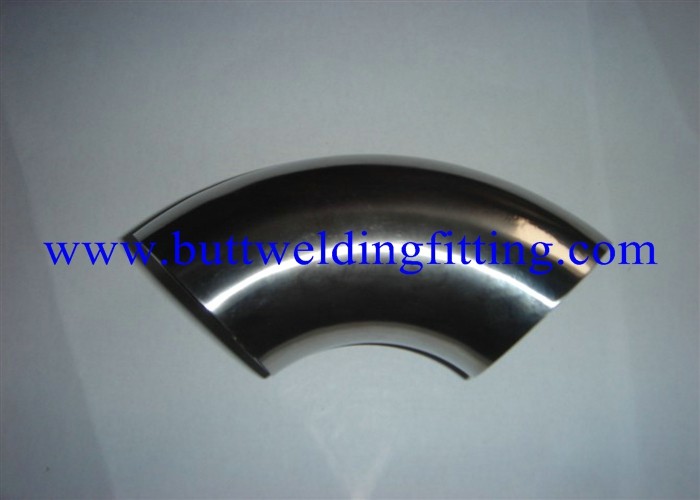

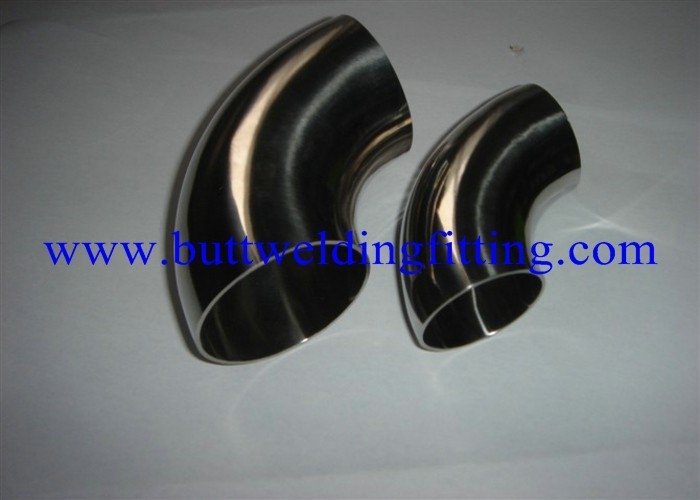

Elbow Type	Stainless steel elbow ,45/90/180 welded/seamless elbow; return elbow
Standard	ASME/ANSI B16.9
Size	1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness	Sch5~Sch160XXS
Manufacturing process	Push, Press, Forge, Cast, etc.
Material	Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel	ASTM A234 WPB, WPC;
Stainless steel	304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1. 4550; 347H/UNS S34709/1.4912; 348/UNS S34800;
Alloy steel	ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9;
Duplex steel	ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835;
Nicke
Package	Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ	1pcs
Delivery time	10-100 days depending on quantity
Payment terms	T/T or Western Union or LC
Shipment	FOB Tianjin/Shanghai, CFR, CIF, etc
Application	Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks	Other materials and drawings are available.
Welcome to contact us.

Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Wall Thickness (T)				90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
Unit : inch Nominal Pipe Size	Outside Dia. (OD)	Sch.5S	Sch.10S	Sch.40S	Sch.80S	90^{o L/R Elbow Center To End A}	45^{o L/R Elbow Center To End B}	90^{o S/R Elbow Center To End A}	Tees Center To Ends C.M	Cap Length E
1/2	0.840	0.065	0.083	0.109	0.147	1.50	0.625		1.00	1.00
3/4	1.050	0.065	0.083	0.113	0.154	1.12	0.438		1.13	1.00
1	1.315	0.065	0.109	0.133	0.179	1.50	0.875	1.00	1.50	1.50
1-1/4	1.660	0.065	0.109	0.140	0.191	1.88	1.00	1.25	1.88	1.50
1-1/2	1.900	0.065	0.109	0.145	0.200	2.25	1.12	1.50	2.25	1.50
2	2.375	0.065	0.109	0.154	0.218	3.00	1.38	2.00	2.50	1.50
2-1/2	2.875	0.083	0.120	0.203	0.276	3.75	1.75	2.50	3.00	2.00
3	3.500	0.083	0.120	0.216	0.300	4.50	2.00	3.00	3.38	2.50
4	4.500	0.083	0.120	0.237	0.337	6.00	2.50	4.00	4.13	3.00
5	5.563	0.109	0.134	0.258	0.375	7.50	3.12	5.00	4.88	3.50
6	6.625	0.109	0.134	0.280	0.432	9.00	3.75	6.00	5.63	4.00
8	8.625	0.109	0.148	0.322	0.500	12.00	5.00	8.00	7.00	5.00
10	10.750	0.134	0.165	0.375	0.500	15.00	6.25	10.00	8.50	6.00
12	12.750	0.156	0.180	0.375	0.500	18.00	7.50	12.00	10.00	7.00
14	14.000	0.156	0.250	0.375	0.500	21.00	8.75	14.00	11.00	7.50
16	16.000	0.165	0.250	0.375	0.500	24.00	10.00	16.00	12.00	8.00
18	18.000	0.165	0.250	0.375	0.500	27.00	11.25	18.00	13.50	9.00
20	20.000	0.188	0.250	0.375	0.500	30.00	12.50	20.00	15.00	10.00
24	24.000	0.218	0.250	0.375	0.500	36.00	13.50	24.00	17.00	12.00
