ASME B564 N06022 Nickel Alloy Flanges CL150 Pressure Butt Weld Installation

  • ASME B564 N06022 Nickel Alloy Flanges CL150 Pressure Butt Weld Installation
  • ASME B564 N06022 Nickel Alloy Flanges CL150 Pressure Butt Weld Installation
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASME B564 N06022
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PC/MONTH
Product Details
Product Name WeldoFlange Type WeldoFlange
Pressure CL150 Grade ASME B564 N06022
Standard Or Nonstandard Standard Size 2'' X 3/4''
Standard ASME/ANSI B16.5 Thickness STD
Highlight

forgings flanges and fittings

,

butt weld flanges
Leave a Message
Product Description

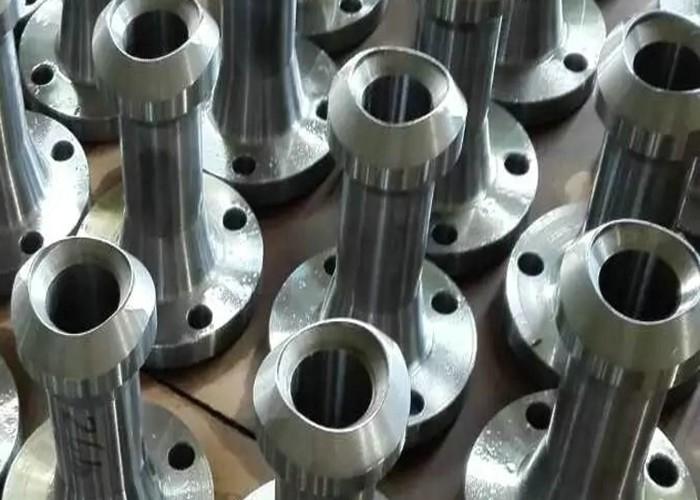

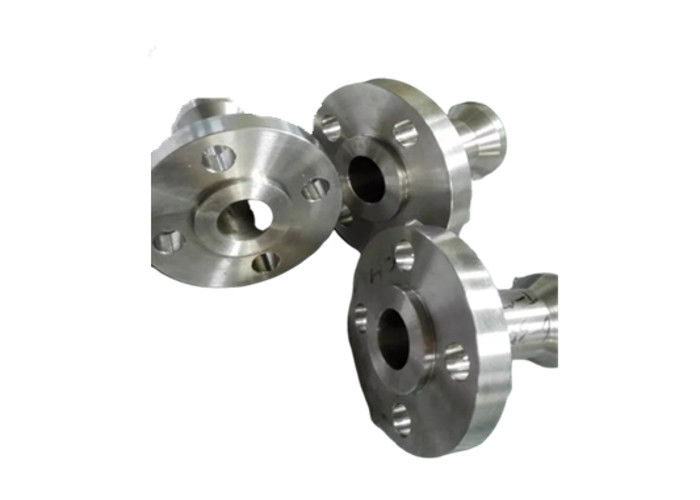

ASME B564 N06022 2'' x 3/4'' STD CL150 WeldoFlange Forged Nickel Alloy Steel Flange



ASME/ANSI B16.5 rf nipo-flange

A Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connections
On the run pipe side a nipoflange is designed like a weldolet. That means the branch connection
on the run pipe side is a welding connection.
On the other side there it has a flange connection. The flange connection can be designed according
to customers requirements (acc. To DIN or ANSI).



Product Name

Carbon steel / Stainless steel / Nickel Alloy Flanges

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Brand

TOBO

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Advantages

1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)



Products Introduce


All our products come in a variety of classes and material grade for any application.
This catalogue is specific for flanged outlets.
Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class
150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all
according to Shell Standard Drawing S38.090-C and can be installed on header pipes
from DN 3/4" up to 36".


Our flanged outlets are flanged branch connection featuring:
  • Reduced installation and manufacturing cost
  • Longer life under cyclic fatigue loading
  • Butt-weld installation in header pipe
  • Shape in compliance with Shell Standard Drawing S38.090-C
  • Flange dimension according to ASME B16.5



NICKEL ALLOY



Trade Name ASTM Pipe Pipe Fittings UNS Forging & Flanges
Monel@ 400 B165 B366 WPNC N04400 B564 N04400
Inconel@ 600 B167 B366 WPNCI N06600 B564 N06600
Inconel@ 625 B444 B366 WPNCMC N06625 B564 N06625
Incoloy@ 800 B163 B366 WPNIC N08800 B564 N08800
Incoloy@ 800H B407 B366 WPNIC10 N08810 B564 N08810
Incoloy@ 800HT B407 B366 WPNIC11 N08811 B564 N08811
Incoloy@ 825 B423 B366 WPNICMC N08825 B564 N08825
Hastelloy@ B2 B619/622 B366 WPHB-2 N10665 B564 N10665
Hastelloy@ C276 B619/622 B366 WPHC276 N10276 B564 N10276
Hastelloy@ C22 B619/622 B366 WPHC22 N06022 B564 N06022
Carpenter 20Cb-3@ B729 B366 WP20Cb N08820 B462 N08820
28@ B668   N08028


Chemical Composition

Nickel (plus cobalt) ......................................................99.0 min.
Copper........................................................................0.25 max.
Iron..............................................................................0.40 max.
Manganese .................................................................0.35 max.
Carbon........................................................................0.15 max.
Silicon .........................................................................0.35 max.
Sulfur ..........................................................................0.01 max
